C300
C300

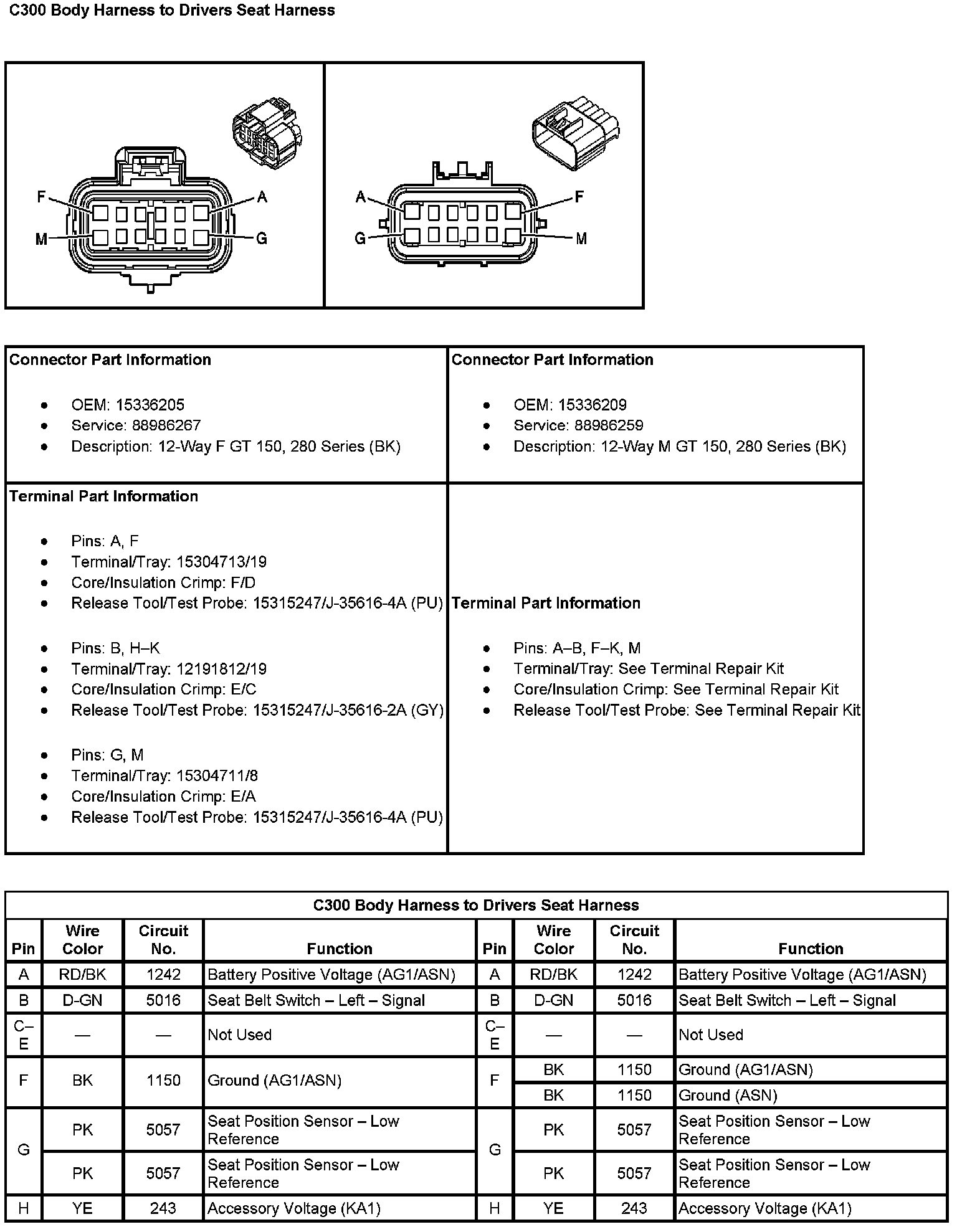

C300 Body Harness To Drivers Seat Harness (Pin A To H):
C300 Body Harness To Drivers Seat Harness (Pin J To M):
