Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C200 - C299 >> C216

C216

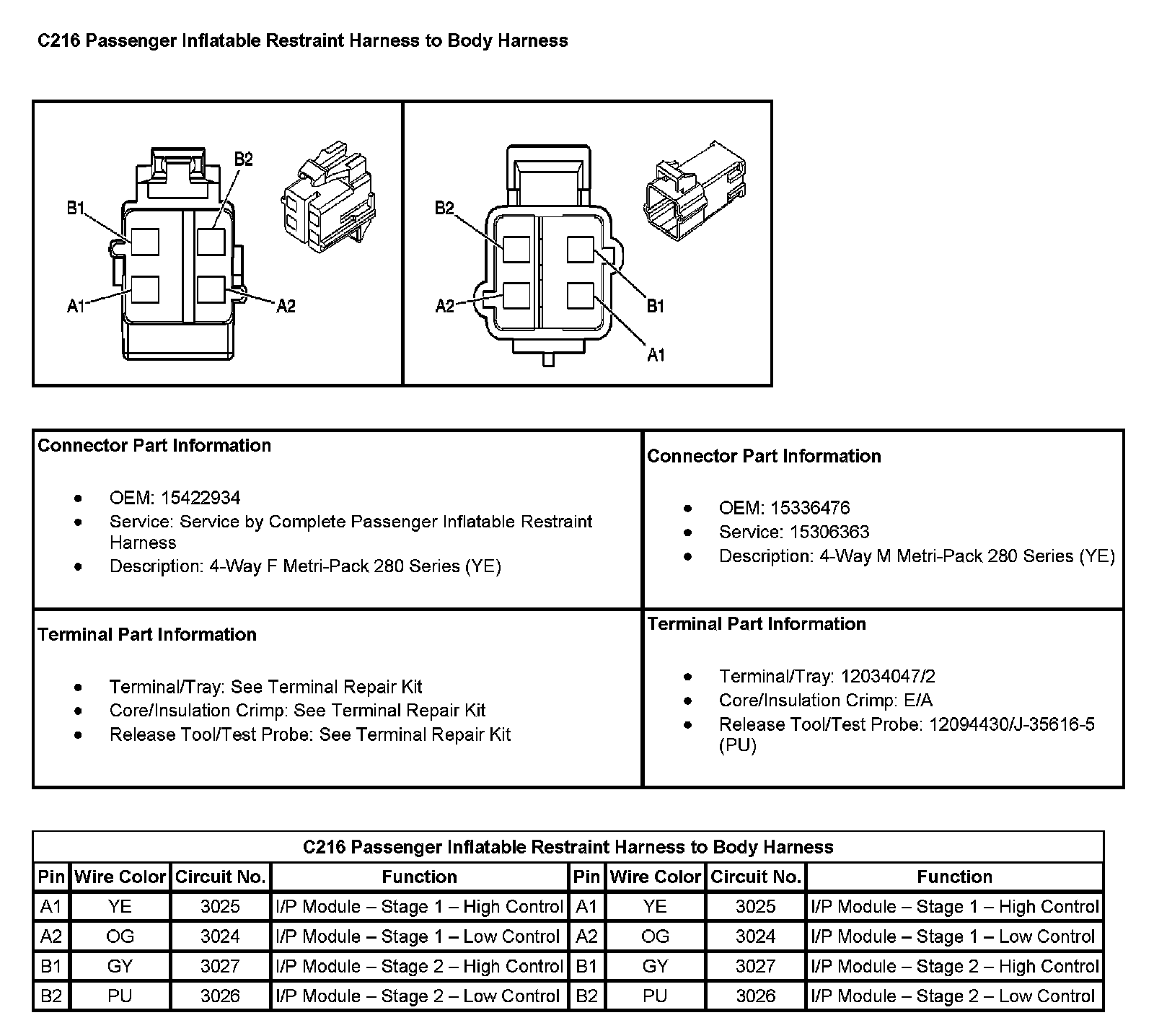

C216 Passenger Inflatable Restraint Harness To Body Harness (pin A1 To B2):
