C214

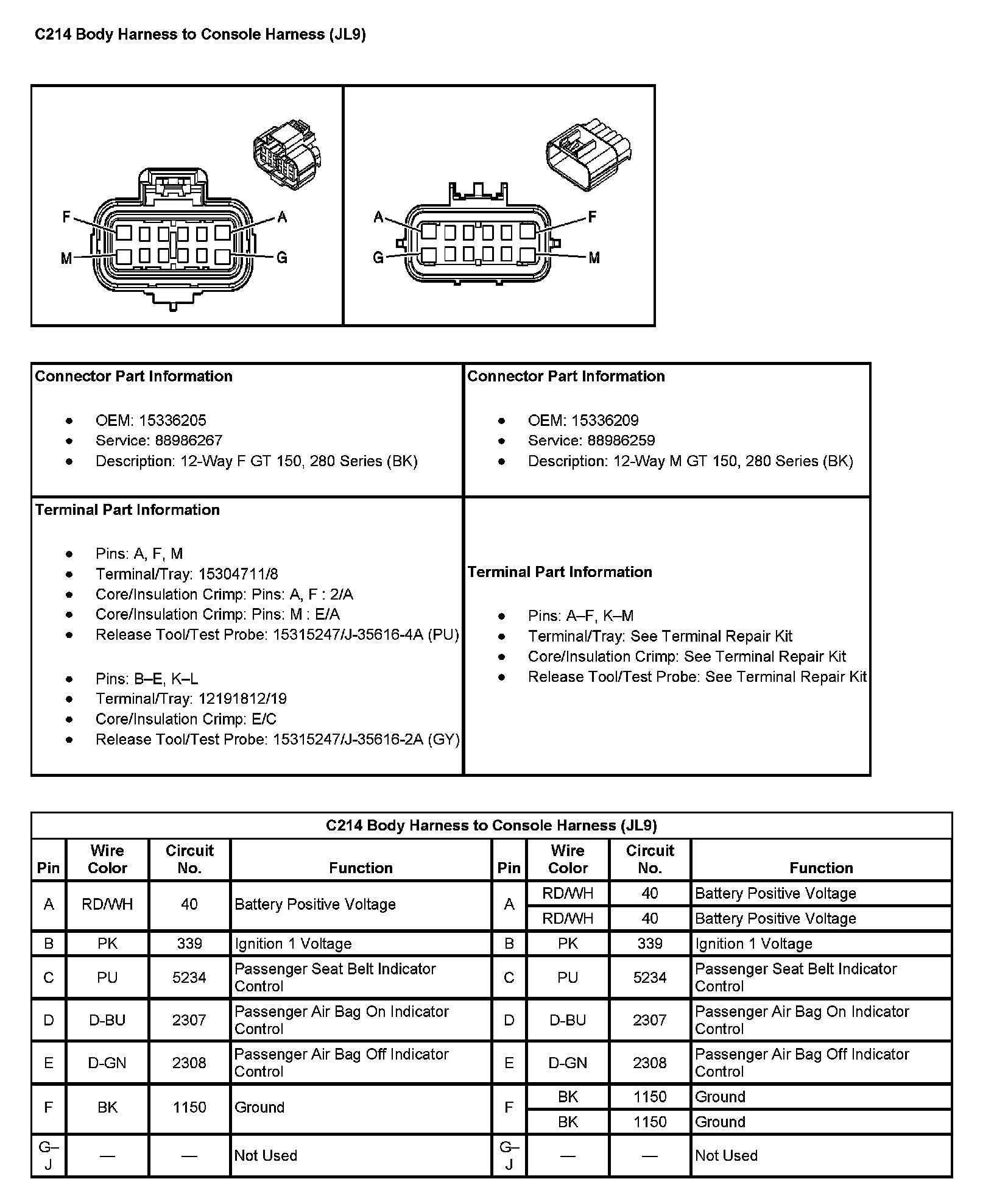

C214 Body Harness To Console Harness (With RPO Code JL9) (Pin A To J):



C214 Body Harness To Console Harness (With RPO Code JL9) (Pin K To M):

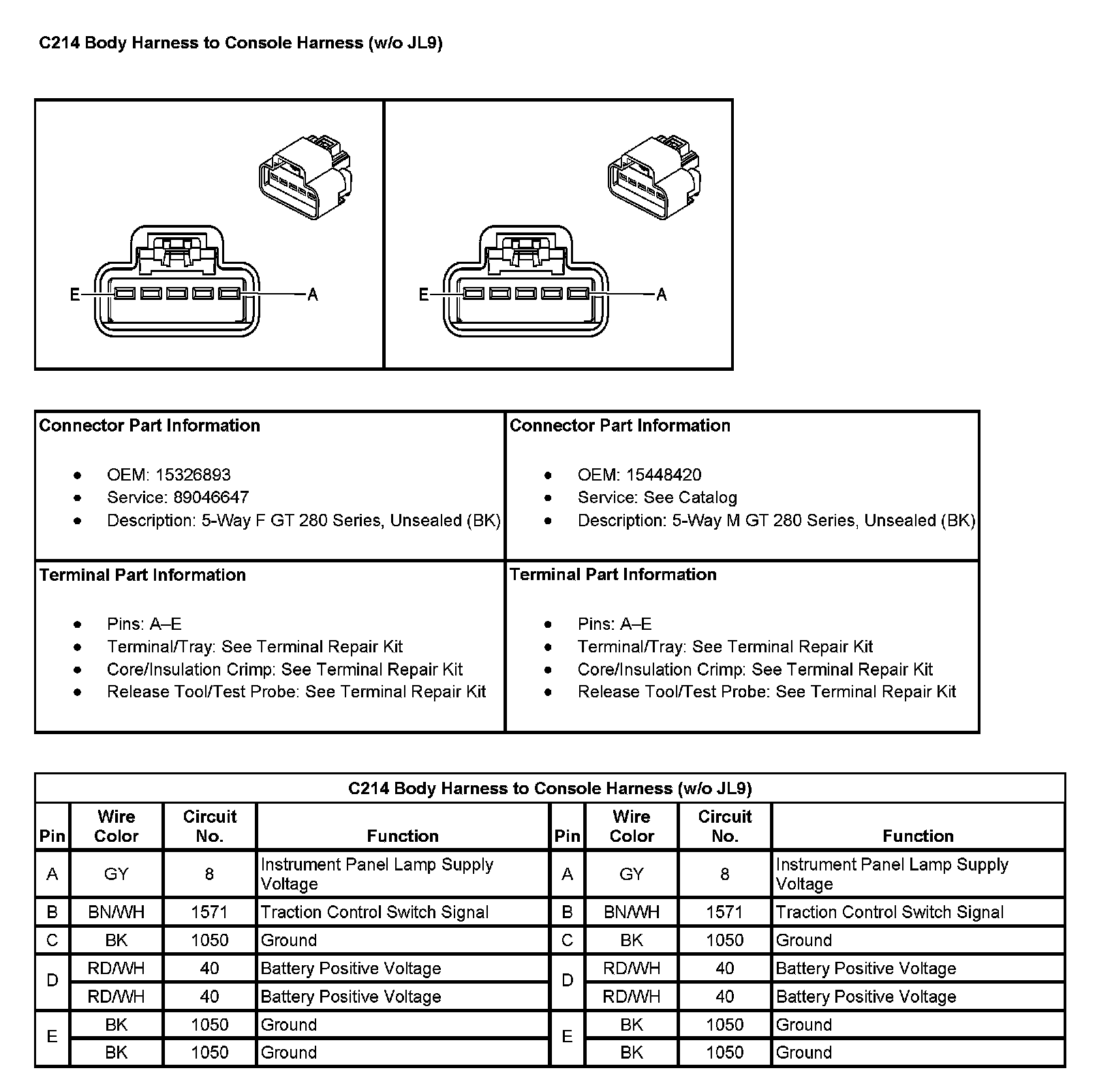

C214 Body Harness To Console Harness (Without RPO Code JL9) (Pin A To E):
