C200

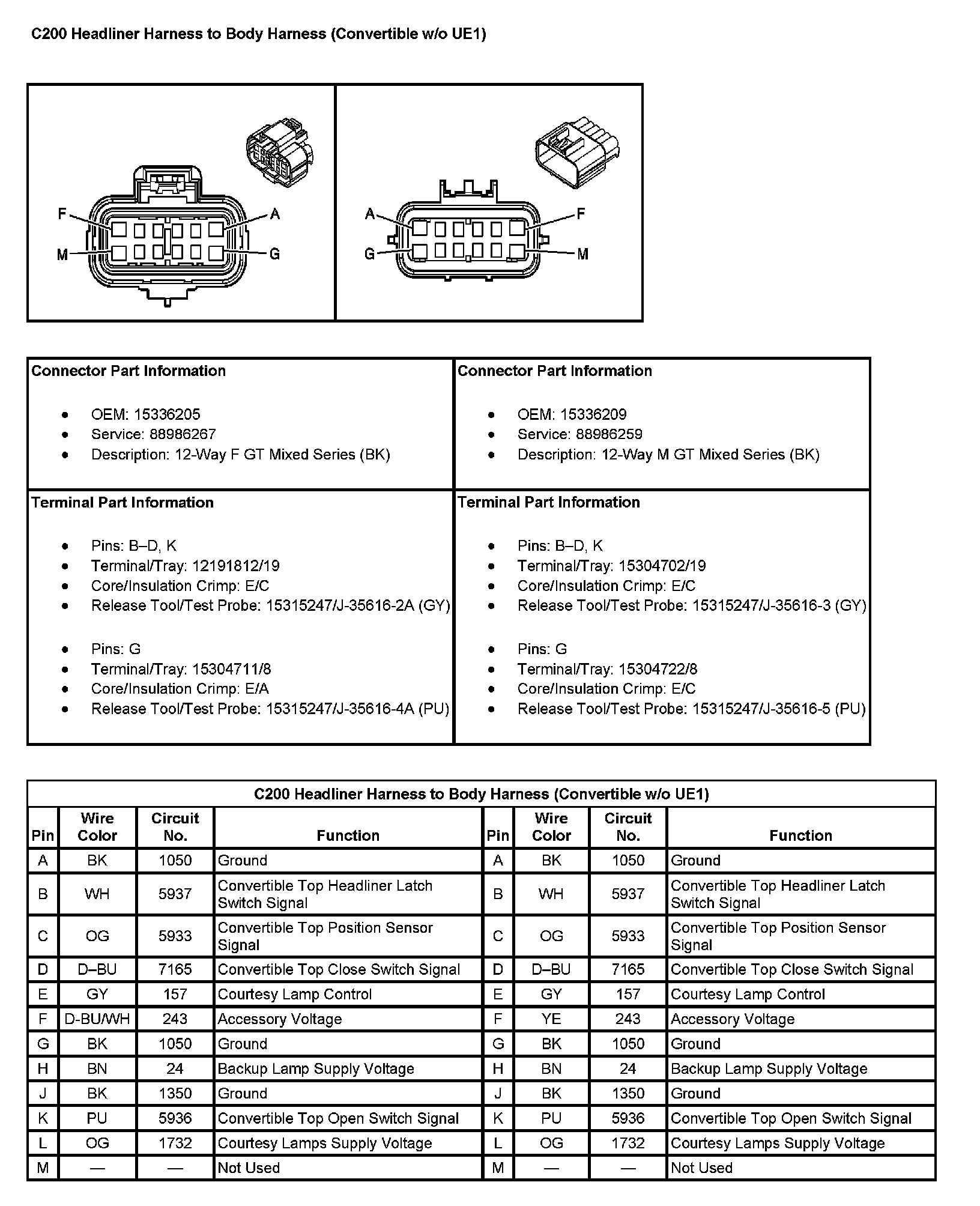

C200 Headliner Harness To Body Harness (Convertible Without RPO Code UE1):

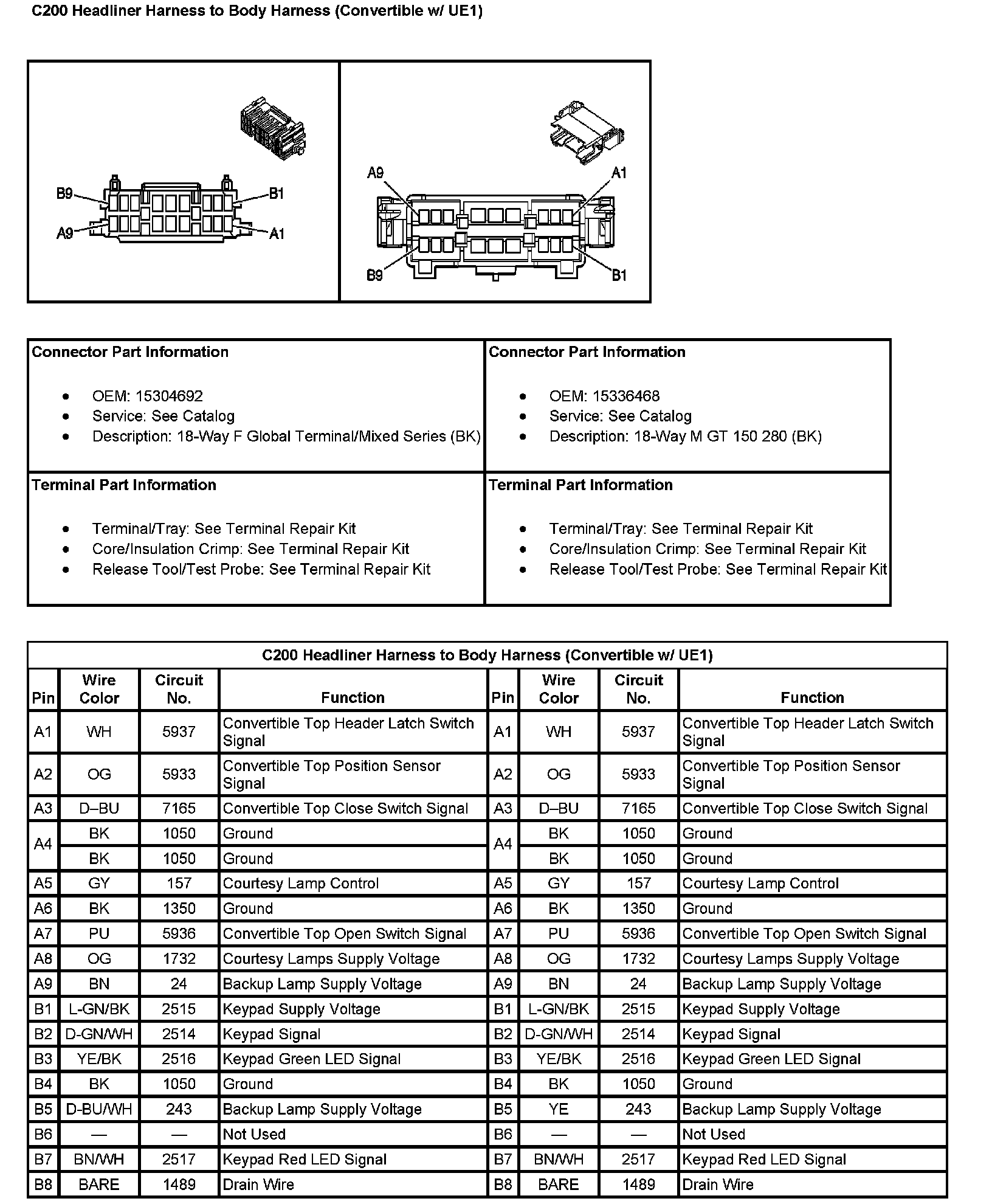

C200 Headliner Harness To Body Harness (Convertible With RPO Code UE1):



C200 Headliner Harness To Body Harness (Convertible With RPO Code UE1):
