Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C100 - C199 >> C101

C101

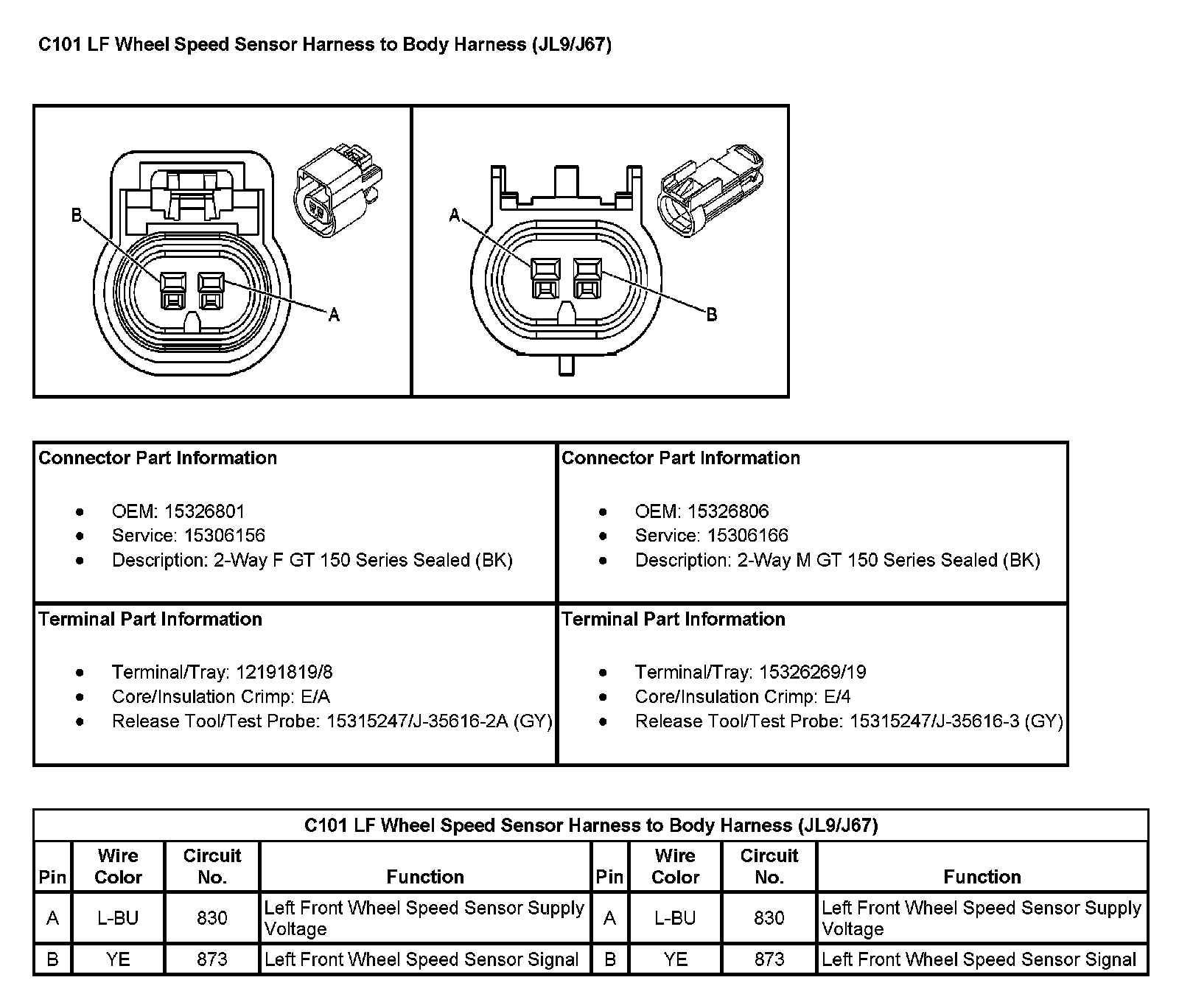

C101 LF Wheel Speed Sensor Harness To Body Harness (With RPO Codes JL9/J67):
