Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C400 - C499 >> C403

C403

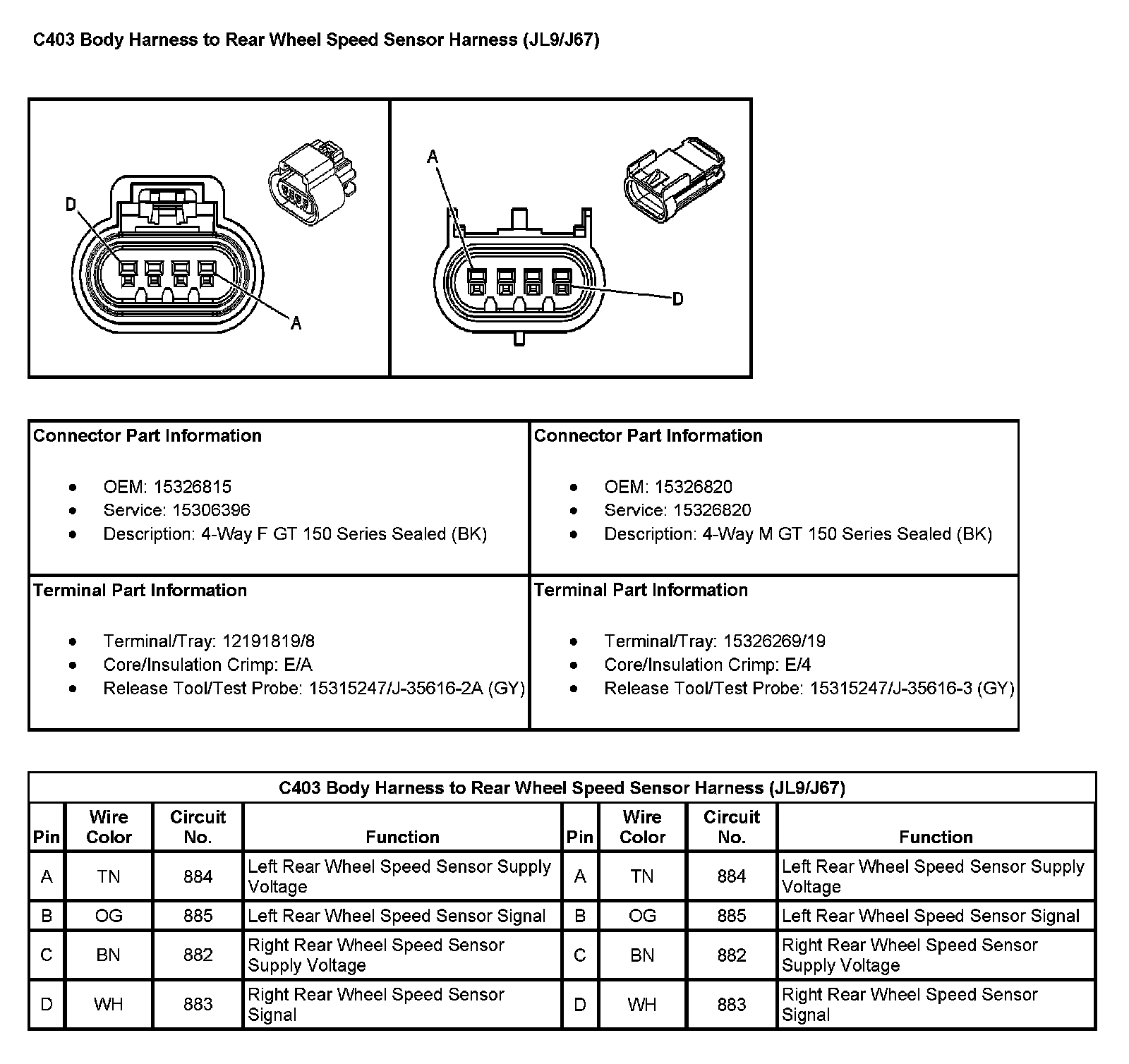

C403 Body Harness To Rear Wheel Speed Sensor Harness (With RPO Codes JL9/J67) (Pin A To D):
