Center Mounted Brake Lamp
Center Mounted Brake Lamp
Center High Mounted Stop Lamp (CHMSL) (Coupe):

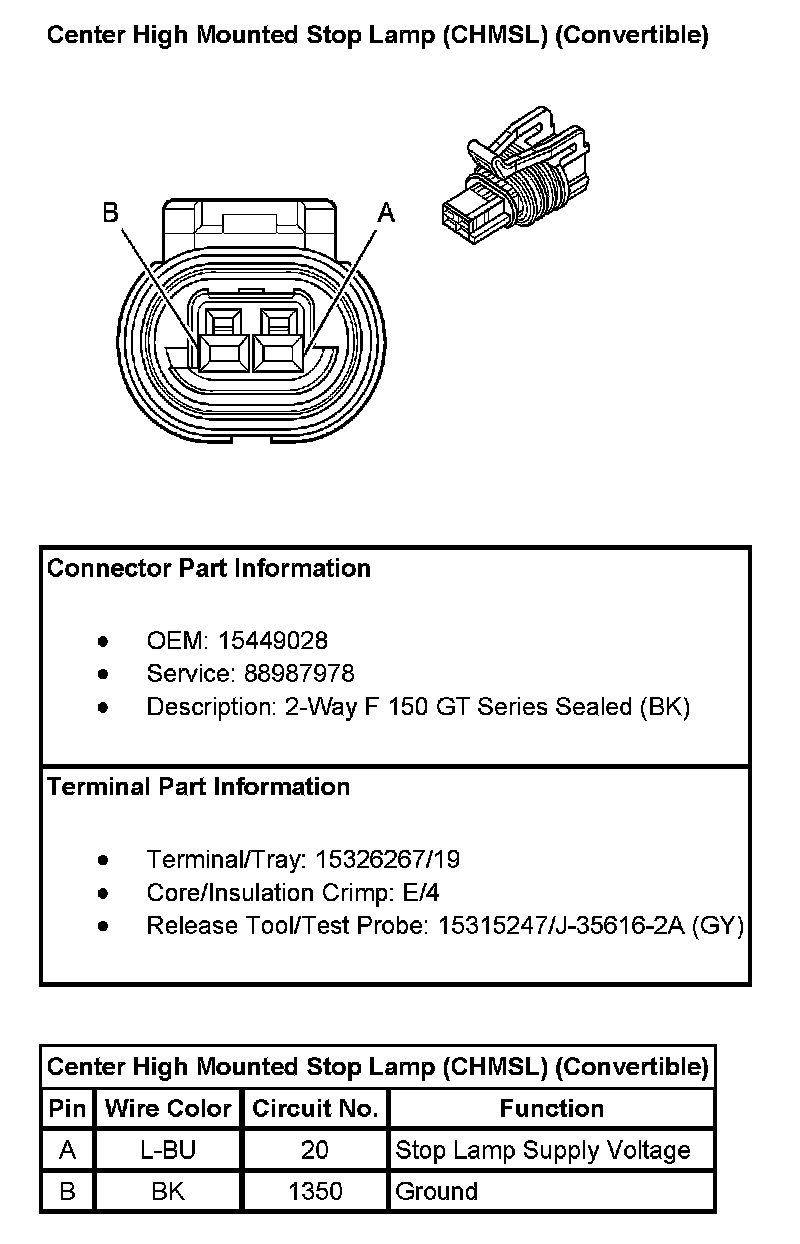

Center High Mounted Stop Lamp (CHMSL) (Convertible):
Center High Mounted Stop Lamp (CHMSL) (Sedan):
