Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Sensors and Switches - Brakes and Traction Control >> Parking Brake Warning Switch >> Locations

Parking Brake Warning Switch: Locations

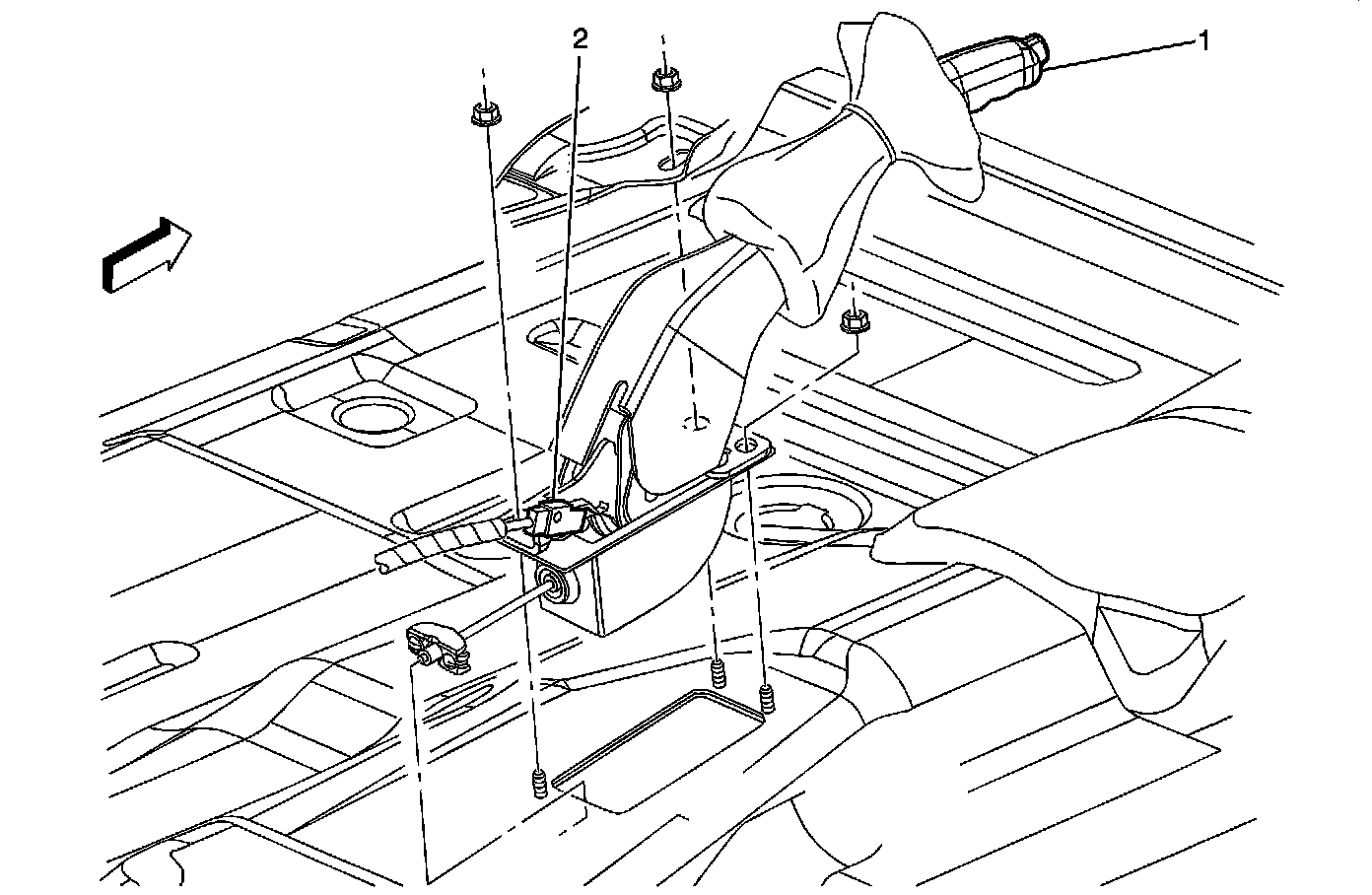

Park Brake Assembly




1 - Park Brake Lever Assembly
2 - Park Brake Switch
