Antenna Cable Replacement

Antenna Cable Replacement

Removal Procedure




1. Remove the rear seat back.
2. Remove the front and rear carpet for access to the wiring harness.

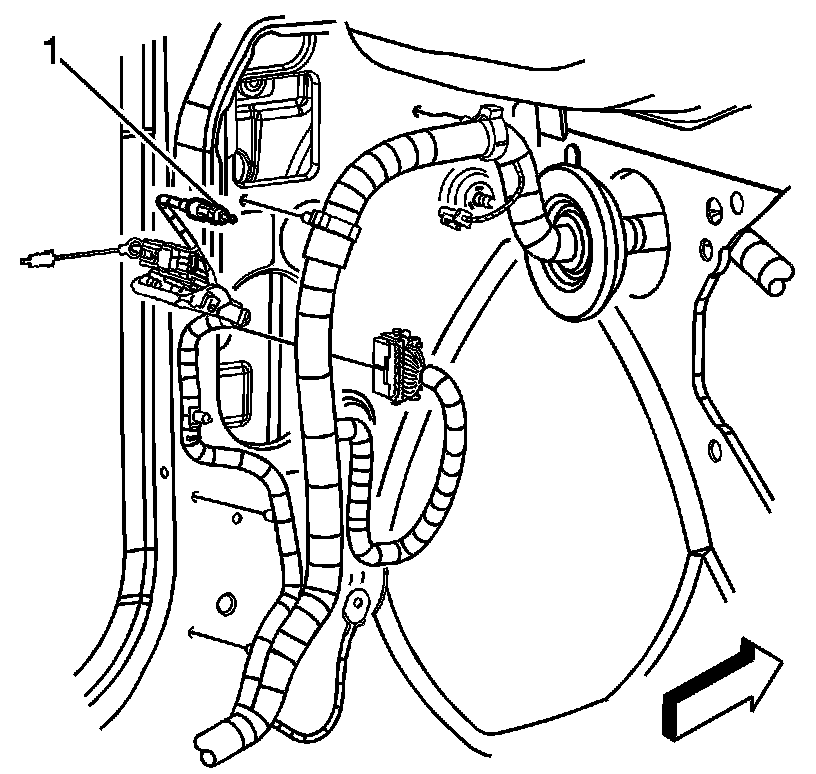

3. Disconnect the antenna cable (1) from the antenna extension lead at the instrument panel (I/P).
4. Cut off the visible end of the coaxial antenna cable (1) from the wiring harness in the front kick plate area.

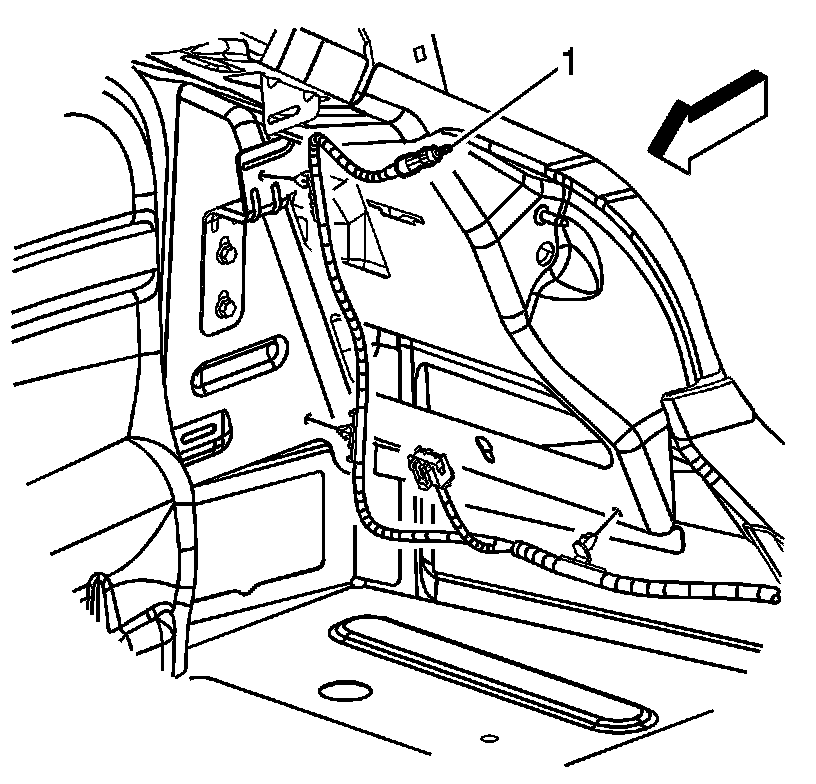

5. Disconnect the antenna lead (1) from antenna module/antenna base.
6. Cut off the visible end of the coaxial antenna cable (1) from the wiring harness at the rear.

Installation Procedure




1. Install the coaxial antenna cables into the vehicle.
2. Use electrical tape, or tie straps, to secure the antenna extension cable to the wiring harness.
Secure the cable to the harness at least every 150 mm (6 in).
3. Connect the antenna lead (1) to the I/P extension cable.




4. Connect the antenna lead (1) to the antenna module/antenna base.
5. Install the carpet.
6. Install the rear seat back.
