Park Brake Will Not Hold or Release (Drum)



Park Brake Will Not Hold or Release (Rear Drum Brakes)

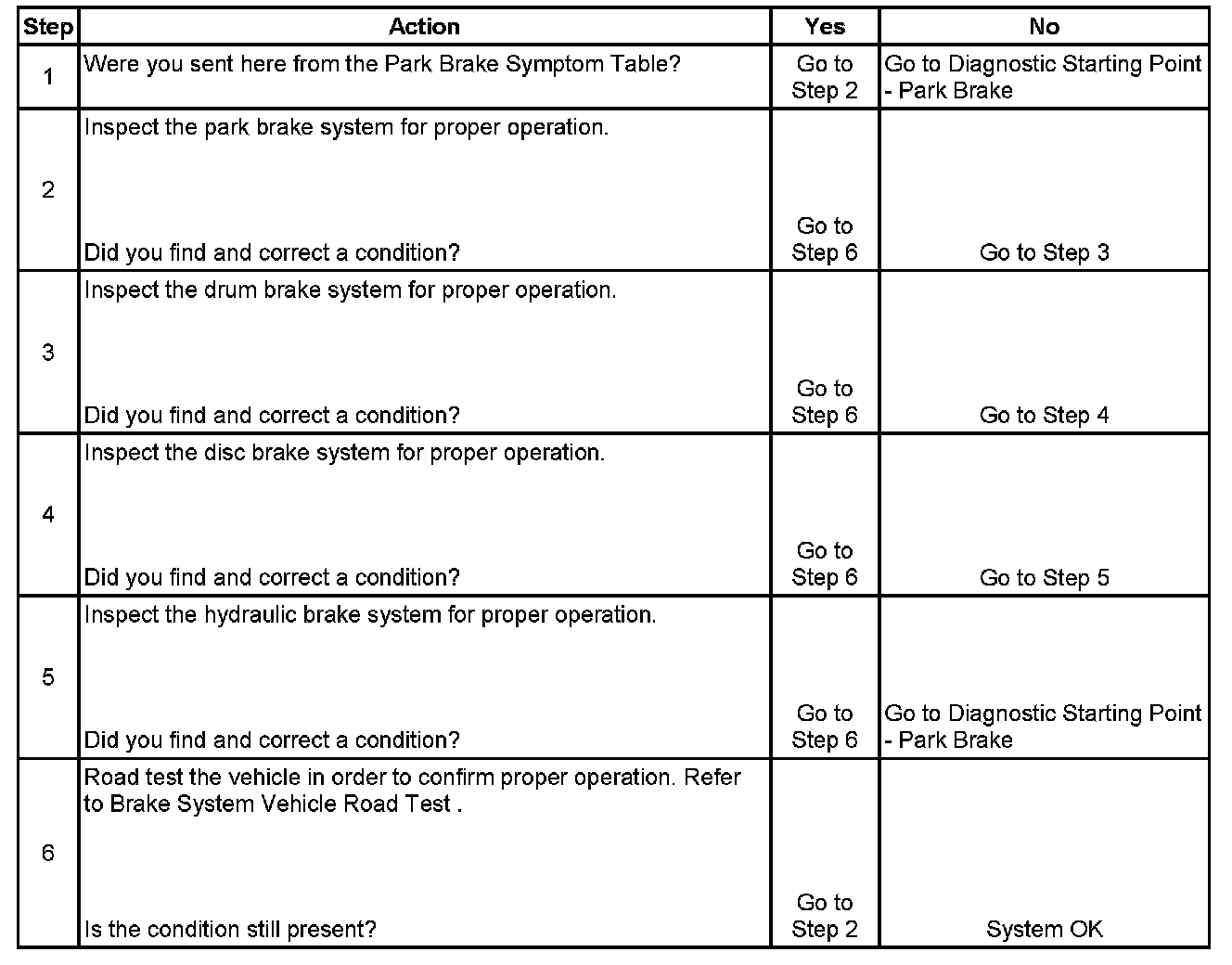

Step 1 - Step 6:
