Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

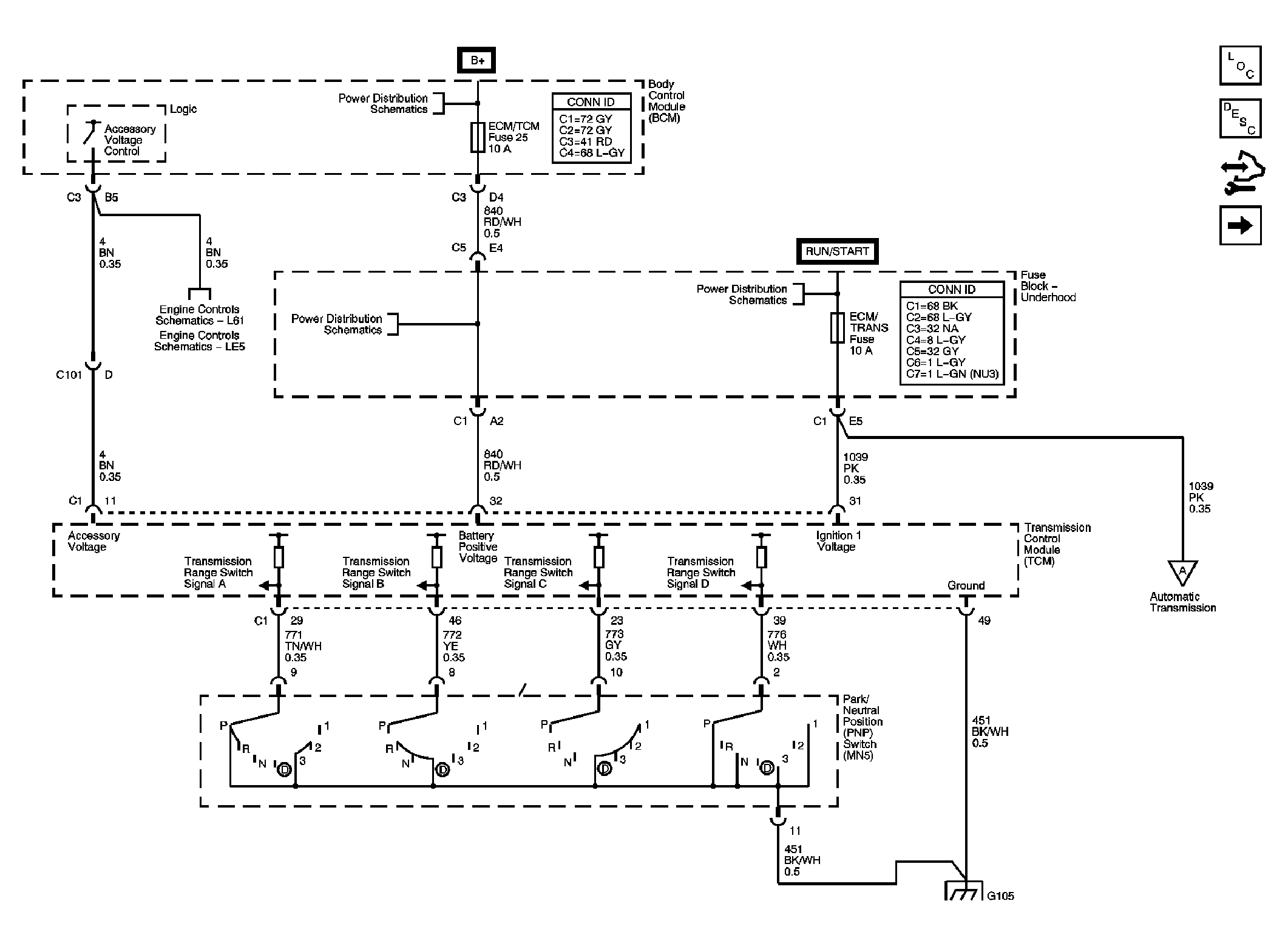

Fig 1: Power, Ground, PNP Switch
GM1784503Courtesy of GENERAL MOTORS CORP.

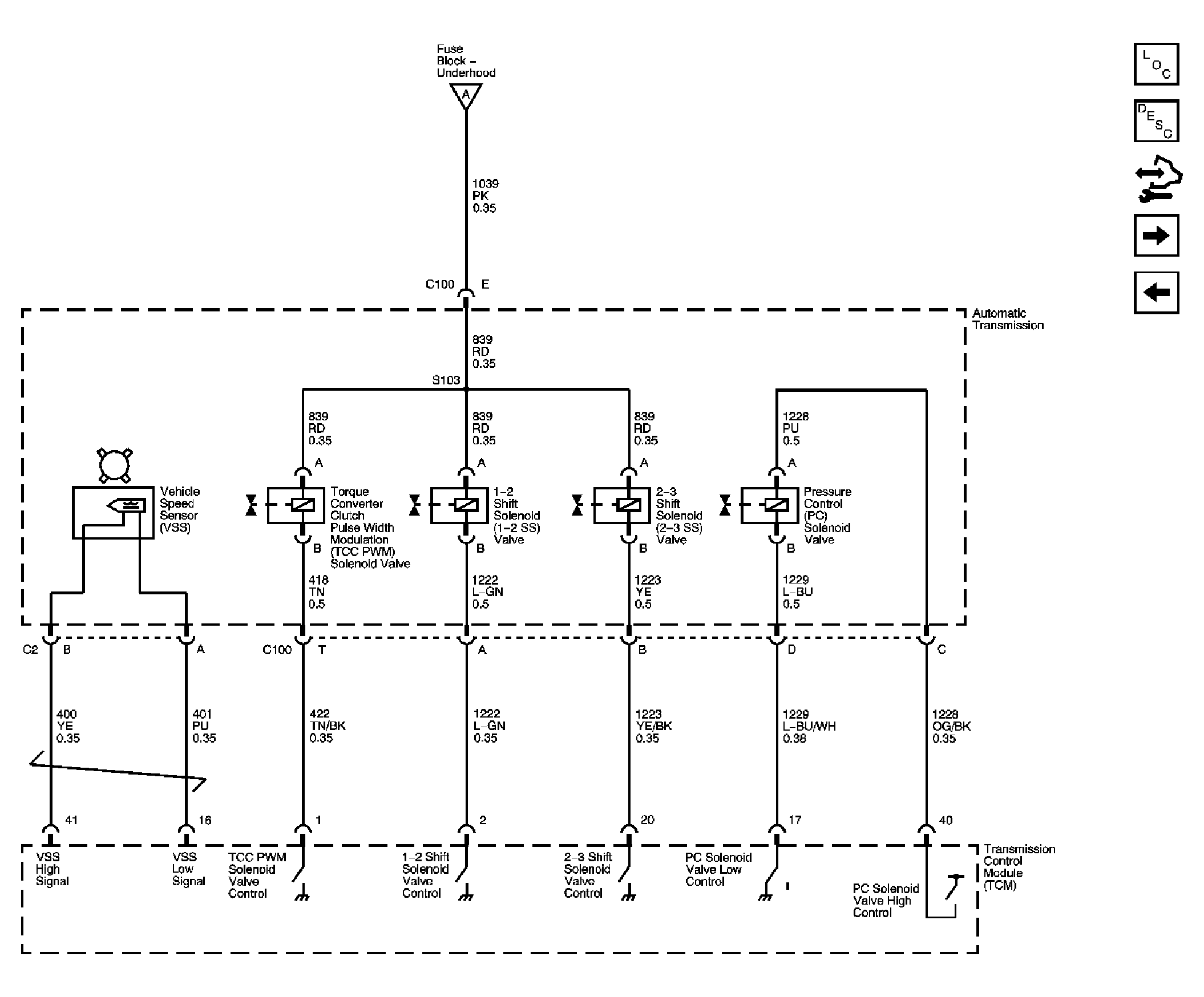

Fig 2: Solenoids, VSS
GM1784505Courtesy of GENERAL MOTORS CORP.

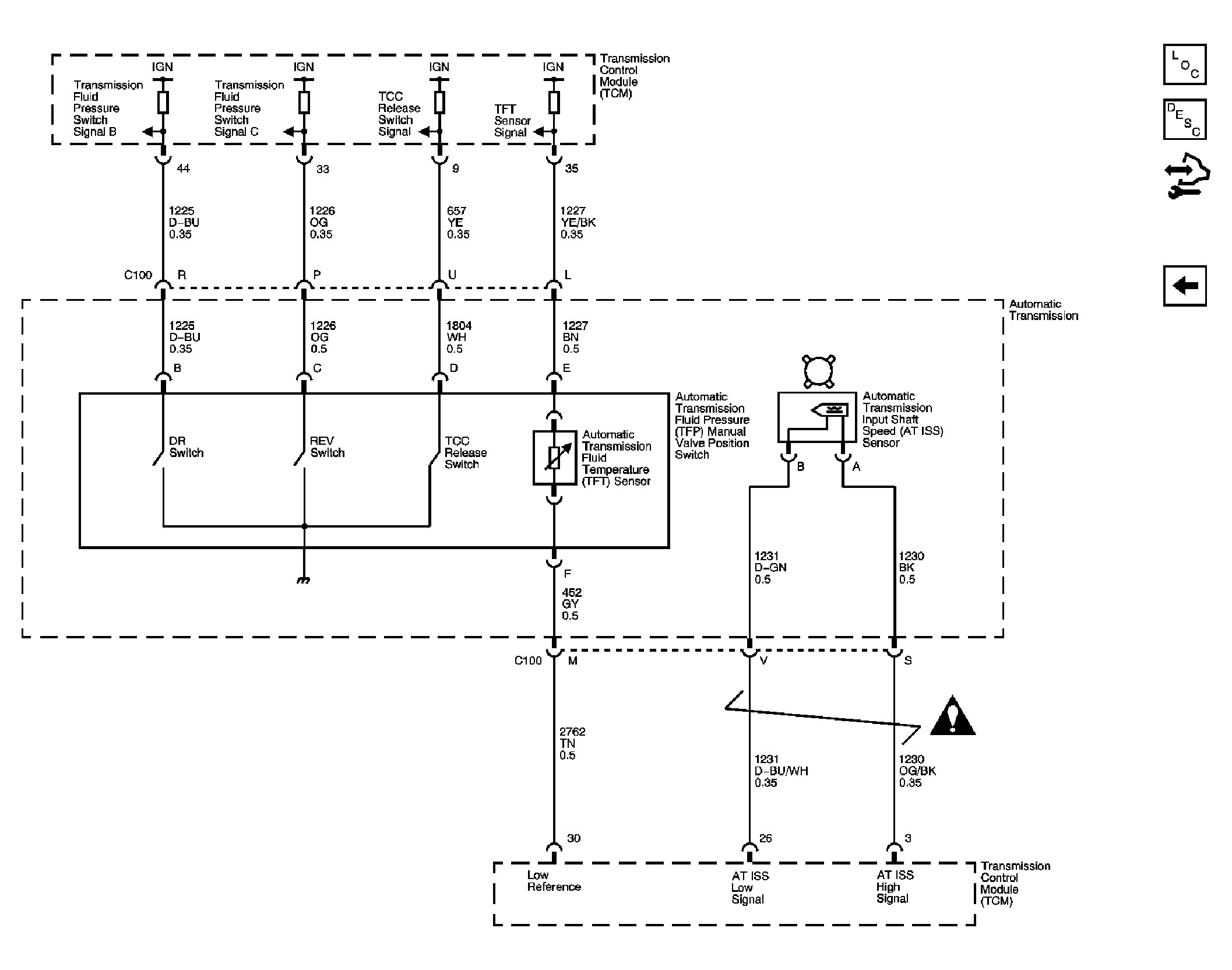

Fig 3: Switches, TFT, ISS, Sensors
GM1784506Courtesy of GENERAL MOTORS CORP.
