Engine Controls Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

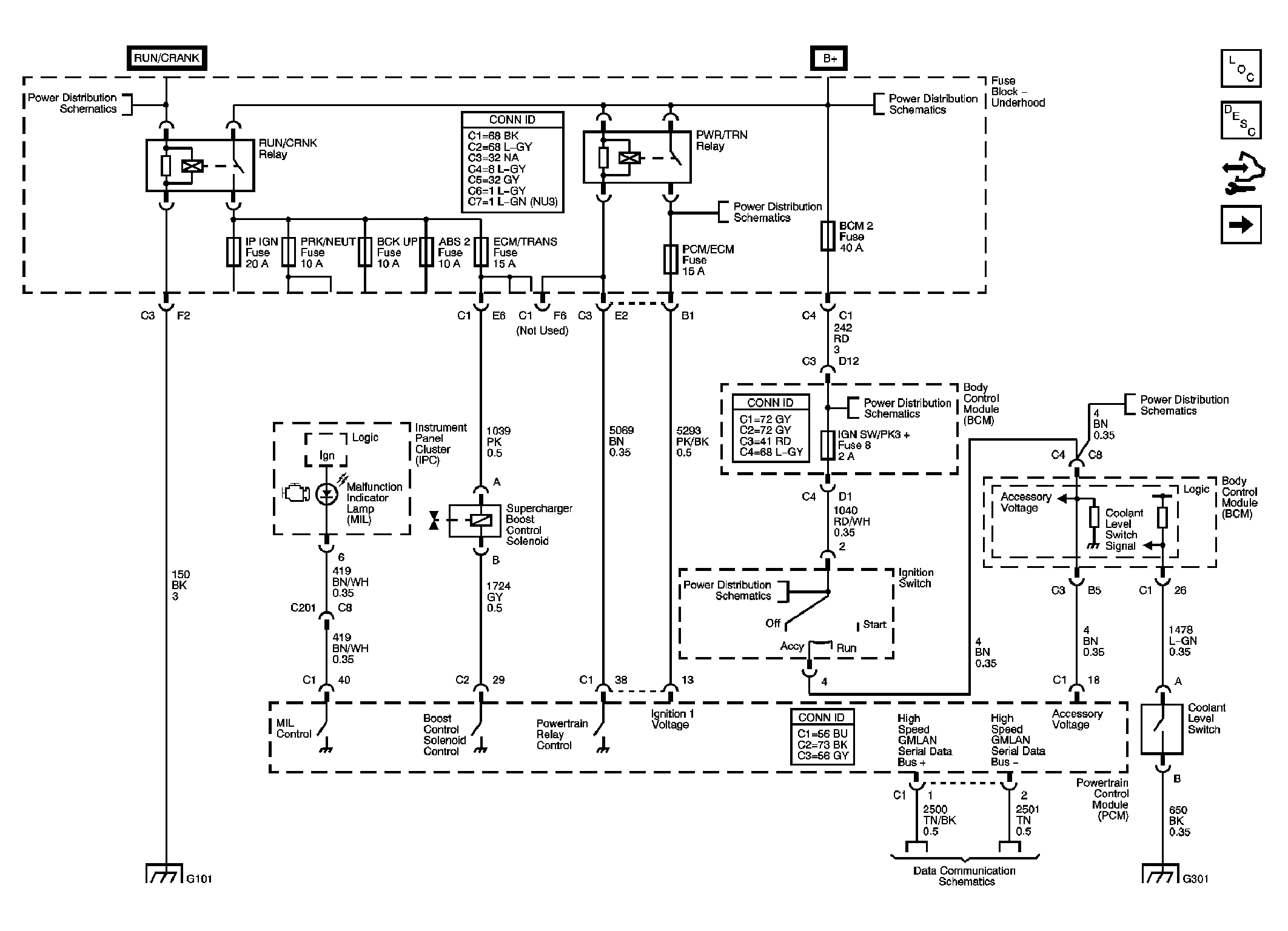

Fig 1: Power, Ground, MIL, Communication

Courtesy of GENERAL MOTORS CORP.

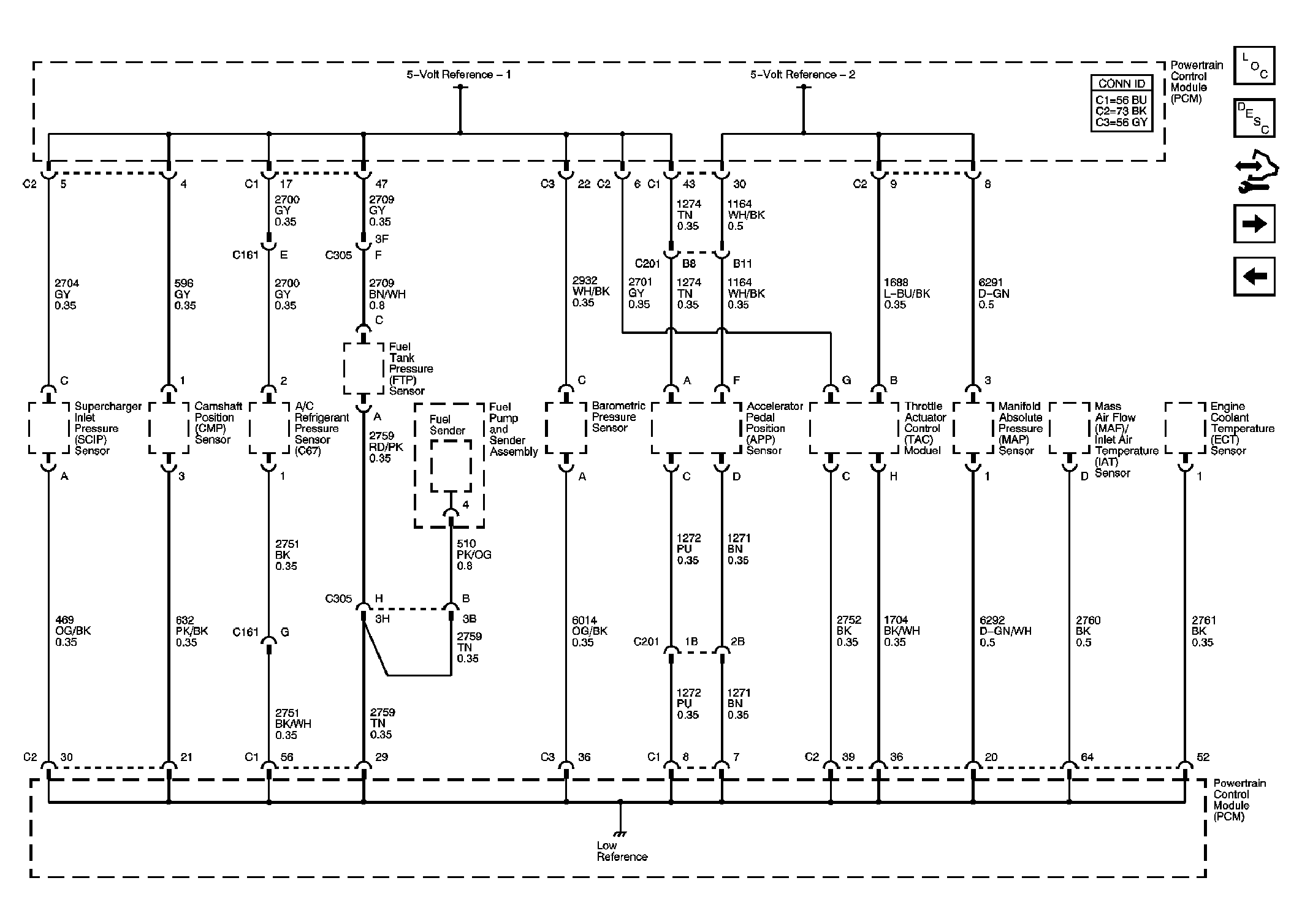

Fig 2: 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

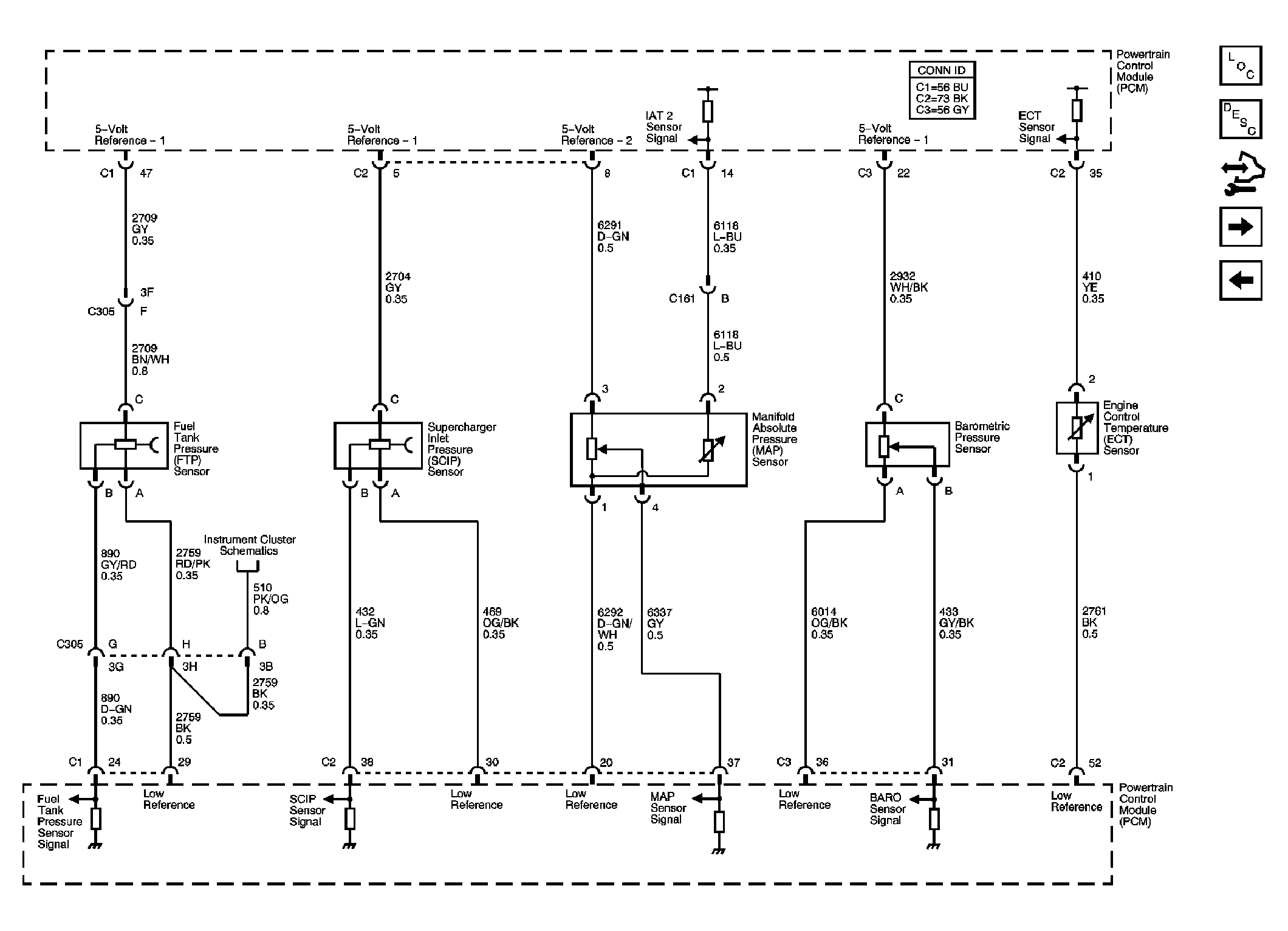

Fig 3: Engine Data Sensors - Pressure, Temperature

Courtesy of GENERAL MOTORS CORP.

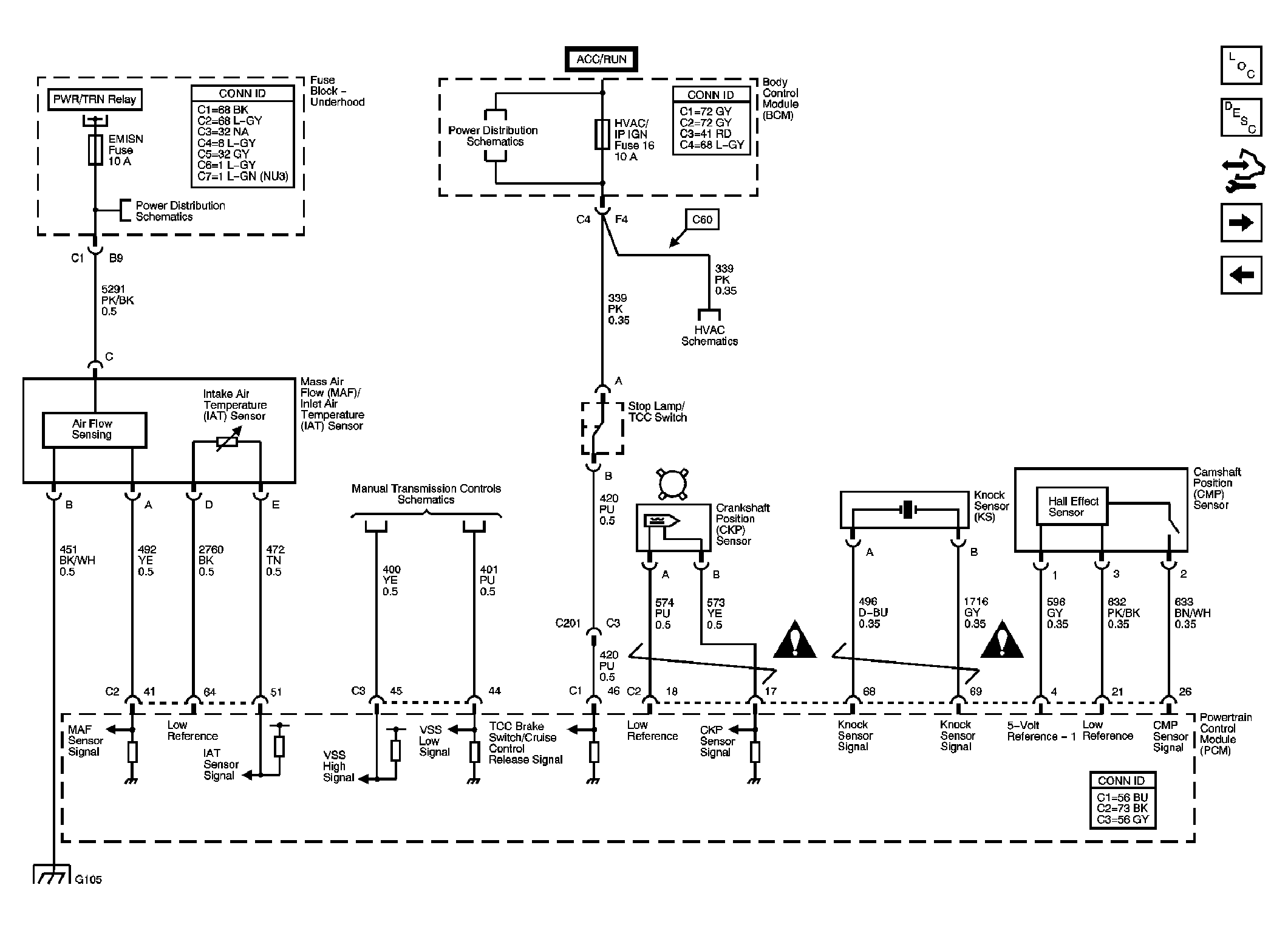

Fig 4: Engine Data Sensors - MAF/IAT, CKP, KS, CMP, VSS

Courtesy of GENERAL MOTORS CORP.

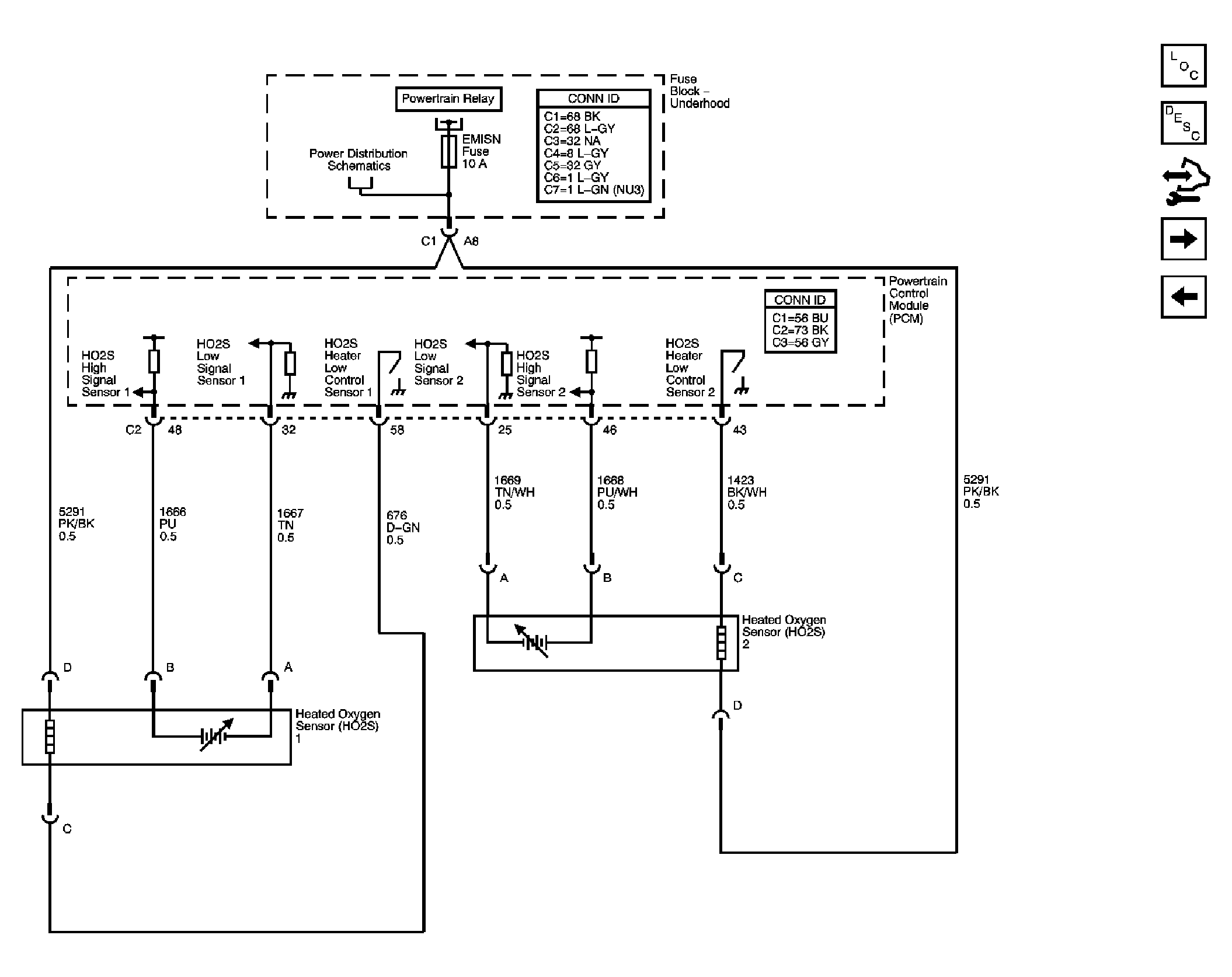

Fig 5: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

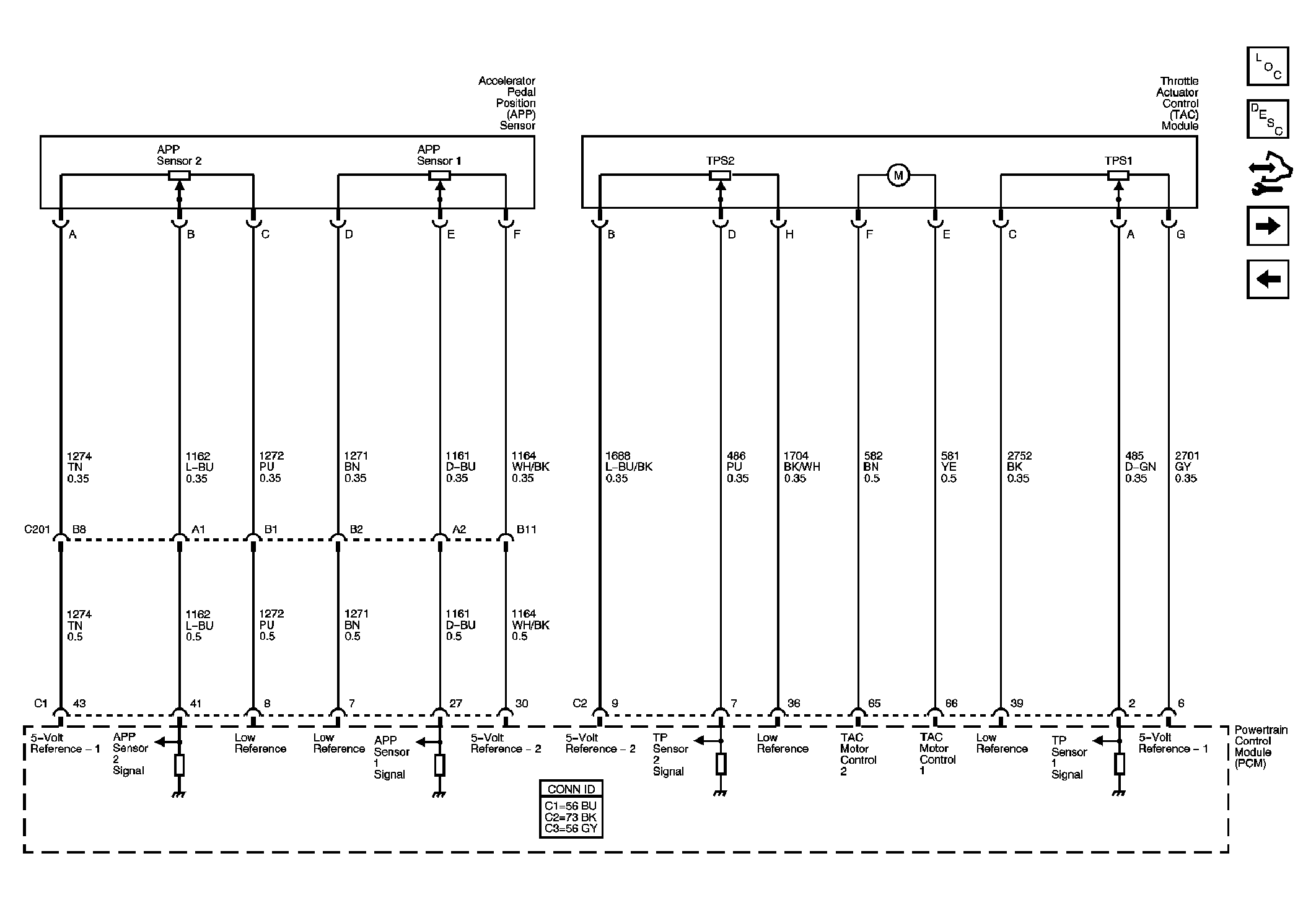

Fig 6: Engine Data Sensors - APP, TAC

Courtesy of GENERAL MOTORS CORP.

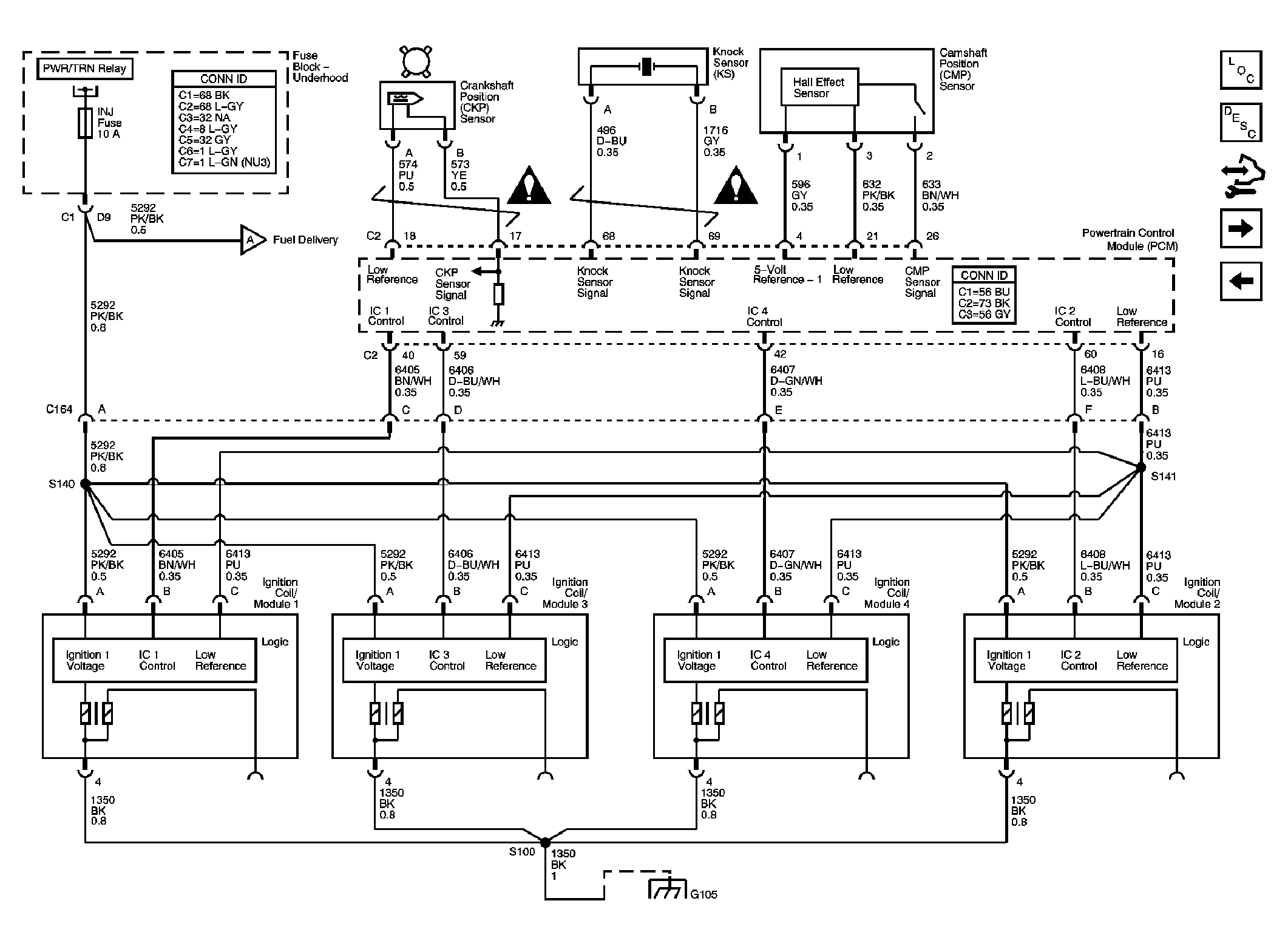

Fig 7: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

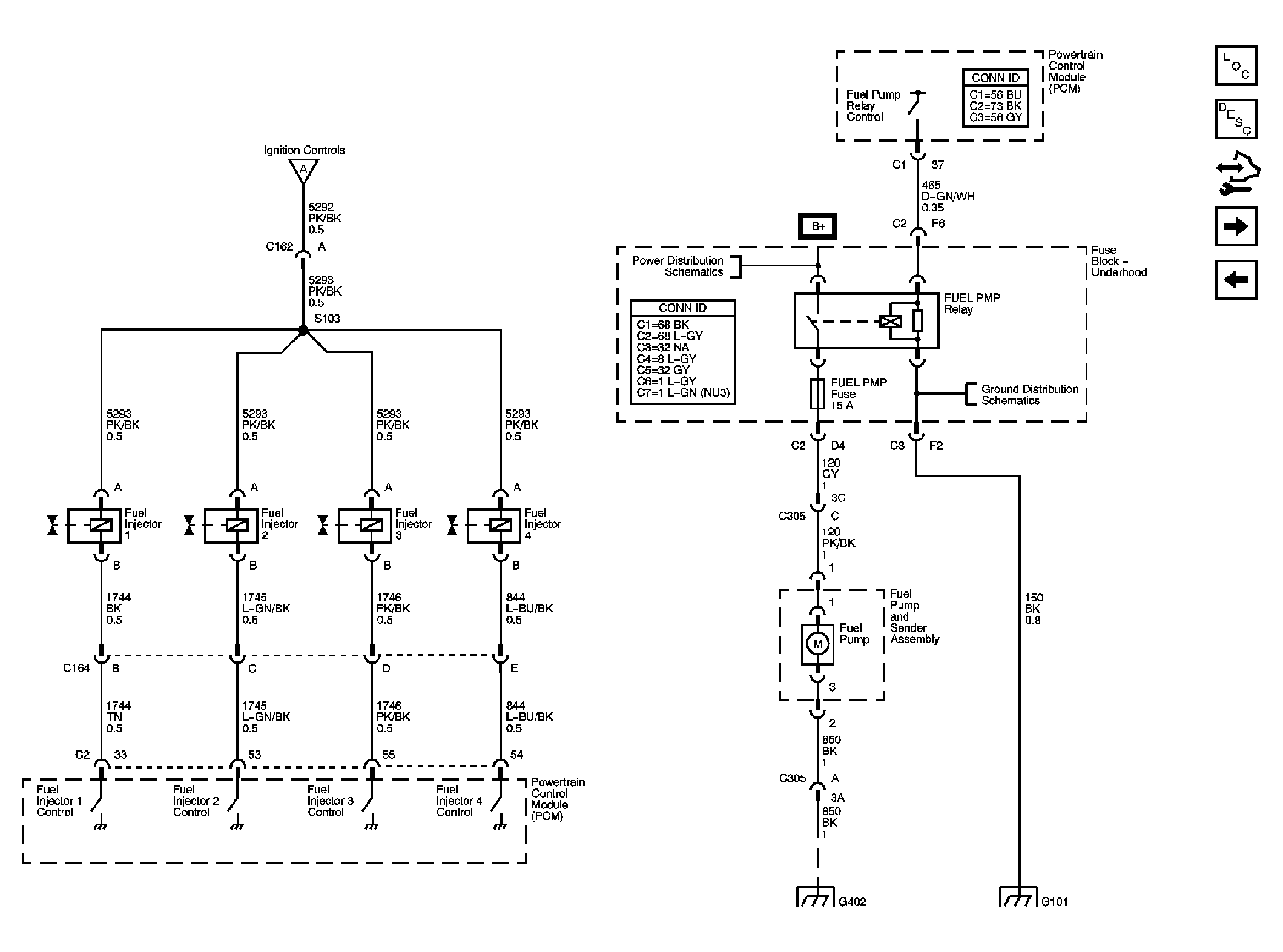

Fig 8: Fuel Delivery

Courtesy of GENERAL MOTORS CORP.

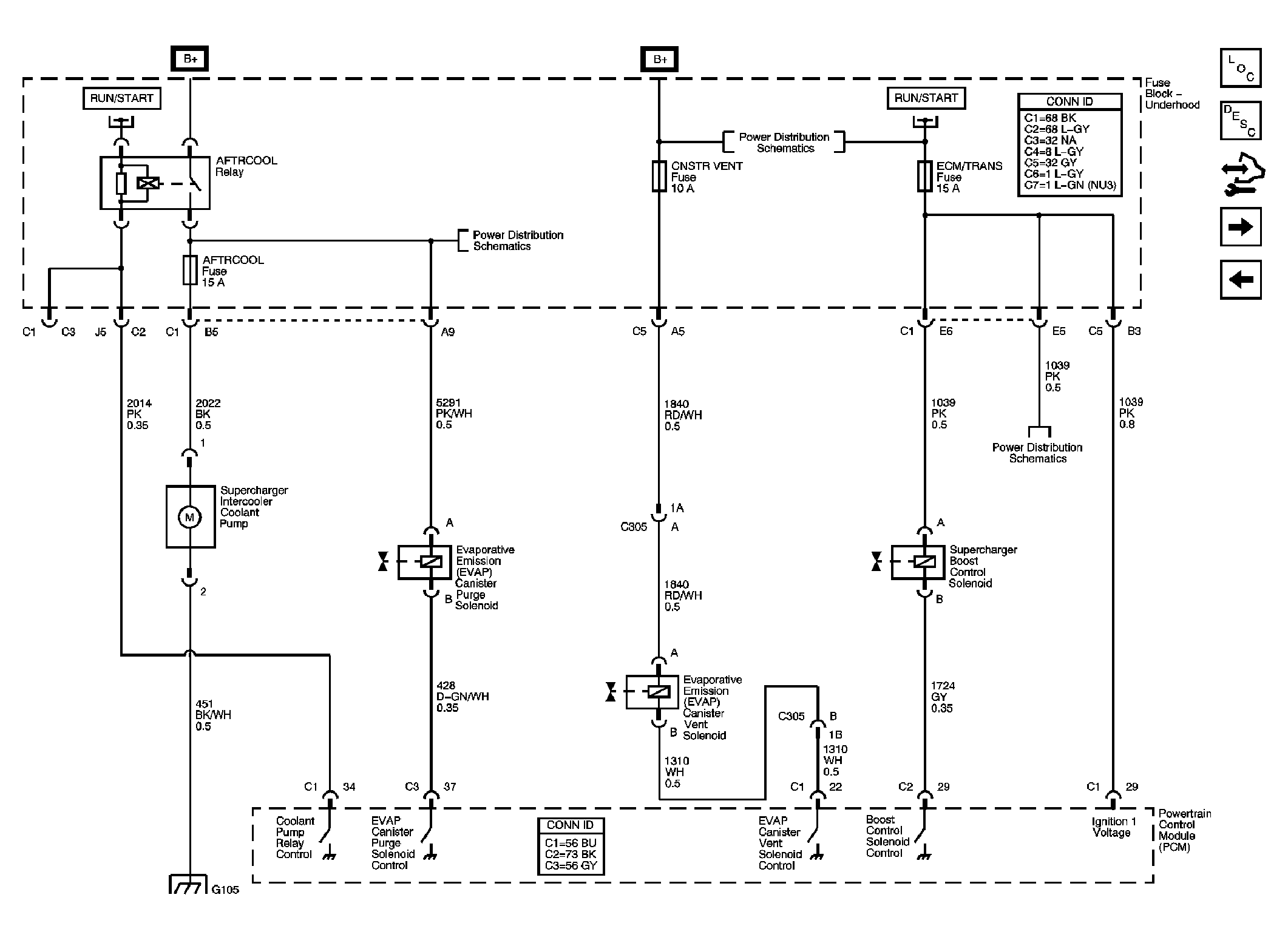

Fig 9: Engine Data Sensors - EVAP, Aftercooler Pump, Supercharger Controls

Courtesy of GENERAL MOTORS CORP.

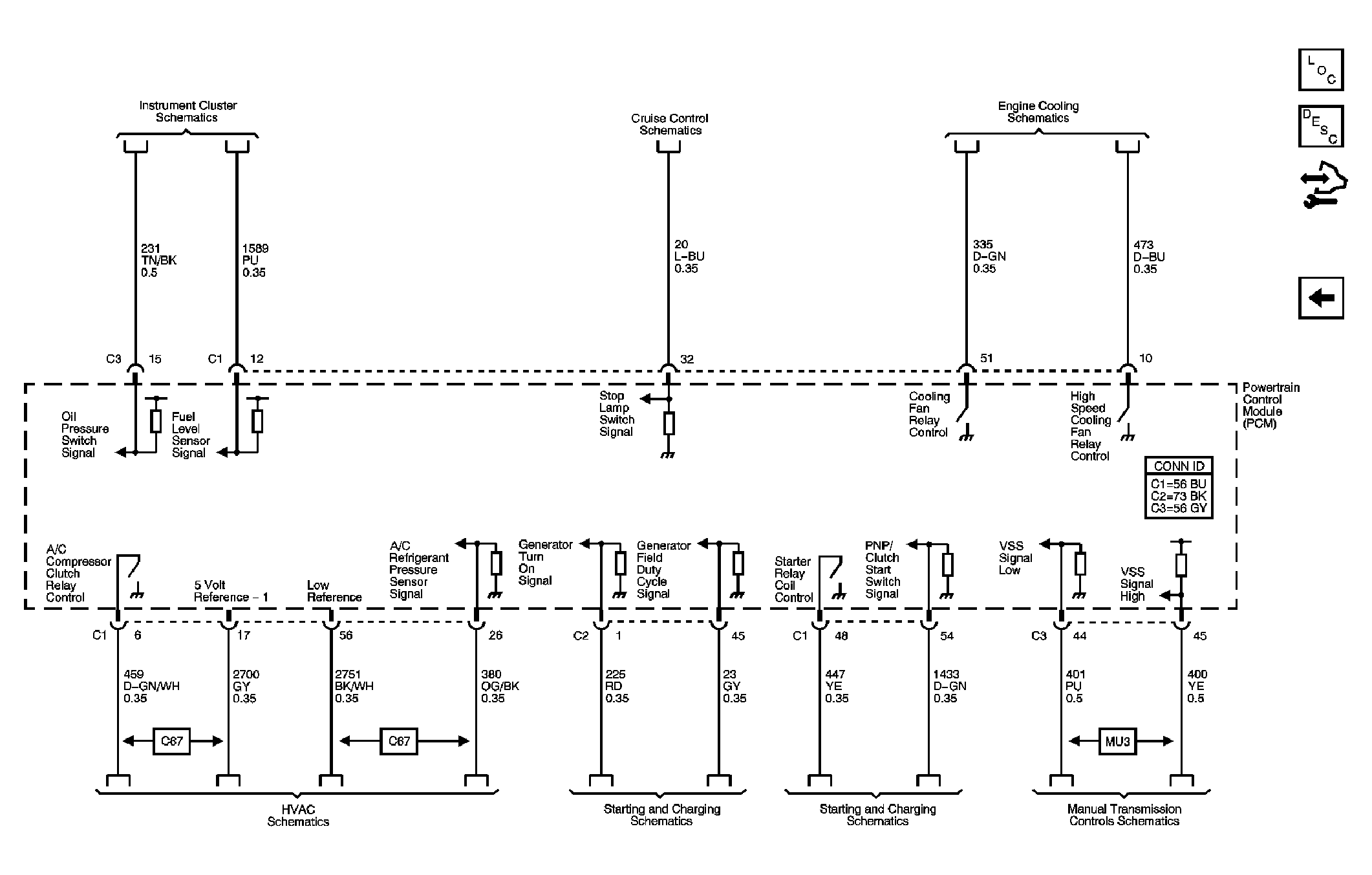

Fig 10: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
