Power and Grounding Component Views

Fig 1: G101,G102,G109

GM1549137

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LF Strut Tower
2	Upper Tie Bar
3	G102
4	G101
5	G109

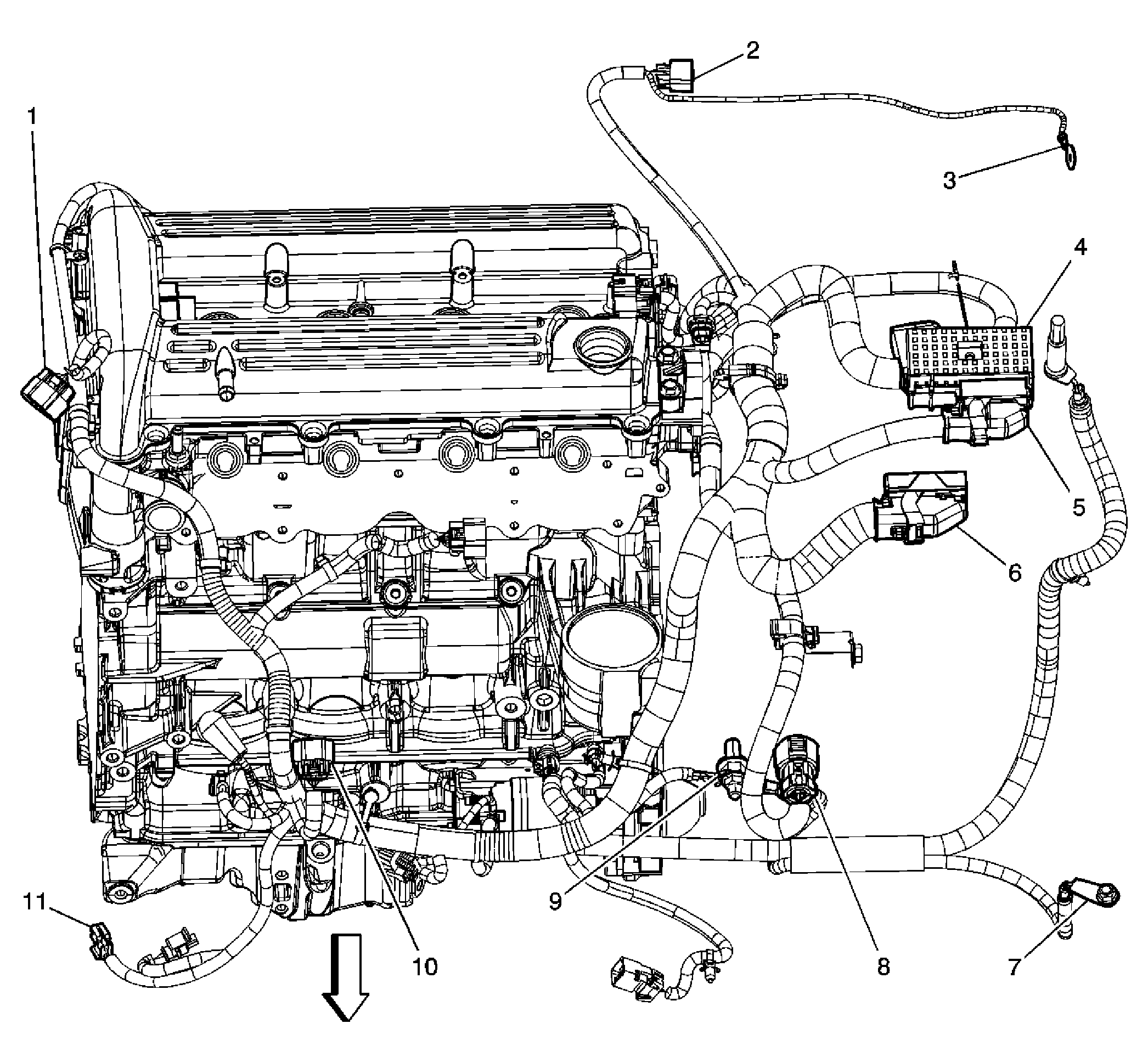

Fig 2: Engine Harness (L61)

GM1524050

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2	C101
3	G109
4	Fuse Block - Underhood C1
5	Transmission Control Module (TCM) C1
6	Engine Control Module (ECM) C2
7	G103
8	C100
9	G105
10	C160
11	Air Compressor Clutch Connector

Fig 3: G201 and G203

GM1543933

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Outlet - Driver
2	I/P Tie Bracket
3	Air Outlet - Passenger
4	I/P Carrie Trim
5	G203
6	G201

Fig 4: G105

GM1546027

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Case
2	C100
3	G105
4	Engine Harness

Fig 5: Floor Panel Components and Grounds

GM1543928

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Shift Light
2	Floor Pan
3	A/T Shift Lock Control Solenoid (MN5)
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	G306
6	Park Brake Switch
7	G301

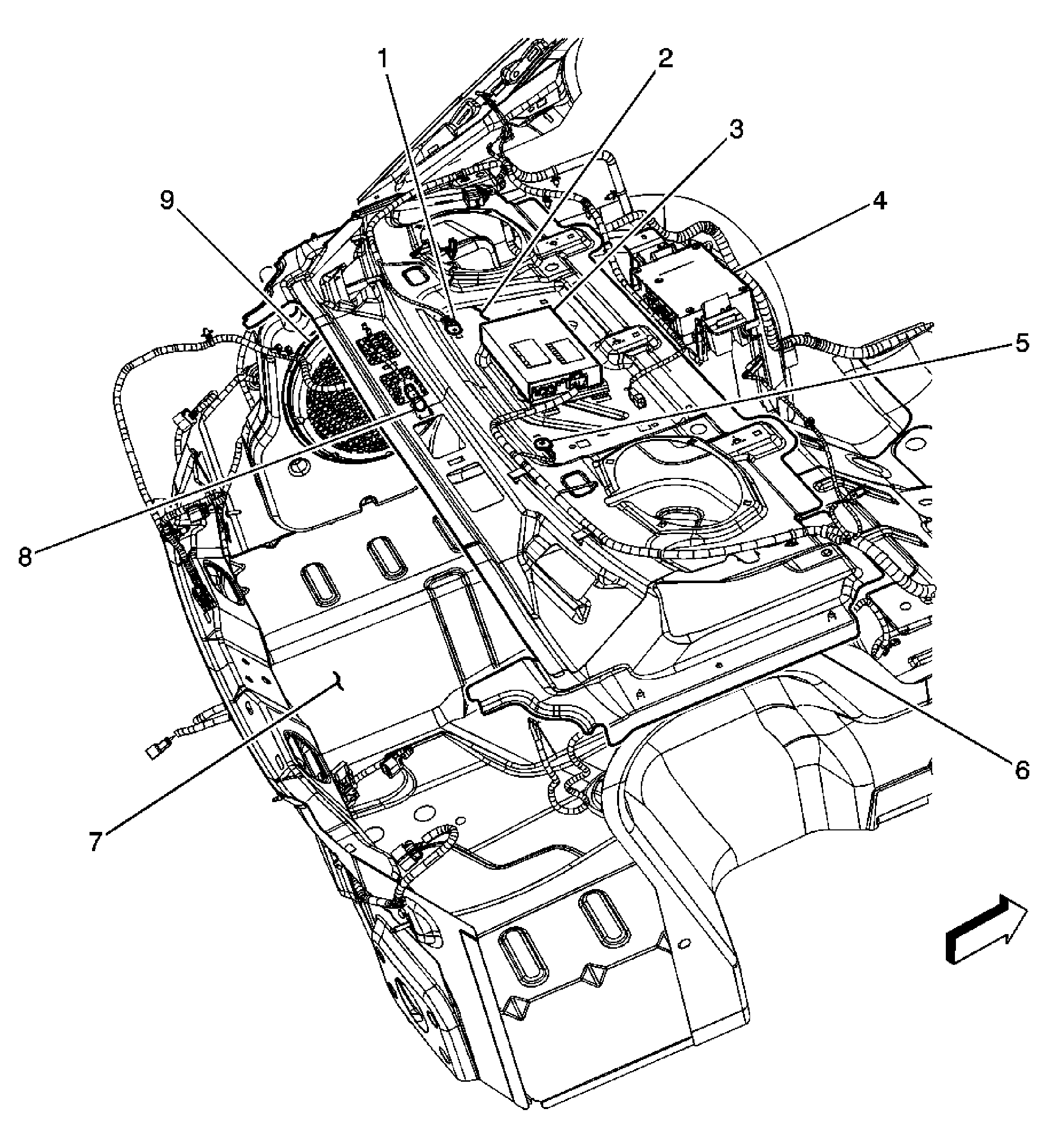

Fig 6: Rear Compartments and Shelf Components

GM1543935

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Digital Radio Receiver (U2K)
3	Vehicle Communication Interface Module (VCIM) (UE1)
4	G402
5	Rear Window Shelf
6	Floor Pan
7	Rear Compartment Coutesty Light
8	Speaker - Subwoofer (UQ3)

Fig 7: Rear Floor Pan Components and G403

GM1549037

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Fuse Holder 50A
3	Battery Current Sensor
4	G403
5	C400
6	Spare Tire Well

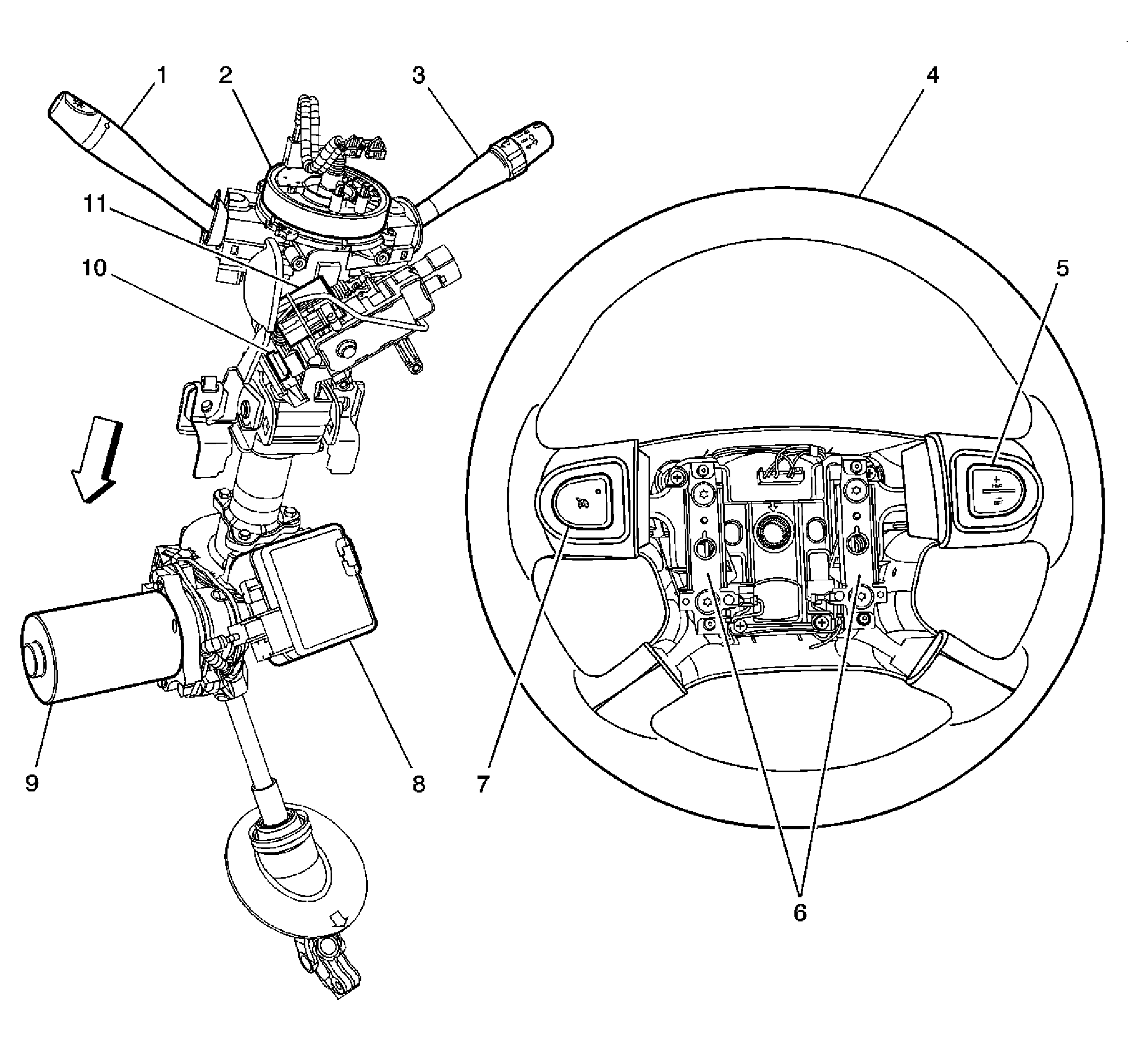

Fig 8: Steering Wheel and Column Components

GM1543927

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Steering Wheel
5	Steering Wheel Controls - Right (UK3/K34)
6	Horn Switchs
7	Steering Wheel Controls - Left (UK3/K34)
8	Electronic Power Steering Control Module (EPS)
9	Electronic Power Steering (EPS) Control Module Motor
10	Ignition Switch
11	Ignition Lock Cylinder Control Solenoid

Fig 9: Fuse Block - Underhood

GM1549068

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Fuse Block Cover
3	G101
4	Bracket Assembly
