Instrument Cluster Schematics

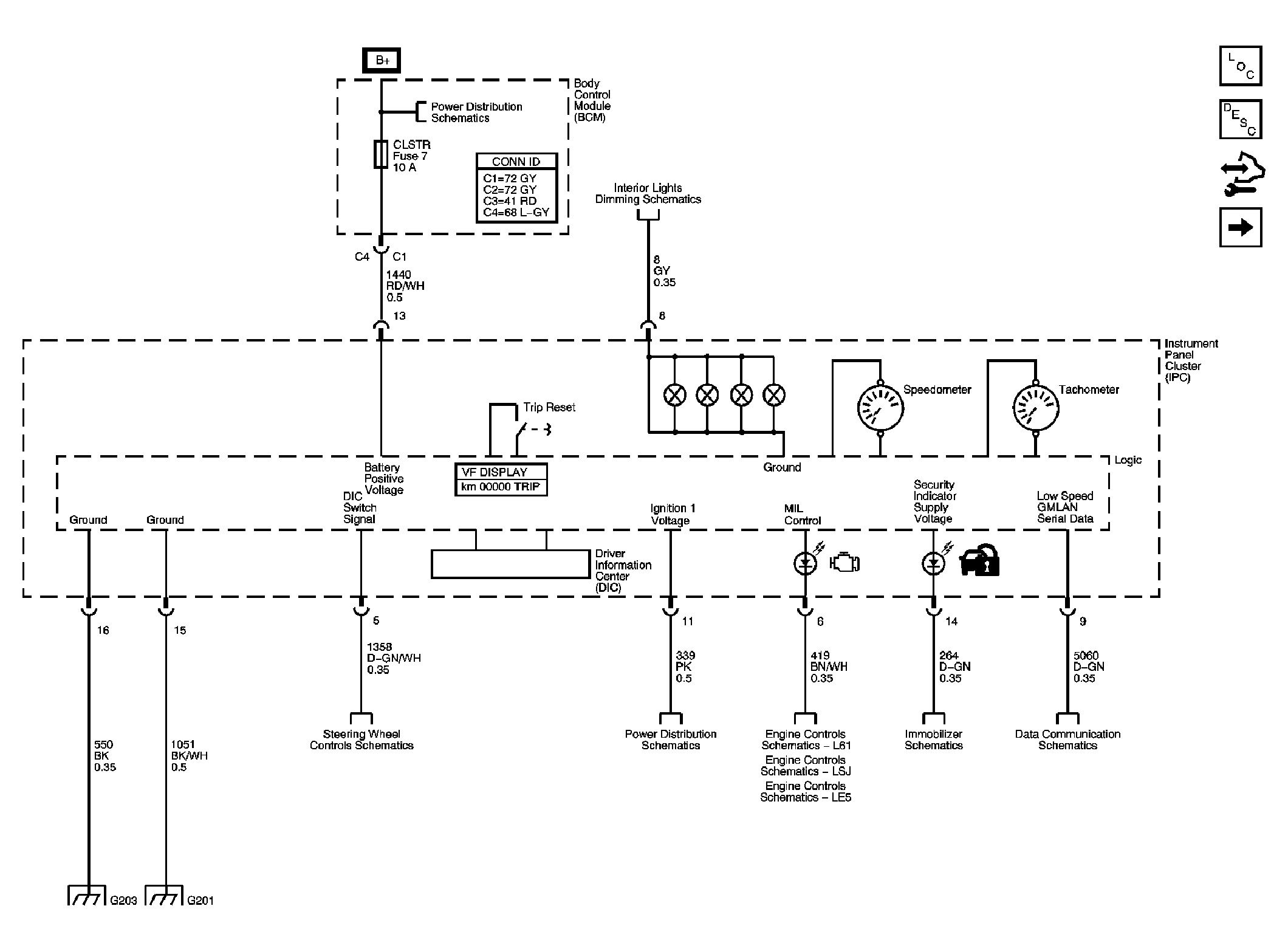

Fig 1: Power, Ground, MIL

GM1784571

Courtesy of GENERAL MOTORS CORP.

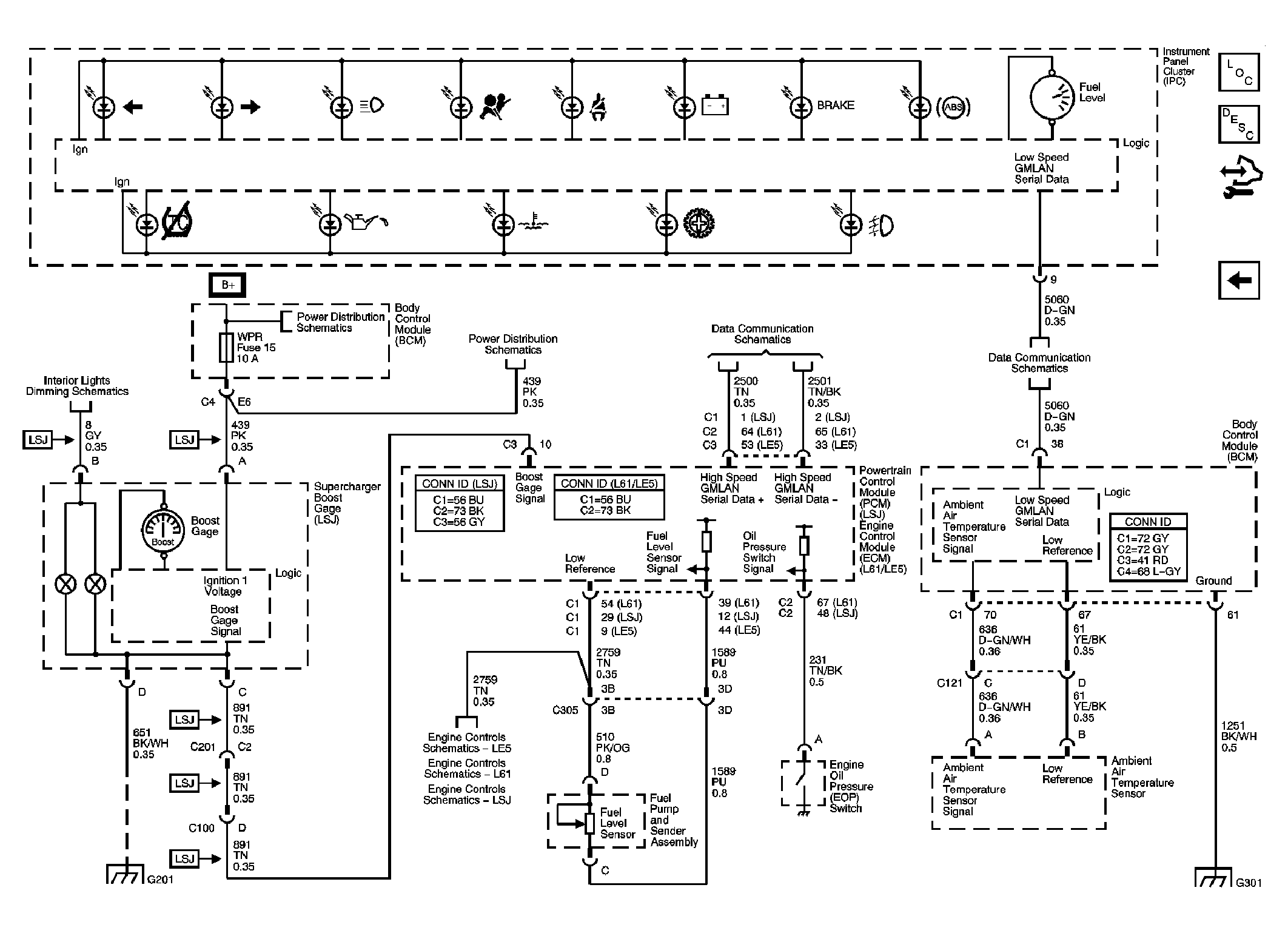

Fig 2: Sensors, Indicators

GM1784573

Courtesy of GENERAL MOTORS CORP.
