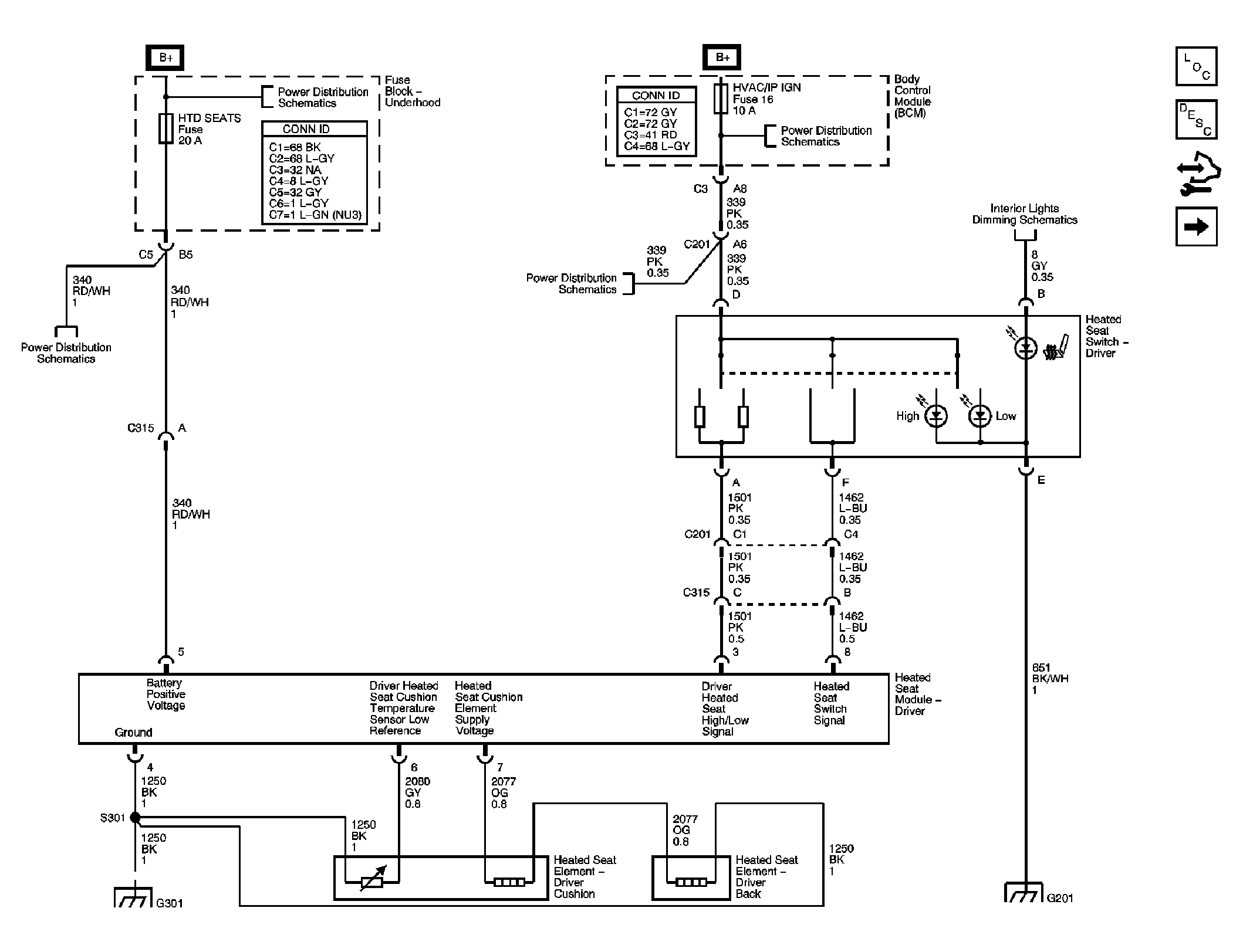

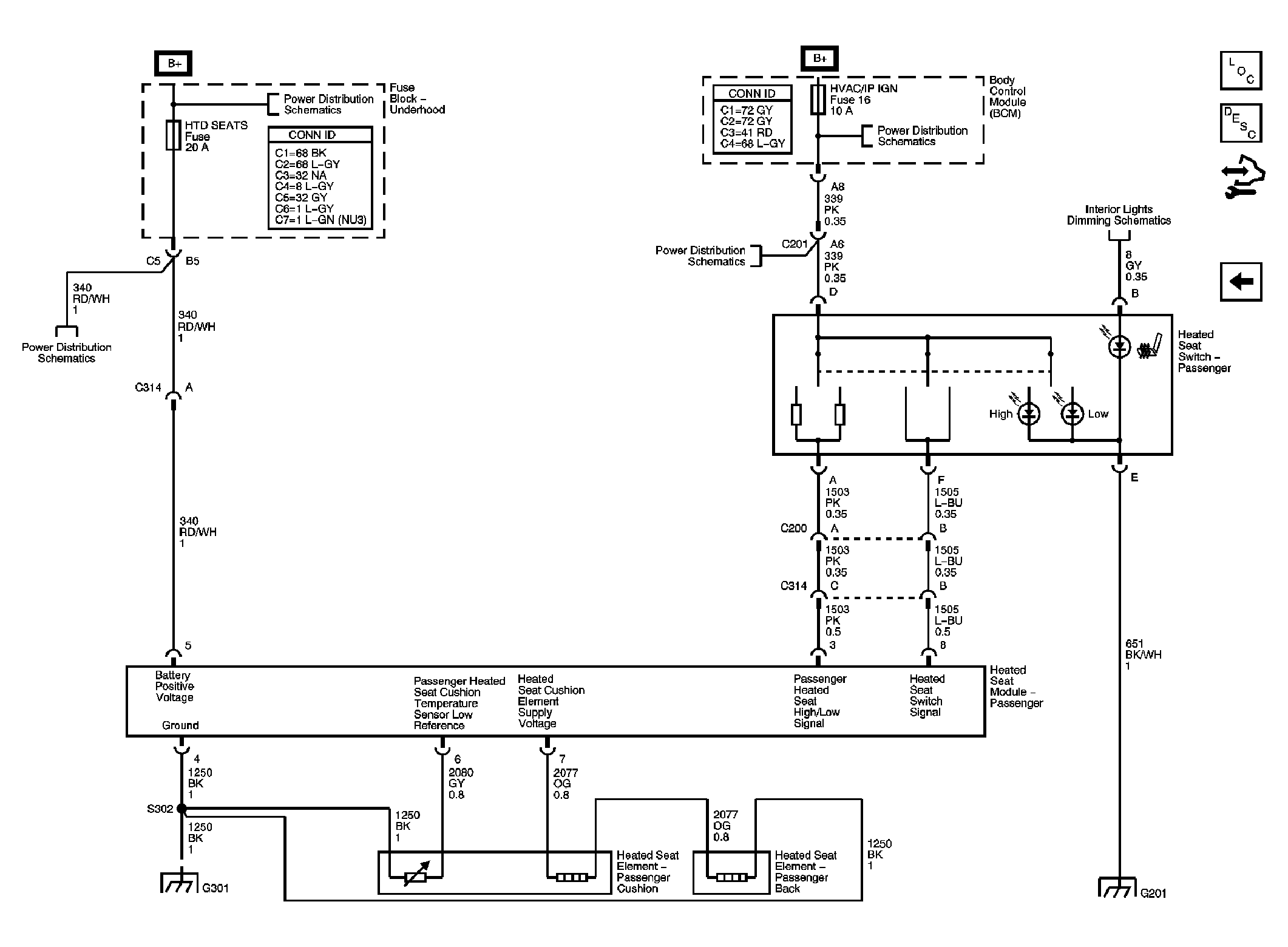

Home >> Pontiac >> 2007 >> G5 Base, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heating System And Seat Cooling System >> Schematic and Routing Diagrams >> Heated/Cooled Seat Schematics
