Interior Lights Dimming Schematics

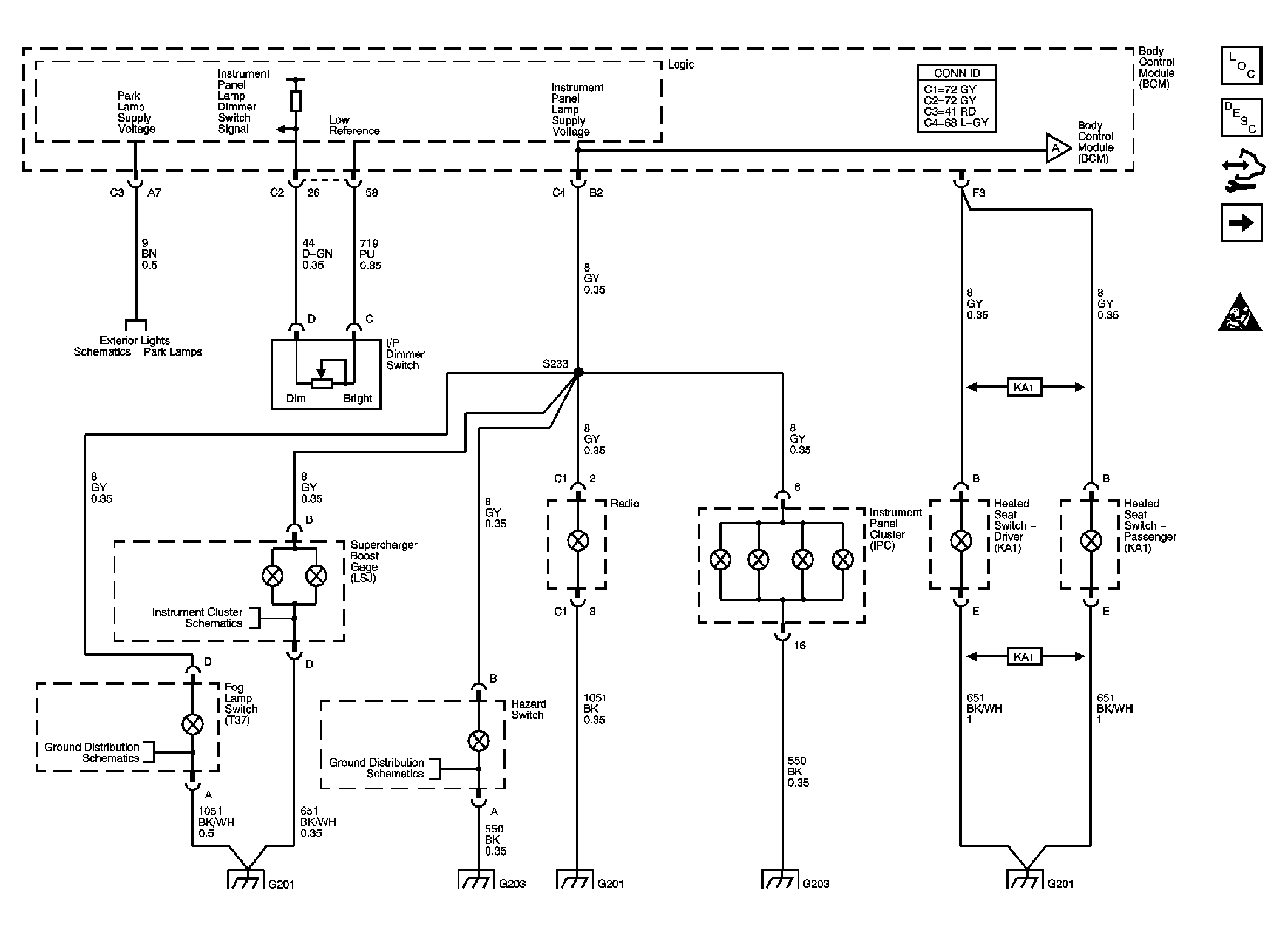

Fig 1: Dimmer Switch Inputs
GM1784598Courtesy of GENERAL MOTORS CORP.

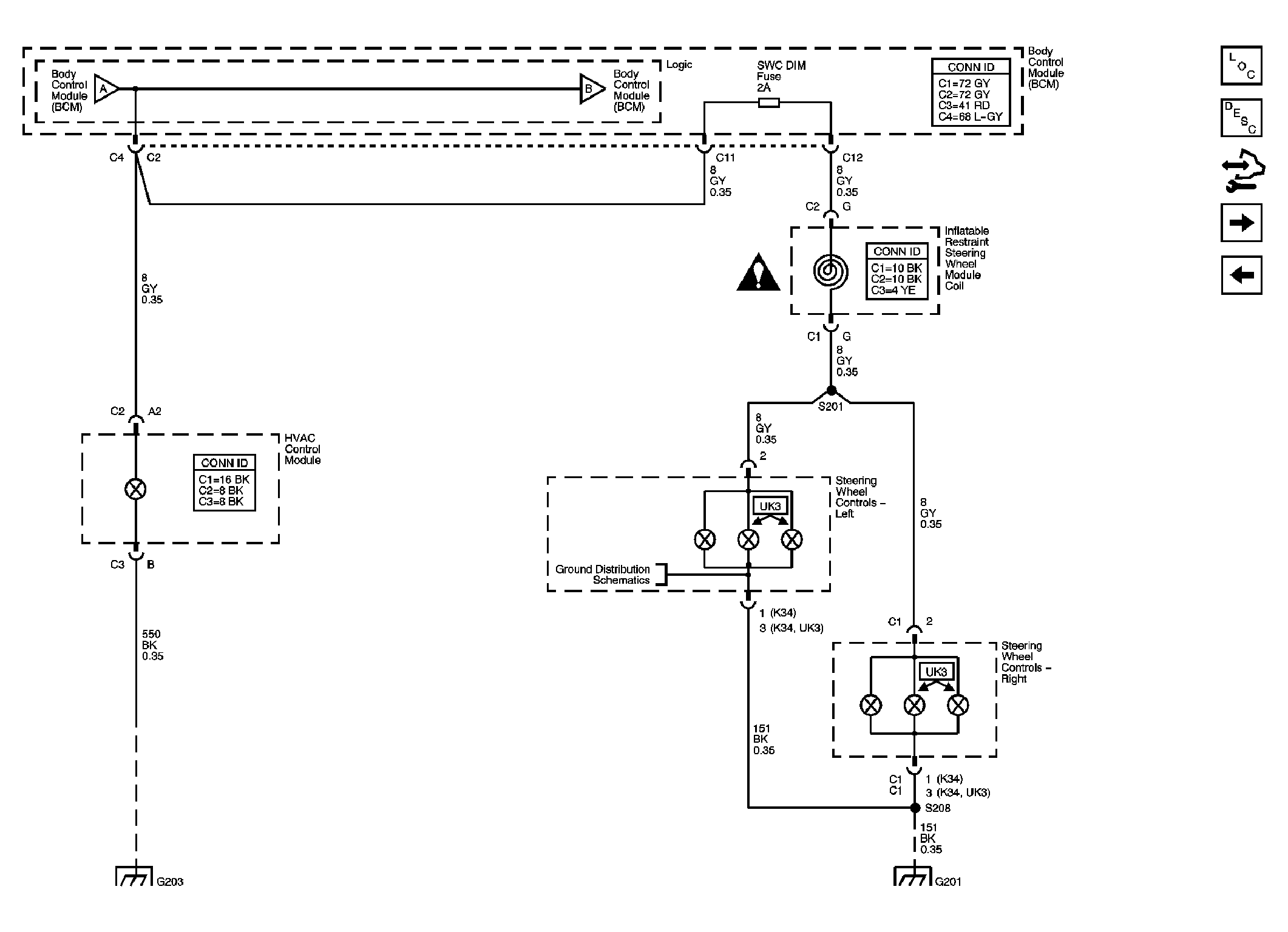

Fig 2: I/P and Seat Lighting
GM1784600Courtesy of GENERAL MOTORS CORP.

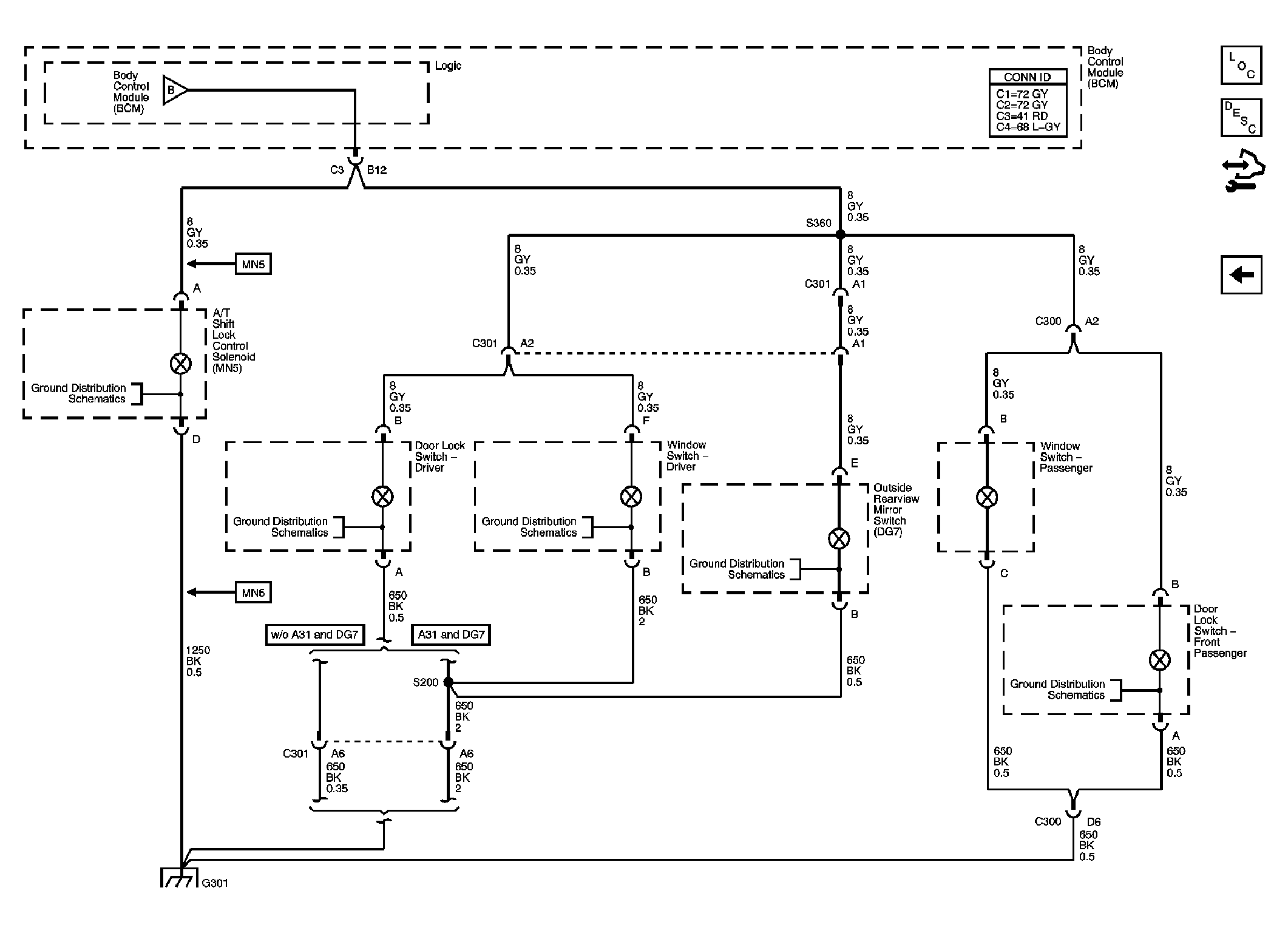

Fig 3: Door and Console Lighting
GM1784603Courtesy of GENERAL MOTORS CORP.
