Displays and Gages Component Views

Fig 1: I/P Components

GM1825386

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Switch
4	Radio
5	Remote Control Door Lock Receiver (RCDLR) (AUO)
6	Heated Seat Switch - Passenger (KA1)
7	HVAC Control Module
8	Body Control Module (BCM)
9	Heated Seat Switch - Driver (KA1)
10	I/P Dimmer Switch
11	Fog Lamp Switch (T37)
12	Data Link Connector (DLC)
13	Rear Compartment Lid Release Switch
14	I/P Trim

Fig 2: Front of the Engine (L61)

GM1546046

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Actuator Control (TAC) Module
2	Ignition Control Module (ICM)
3	Evaporative Emission (EVAP) Canister Purge Solenoid
4	Engine Oil Pressure (EOP) Switch
5	Crankshaft Position (CKP) Sensor
6	Knock Sensor (KS)
7	Starter
8	Starter Solenoid

Fig 3: Front of the Engine (LE5)

GM1555577

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 1
2	Fuel Injector 2
3	Fuel Injector 3
4	Manifold Absolute Pressure (MAP) Sensor
5	Fuel Injector 4
6	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
7	Camshaft Position (CMP) Sensor - Intake
8	Knock Sensor (KS)
9	Engine Oil Pressure (EOP) Switch
10	Crankshaft Position (CKP) Sensor
11	Starter Solenoid
12	Starter
13	Intake Manifold

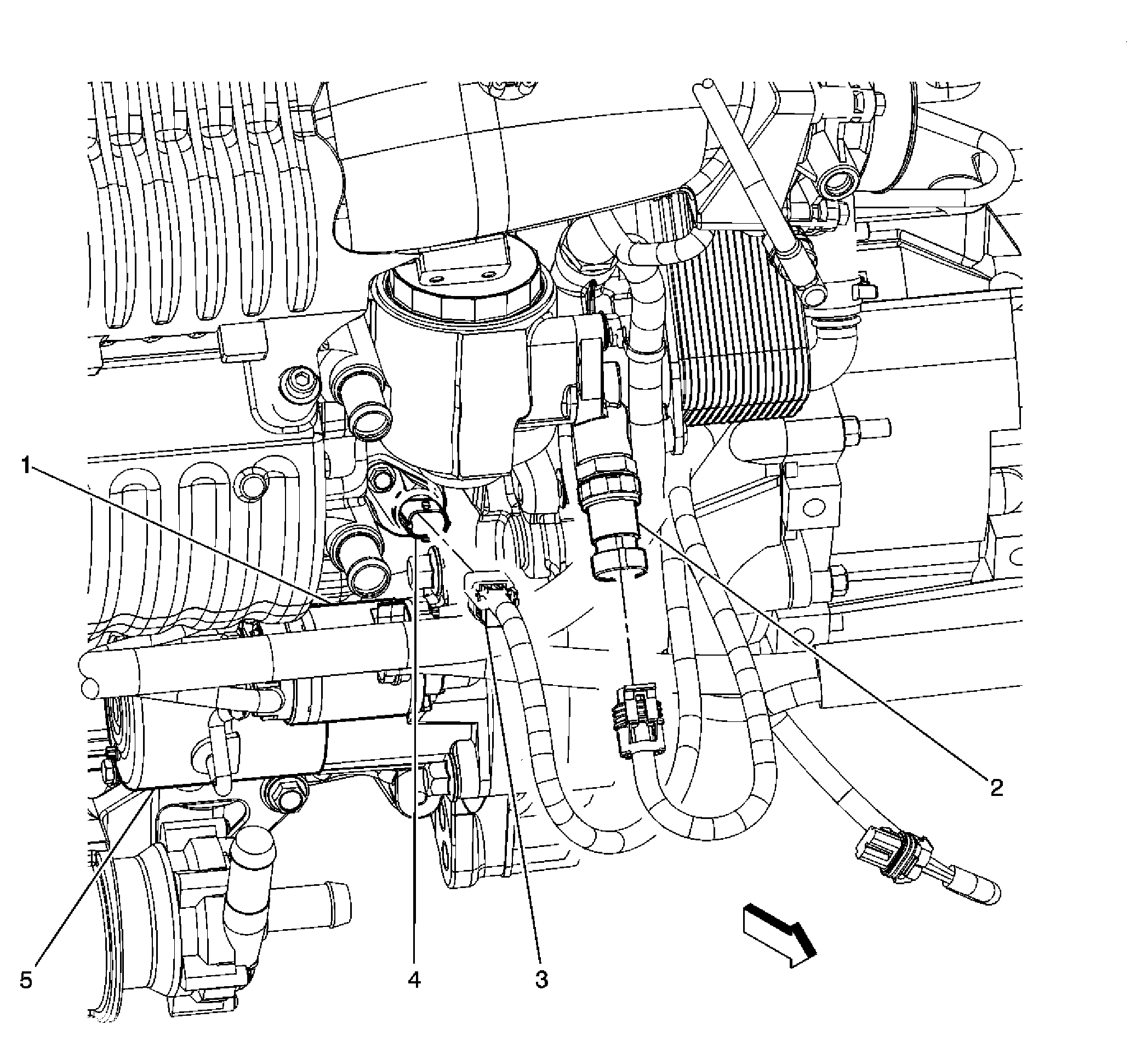

Fig 4: Lower Front of the Engine (LSJ)

GM1550910

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter Solenoid
2	Oil Pressure Switch
3	C102
4	Crankshaft Position (CKP) Sensor
5	Starter

Fig 5: Fuel Tank Components

GM1543937

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Vent Solenoid
2	Evaporative Emission (EVAP) Canister
3	Fuel Tank
4	Fuel Pump and Sender Assembly
5	Fuel Tank Pressure (FTP) Sensor
6	C305
7	Fuel Filter

Fig 6: Ambient Air Temperature Sensor

GM1549038

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Ambient Air Temperature Sensor
3	Headlamp Bracket

Fig 7: Supercharger Boost Gage (LSJ)

GM1549122

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A-Pillar Trim
2	Supercharger Boost Gage (LSJ)
