Pontiac
>>
2006
>>
Vibe Base, AWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheels & Tire System
>>
Tire Pressure Monitoring System
>>
Component Locator
>>
Tire Pressure Monitoring System Component Views
Tire Pressure Monitoring System Component Views

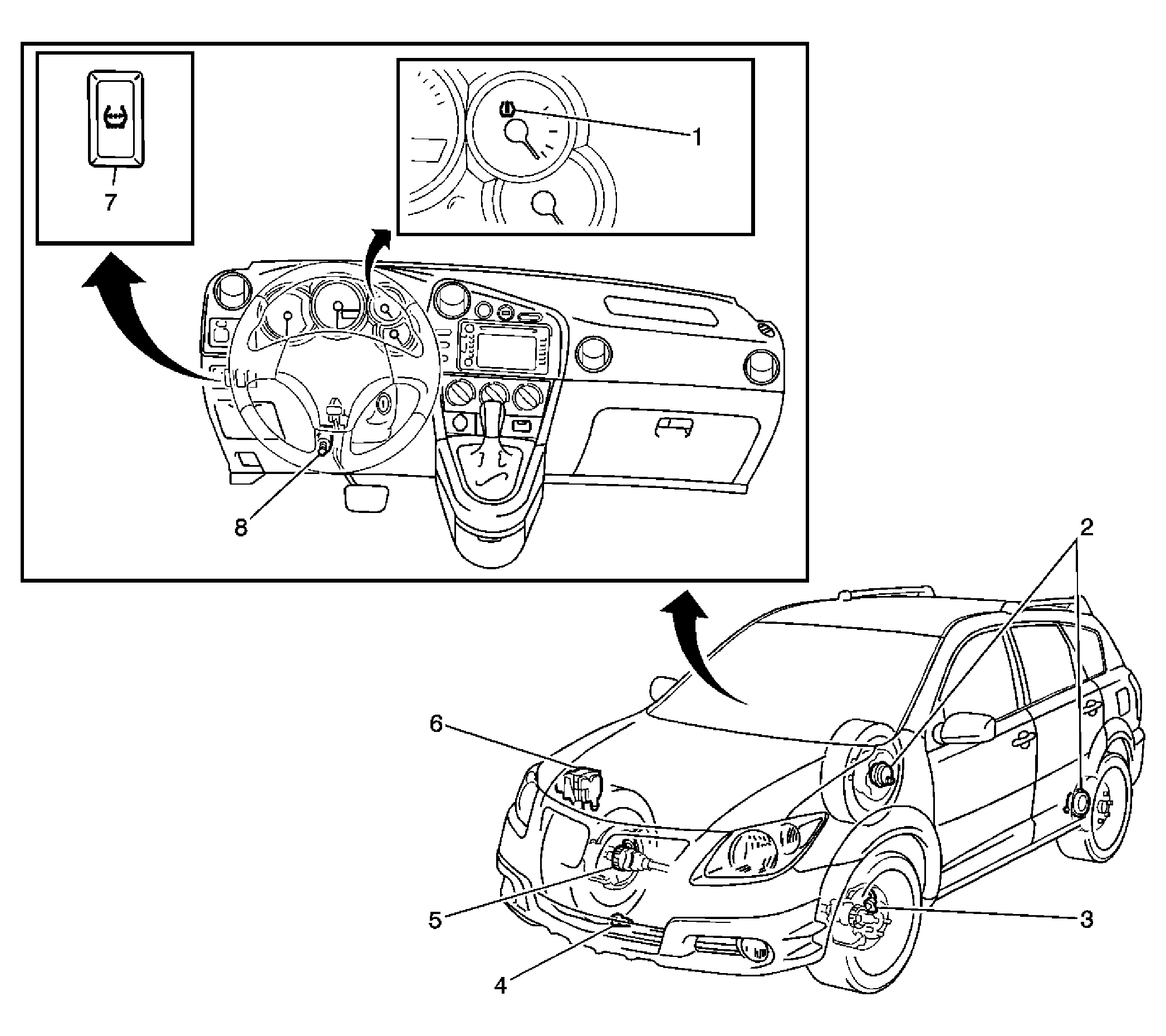

Fig 1: Tire Pressure Monitoring
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Low Tire Pressure Warning Light
2
Speed Sensors
3
Speed Sensor
4
Ambient Temperature Sensor
5
Speed Sensor
6
Electronic Brake Control Module/Tire Pressure Monitor ECU
7
Tire Pressure Warning Reset Switch
8
Stop Lamp Switch
