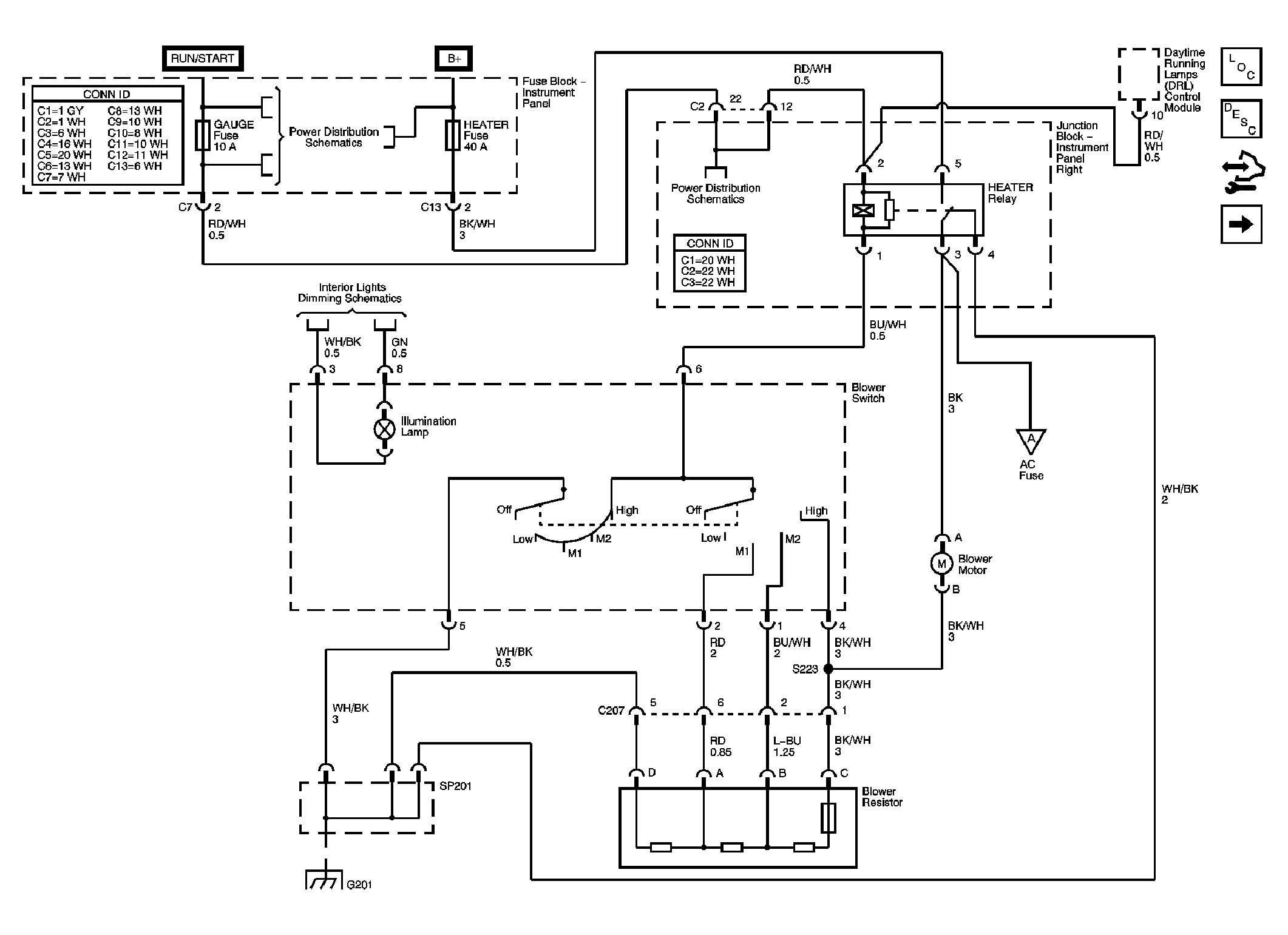

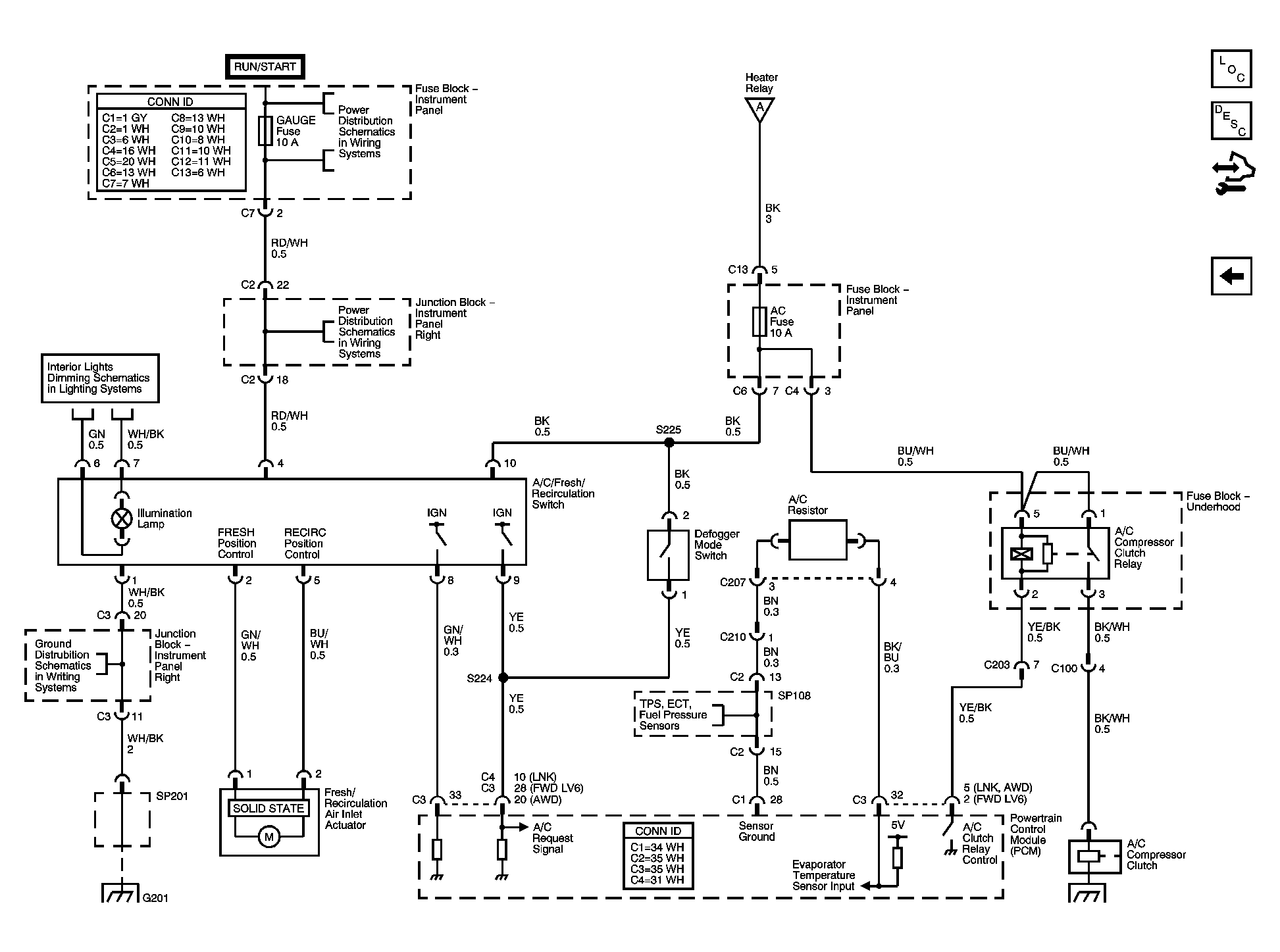

Home >> Pontiac >> 2006 >> Vibe Base, AWD >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> HVAC Systems - Manual >> Schematic and Routing Diagrams >> HVAC Schematics
