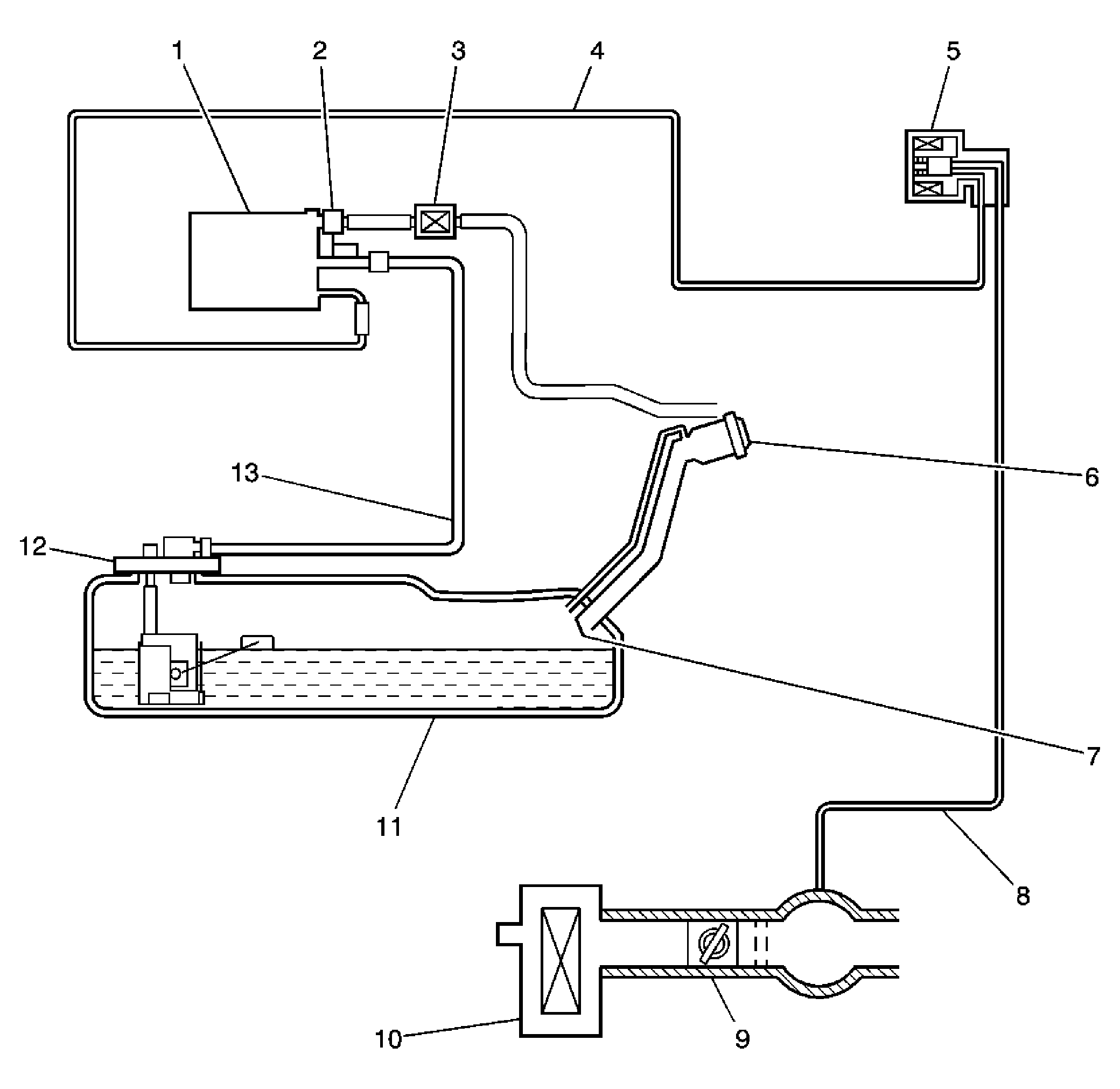

Evaporative Emissions (EVAP) Hose Routing Diagram
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | EVAP Canister |
| 2 | Fill Limiter Vent Valve (FLVV) |
| 3 | EVAP Canister Air Filter |
| 4 | Purge Line from Canister |
| 5 | EVAP Canister Purge Solenoid Valve |
| 6 | Fuel Filler Cap |
| 7 | Fuel Filler Pipe Check Valve |
| 8 | Purge Line to Engine |
| 9 | Throttle Body |
| 10 | Air Cleaner |
| 11 | Fuel Tank |
| 12 | Fuel Sender Assembly |
| 13 | ORVR Vent Line |
