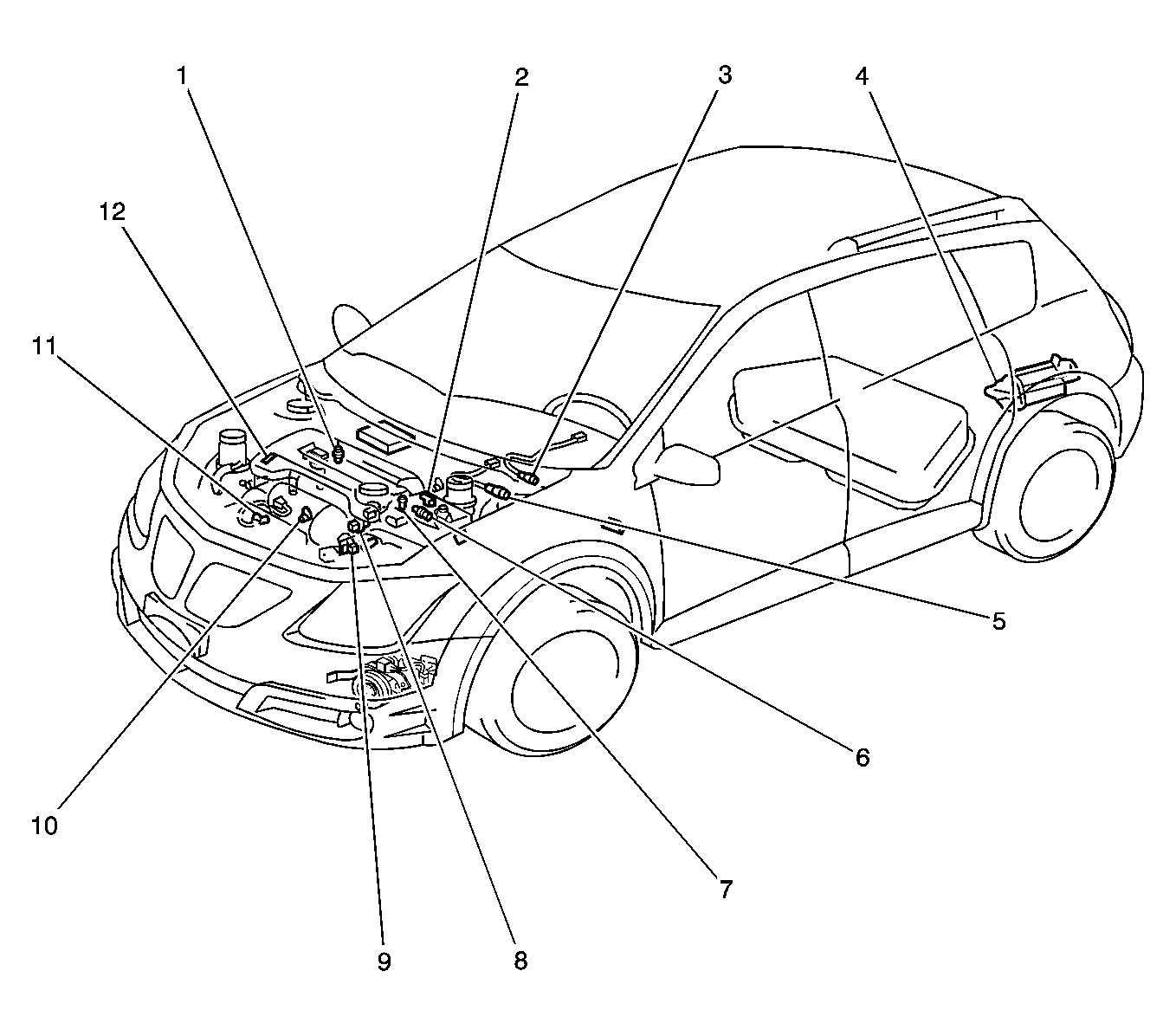

Information Sensors/Input Devices Component View
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Power Steering Pressure Switch |
| 2 | Oil Pressure Switch, for Rocker Arm Oil Control Solenoid |
| 3 | Heated Oxygen Sensor 2 - HO2S 2 |
| 4 | EVAP Vacuum Leak Pump Assembly, includes Fuel Tank Pressure (FTP) Sensor |
| 5 | Heated Oxygen Sensor 1 - HO2S 1 |
| 6 | Engine Coolant Temperature (ECT) Sensor |
| 7 | Mass Air Flow (MAF) Sensor |
| 8 | Camshaft Position (CMP) Sensor |
| 9 | Throttle Position (TP) Sensor |
| 10 | Knock (KS) Sensor |
| 11 | Crankshaft Position (CKP) Sensor |
| 12 | Secondary AIR Injection Pressure Sensor |
