EFI Relay, Main And EFI Fuses And Fuse Block (Underhood) Component View

WARNING: This page is about a different variant/trim than selected.

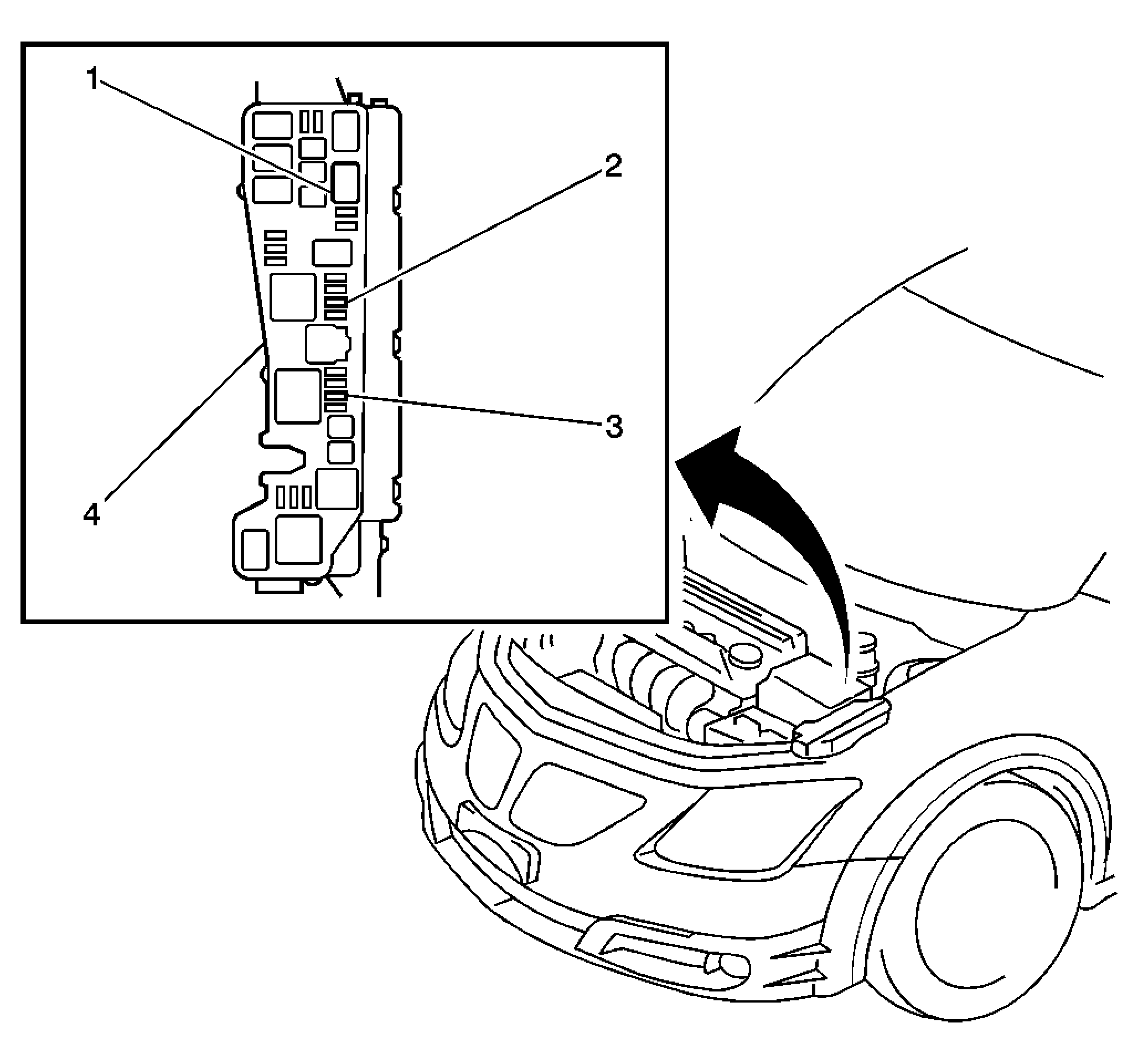

Fig 1: Locating EFI Relay, Main And EFI Fuses And Fuse Block (Underhood) Component View
GM1457628Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 EFI Relay
2 Main Fuse
3 EFI Fuse
4 Fuse Block - Underhood
