Special Tools

WARNING: This page is about a different variant/trim than selected.

Special Tools

Illustration	Tool Number/Description

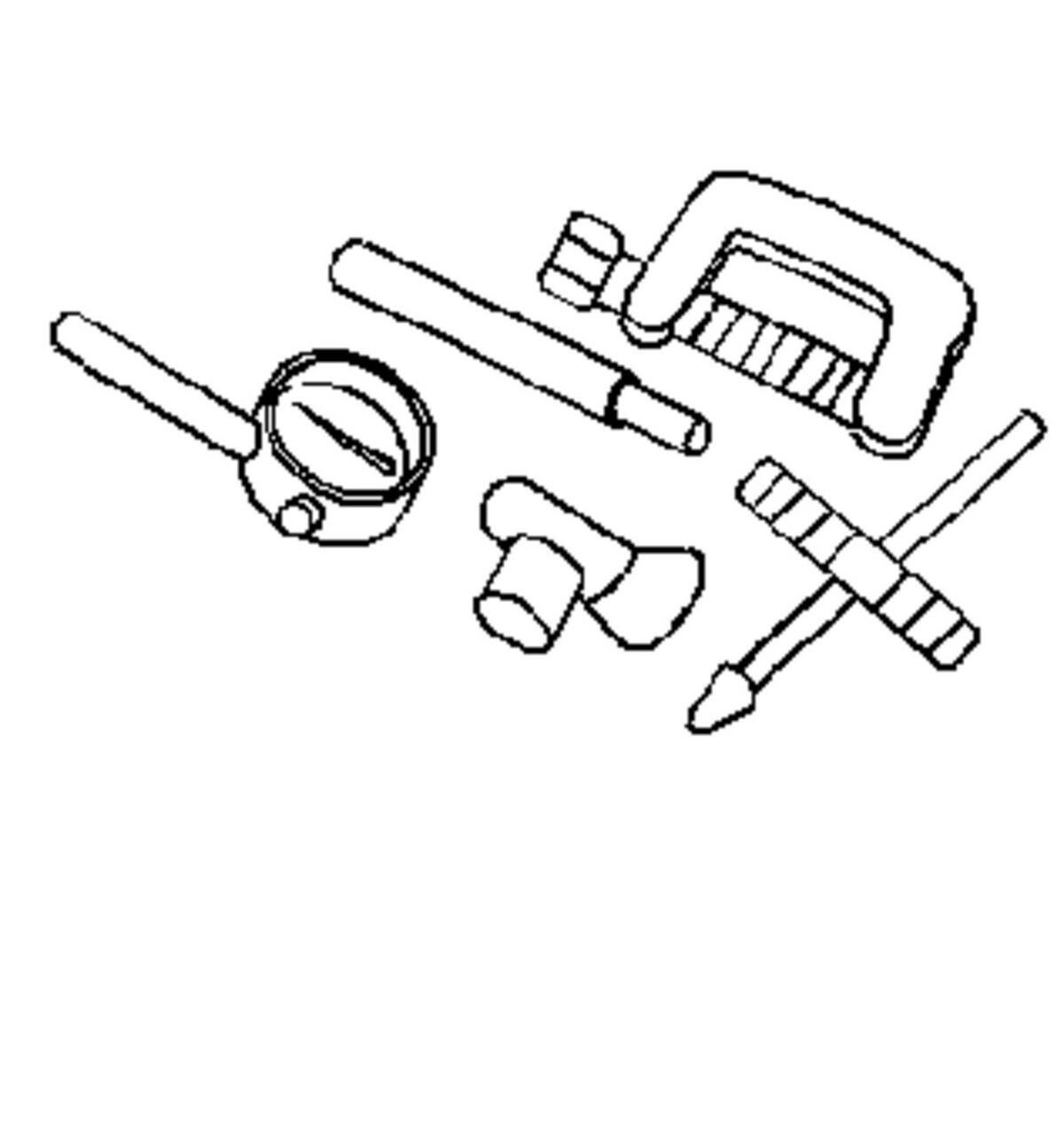

Courtesy of GENERAL MOTORS CORP.	J 7872 Magnetic Base Dial Indicator Set
Courtesy of GENERAL MOTORS CORP.	J 8001 Dial Indicator Set
Courtesy of GENERAL MOTORS CORP.	J 8001 Dial Indicator Set
Courtesy of GENERAL MOTORS CORP.	J 8037 Ring Compressor
Courtesy of GENERAL MOTORS CORP.	J 8062 Valve Spring Compressor - Head Off
Courtesy of GENERAL MOTORS CORP.	J 8087 Cylinder Bore Gage
Courtesy of GENERAL MOTORS CORP.	J 8087 Cylinder Bore Gage
Courtesy of GENERAL MOTORS CORP.	J 8614-01 Flange and Pulley Holding Tool
Courtesy of GENERAL MOTORS CORP.	J 26900-2 Clombimike Micrometer
Courtesy of GENERAL MOTORS CORP.	J 26900-13 Magnetic Indicator Base
Courtesy of GENERAL MOTORS CORP.	J 26900-13 Magnetic Indicator Base
Courtesy of GENERAL MOTORS CORP.	J 28410 Gasket Remover
Courtesy of GENERAL MOTORS CORP.	J 28428-E High Intensity Black Light
Courtesy of GENERAL MOTORS CORP.	J 28431-6 Fluorescent Oil Dye - 6-1 oz
Courtesy of GENERAL MOTORS CORP.	J 28467-89 Engine Support Adapters
Courtesy of GENERAL MOTORS CORP.	J 28467-B Universal Engine Support Fixture
Courtesy of GENERAL MOTORS CORP.	J 28467-Vibe Engine Support Fixture Adaptor
Courtesy of GENERAL MOTORS CORP.	J 35667-A Cylinder Head Leakdown Tester
Courtesy of GENERAL MOTORS CORP.	J 36660-A Torque/Angle Meter
Courtesy of GENERAL MOTORS CORP.	J 36854 Heavy Duty Automotive Engine Stand
Courtesy of GENERAL MOTORS CORP.	J 37968 Valve Guide Seal Installer Kit
Courtesy of GENERAL MOTORS CORP.	J 37971 Reamer
Courtesy of GENERAL MOTORS CORP.	J 43184 Valve Spring Compressor - On Car
Courtesy of GENERAL MOTORS CORP.	J 45785 Valve Spring Compressor Set
Courtesy of GENERAL MOTORS CORP.	J 45785-1 Valve Spring Compressor
Courtesy of GENERAL MOTORS CORP.	J 45785-2 Valve Adjusting Shim Remover
