Fluid Pump and Torque Converter Housing Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Torque Converter Housing Bolts
    GM164264Courtesy of GENERAL MOTORS CORP.
  1. Remove the 17 bolts (1) and the torque converter housing (2) from the transaxle case.

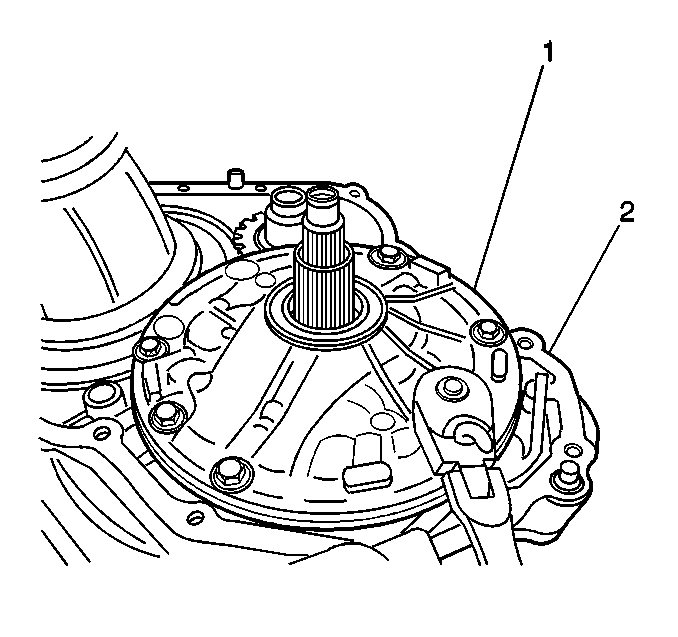

    2. Fig 2: Identifying Transaxle Case Bolts
    GM415823Courtesy of GENERAL MOTORS CORP.
  2. Remove the 6 bolts from the transaxle case (2).

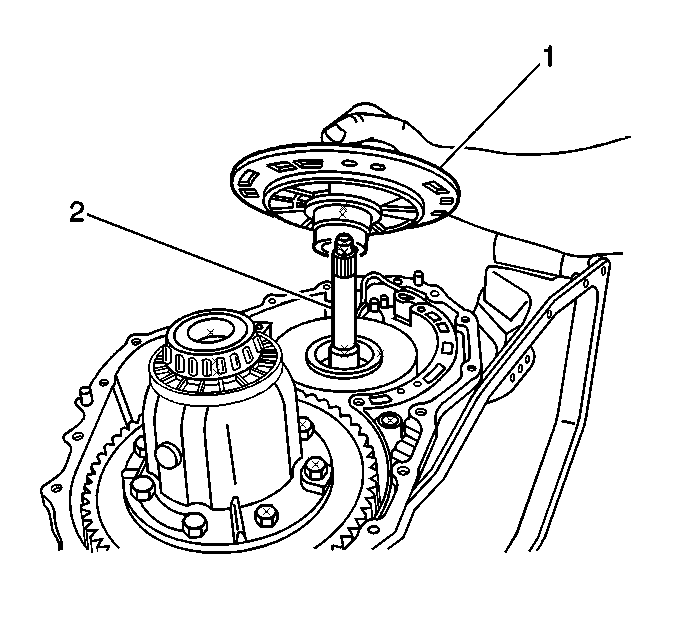

    3. Fig 3: Locating Fluid Pump Assembly
    GM415825Courtesy of GENERAL MOTORS CORP.
  3. Remove the fluid pump assembly (1) from the transaxle case.
    4. Fig 4: View Of Differential Assembly
    GM164271Courtesy of GENERAL MOTORS CORP.
  4. Remove the differential assembly (1) from the transaxle case.
    5. Fig 5: Locating differential lubrication seal
    GM164275Courtesy of GENERAL MOTORS CORP.
  5. Remove the differential lubrication seal (2) from the transaxle case (1).
