Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

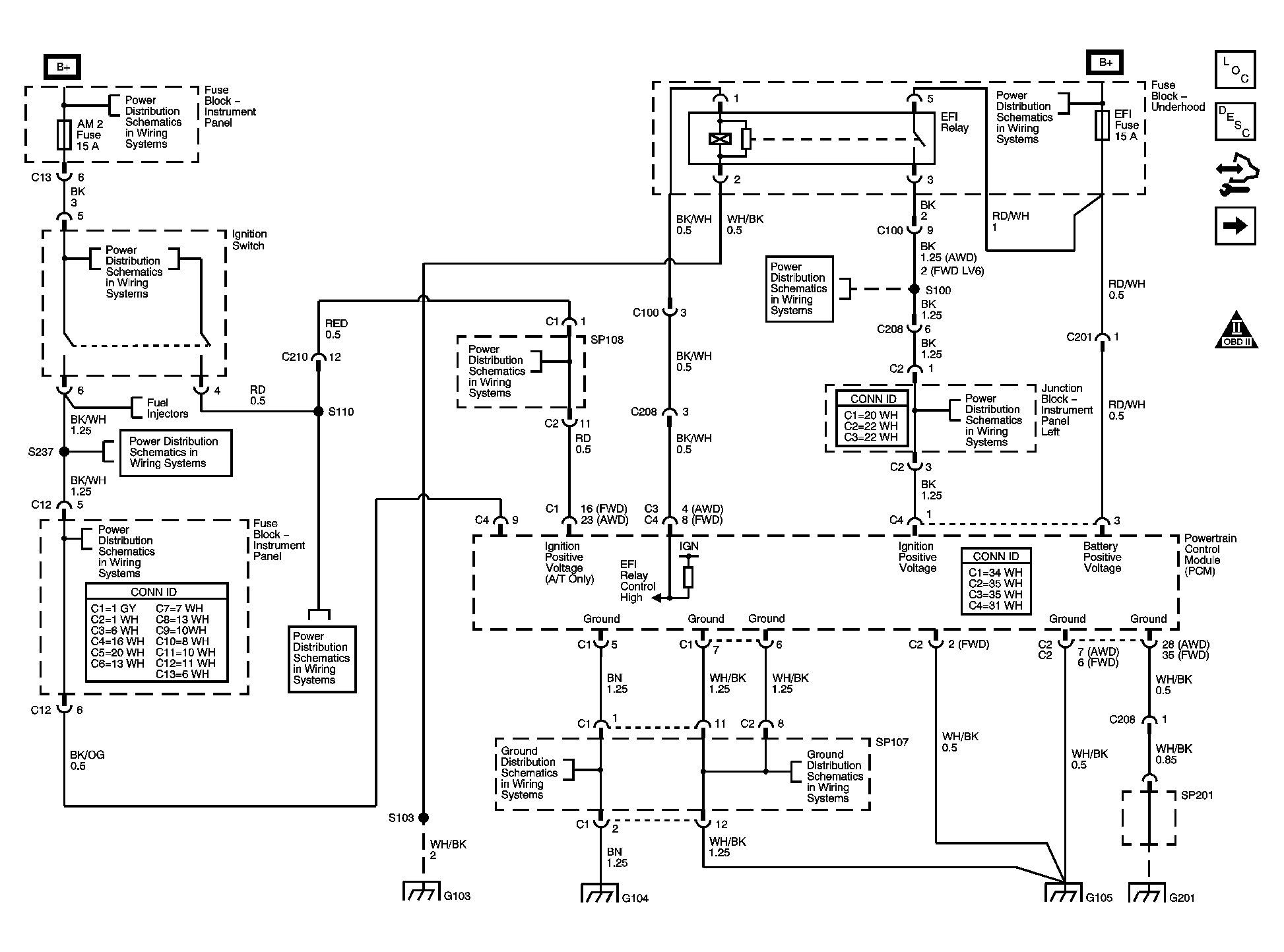

Fig 1: Powertrain Control Module (PCM) Power and Ground

Courtesy of GENERAL MOTORS CORP.

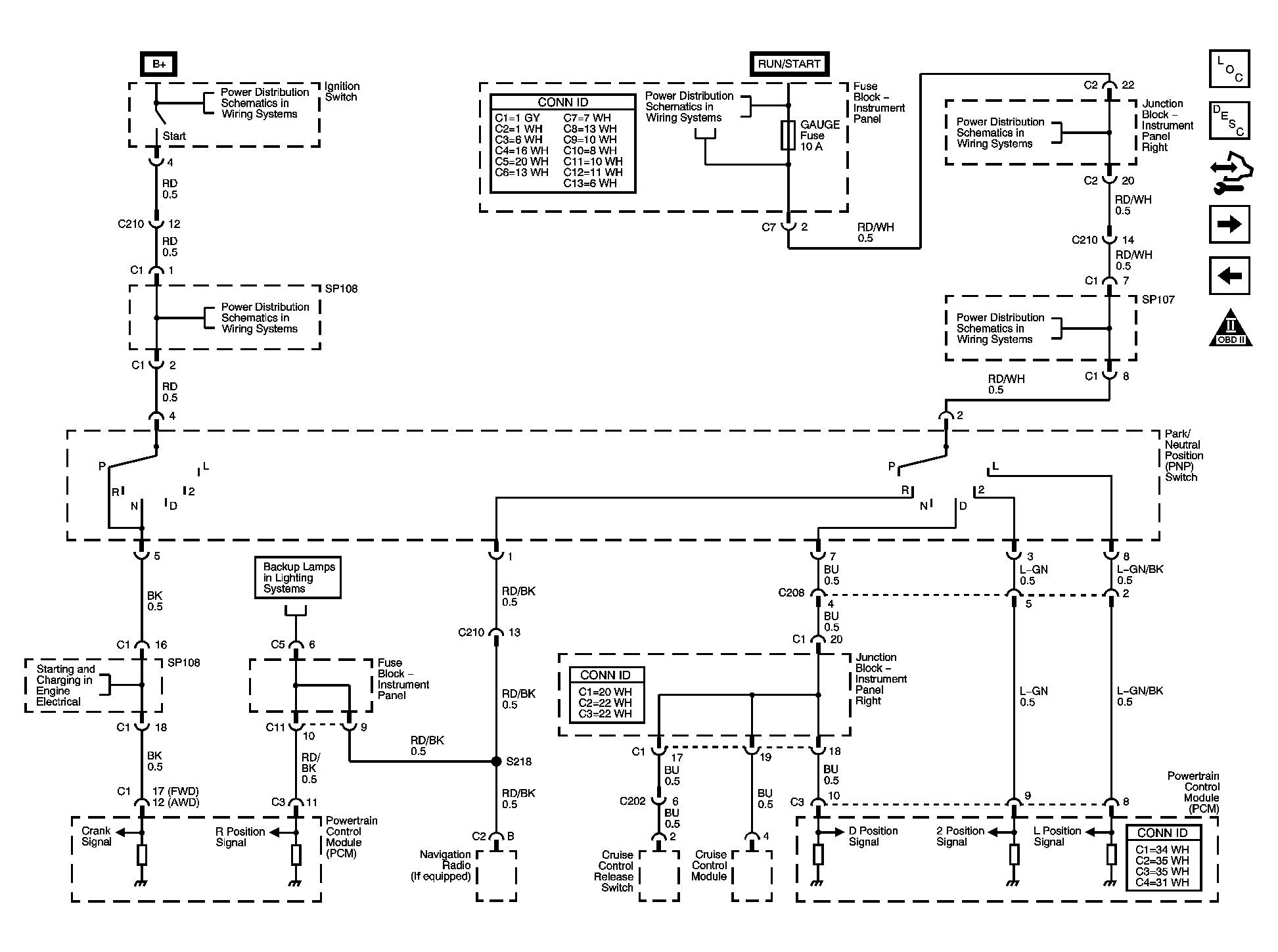

Fig 2: Park/Neutral Position Switch

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

Fig 4: Automatic Transaxle Controls (FWD) Schematic

Courtesy of GENERAL MOTORS CORP.

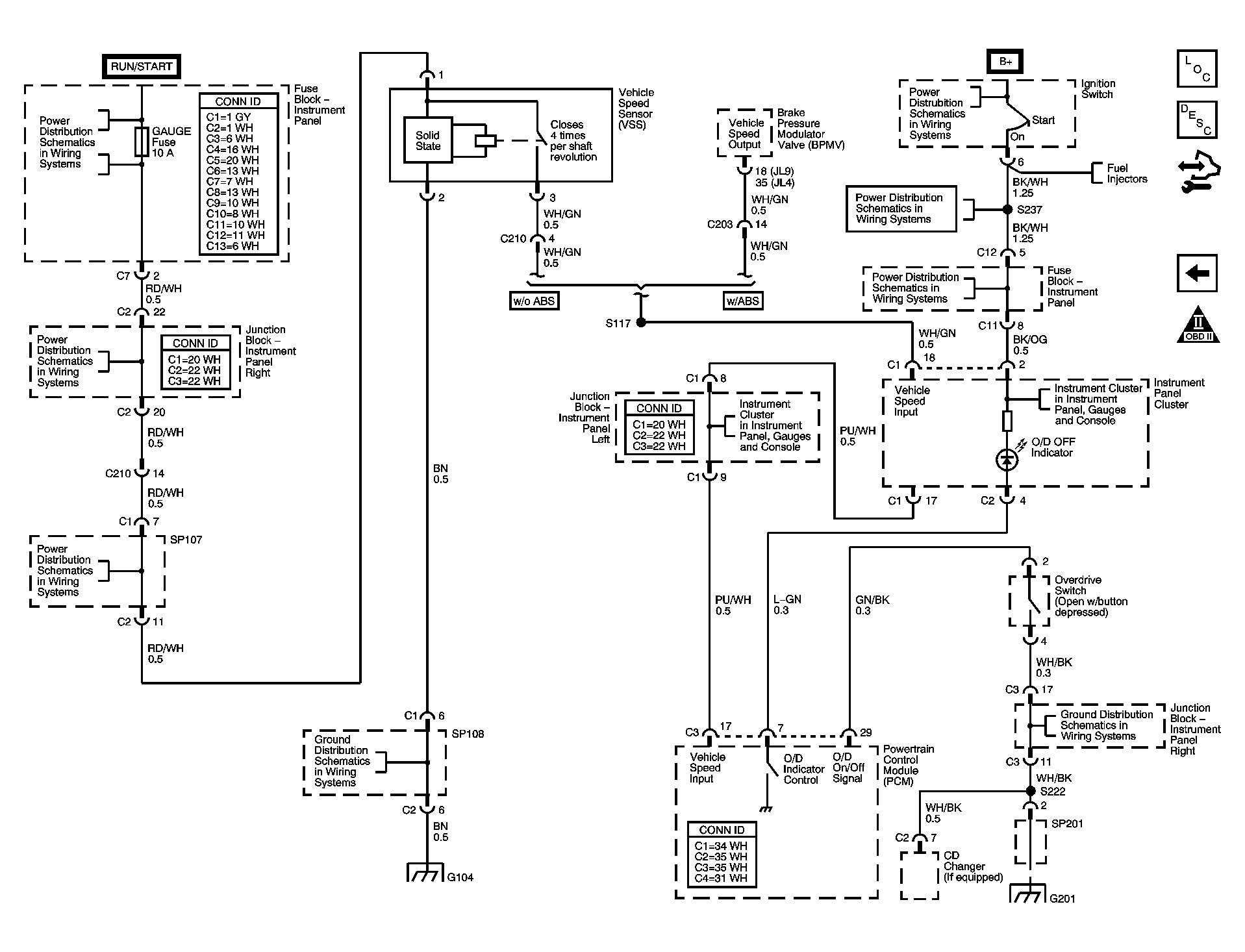

Fig 5: Vehicle Speed Signal & Overdrive Switch Schematic

Courtesy of GENERAL MOTORS CORP.
