Test Description

WARNING: This page is about a different variant/trim than selected.

The number below refers to the step number on the diagnostic table.

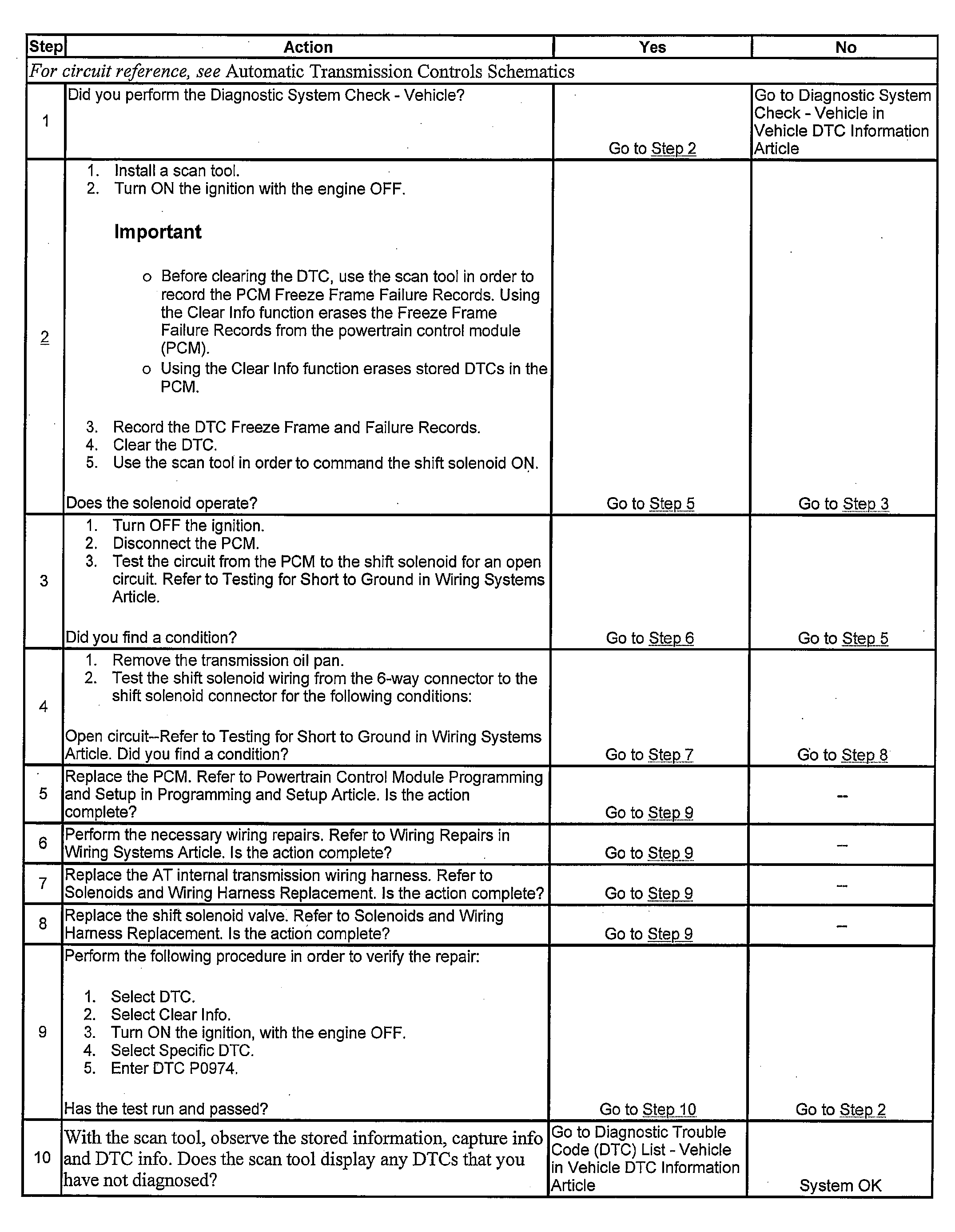

Fig 1: DTC P0974 - MU4
G00448657Courtesy of GENERAL MOTORS CORP.
