Test Description
WARNING: This page is about a different variant/trim than selected.

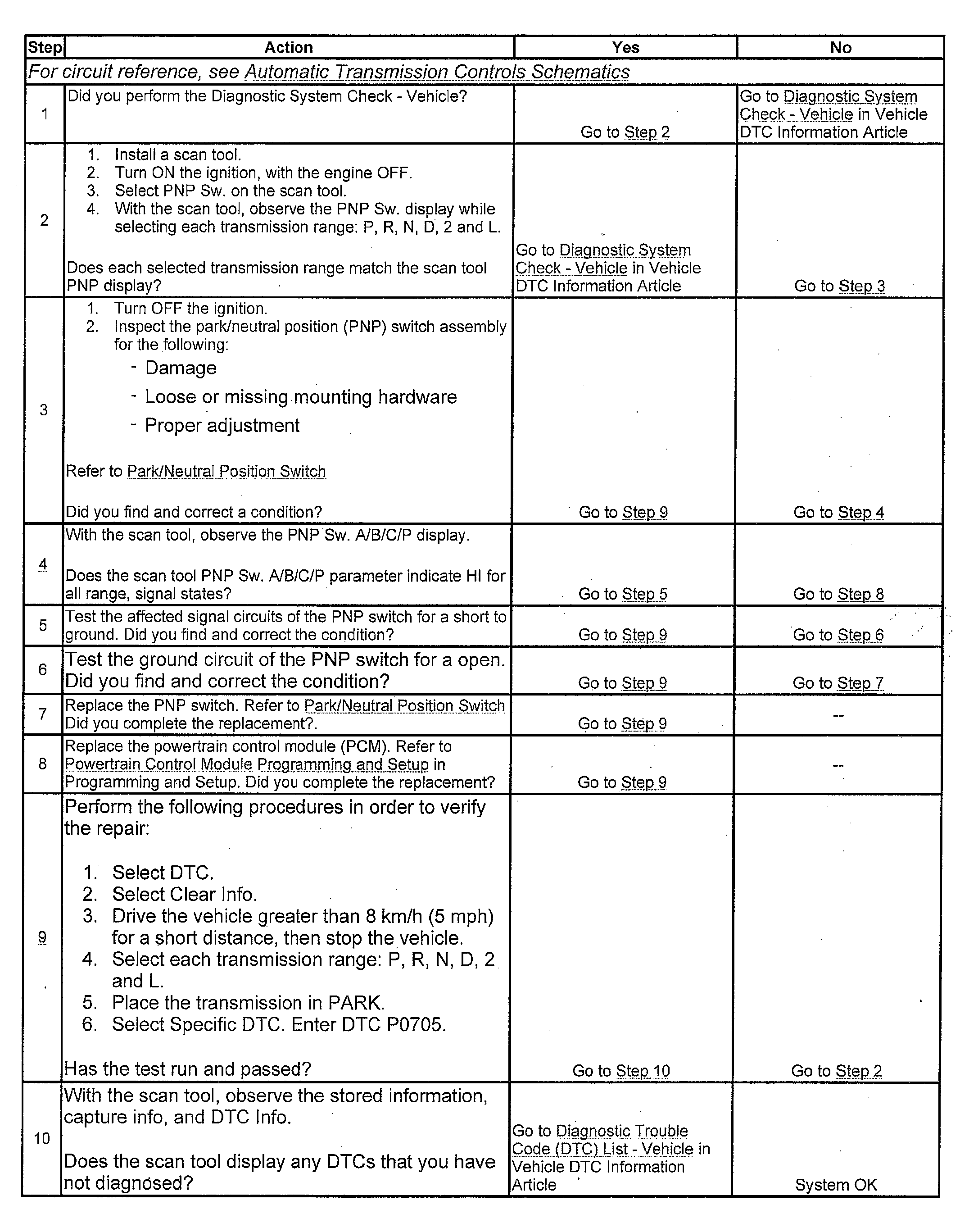

The numbers below refer to the step numbers on the diagnostic table.
- 4. Disconnecting the transmission range switch, the ground path of all PNP switch circuits would be removed and the PCM would recognize all circuits as open. The scan tool will display HI for all range signals.
- 9. This step verifies the repair of the PNP switch wiring for an open or the lack of the signal voltage from the PCM.
