Disassembled Views

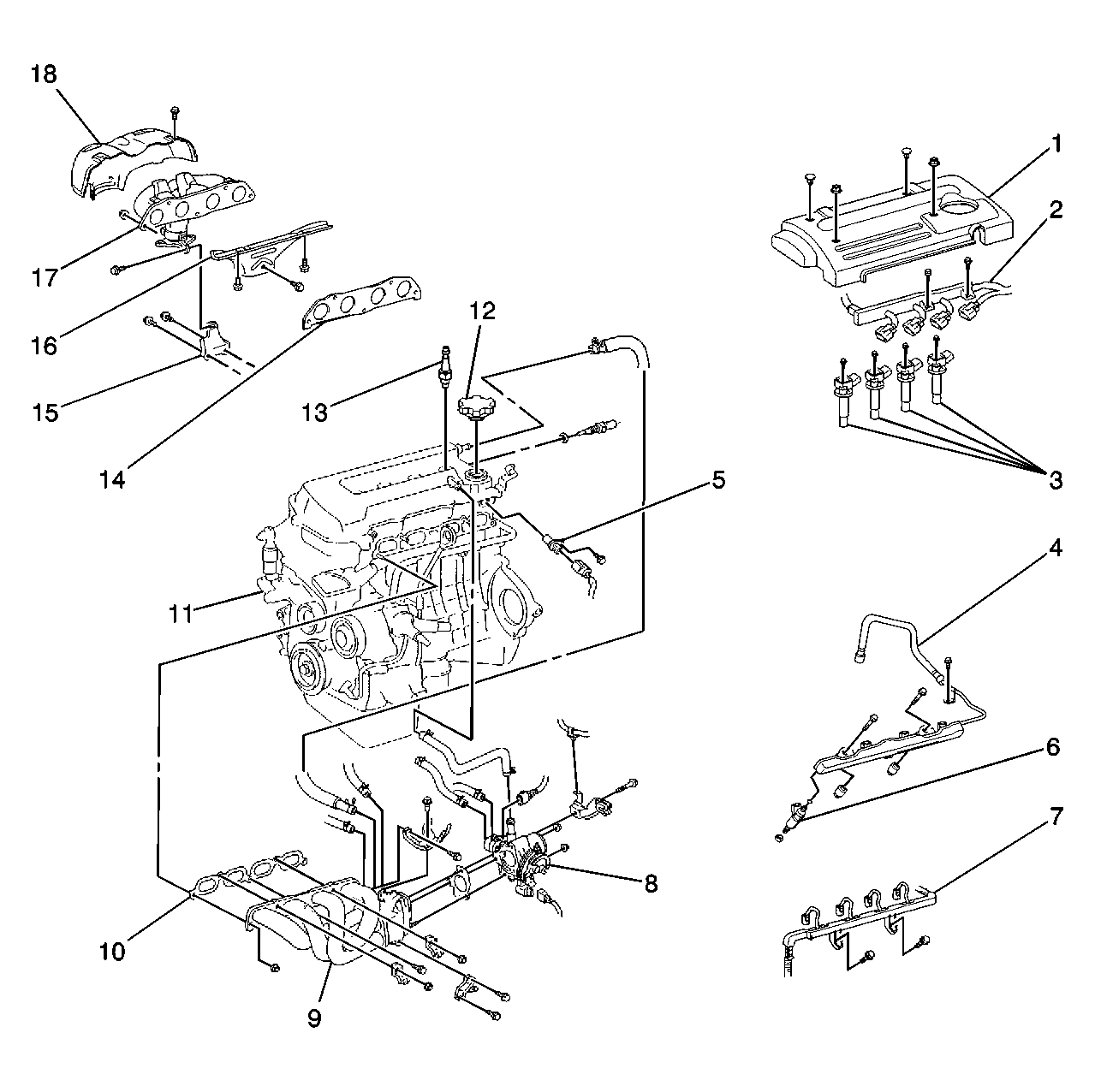

Fig 1: Intake and Exhaust Manifold Components Views
GM625224Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Cover
2 Ignition Coil Harness
3 Ignition Coils
4 Fuel Line / Fuel Rail
5 Camshaft Sensor
6 Fuel Injector
7 Fuel Injector Harness
8 Throttle Body
9 Intake Manifold
10 Intake Manifold Gasket
11 Engine Mount
12 Oil Filler Cap
13 Spark Plug
14 Exhaust Manifold Gasket
15 Exhaust Manifold Bracket
16 Exhaust Manifold Inner Heat Shield
17 Exhaust Manifold
18 Exhaust Manifold Outer Heat Shield

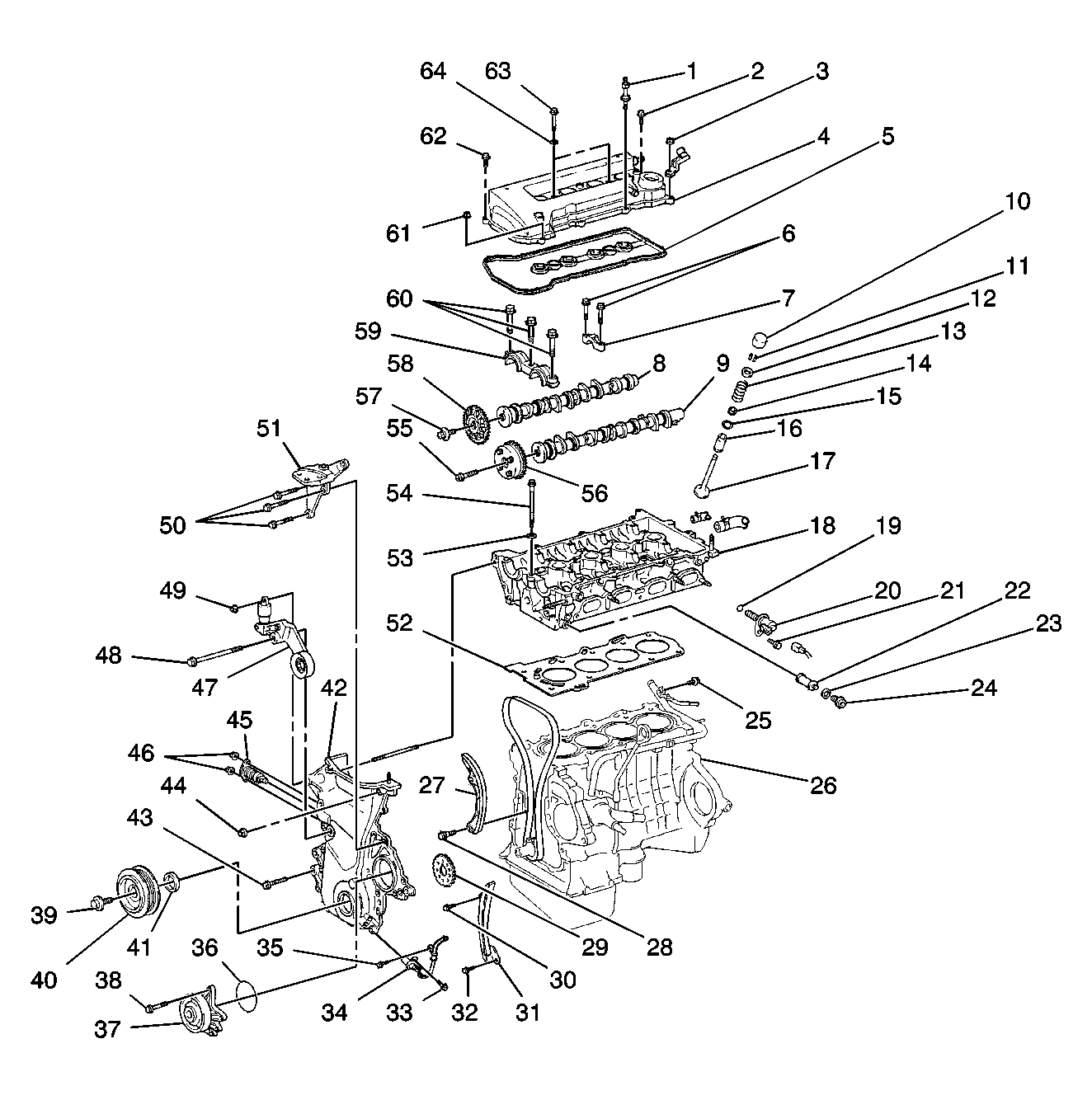

Fig 2: Cylinder Head and Components Views
GM625218Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt / Stud, Cylinder Head Cover
2 Bolt, Cylinder Head Cover
3 Nut, Cylinder Head Cover
4 Cylinder Head Cover
5 Gasket, Cylinder Head Cover
6 Bolt, Camshaft Bearing Cap
7 Camshaft Bearing Cap
8 Exhaust Camshaft
9 Intake Camshaft
10 Valve Lifter
11 Valve Keepers
12 Valve Spring Retainer
13 Valve Spring
14 Valve Oil Seal
15 Valve Spring Seat
16 Valve Guide Bushing
17 Valve
18 Cylinder Head
19 O-Ring, Camshaft Position Actuator Solenoid Valve
20 Camshaft Position Actuator Solenoid Valve
21 Bolt, Camshaft Position Actuator Solenoid Valve
22 Filter, Oil Feed
23 Seal, Oil Feed
24 Bolt, Oil Feed
25 Bolt, Coolant Pipe
26 Cylinder Block
27 Timing Chain Dampener
28 Bolt, Timing Chain Dampener
29 Crank Sensor Reluctor
30 Bolt, Timing Chain Tensioner Shoe
31 Timing Chain Tensioner Shoe
32 Bolt, Timing Chain Tensioner Shoe
33 Bolt, Crankshaft Position Sensor
34 Crankshaft Position Sensor
35 Crankshaft Position Sensor Harness
36 O-Ring, Coolant Pump
37 Coolant Pump
38 Bolt, Coolant Pump
39 Bolt, Crankshaft Pulley
40 Crankshaft Pulley
41 Crankshaft Front Oil Seal
42 Timing Chain Cover
43 Bolt, Timing Chain Cover
44 Nut, Timing Chain Cover
45 Timing Chain Tensioner
46 Bolt, Timing Chain Tensioner
47 Drive Belt Tensioner
48 Bolt, Drive Belt Tensioner
49 Nut, Drive Belt Tensioner
50 Bolt, RH Engine Mounting Bracket
51 RH Engine Mounting Bracket
52 Cylinder Head Gasket
53 Cylinder Head Bolt Washer
54 Cylinder Head Bolt
55 Bolt, Camshaft Sprocket
56 Intake Camshaft Sprocket (VVT)
57 Bolt, Camshaft Sprocket
58 Exhaust Camshaft Sprocket
59 Front Camshaft Bearing Cap
60 Bolt, Camshaft Bearing Cap
61 Nut, Cylinder Head Cover
62 Bolt, Cylinder Head Cover
63 Bolt, Cylinder Head Cover
64 Seal Washer, Cylinder Head Cover

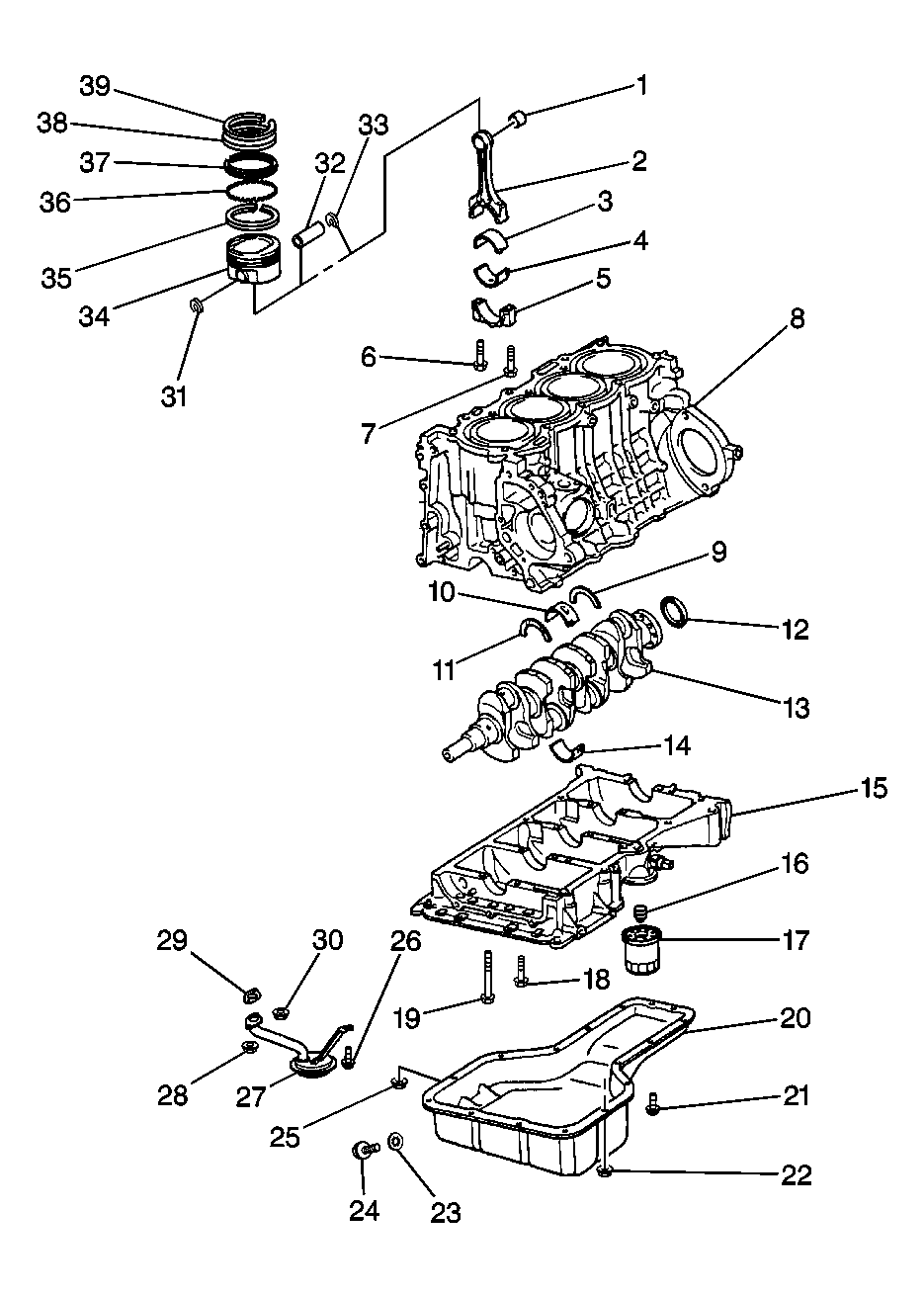

Fig 3: Cylinder Block, Crankshaft, Connecting Rod and Piston Components Views
GM361150Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Connecting Rod Bushing
2 Connecting Rod
3 Connecting Rod Bearing
4 Connecting Rod Bearing
5 Connecting Rod Cap
6 Bolt, Connecting Rod
7 Bolt, Connecting Rod
8 Cylinder Block
9 Crankshaft Thrust Washer
10 Upper Main Bearing
11 Crankshaft Thrust Washer
12 Crankshaft Rear Oil Seal
13 Crankshaft
14 Lower Main Bearing
15 Lower Crankcase
16 Oil Filter Union
17 Oil Filter
18 Bolt, Lower Crankcase
19 Bolt, Lower Crankcase
20 Oil Pan
21 Bolt, Oil Pan
22 Nut, Oil Pan
23 Gasket, Drain Plug
24 Drain Plug
25 Nut, Oil Pan
26 Bolt, Oil Strainer
27 Oil Strainer
28 Nut, Oil Strainer, Bracket
29 Gasket, Oil Strainer
30 Nut, Oil Strainer
31 Piston Snap Ring
32 Piston Pin
33 Piston Snap Ring
34 Piston
35 Piston O-Ring (Side Rail)
36 Piston Oil Ring (Expander)
37 Piston O-Ring (Side Rail)
38 Piston No.2 Compression Ring
39 Piston No. 2 Compression Ring

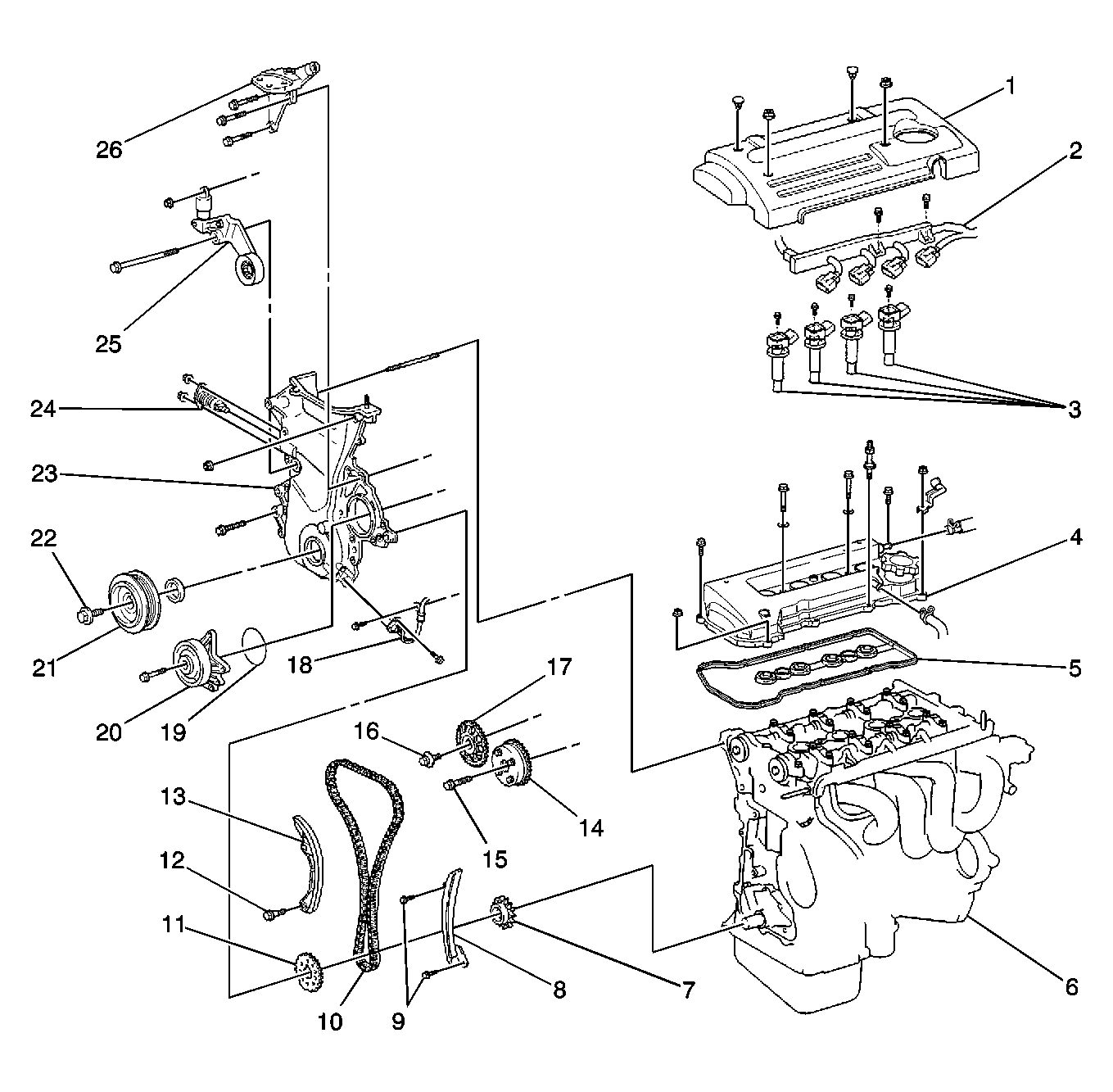

Fig 4: Timing Chain and Housing Components Views
GM625227Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Cover
2 Ignition Coil Harness
3 Ignition Coils
4 Cylinder Head Cover
5 Gasket, Cylinder Head Cover
6 Cylinder Block
7 Crankshaft Sprocket
8 Timing Chain Tensioner Shoe
9 Bolt, Timing Chain Tensioner Shoe
10 Timing Chain
11 Crankshaft Sensor Reluctor
12 Bolt, Timing Chain Dampener
13 Timing Chain Dampener
14 Intake Camshaft Sprocket (VVT)
15 Bolt, Camshaft Sprocket
16 Bolt, Camshaft Sprocket
17 Exhaust Camshaft Sprocket
18 Crankshaft Position Sensor
19 O-Ring, Coolant Pump
20 Coolant Pump
21 Crankshaft Pulley
22 Bolt, Crankshaft Pulley
23 Timing Chain Cover
24 Timing Chain Tensioner
25 Drive Belt Tensioner
26 RH Engine Mounting Bracket

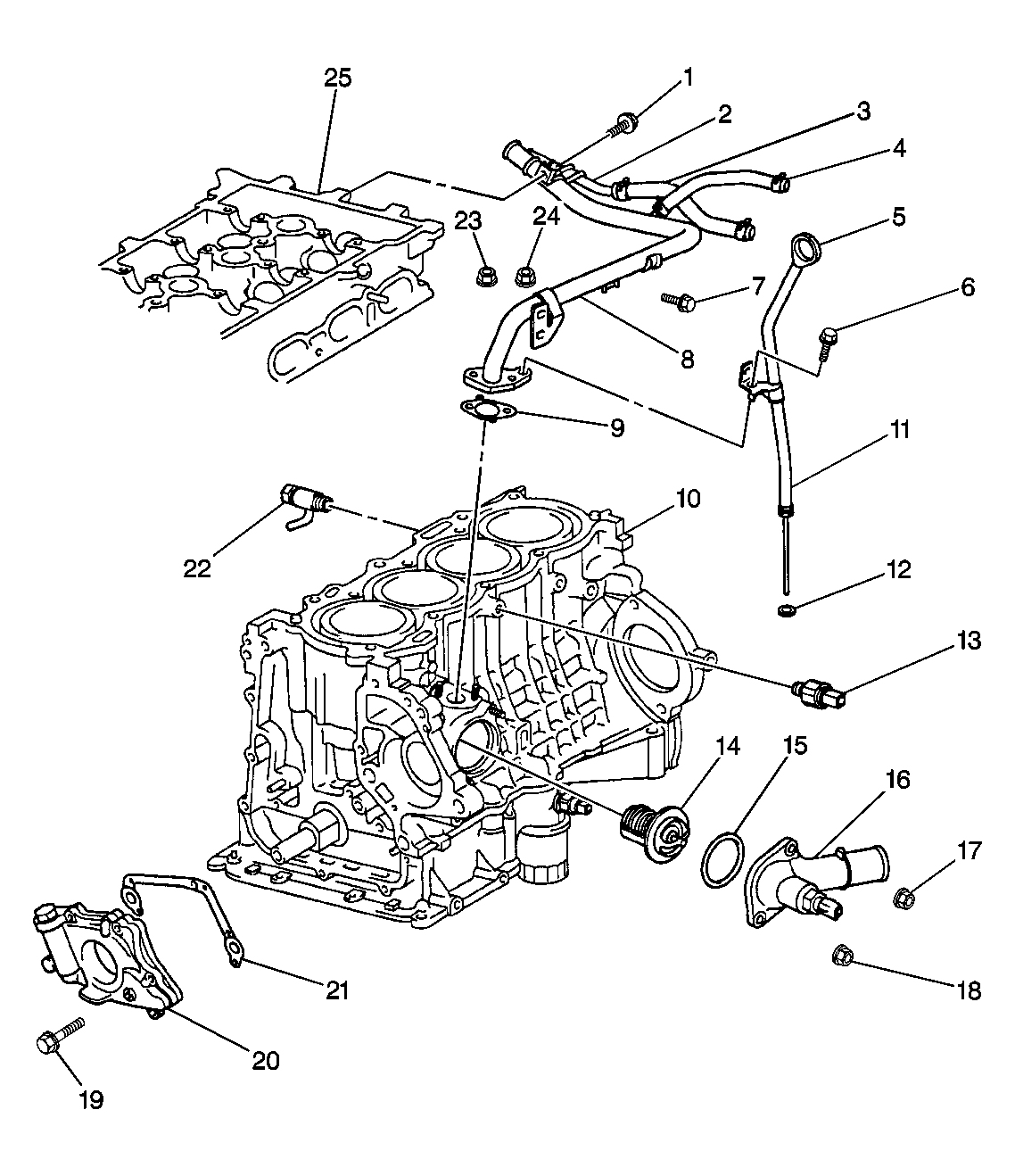

Fig 5: Oil and Cooling System Components Views
GM361183Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt, Water Bypass Pipe Bracket
2 Water Bypass Hose
3 Water Bypass Hose
4 Water Bypass Hose
5 Oil Level Indicator
6 Bolt, Oil Level Indicator Tube
7 Bolt, Water Bypass Pipe
8 Water Bypass Pipe
9 Gasket, Water Bypass Pipe
10 Cylinder Block
11 Oil Level Indicator Tube
12 O-Ring, Oil Level Indicator Tube
13 Knock Sensor
14 Thermostat
15 Gasket, Thermostat
16 Thermostat Housing Inlet
17 Nut, Thermostat Housing Inlet
18 Nut, Thermostat Housing Inlet
19 Bolt, Oil Pump
20 Oil Pump
21 Gasket, Oil Pump
22 Drain Union (Engine Coolant)
23 Nut, Water Bypass Pipe
24 Nut, Water Bypass Pipe
25 Cylinder Head
