Ground Distribution Schematics

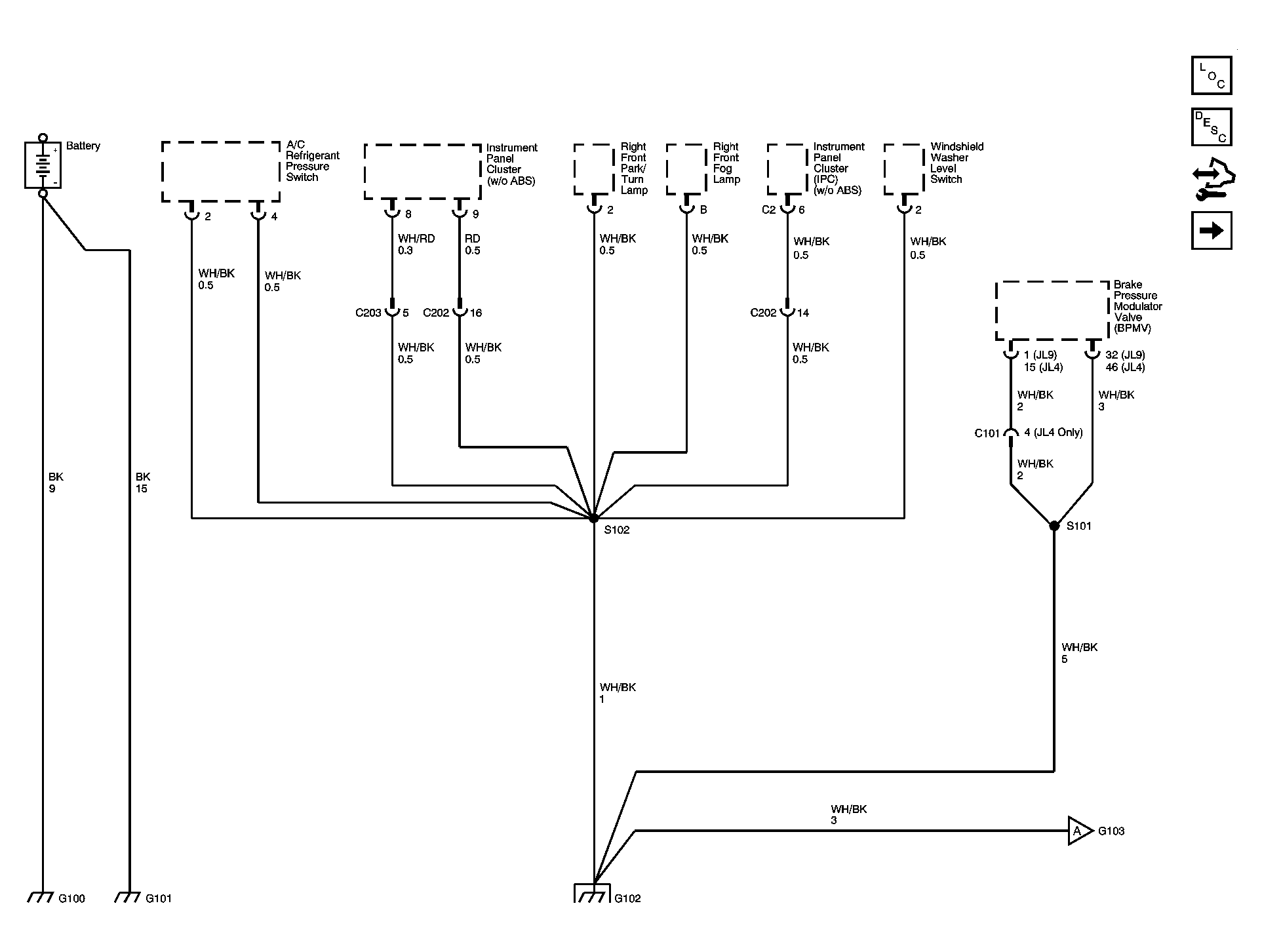

Fig 1: G100, G101, G102

GM1422181

Courtesy of GENERAL MOTORS CORP.

Fig 2: S103, G103

GM1422182

Courtesy of GENERAL MOTORS CORP.

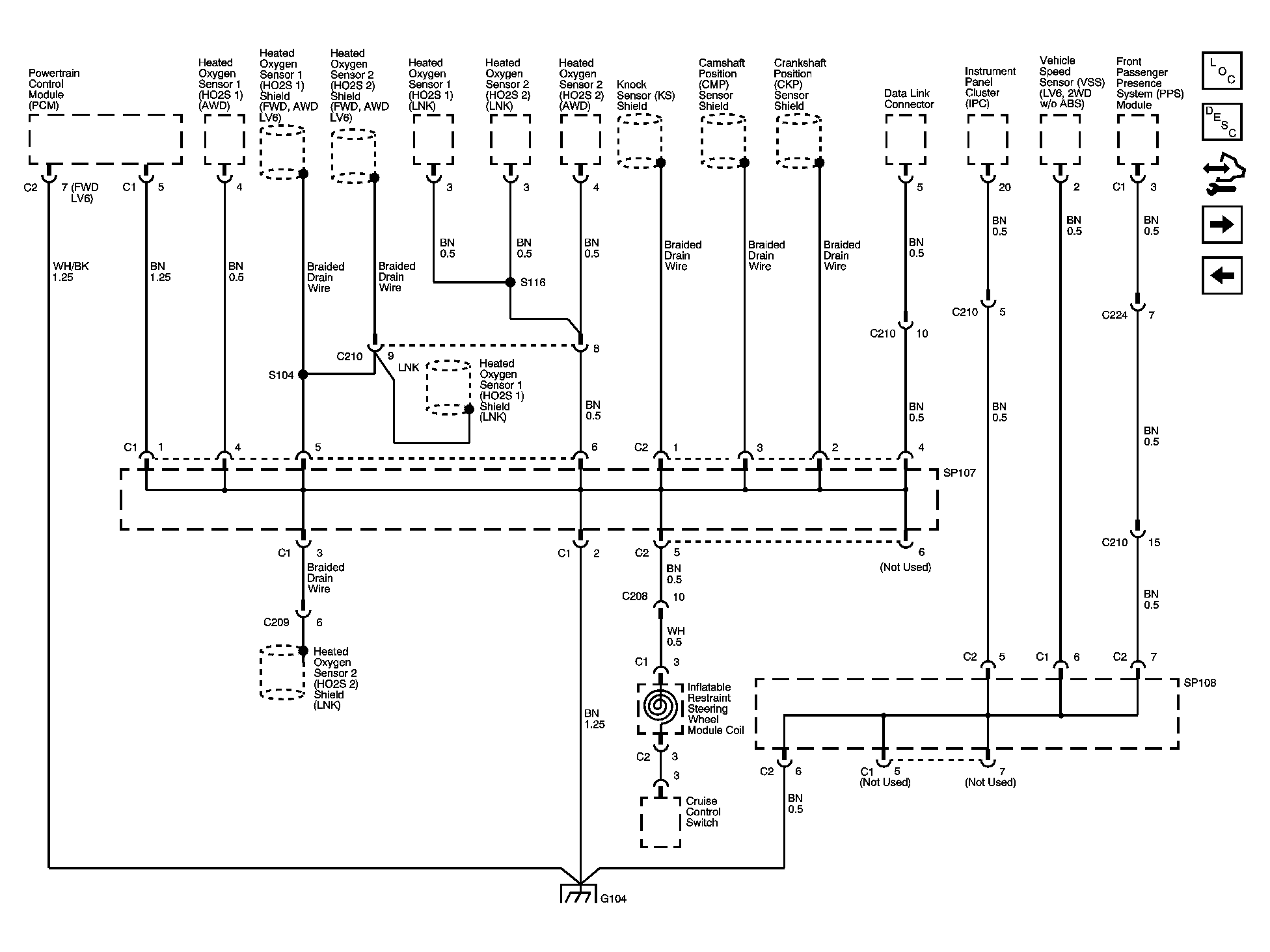

Fig 3: SP107, SP108, G104

GM1666779

Courtesy of GENERAL MOTORS CORP.

Fig 4: S105, G105, G106, G107, G108

GM1666783

Courtesy of GENERAL MOTORS CORP.

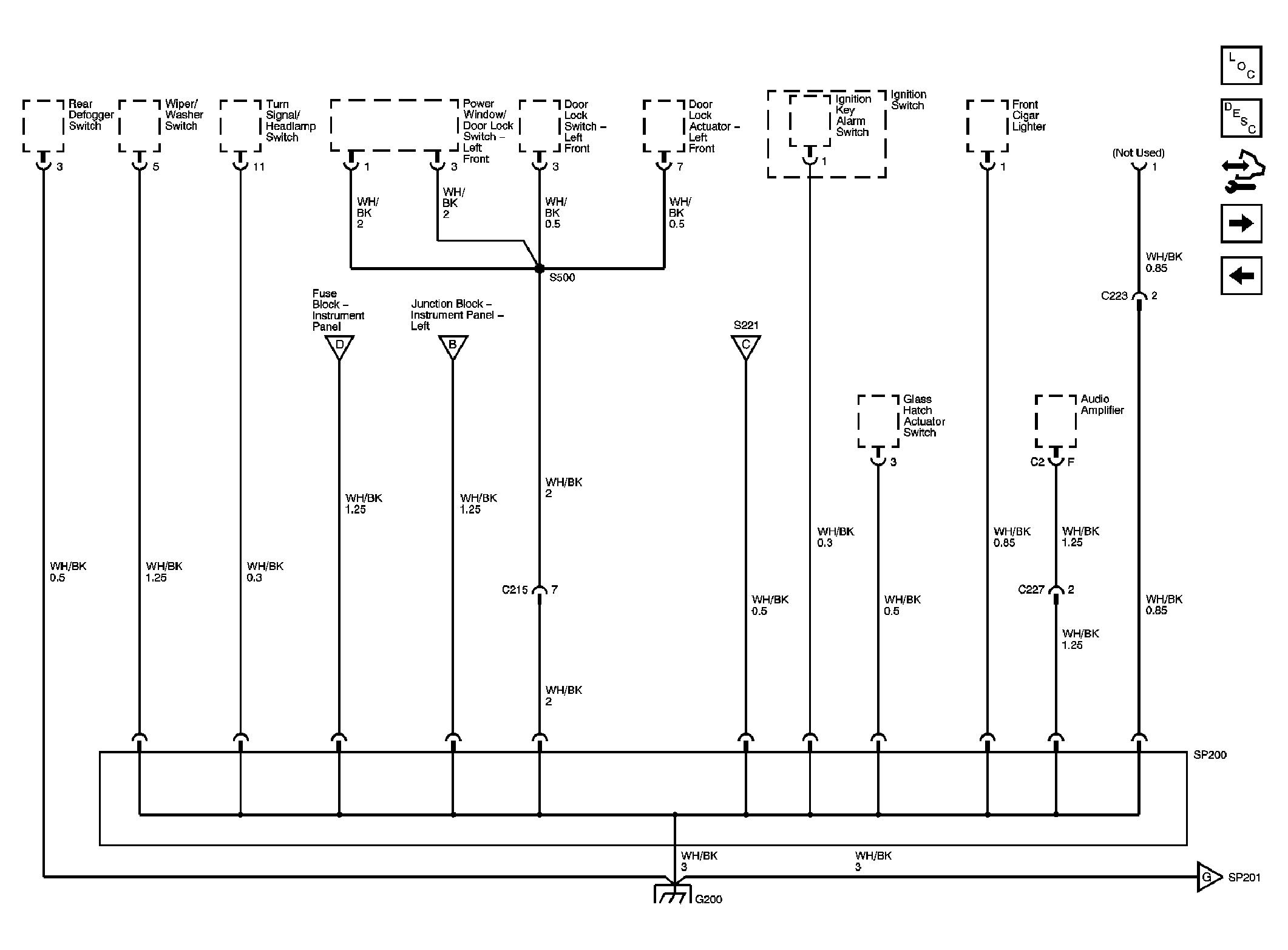

Fig 5: SP200 and G200

GM1666784

Courtesy of GENERAL MOTORS CORP.

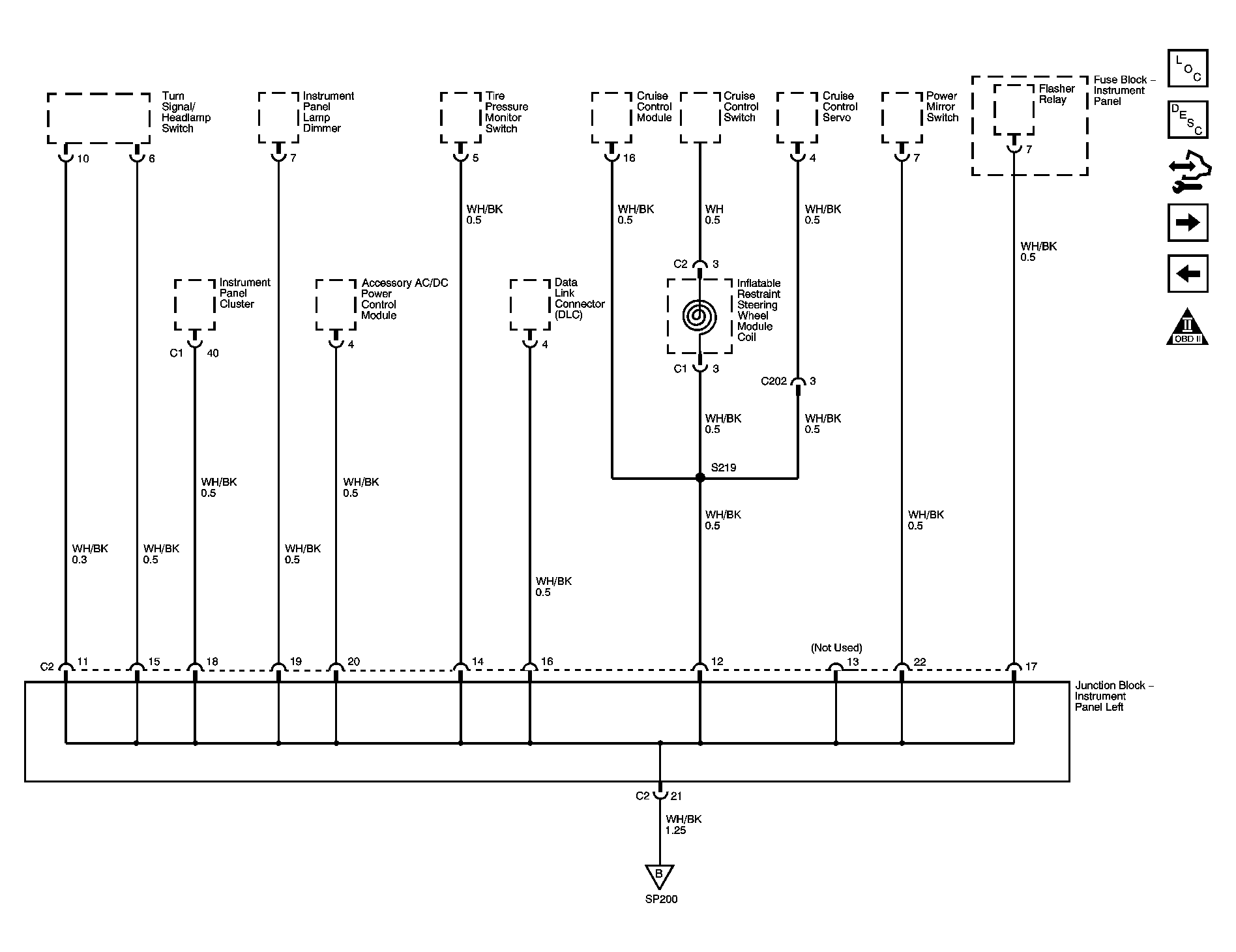

Fig 6: Junction Block Instrument Panel - Left

GM1422186

Courtesy of GENERAL MOTORS CORP.

Fig 7: S221

GM1422187

Courtesy of GENERAL MOTORS CORP.

Fig 8: Fuse Block - Instrument Panel

GM1422188

Courtesy of GENERAL MOTORS CORP.

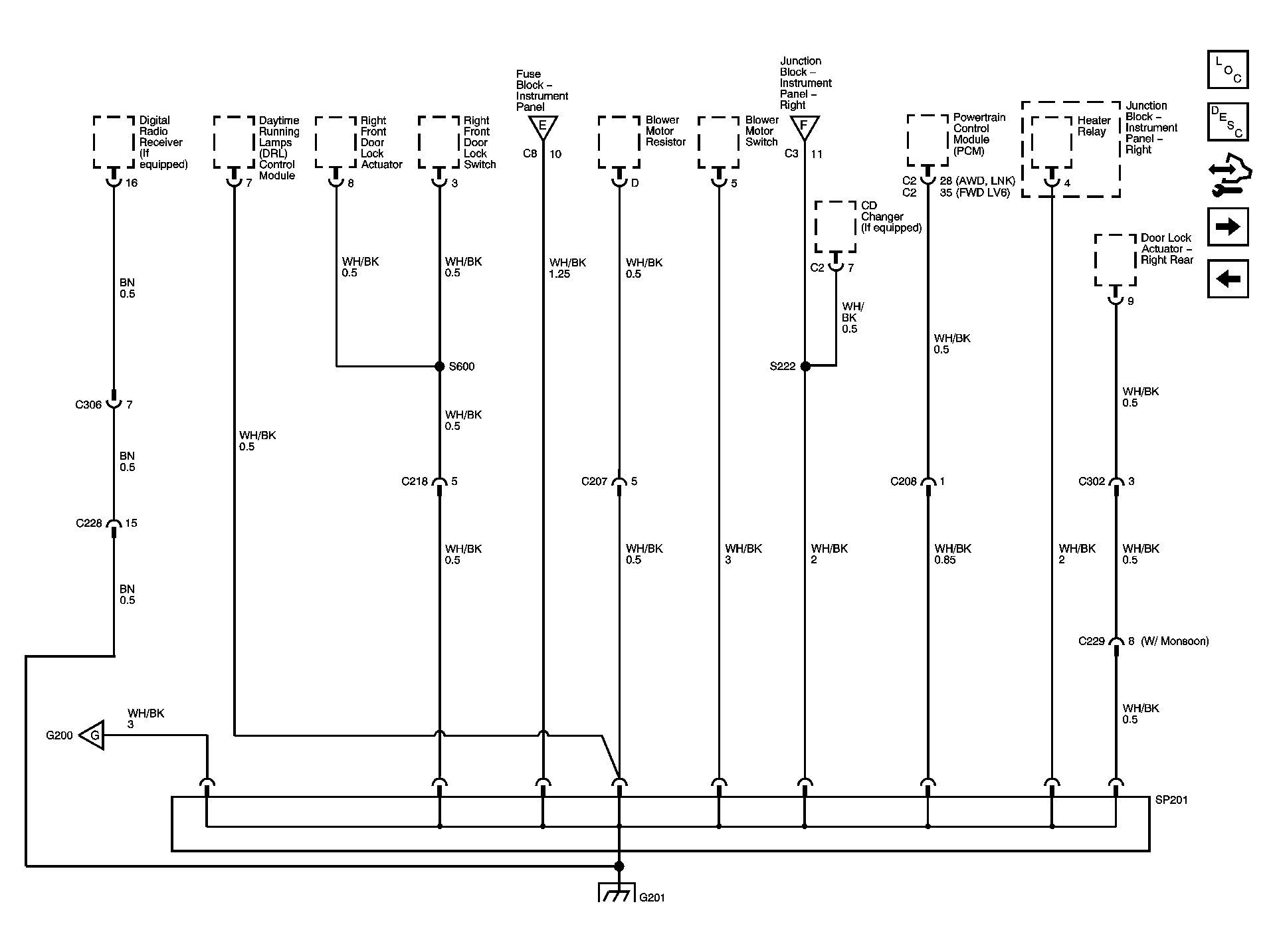

Fig 9: SP201 and G201

GM1422189

Courtesy of GENERAL MOTORS CORP.

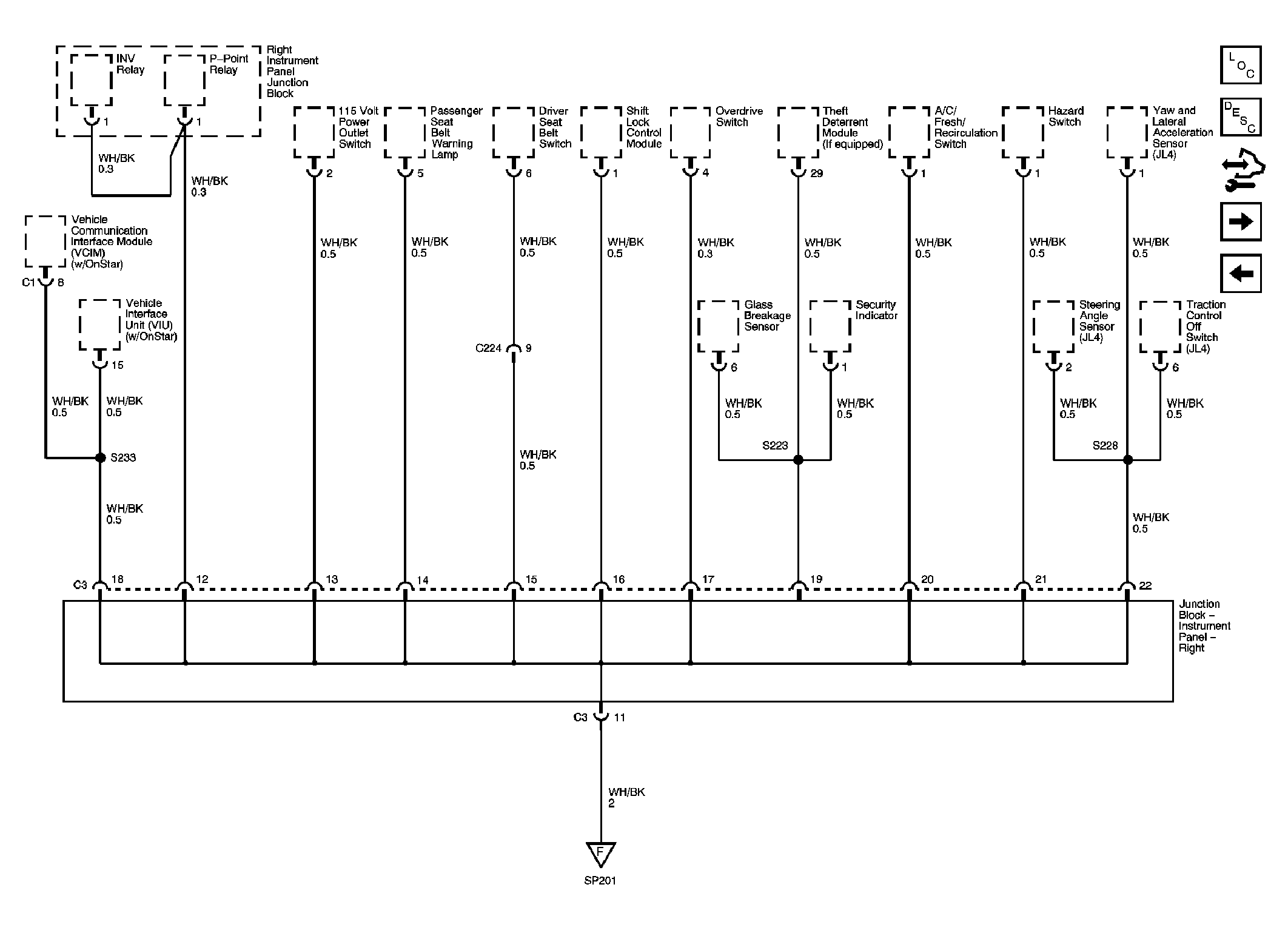

Fig 10: Junction Block Instrument Panel - Right

GM1422190

Courtesy of GENERAL MOTORS CORP.

Fig 11: G202, G300, G301, G302

GM1666785

Courtesy of GENERAL MOTORS CORP.

Fig 12: SP300

GM1666786

Courtesy of GENERAL MOTORS CORP.

Fig 13: SP400

GM1422193

Courtesy of GENERAL MOTORS CORP.
