Instrument Cluster Schematics

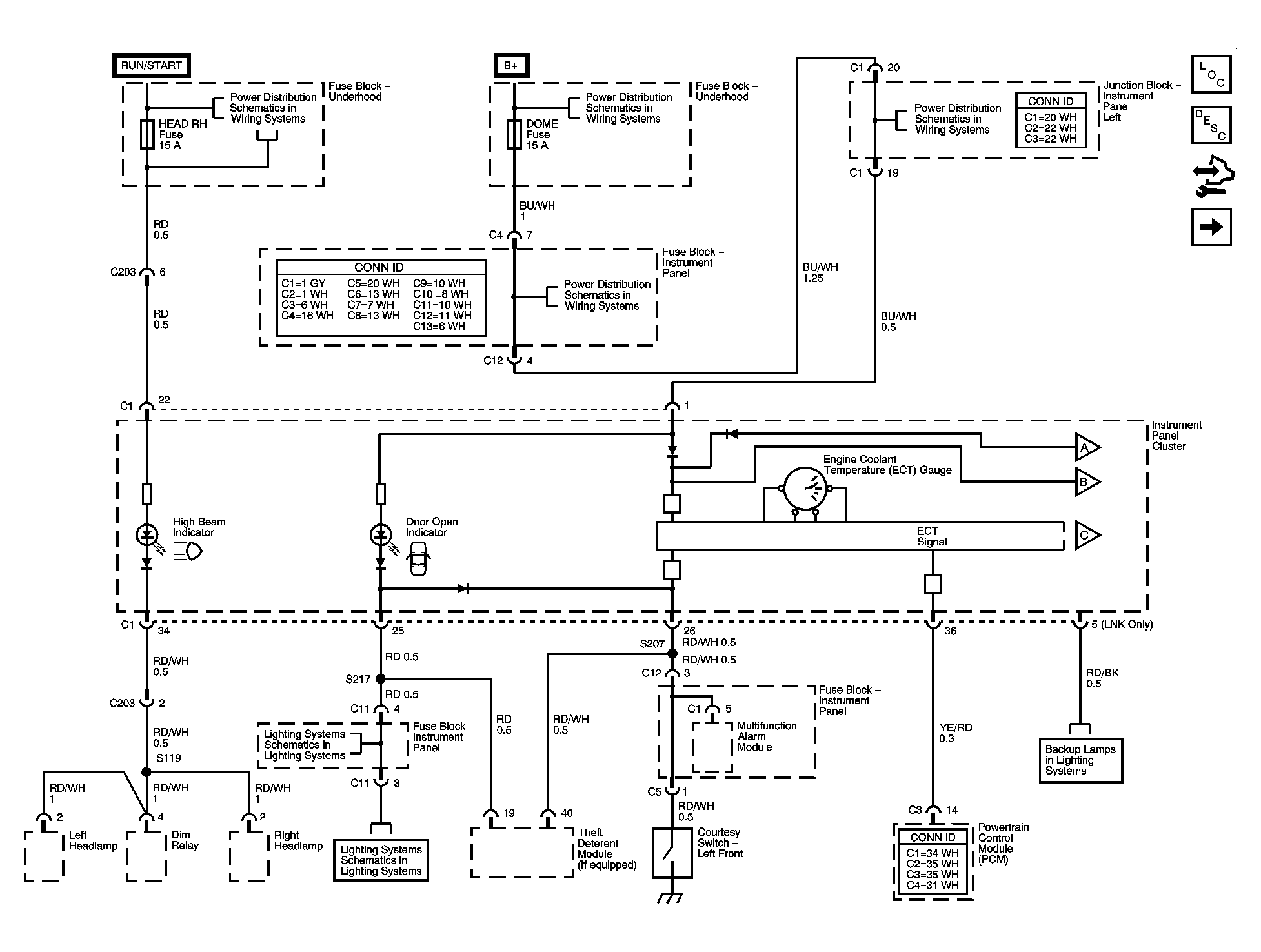

Fig 1: High Beam Door Open, Engine Coolant Temperature (ECT) Indicators

Courtesy of GENERAL MOTORS CORP.

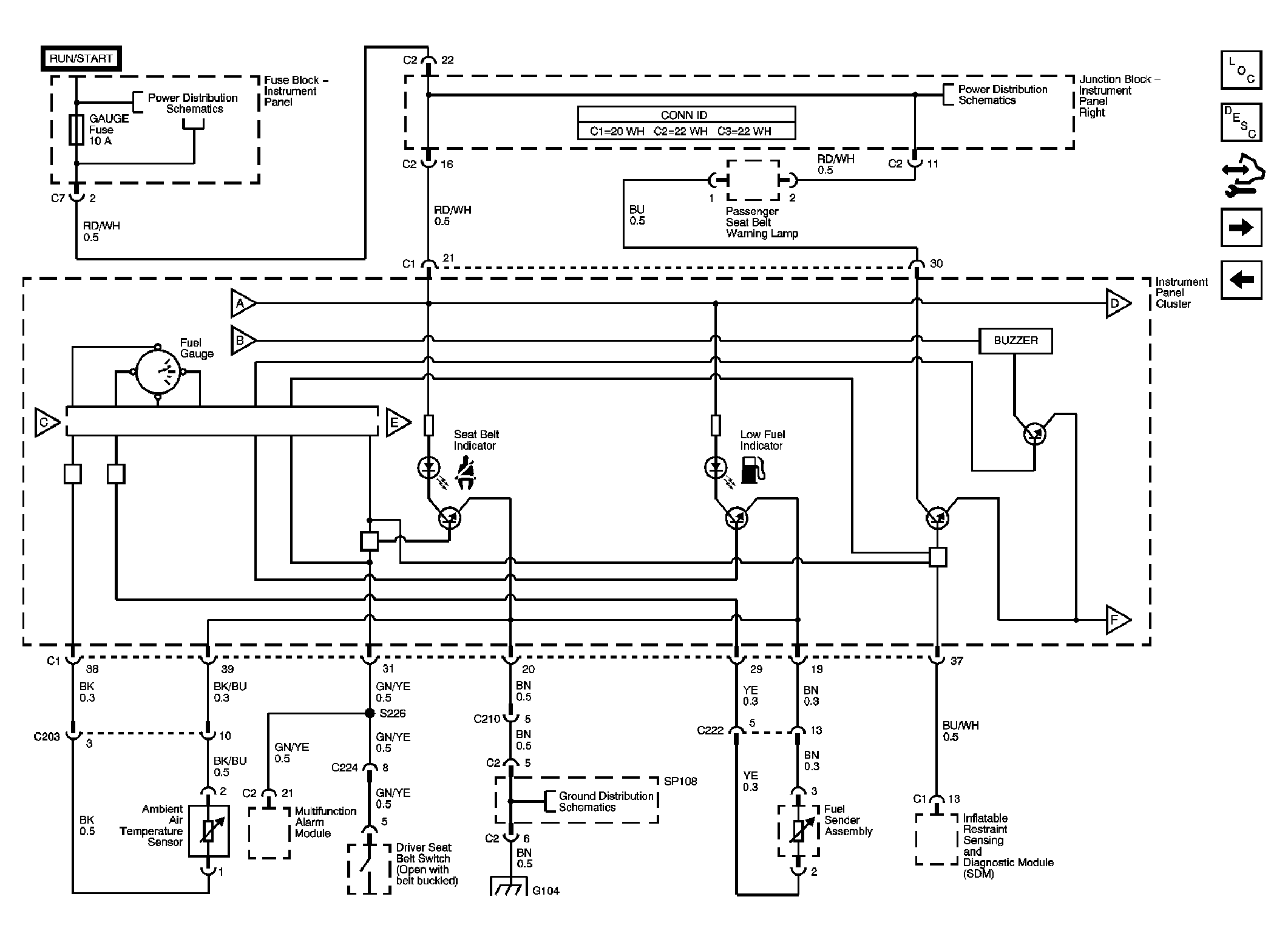

Fig 2: Fuel Gage, Seat Belt, Low Fuel, Passenger Seat Belt Indicators

Courtesy of GENERAL MOTORS CORP.

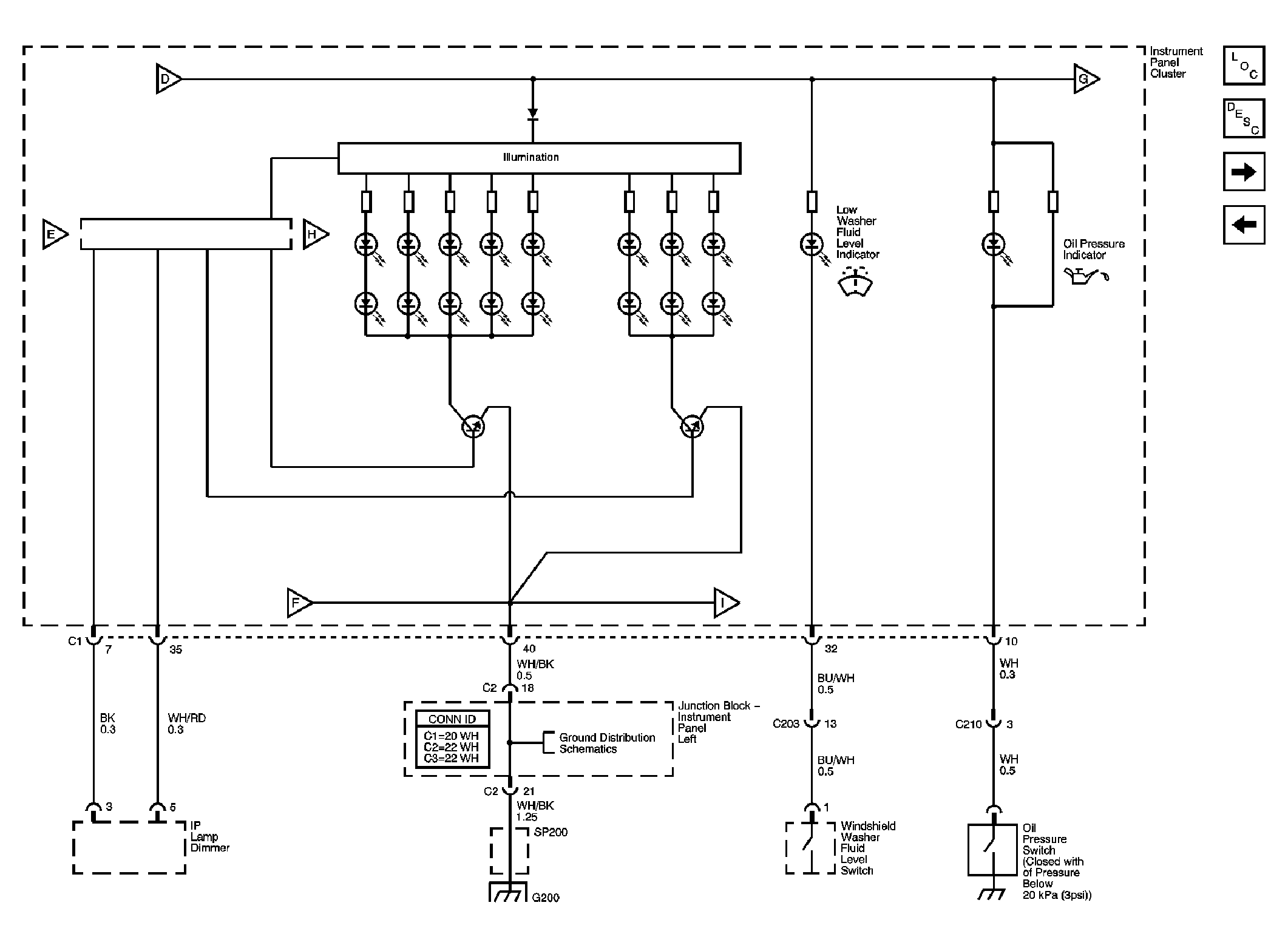

Fig 3: Low Washer Fluid Level, Oil Pressure Indicators, IPC Illumination

Courtesy of GENERAL MOTORS CORP.

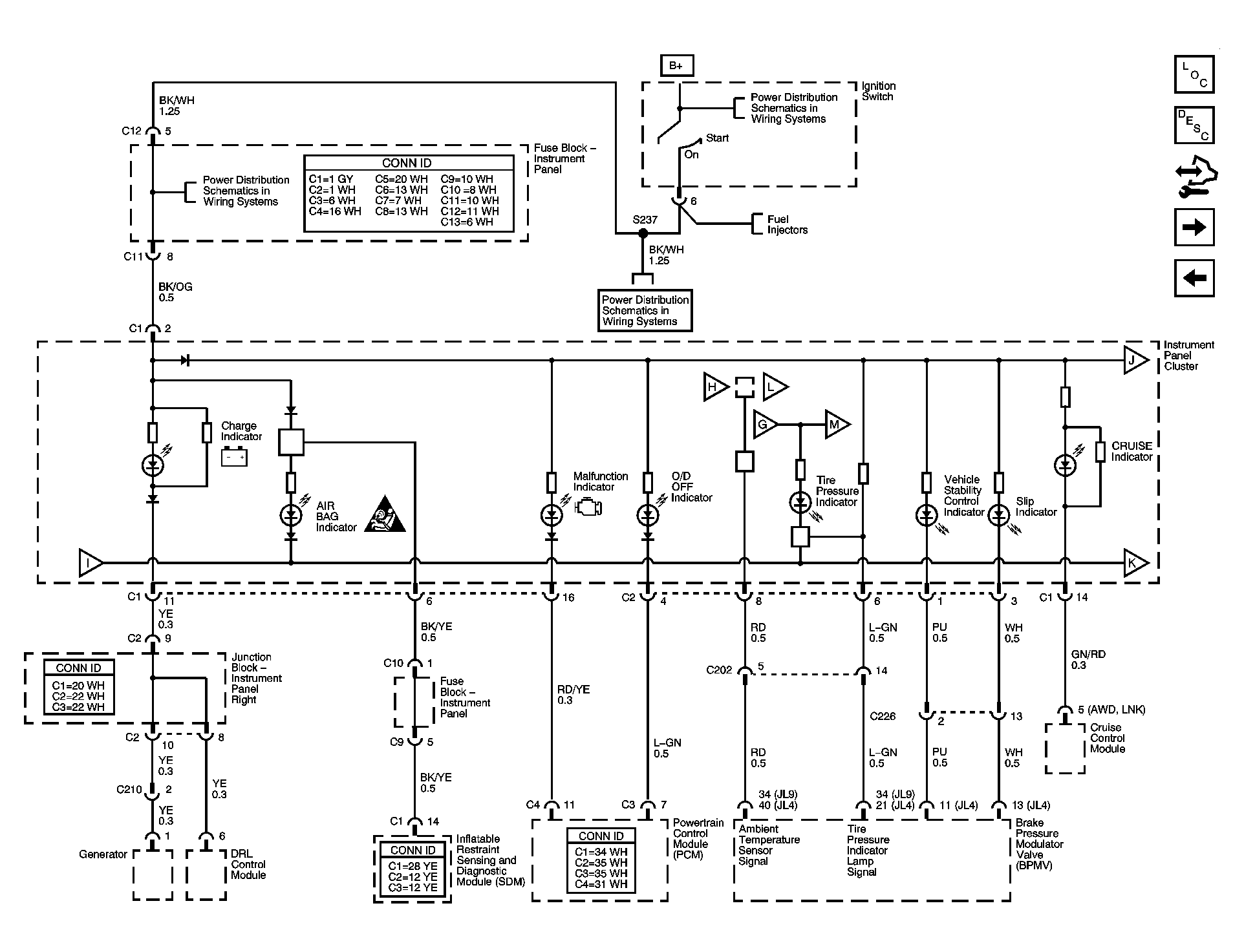

Fig 4: Charge, Air Bag, Malfunction, O/D OFF, Cruise Indicators

Courtesy of GENERAL MOTORS CORP.

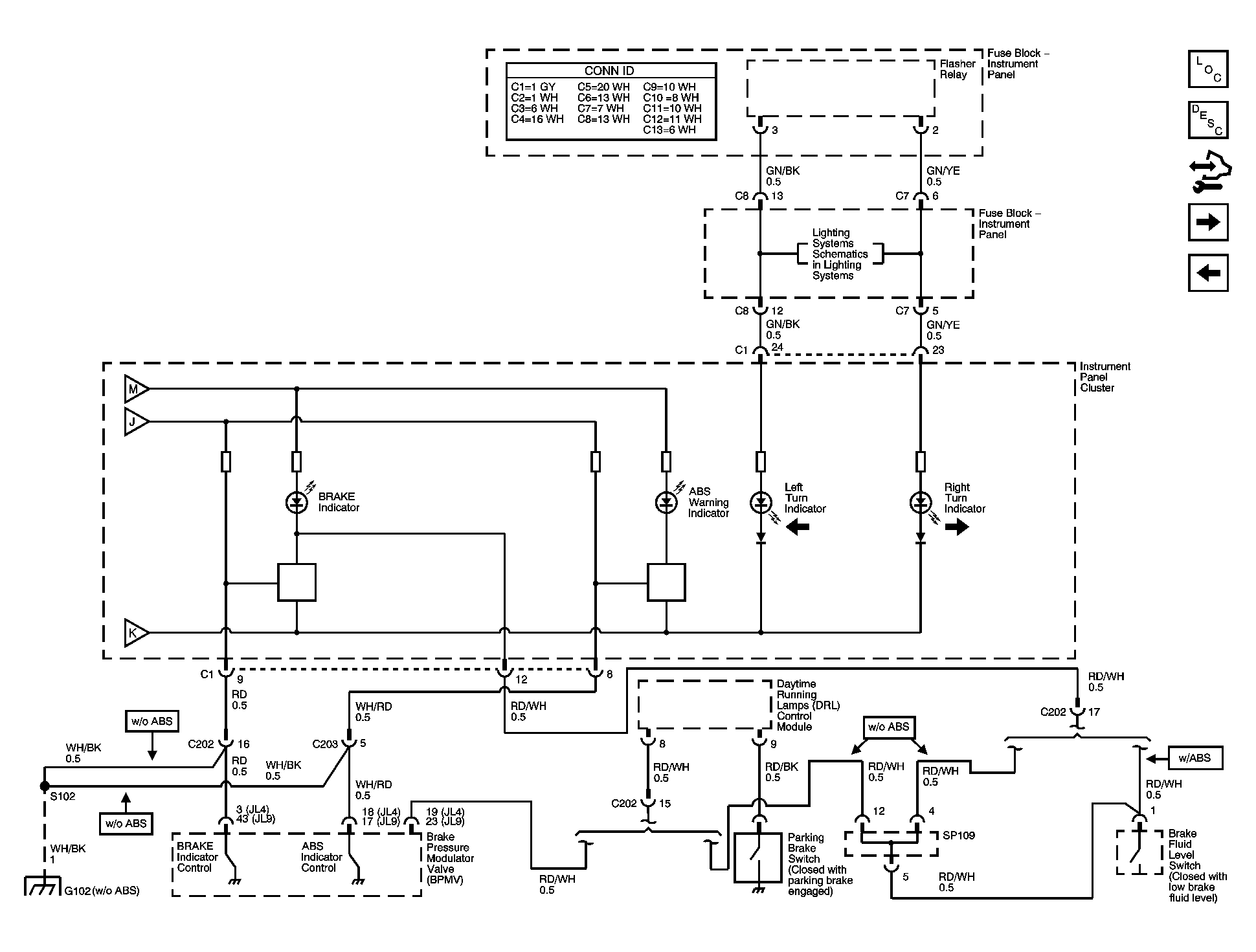

Fig 5: Brake, ABS, Turn Indicators

Courtesy of GENERAL MOTORS CORP.

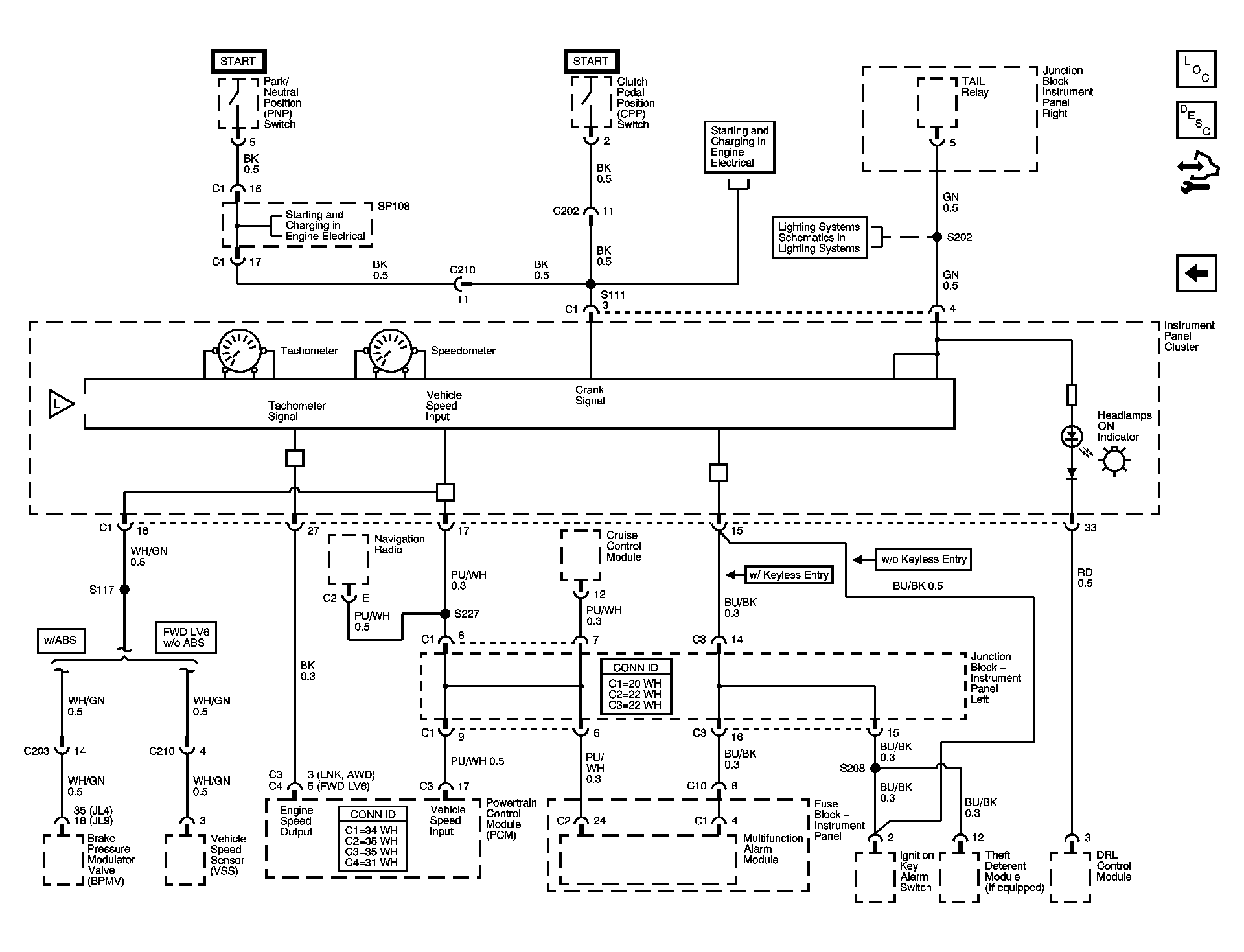

Fig 6: Headlamps ON Indicator, Crank Signal, Vehicle Speed Signal

Courtesy of GENERAL MOTORS CORP.
