Audible Warnings Schematics

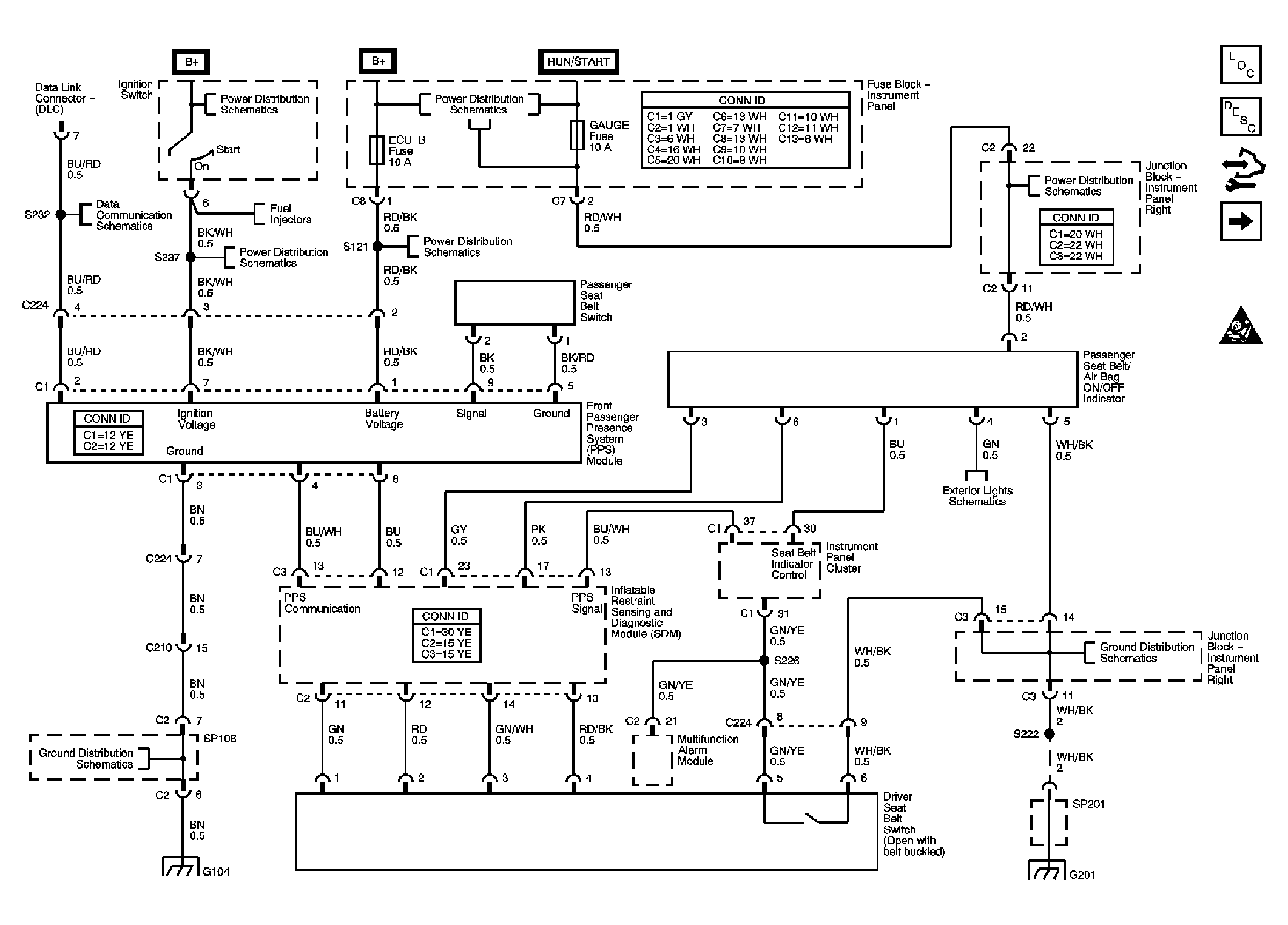

Fig 1: Seat Belt Warning Indicator
GM1666856Courtesy of GENERAL MOTORS CORP.

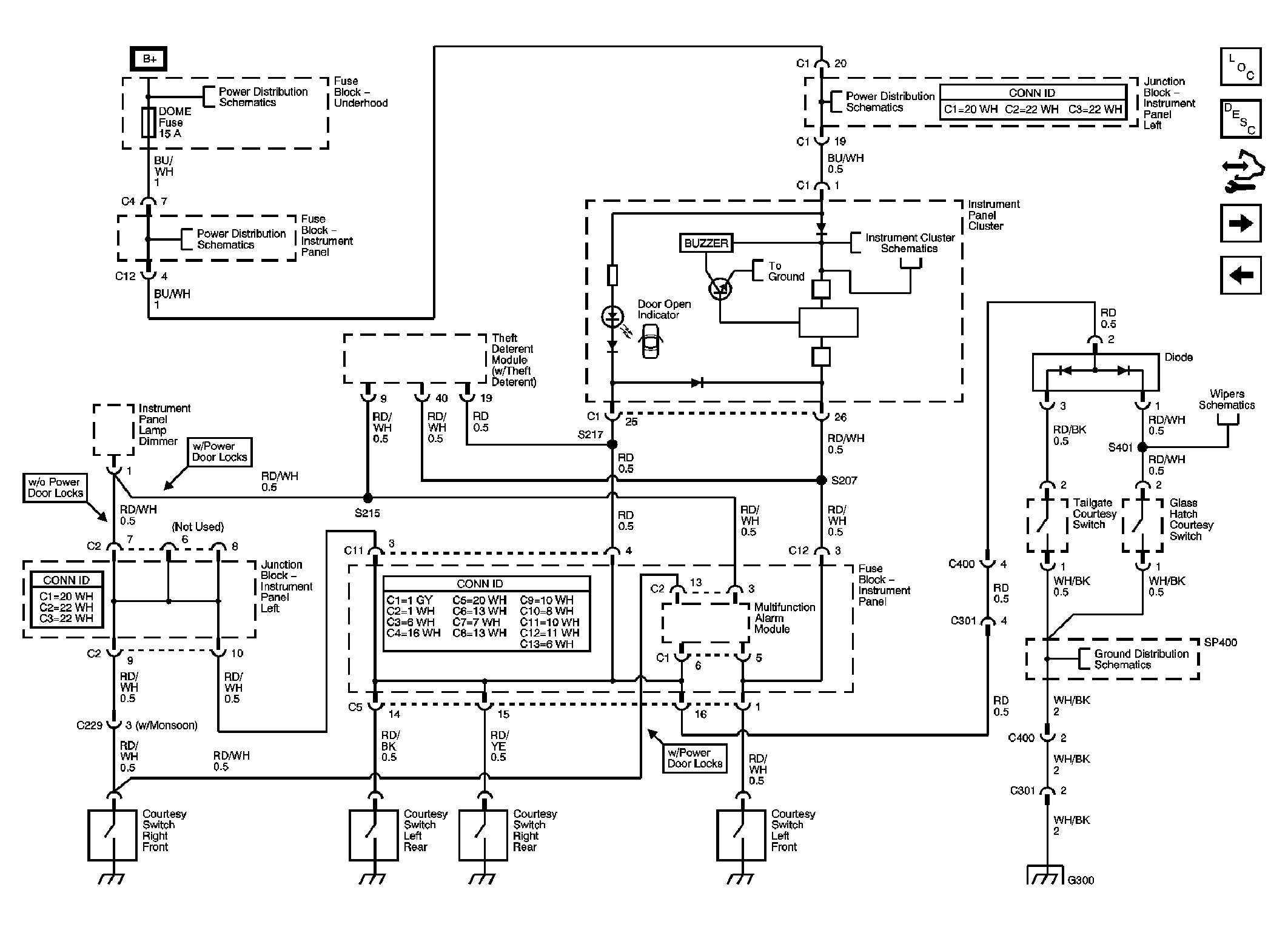

Fig 2: Door Open Warning Indicator
GM1426432Courtesy of GENERAL MOTORS CORP.

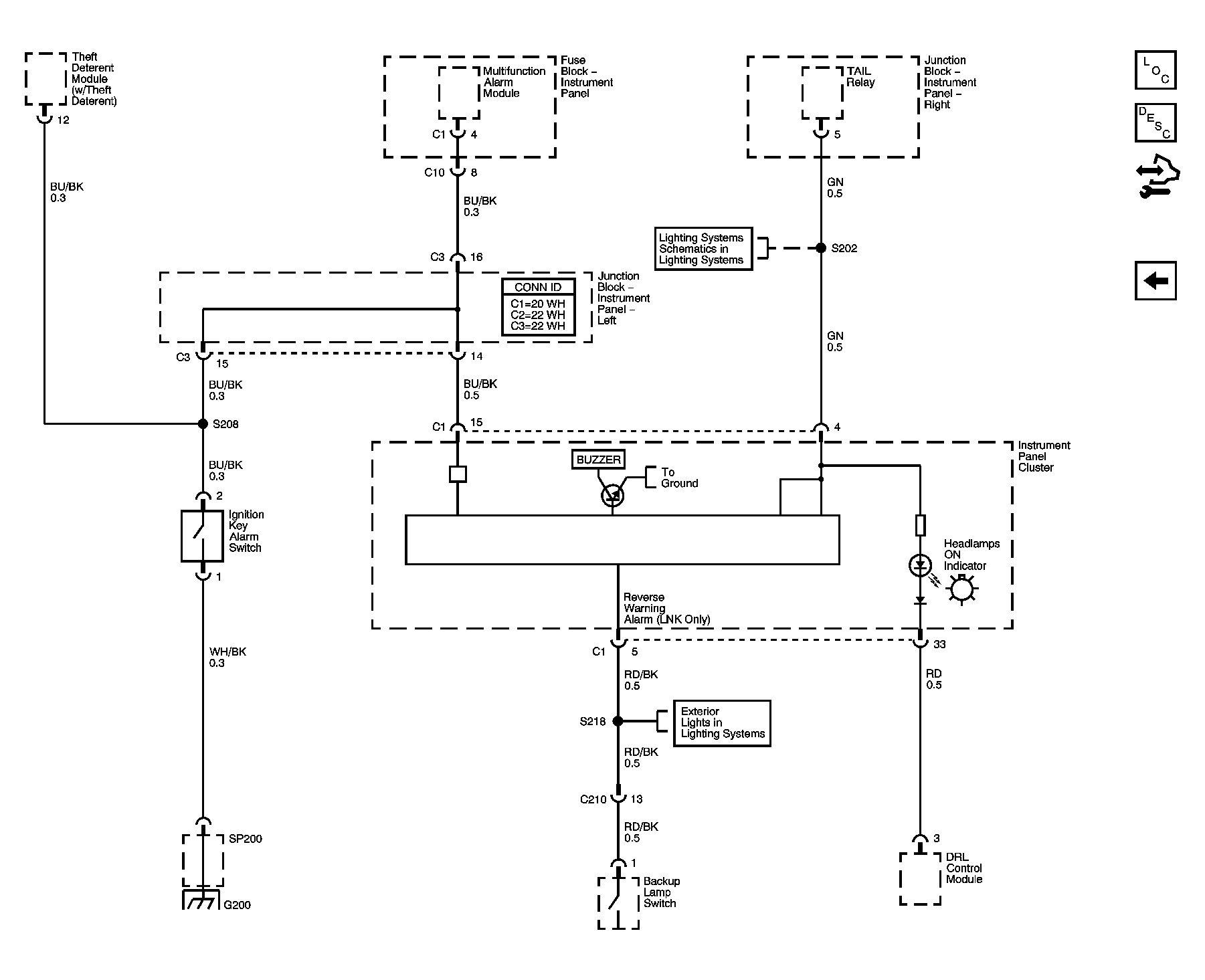

Fig 3: Headlamps ON, Ignition Key, Reverse Warning Indicators
GM1426450Courtesy of GENERAL MOTORS CORP.
