Inspection Procedure
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

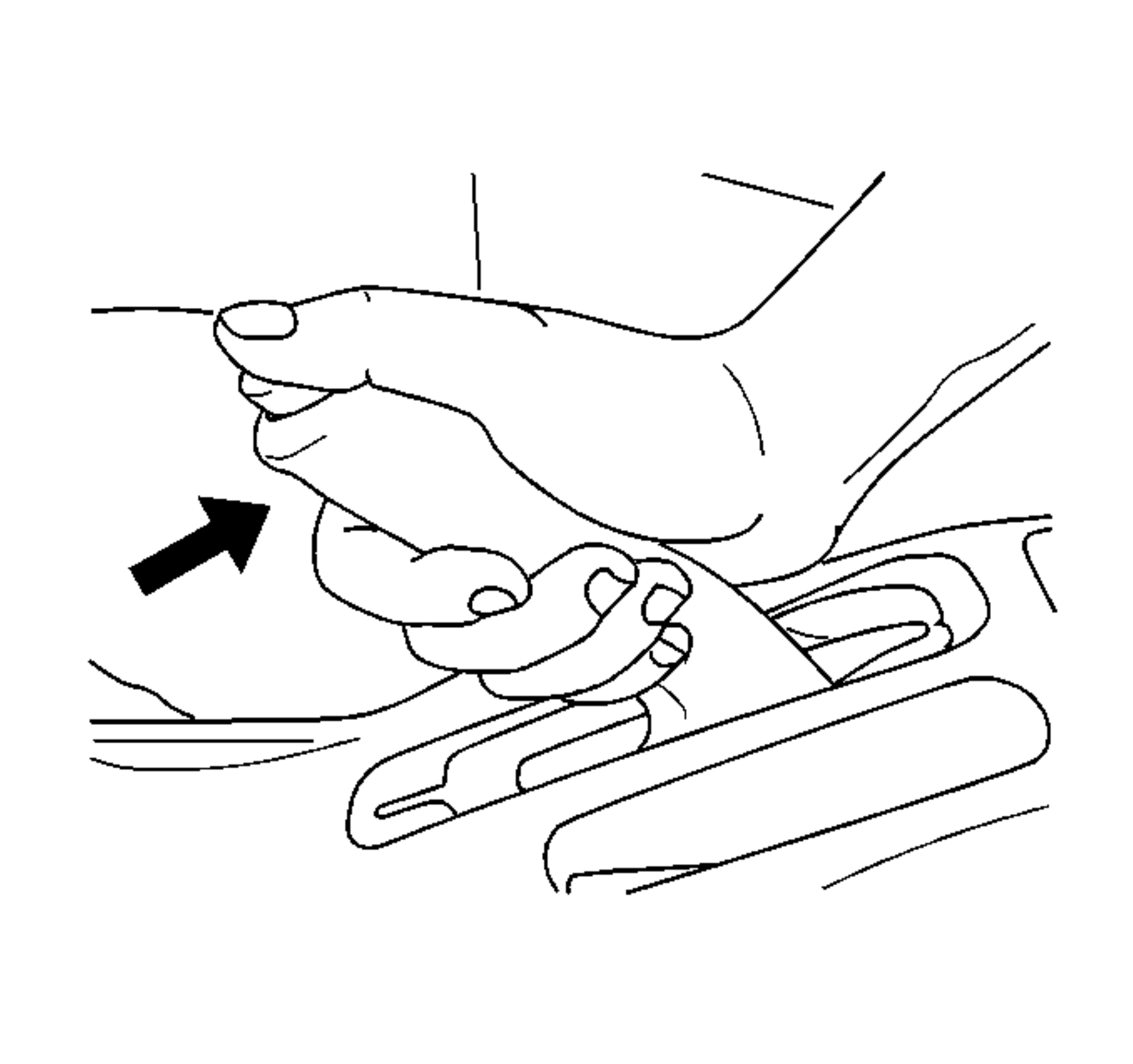

- Pull the park brake lever with approximately 20 kg (44.1 lb) of force.
- Count the number of clicks or ratchet notches.
Specification:
- The minimum number of clicks is 5.
- The maximum number of clicks is 7.
- Attempt to rotate the rear wheels. Verify the rear wheels do not rotate.
- Release the park brake.
- Attempt to rotate the rear wheels. Verify the rear wheels rotate freely.
- Turn the ignition switch to the ON position. Verify the red BRAKE warning indicator is OFF.
- If the park brake lever travel is correct, lower the vehicle.
- If the park brake lever travel is not correct, complete the Adjustment Procedure.
