Theft Deterrent System Schematics

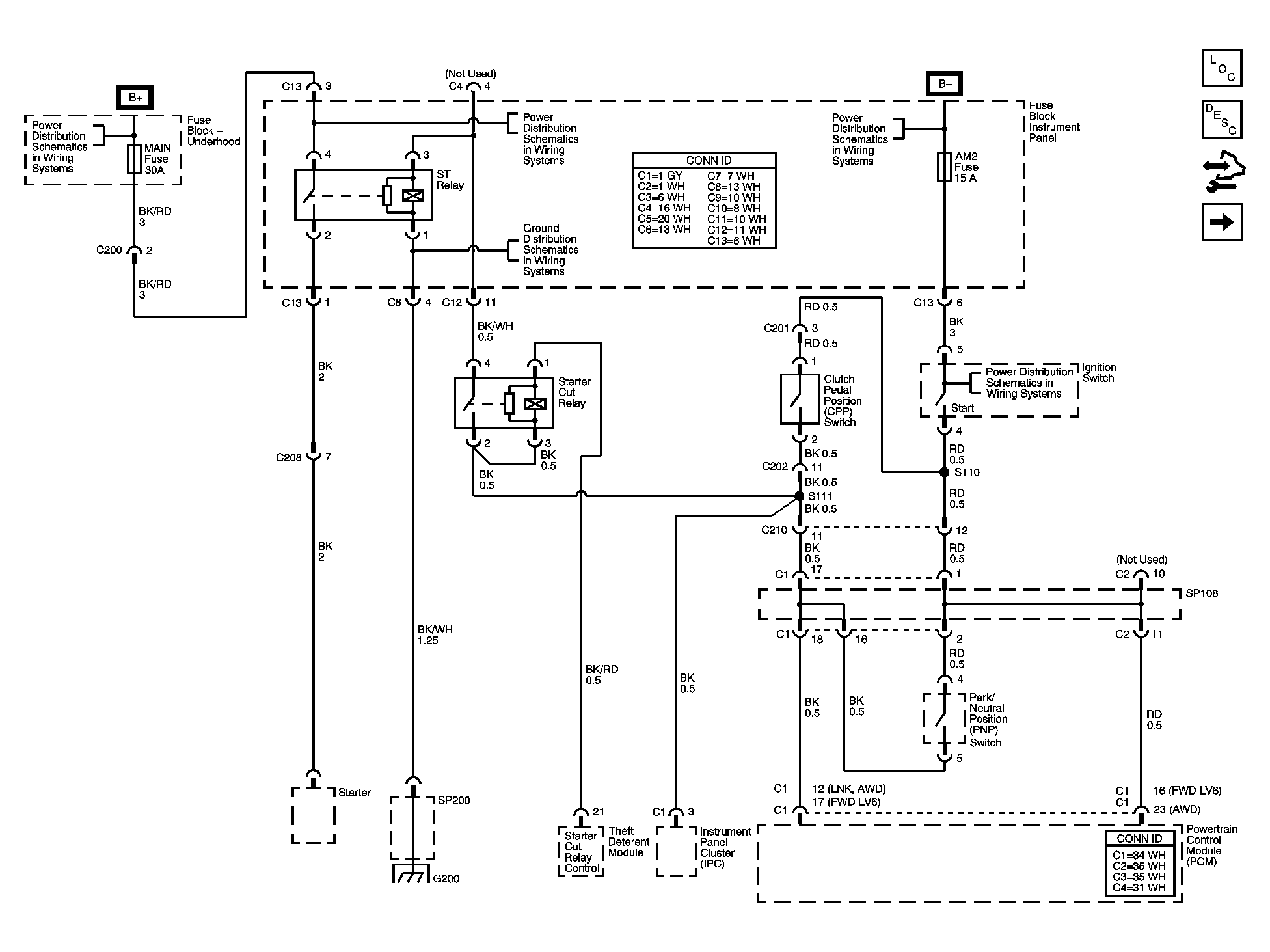

Fig 1: Start Relay, Starter Cut Relay, Theft Deterrent Module, Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.

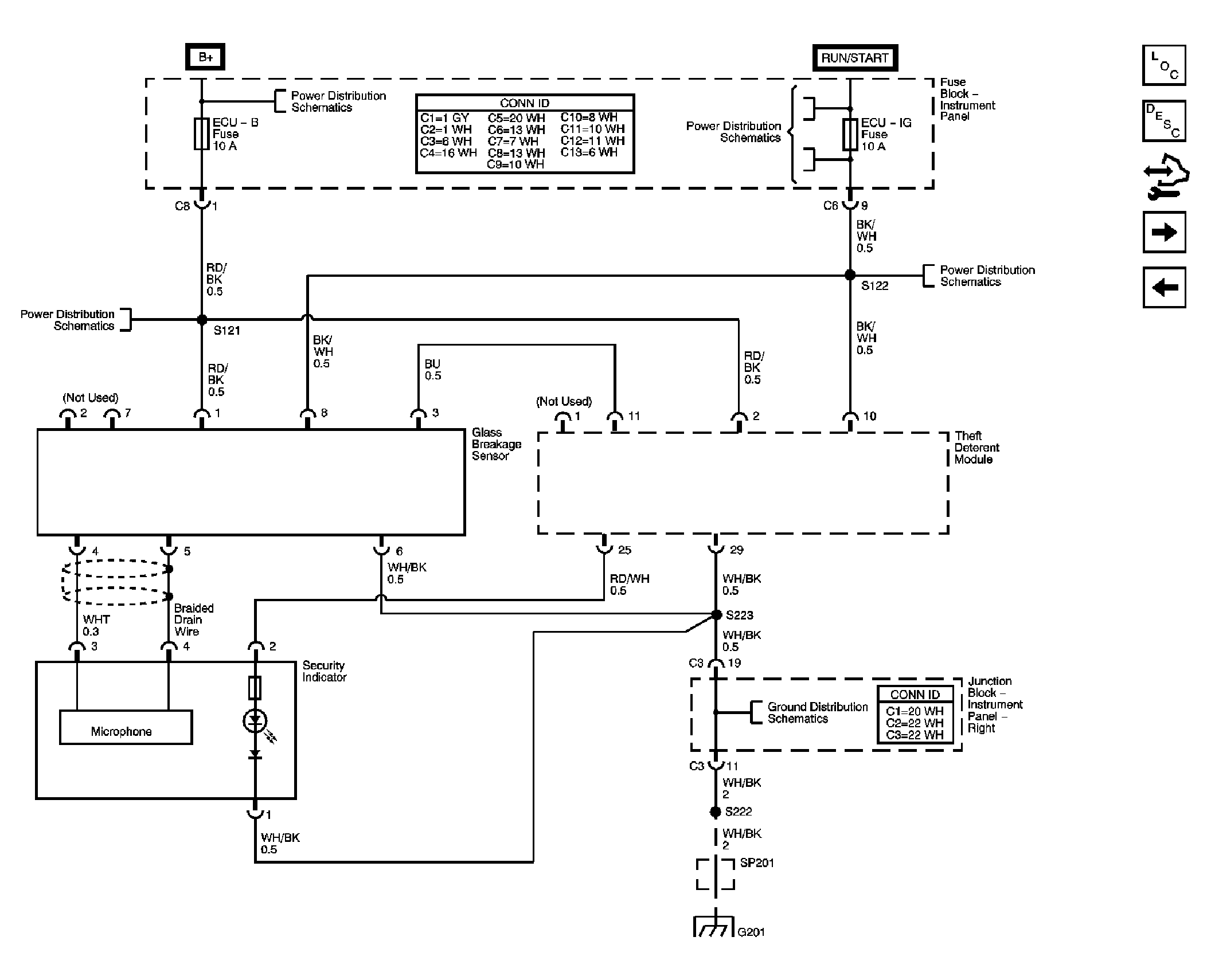

Fig 2: Theft Deterrent Module, Glass Breakage Sensor, Security Indicator

Courtesy of GENERAL MOTORS CORP.

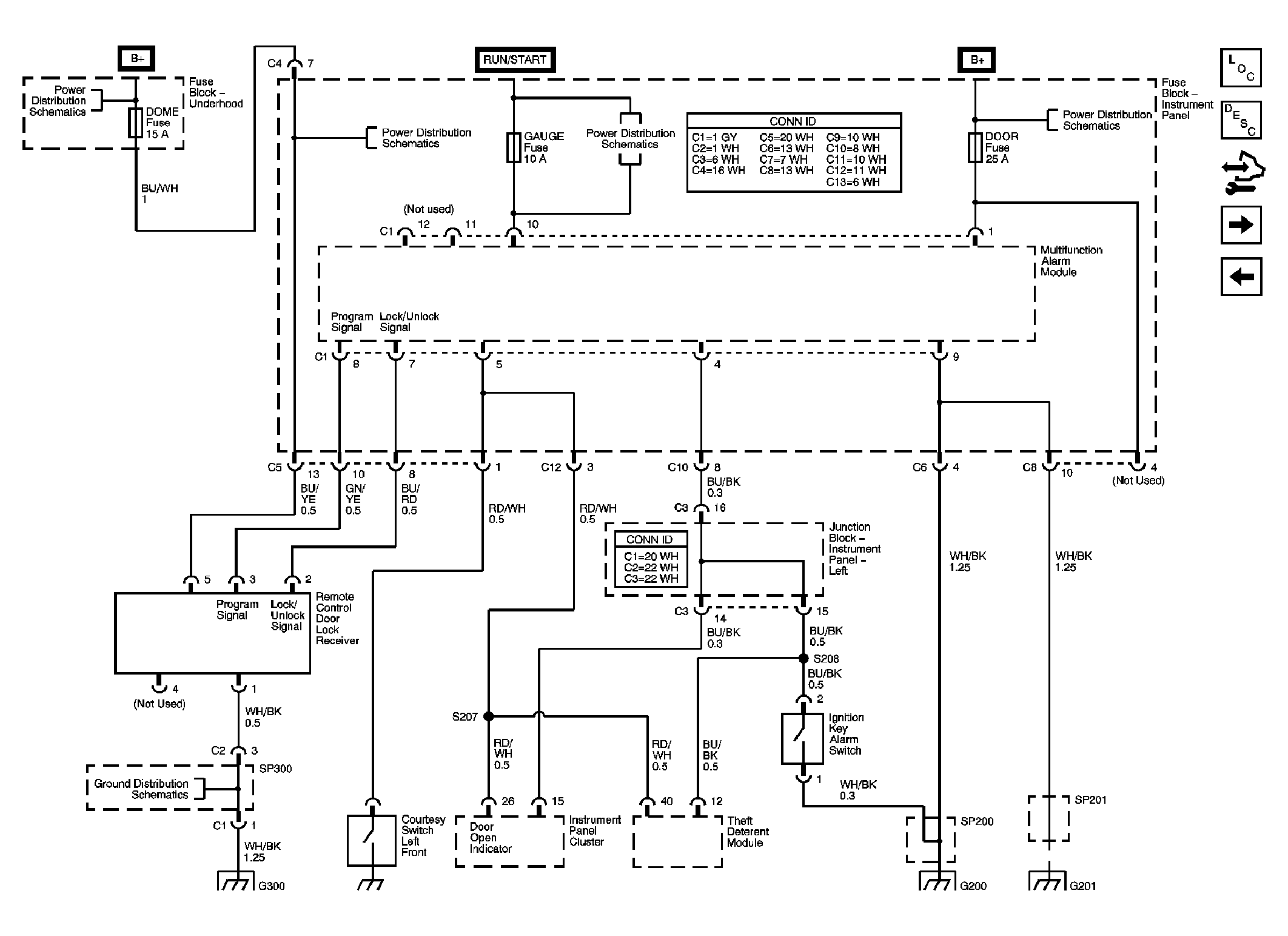

Fig 3: Remote Control Door Lock Receiver, Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

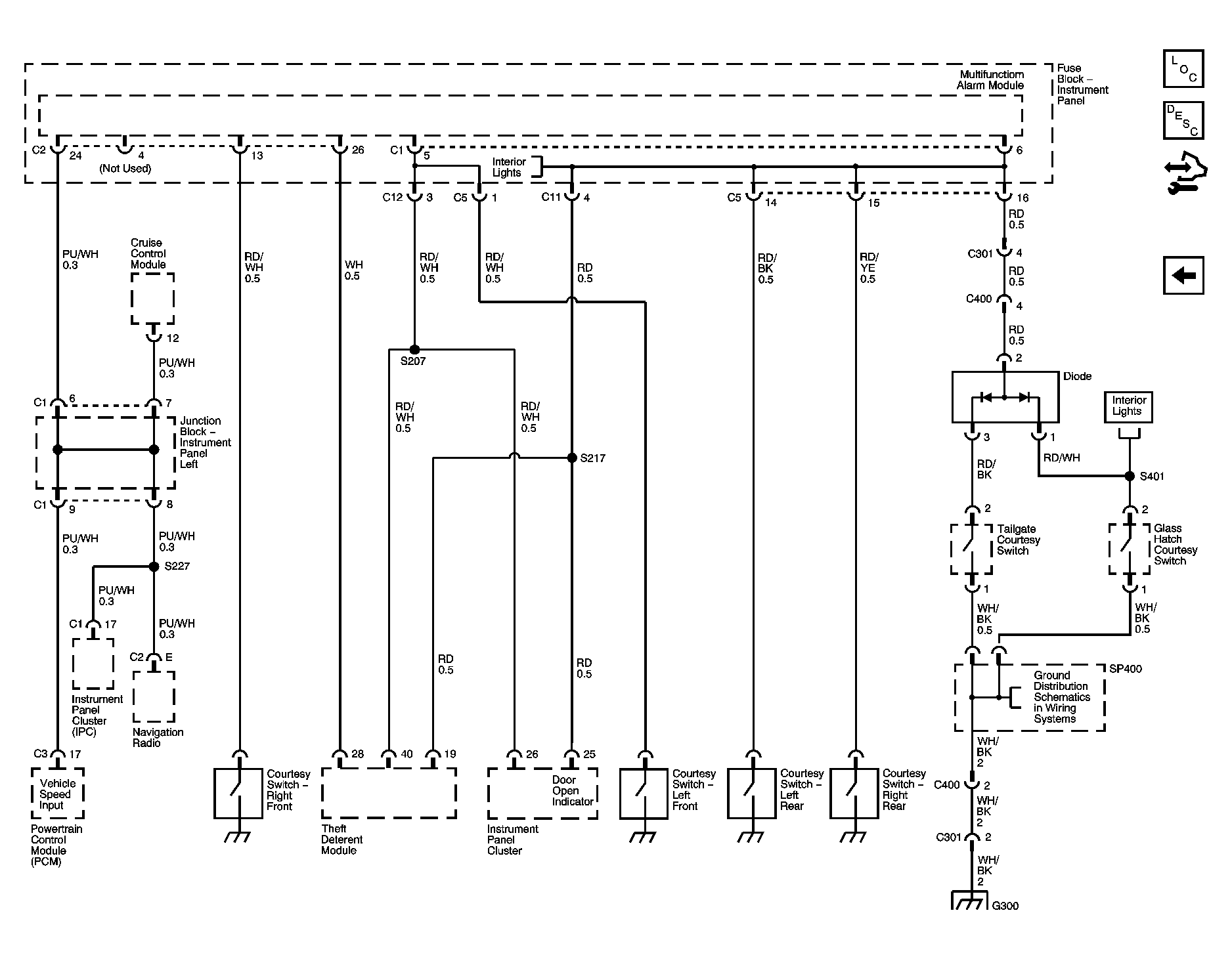

Fig 4: Multifunction Alarm Module, Rear Door Lock, Glass Hatch and Tailgate Actuators

Courtesy of GENERAL MOTORS CORP.

Fig 5: Multifunction Alarm Module, Rear Door Lock, Glass Hatch, Tailgate Actuators

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

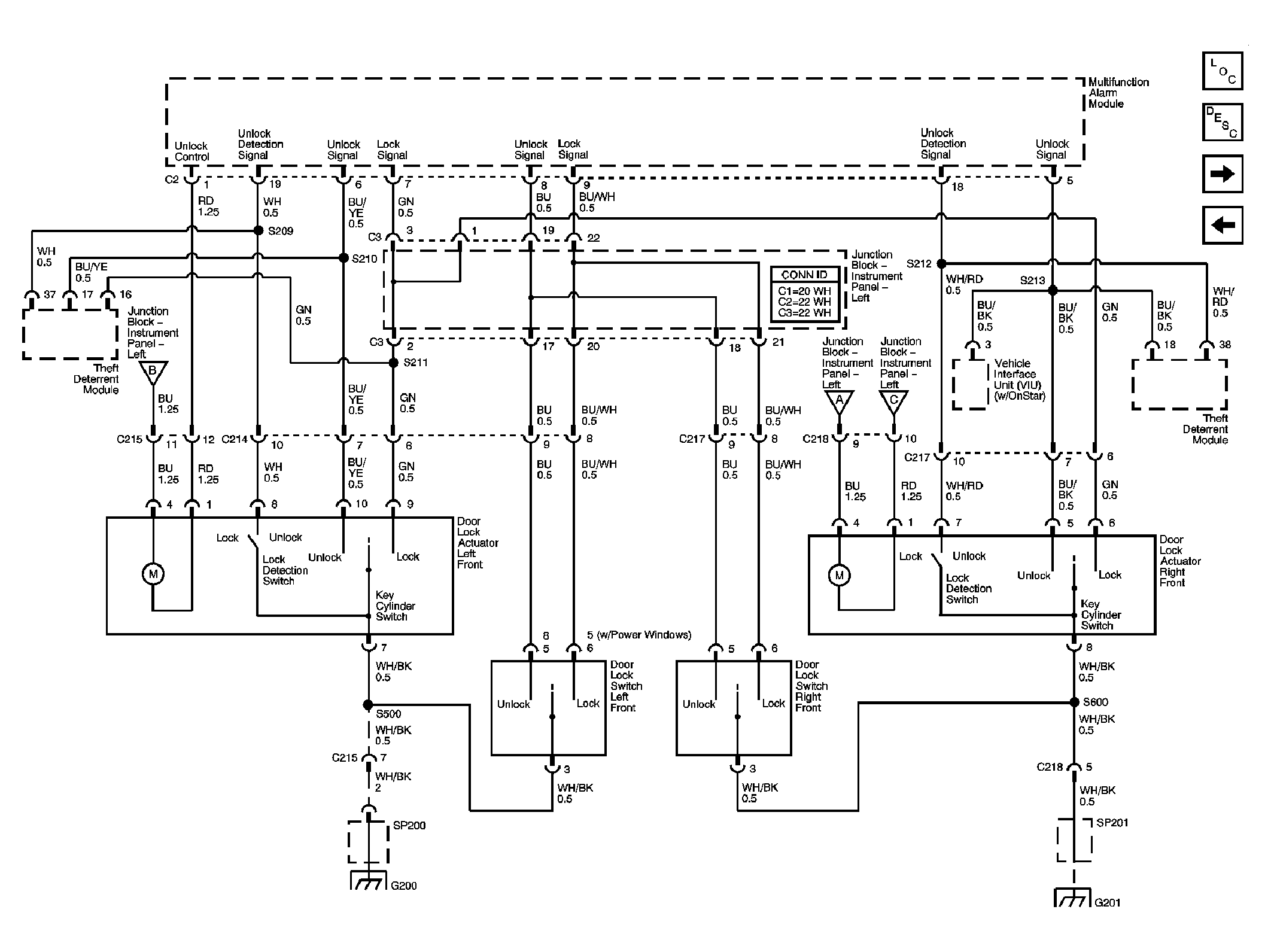

Fig 7: Door Lock Switches, Front Door Lock Actuators

Courtesy of GENERAL MOTORS CORP.

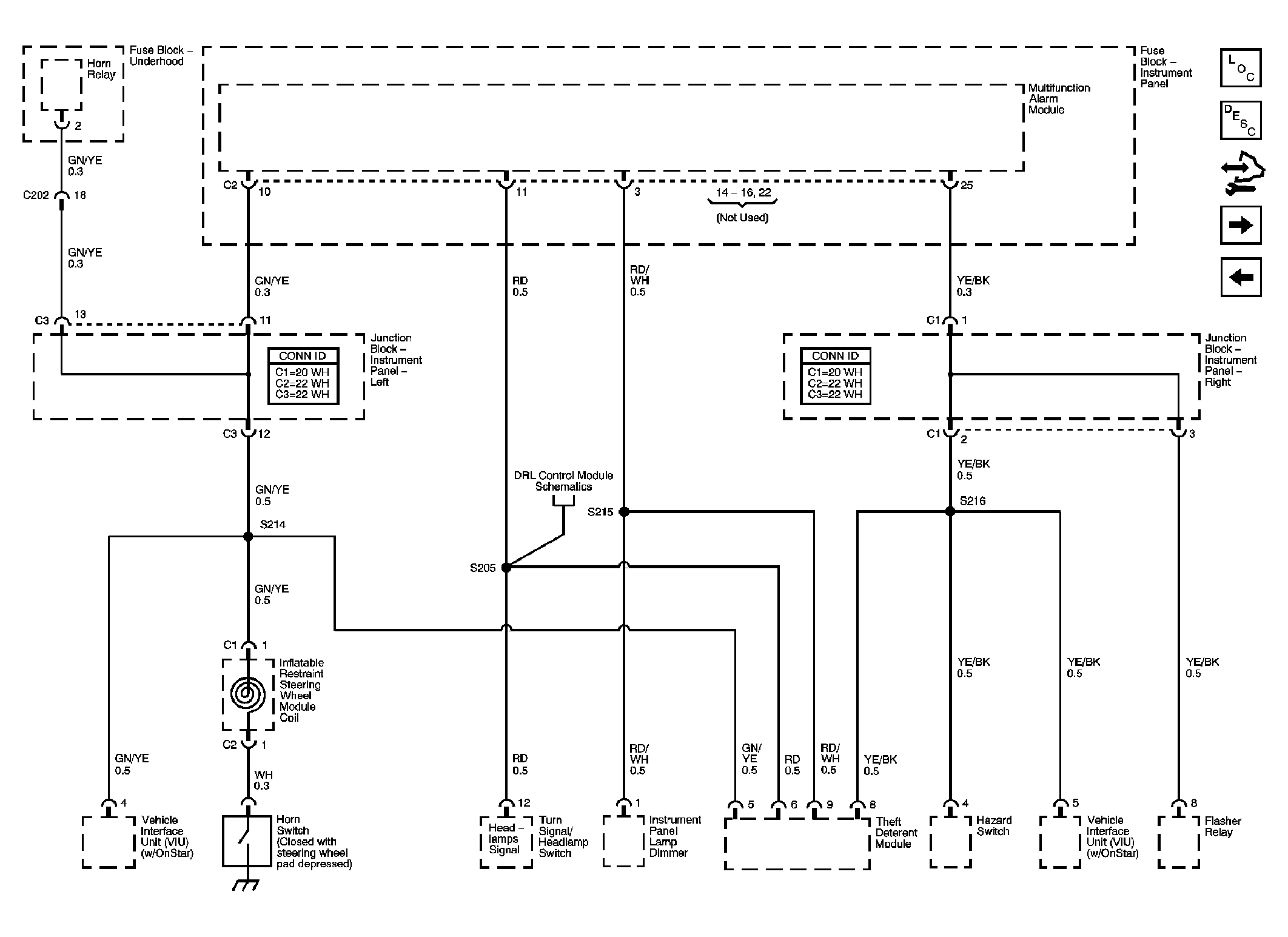

Fig 8: Multifunction Alarm Module, Horn, Hazard, Turn Signal/Headlamp Switches

Courtesy of GENERAL MOTORS CORP.
