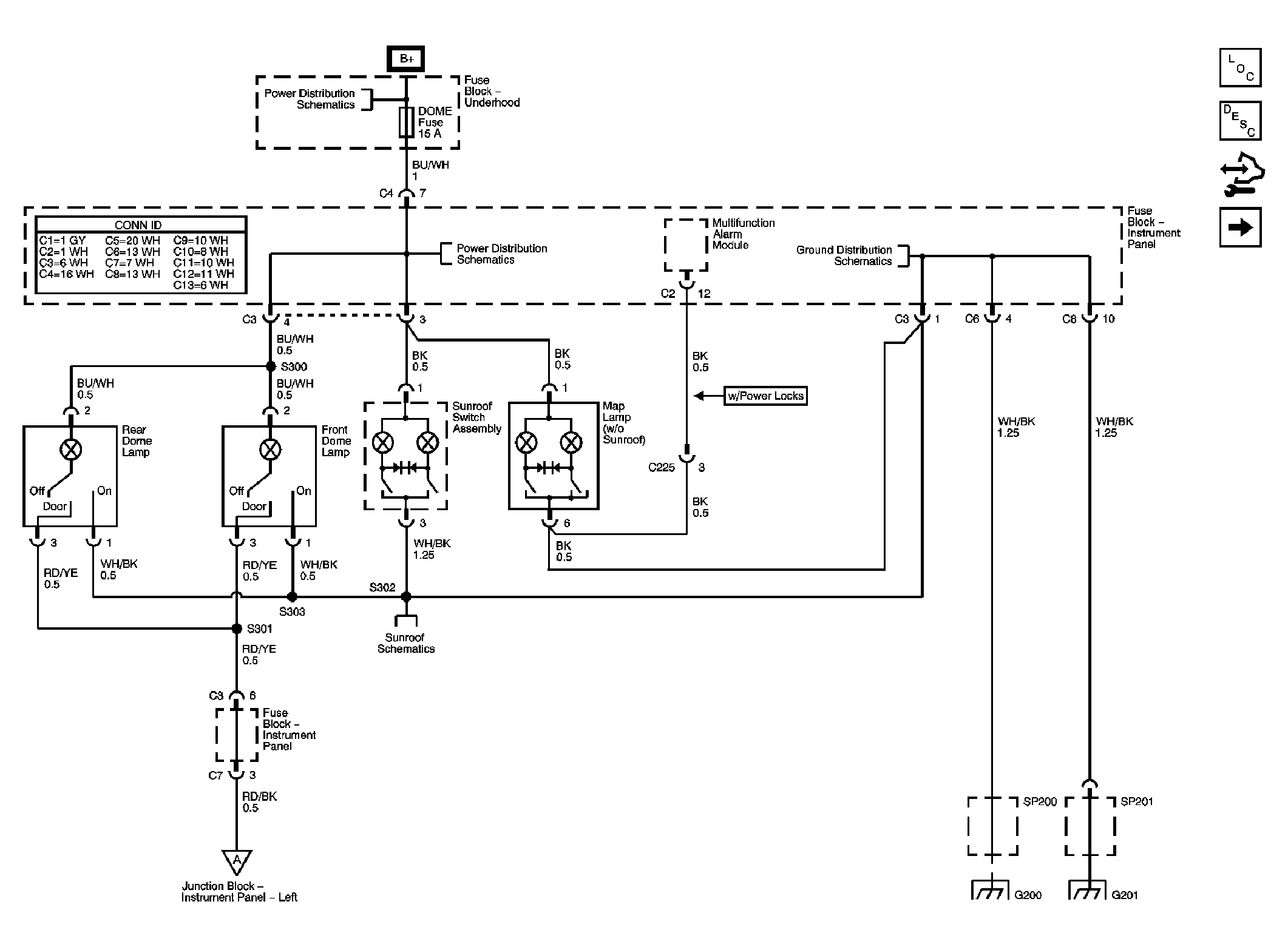

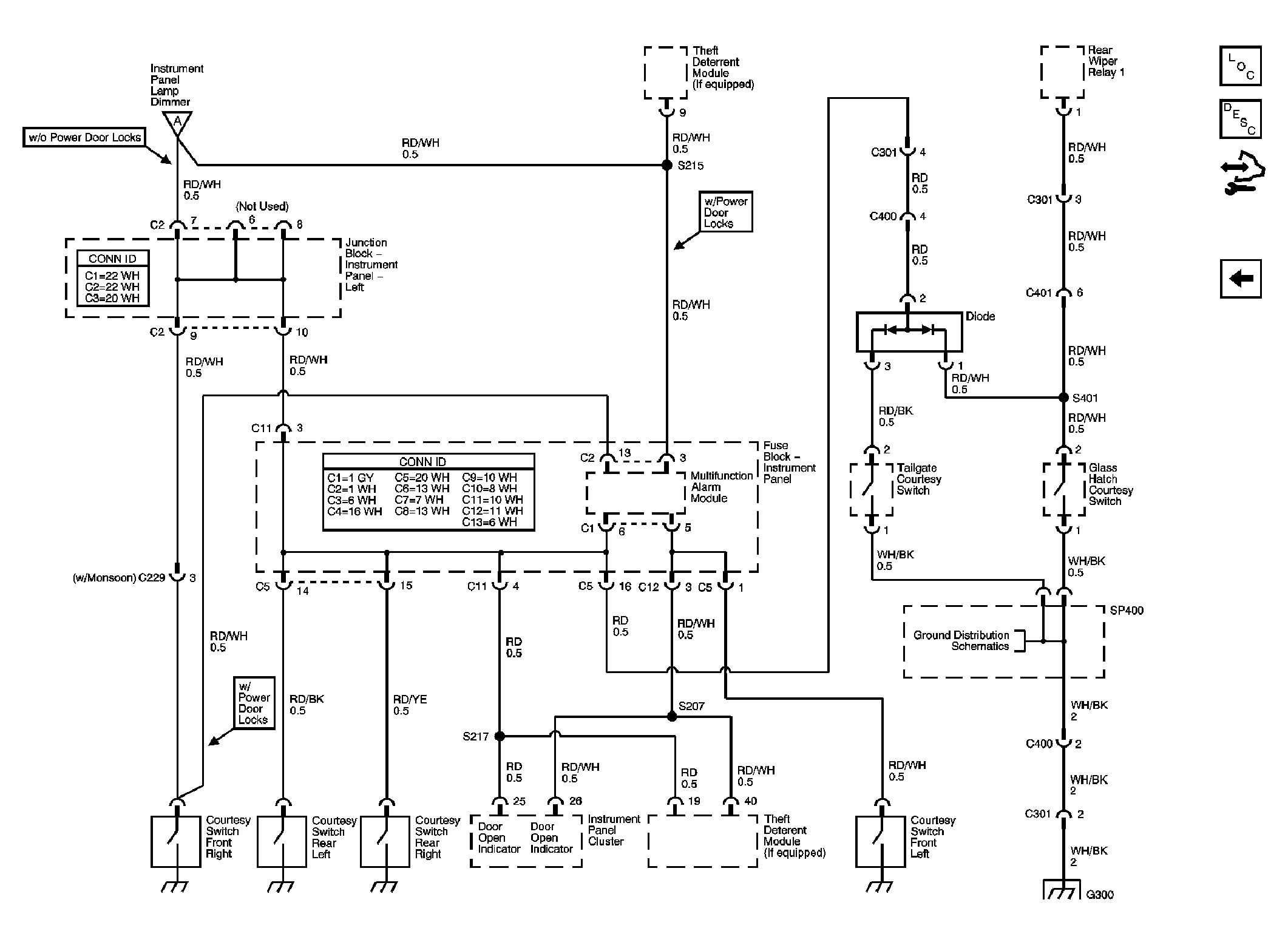

Home >> Pontiac >> 2006 >> Vibe Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic and Routing Diagrams >> Interior Lights Schematics
