Exterior Lights Schematics

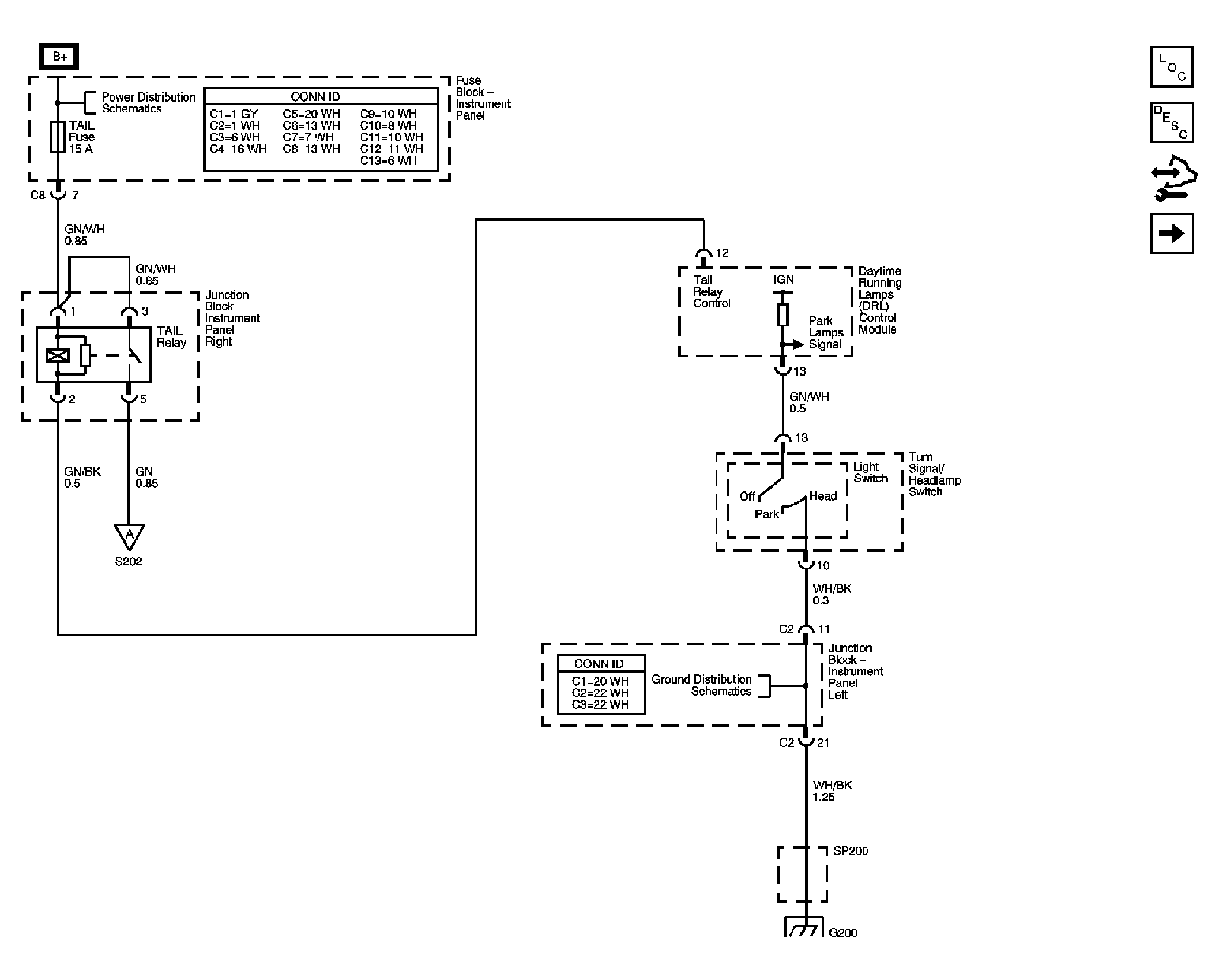

Fig 1: Tail Relay, Turn Signal Headlamp Switch
GM1426502Courtesy of GENERAL MOTORS CORP.

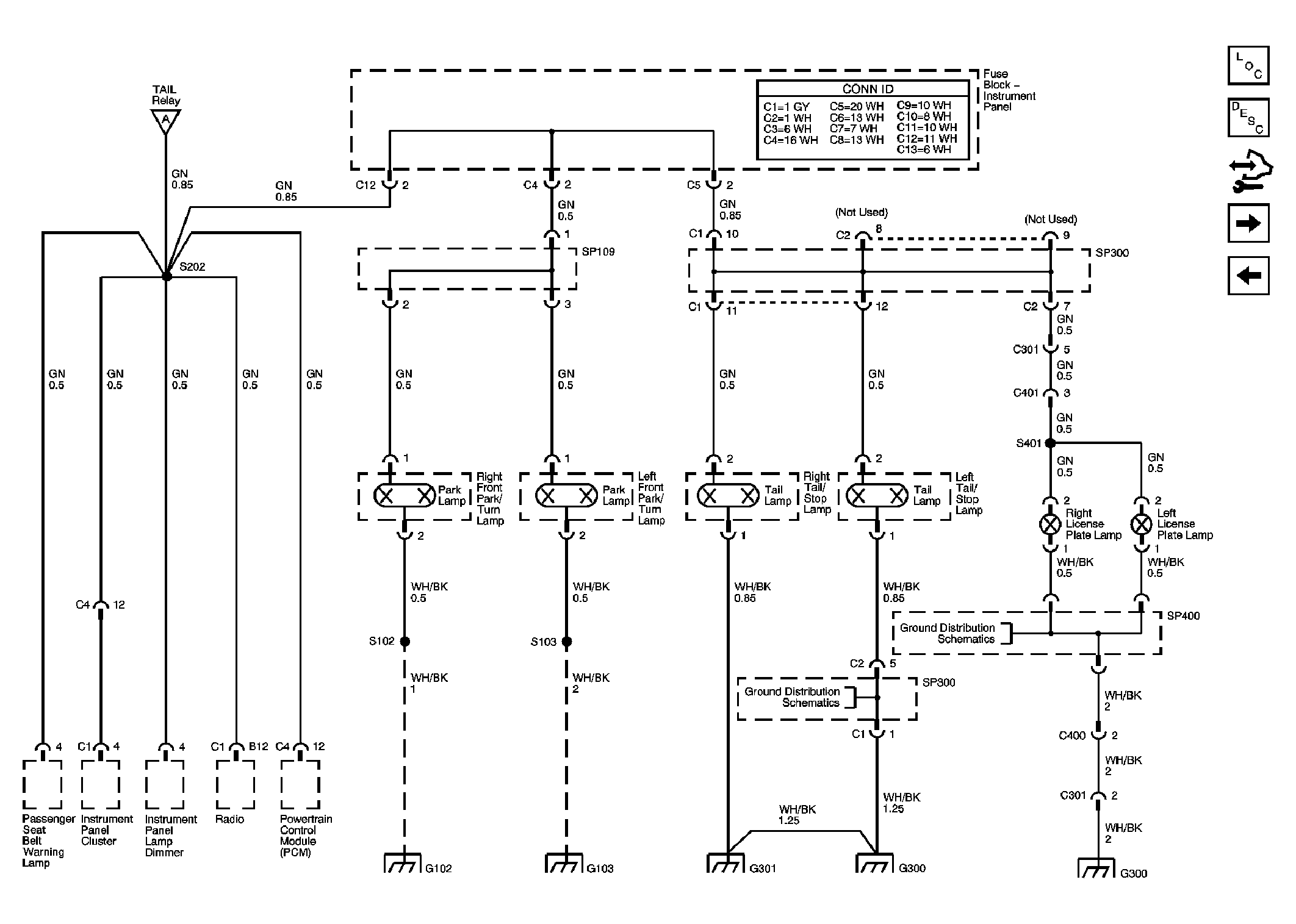

Fig 2: Park Lamps
GM1426503Courtesy of GENERAL MOTORS CORP.

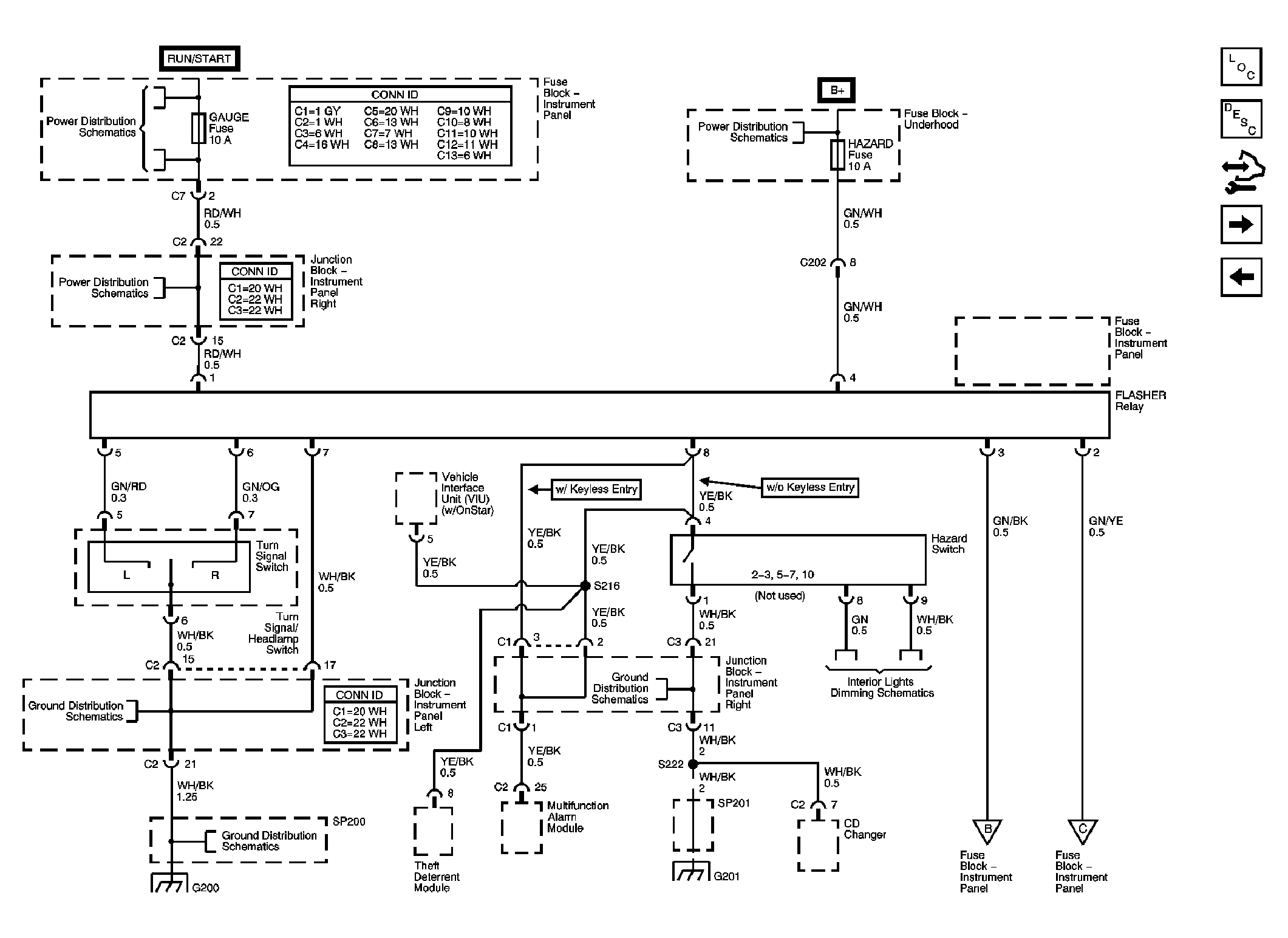

Fig 3: Turn Signal/Headlamp Switch, Hazard Switch, Flasher Relay
GM1426514Courtesy of GENERAL MOTORS CORP.

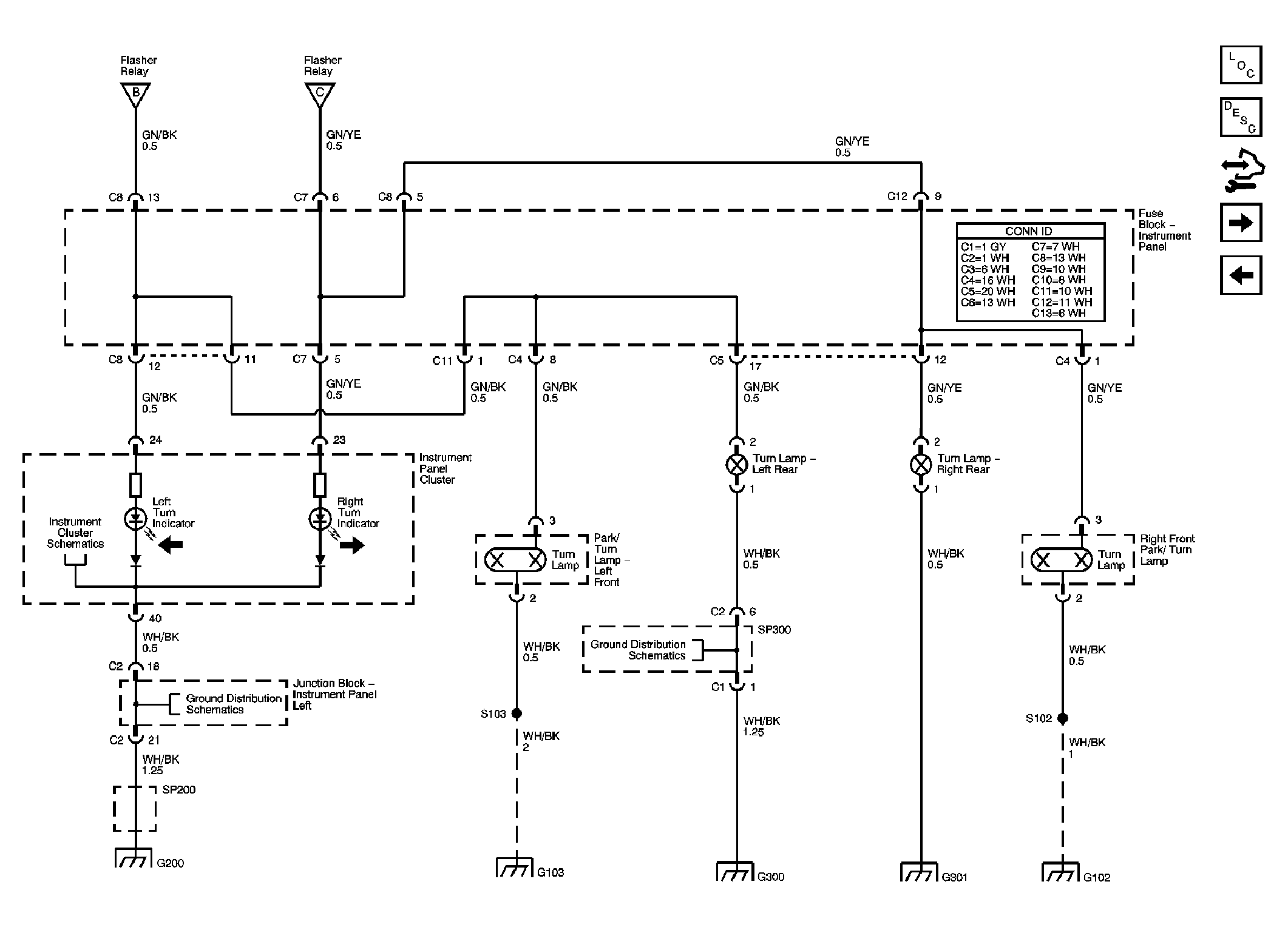

Fig 4: Turn Indicators and Lamps
GM1426546Courtesy of GENERAL MOTORS CORP.

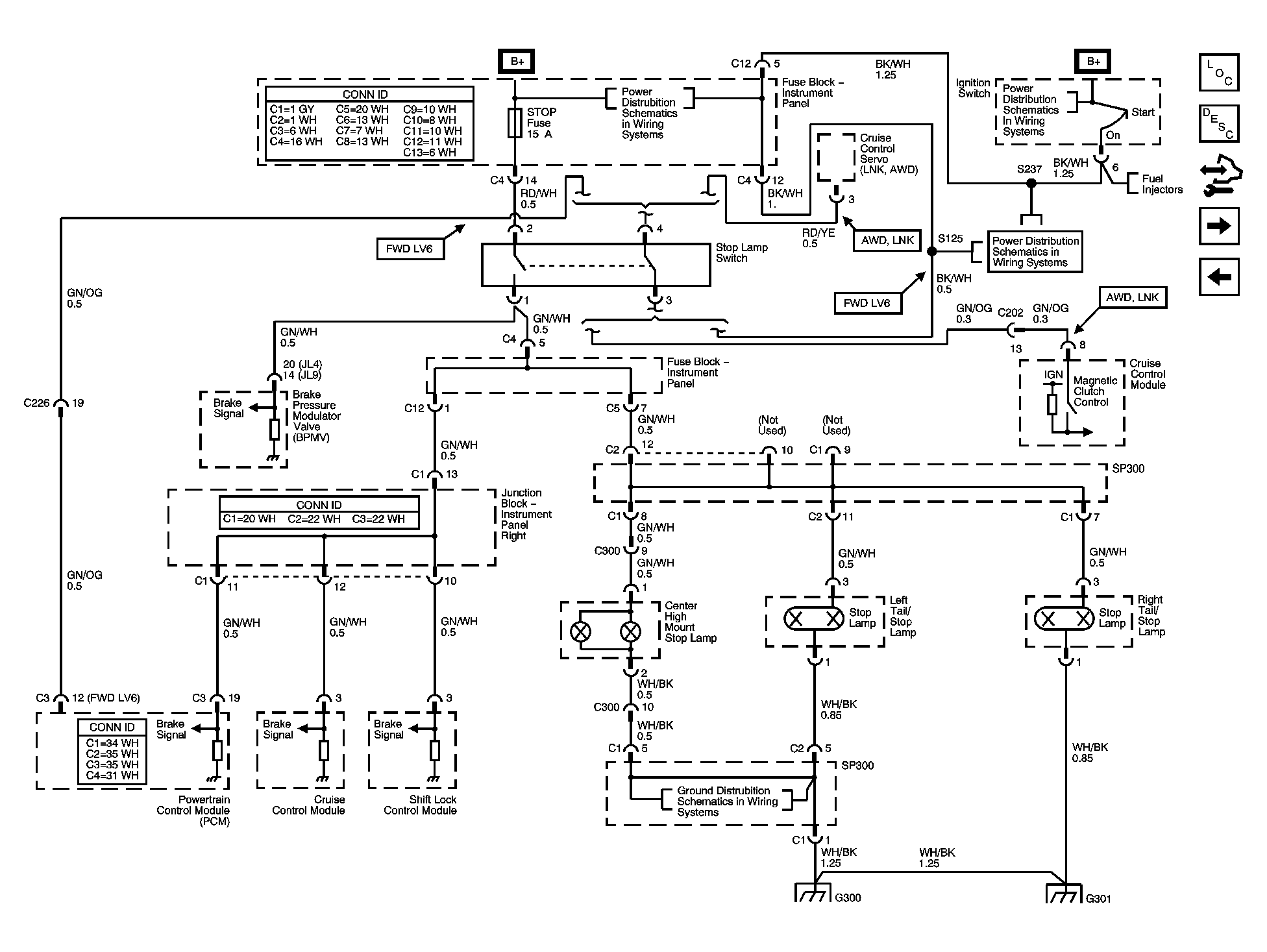

Fig 5: Stop Lamps
GM1426573Courtesy of GENERAL MOTORS CORP.

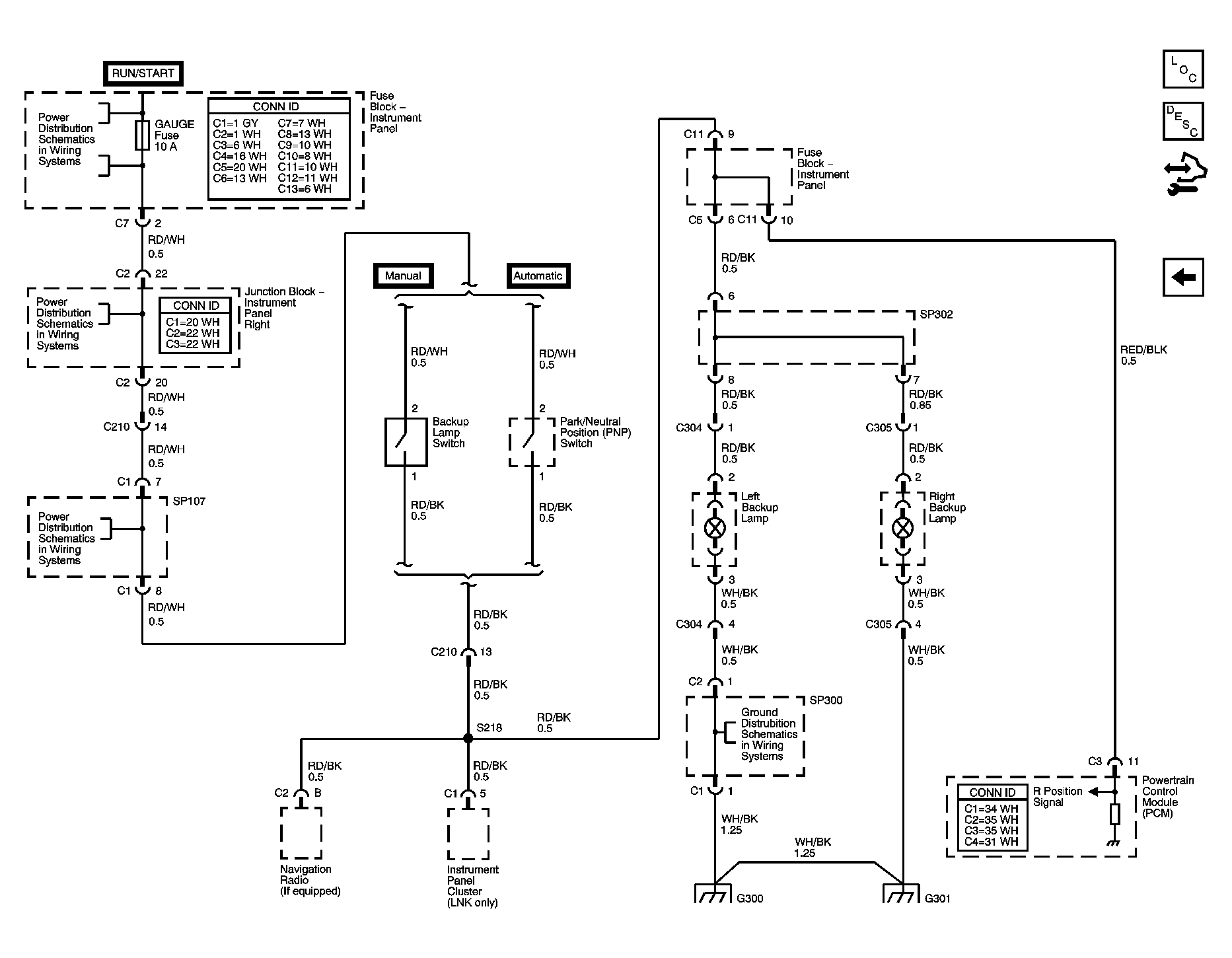

Fig 6: Backup Lamps
GM1426604Courtesy of GENERAL MOTORS CORP.
