Lighting Systems Component Views

Fig 1: Ambient Light Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Upper Instrument Panel

Fig 2: Backup Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch
2	Park Neutral Position Switch

Fig 3: Center High Mounted Stop Lamp (CHMSL) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Stop Lamps

Fig 4: Cigar Lighter Components

Courtesy of GENERAL MOTORS CORP.

Fig 5: DRL Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	DRL Control Module
2	DRL Control Module Label
3	DRL Control Module Connector

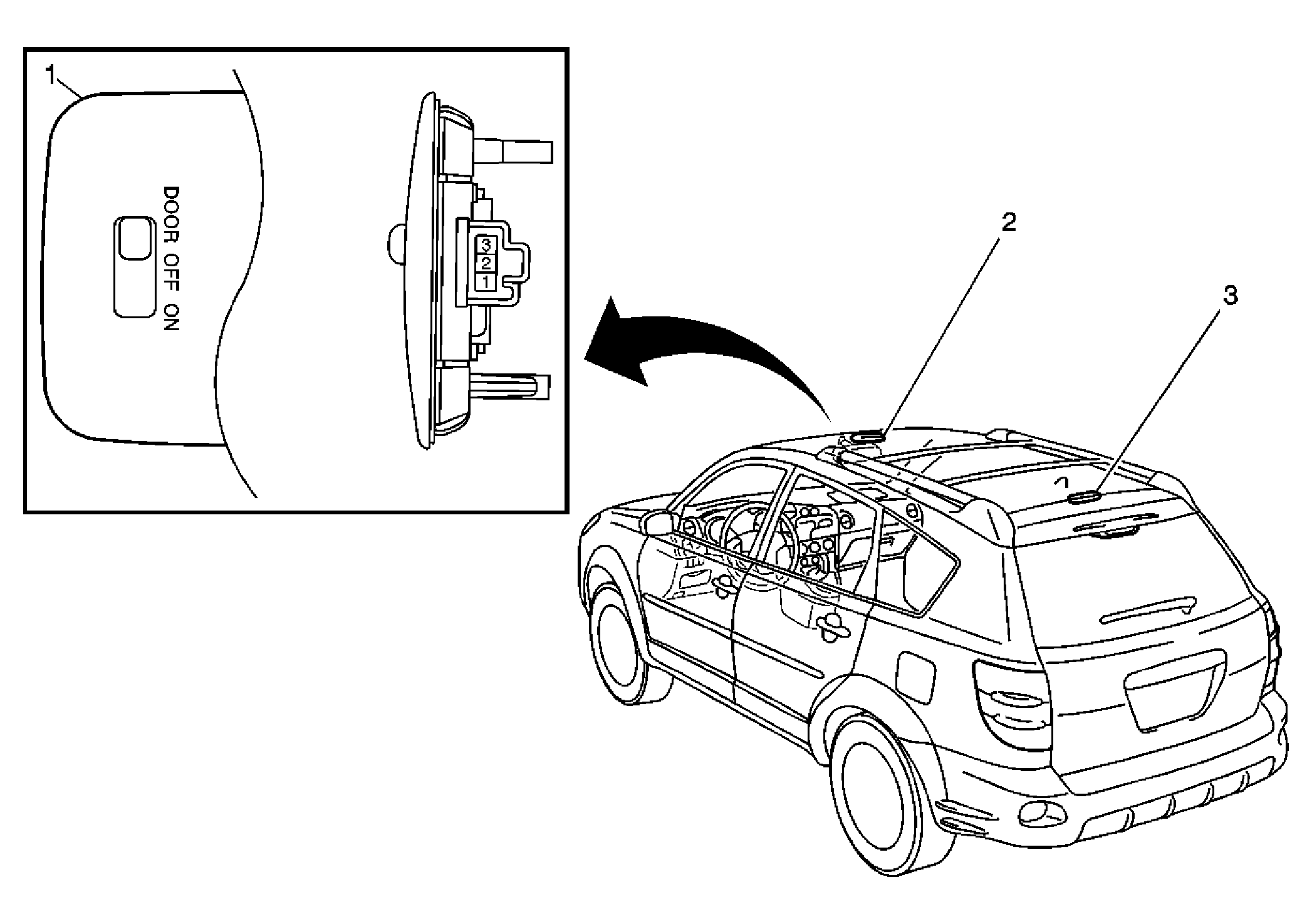

Fig 6: Dome Lamp

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating Flasher Relay

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Flasher Relay

Fig 8: Hazard Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch

Fig 9: I/P Lamp Dimmer Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Lamp Dimmer

Fig 10: Rear License Plate Lamps Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	License Plate Lamps
2	Lift Gate

Fig 11: Stop Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Fig 12: Turn Signal/Headlamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Headlamp Switch
2	Turn Signal Switch Retaining Tab
