Radio/Audio System Schematics

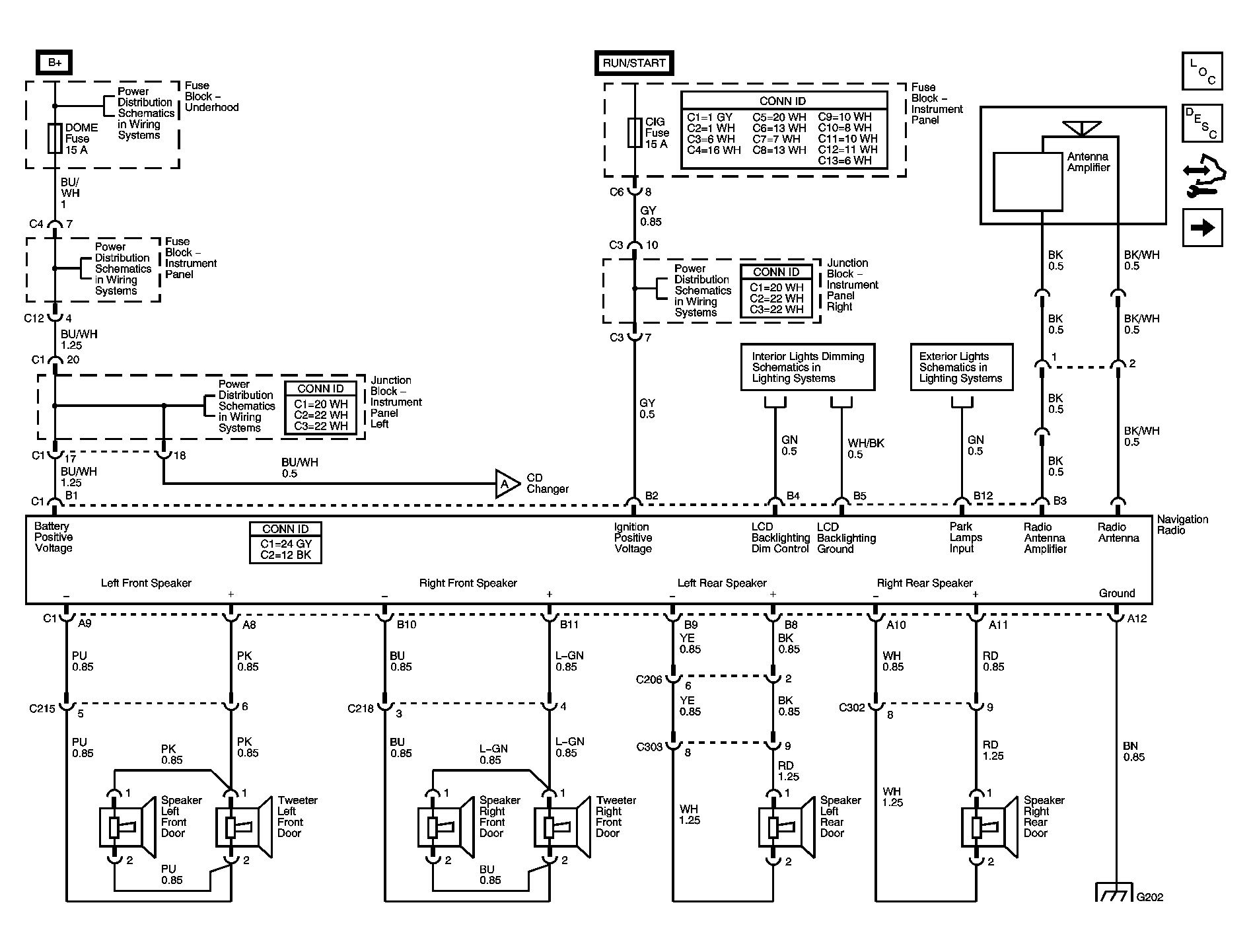

Fig 1: Navigation Radio Schematic - U1A & UZ6

Courtesy of GENERAL MOTORS CORP.

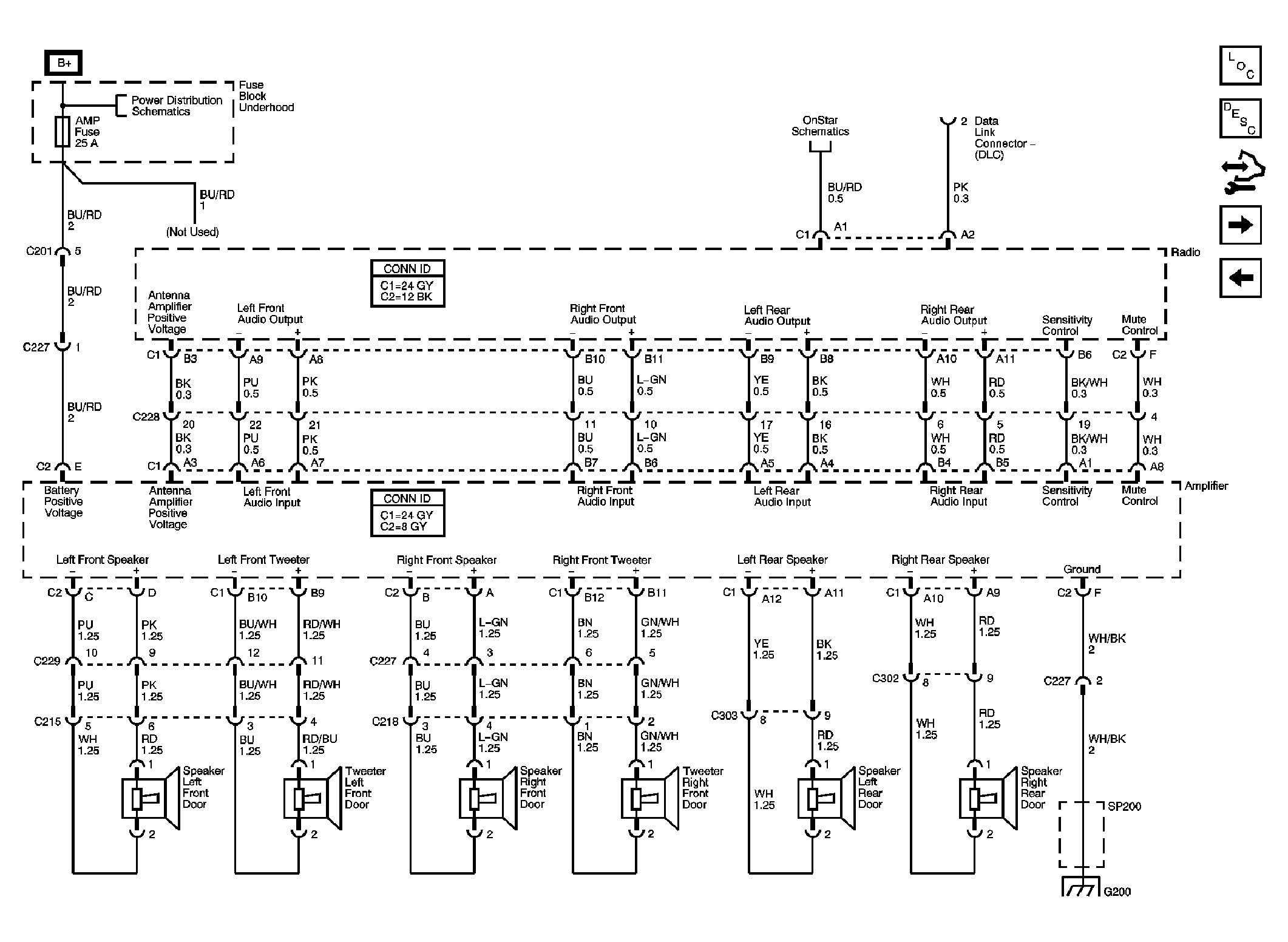

Fig 2: Radio - UW4

Courtesy of GENERAL MOTORS CORP.

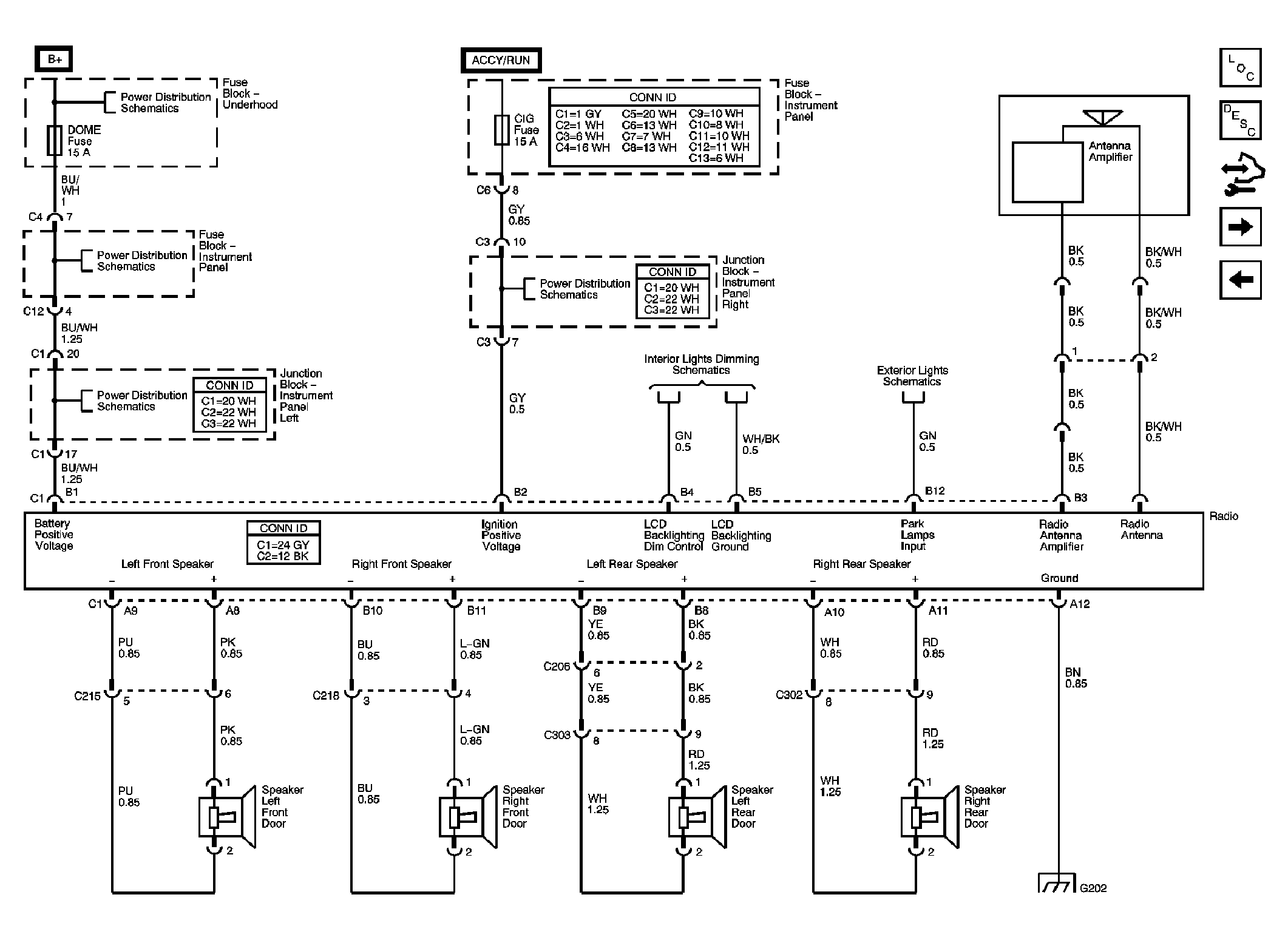

Fig 3: Radio Monsoon U1P, U6S

Courtesy of GENERAL MOTORS CORP.

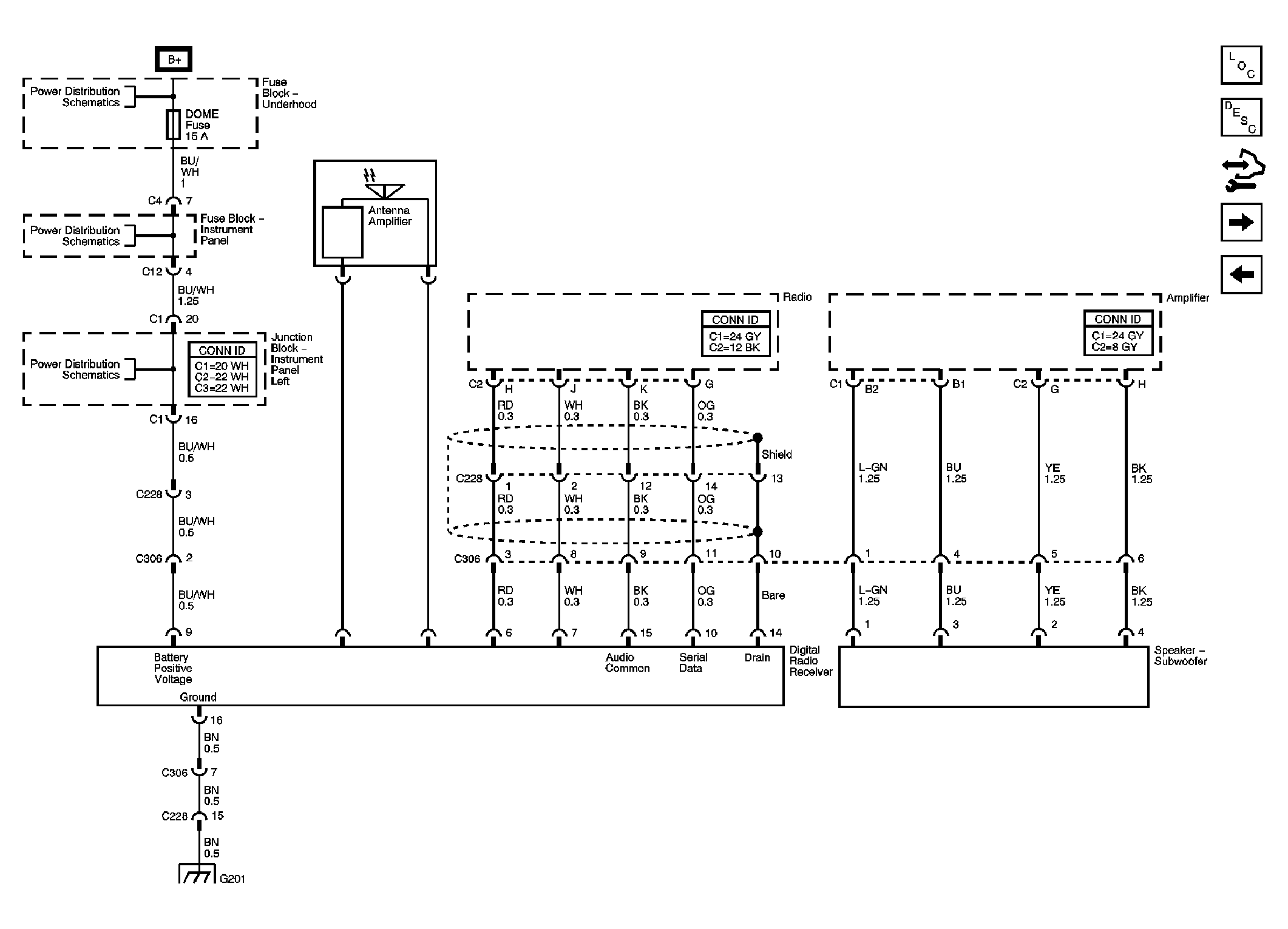

Fig 4: Digital Radio Receiver and Subwoofer U1P, U2K, U6S

Courtesy of GENERAL MOTORS CORP.

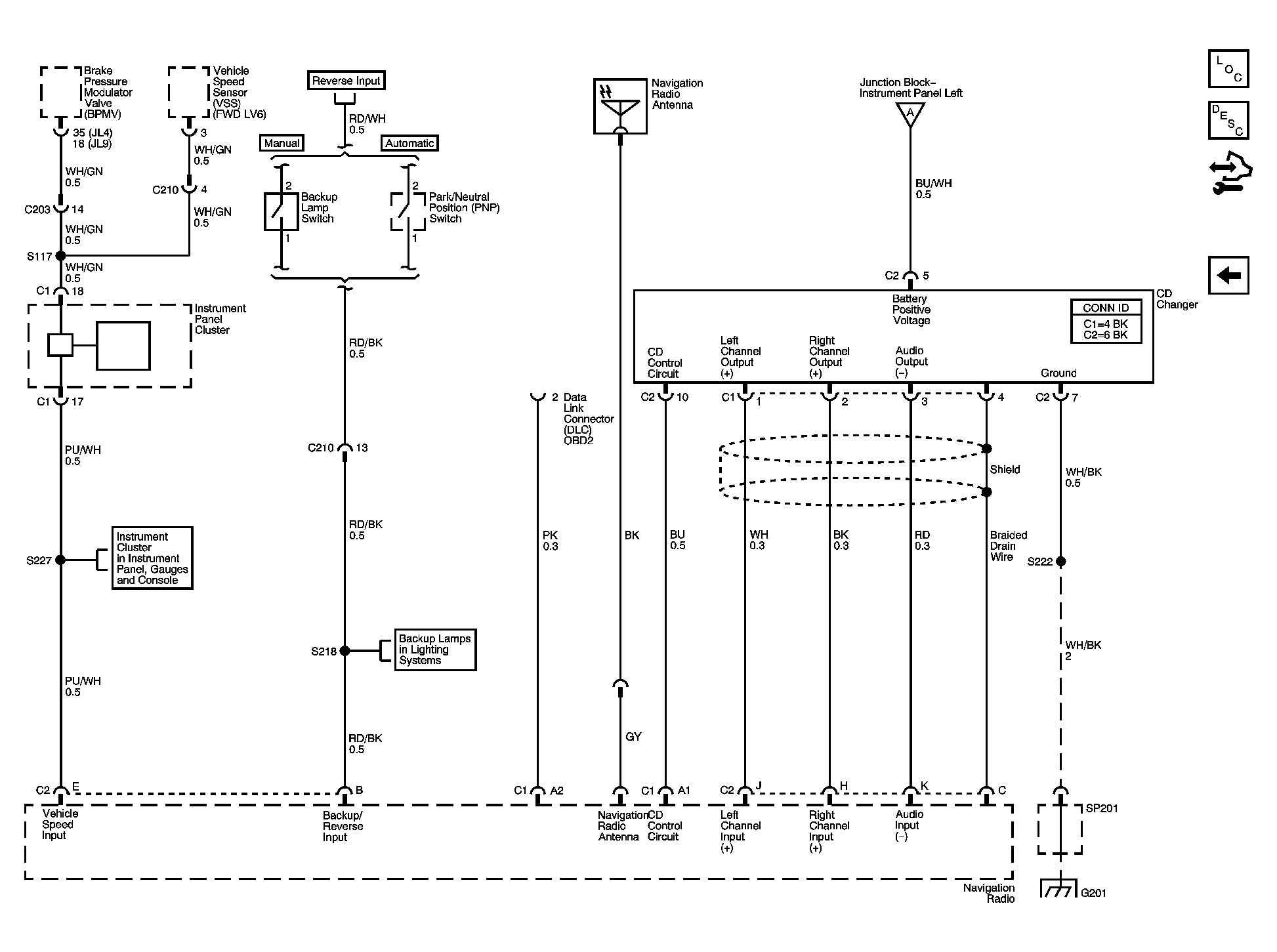

Fig 5: Navigation Radio & Remote CD Changer - U1A & UC6

Courtesy of GENERAL MOTORS CORP.
