OnStar Schematics

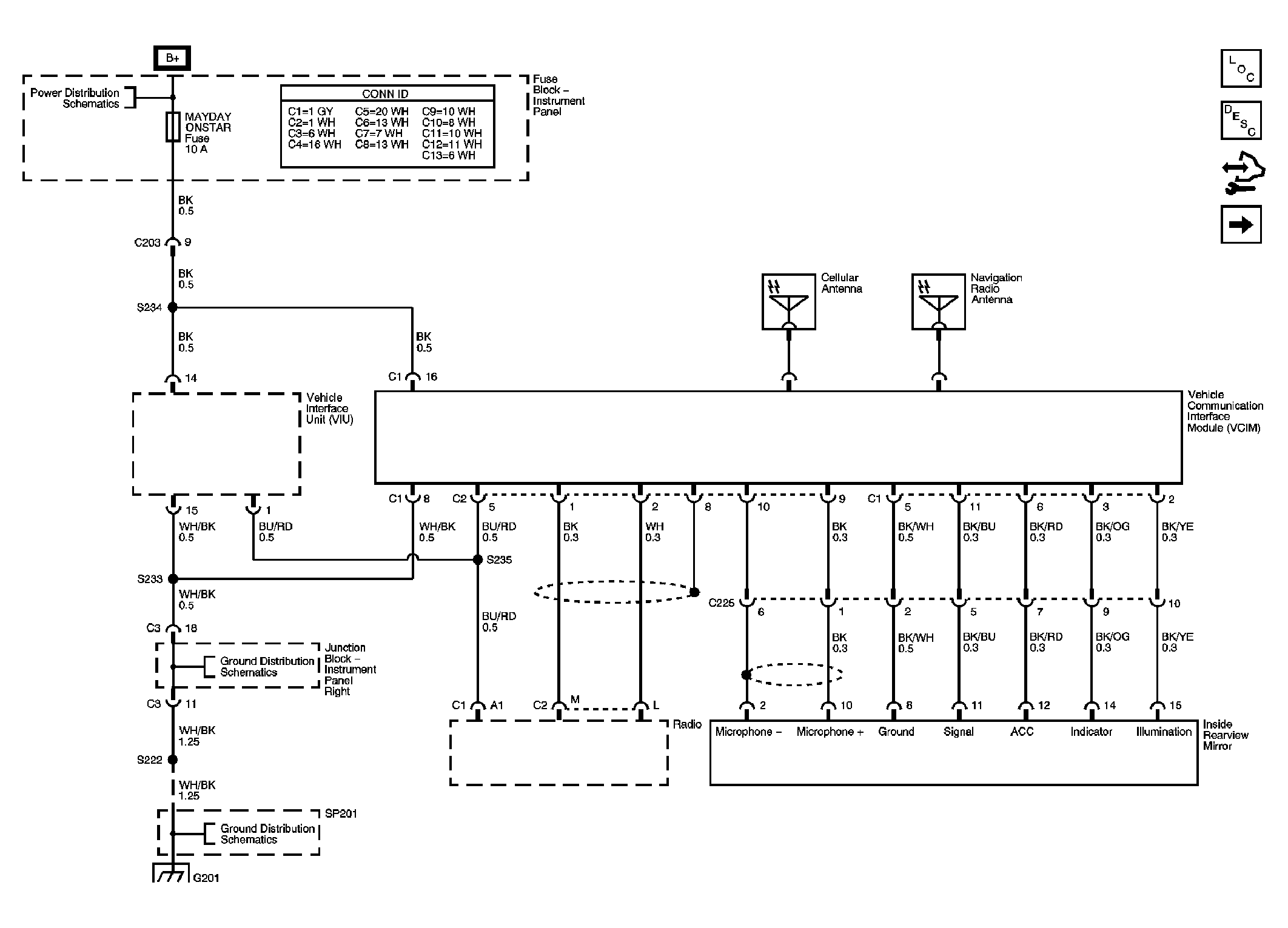

Fig 1: Vehicle Communication Interface Module (VCIM), Power and Ground, Inside Rearview Mirror
GM1424554Courtesy of GENERAL MOTORS CORP.

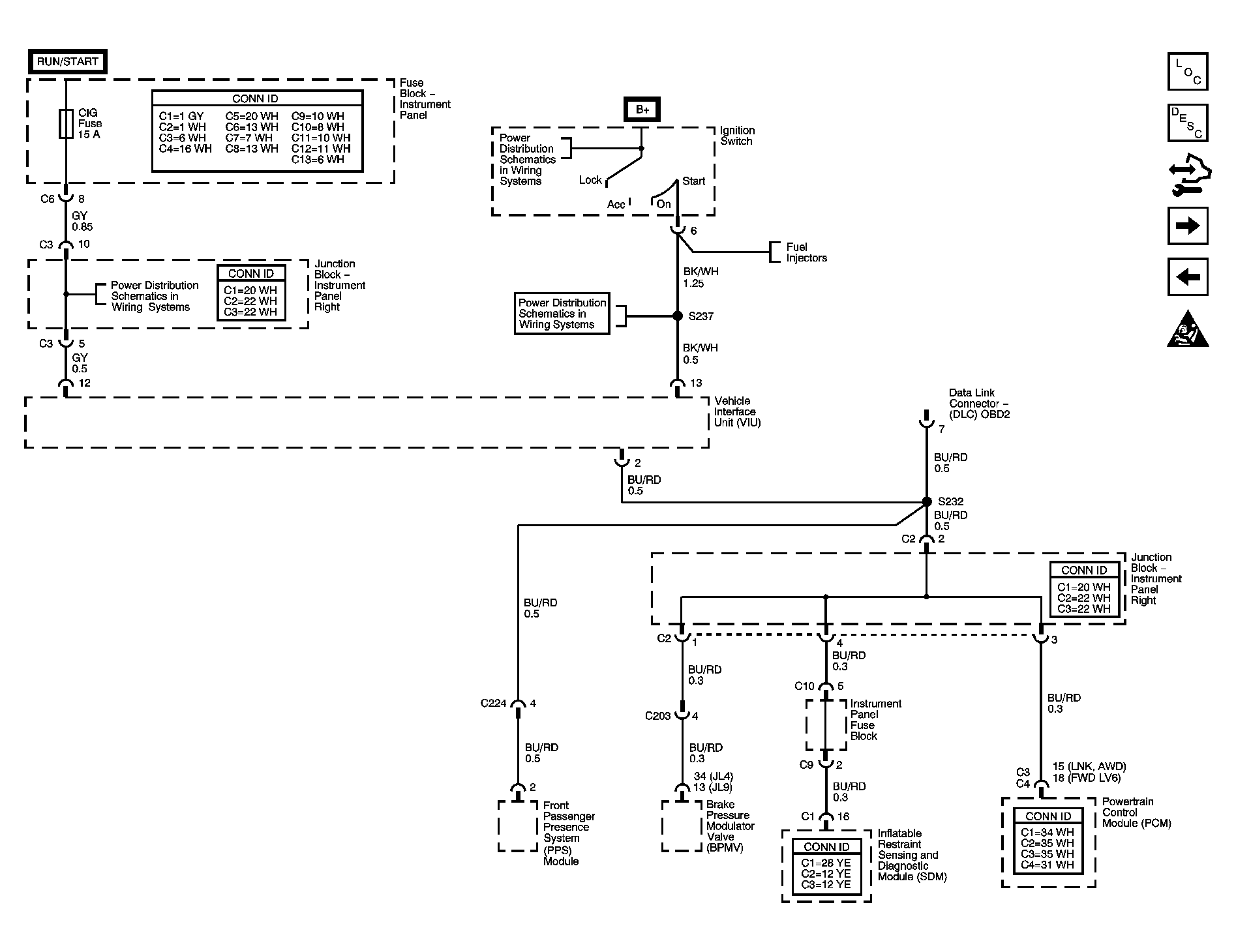

Fig 2: Vehicle Interface Unit (VIU), Data Link Connector (DLC)
GM1666868Courtesy of GENERAL MOTORS CORP.

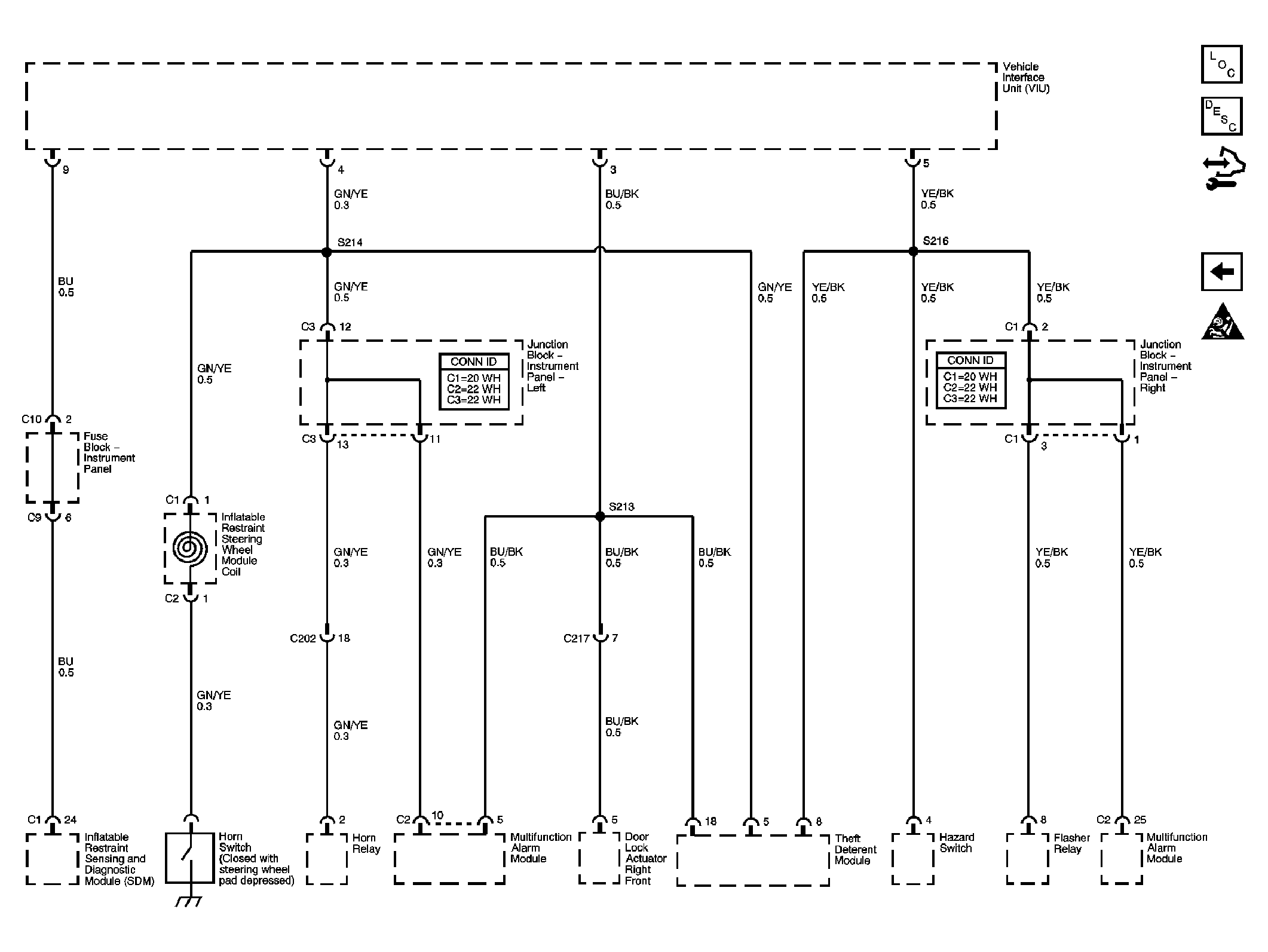

Fig 3: Vehicle Interface Unit (VIU)
GM1426731Courtesy of GENERAL MOTORS CORP.
