Cruise Control Schematics

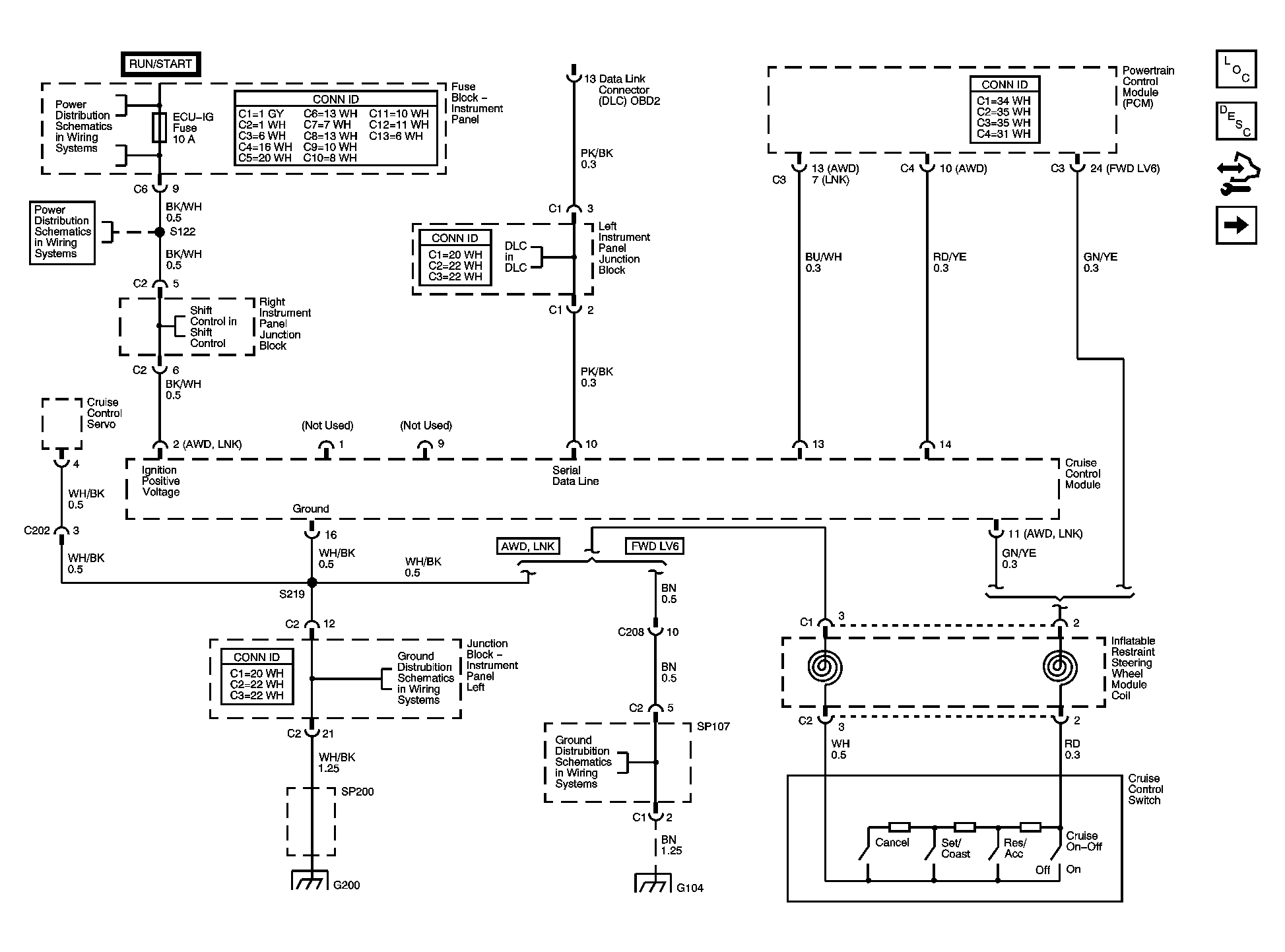

Fig 1: Cruise Control Module and Switch
GM1666849Courtesy of GENERAL MOTORS CORP.
Fig 2: Cruise Control Module, Cruise Control Release Switch, Cruise Indicator
GM1666850Courtesy of GENERAL MOTORS CORP.

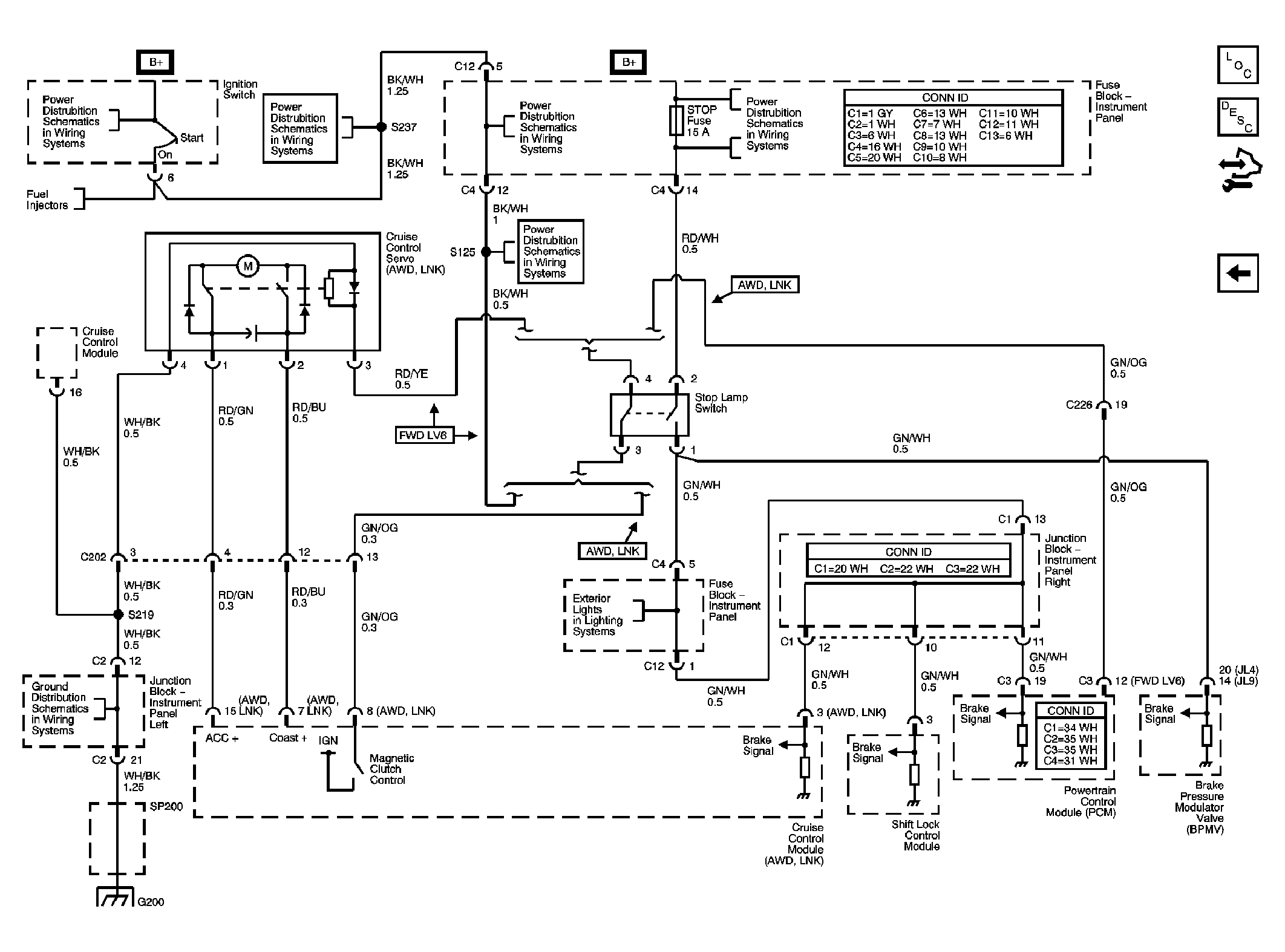

Fig 3: Cruise Control Module and Servo
GM1424592Courtesy of GENERAL MOTORS CORP.
