Terminal Removal

Follow the steps below in order to repair push to seat connectors.

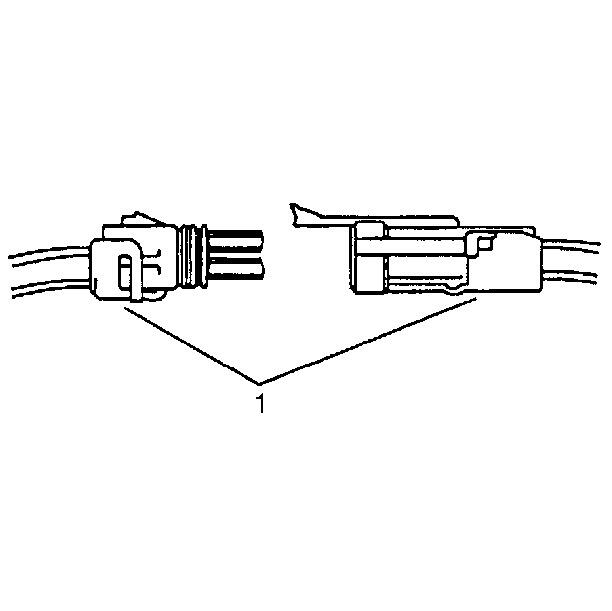

Fig 1: View Of Connector Halves
Courtesy of GENERAL MOTORS CORP.
1. Remove the terminal position assurance (TPA) device, the connector position assurance (CPA) device, and/or the secondary lock.
2. Separate the connector halves (1).

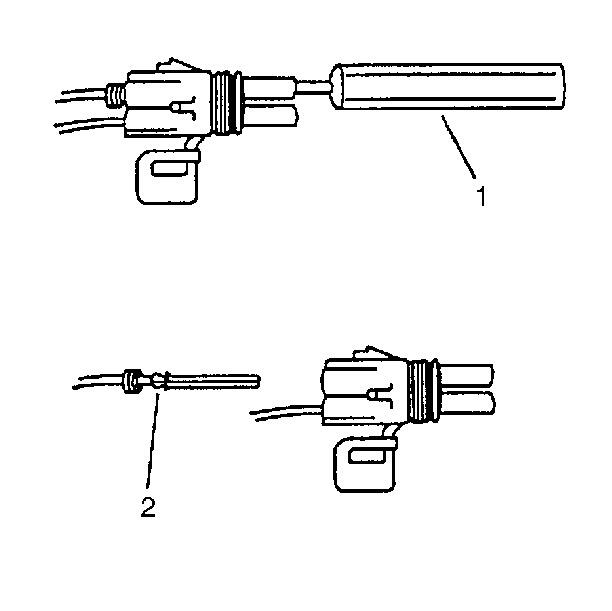

Fig 2: Removing Cable & Terminal From Connector
Courtesy of GENERAL MOTORS CORP.
3. Use the proper pick or removal tool (1) in order to release the terminal.
4. Gently pull the cable and the terminal (2) out of the back of the connector.

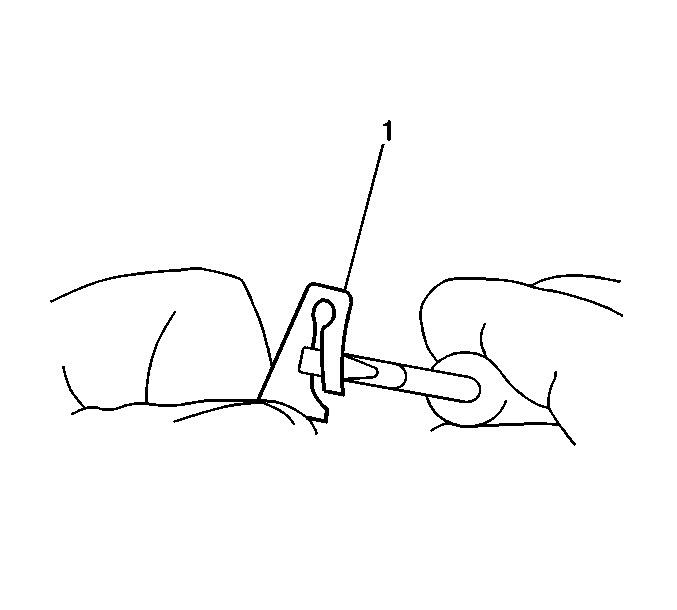

Fig 3: Reforming Locking Device
Courtesy of GENERAL MOTORS CORP.
5. Re-form the locking device if you are going to reuse the terminal (1).
6. To repair the terminal, refer to Terminal Repair .
