Hydraulic Brakes Component Views

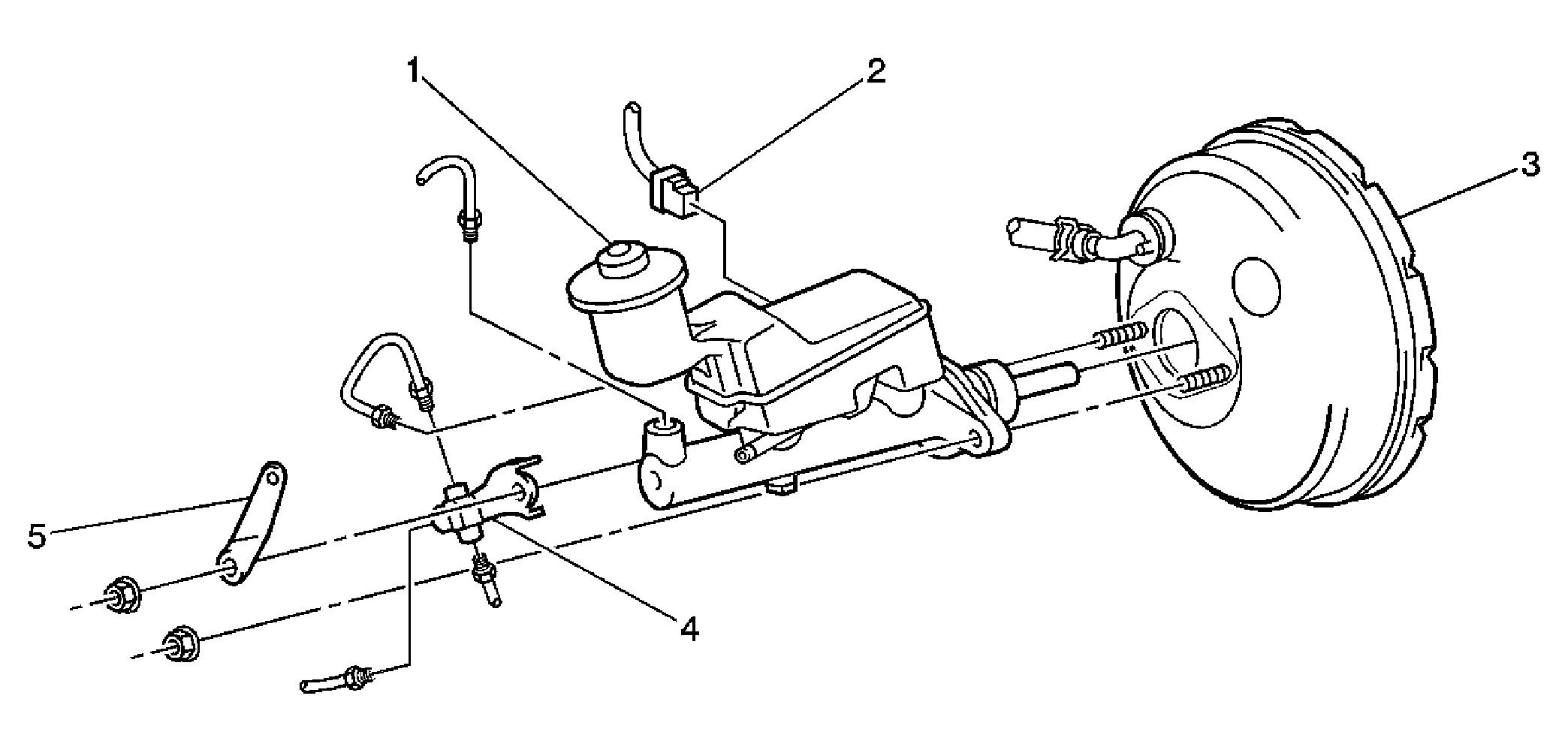

Fig 1: Master Cylinder Component View

GM879480

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Master Cylinder
2	Fluid Level Warning Lamp Connector
3	Brake Booster
4	3-Way Valve
5	Vacuum Check Valve Bracket

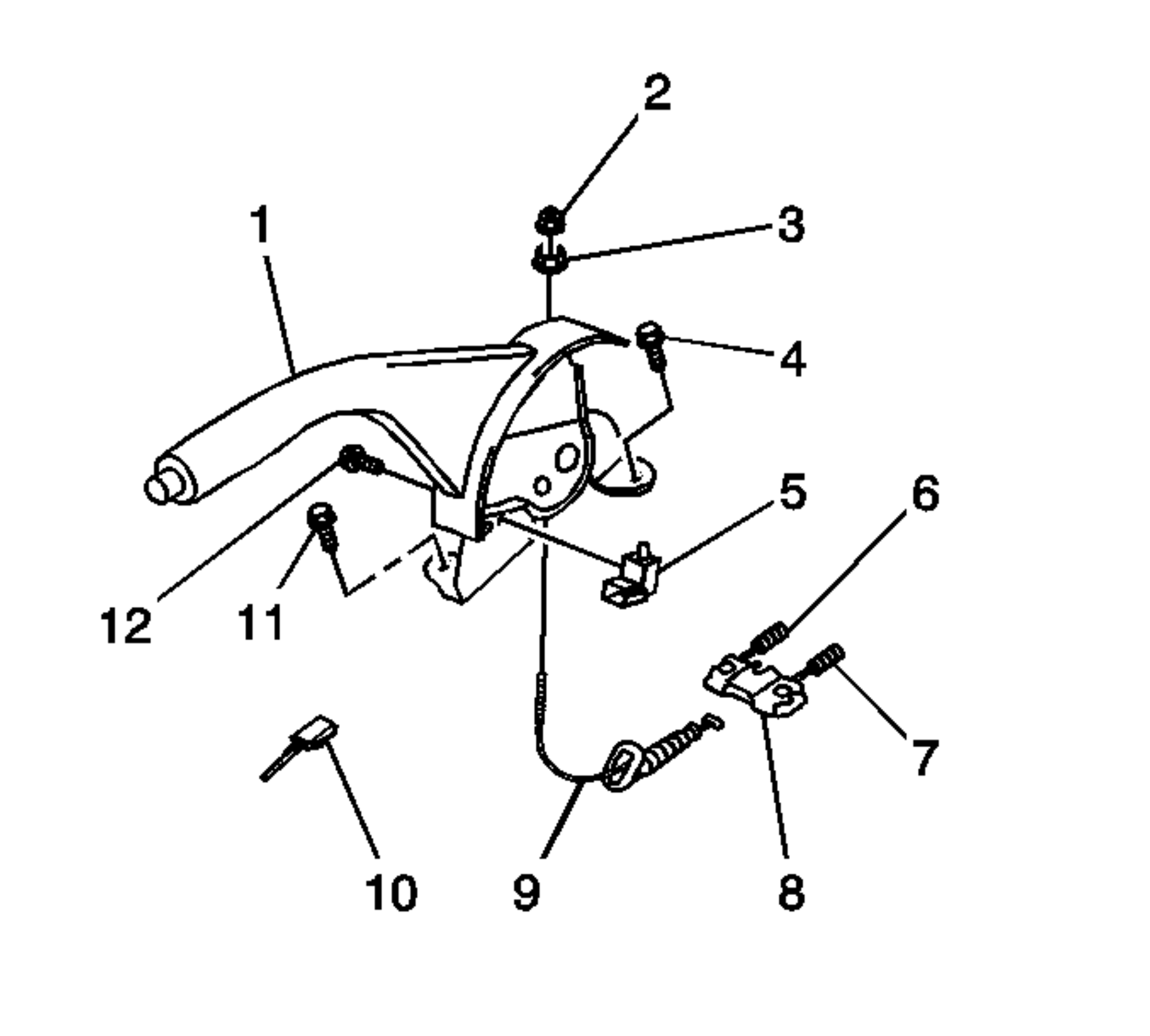

Fig 2: Exploded View Of Parking Brake Components

GM853219

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Lever
2	Park Brake Front Cable Upper Nut
3	Park Brake Front Cable Lower Nut
4	Park Brake Lever Bolt
5	Park Brake Indicator Switch
6	Park Brake Right Rear Cable
7	Park Brake Left Rear Cable
8	Park Brake Cable Equalizer
9	Park Cable Front Cable
10	Park Brake Indicator Connector
11	Park Brake Lever Bolt
12	Park Brake Indicator Switch Bolt
