SIR Schematics

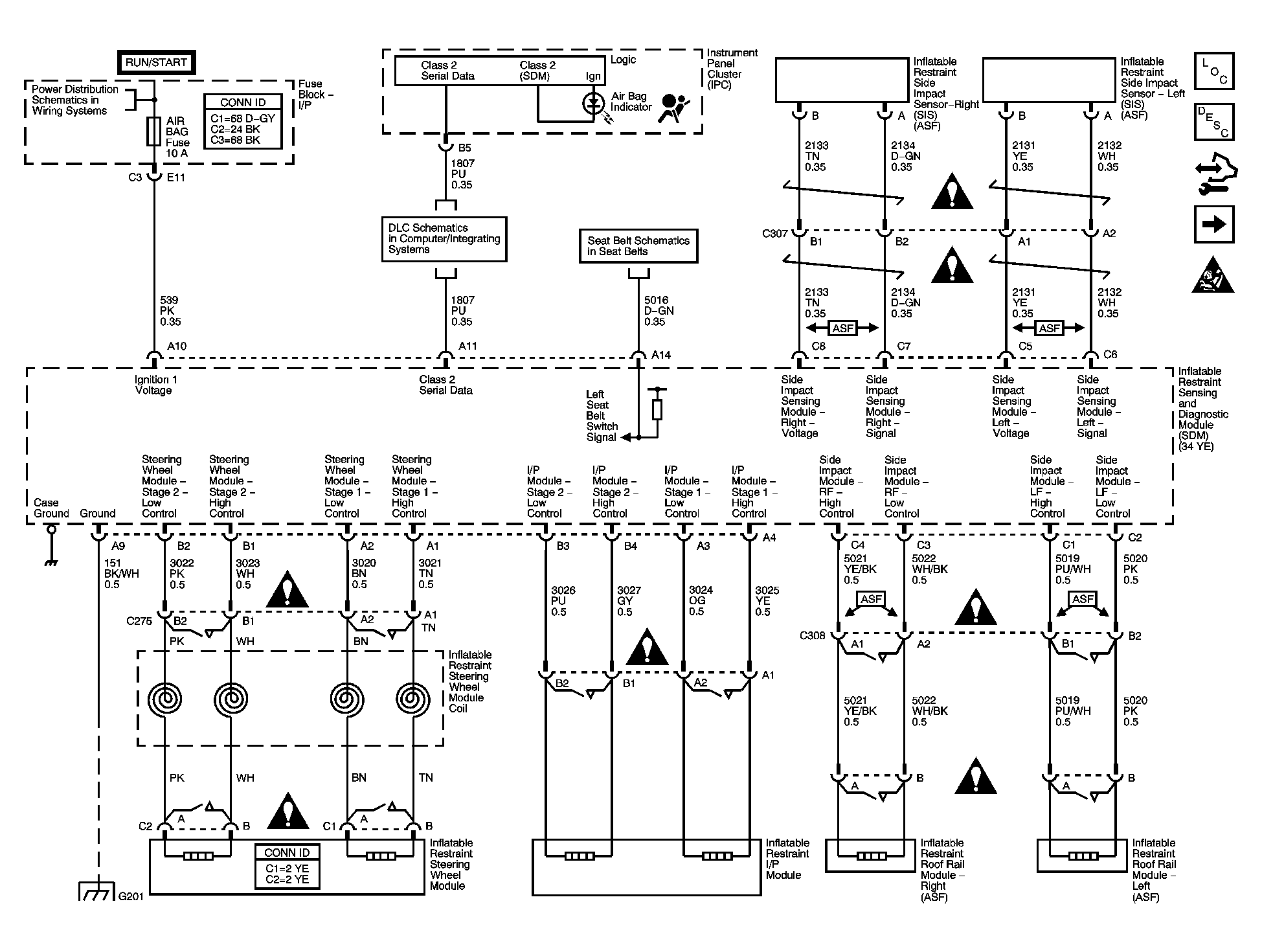

Fig 1: SDM Power, Ground, Indicators, Inflator Modules

GM1373012

Courtesy of GENERAL MOTORS CORP.

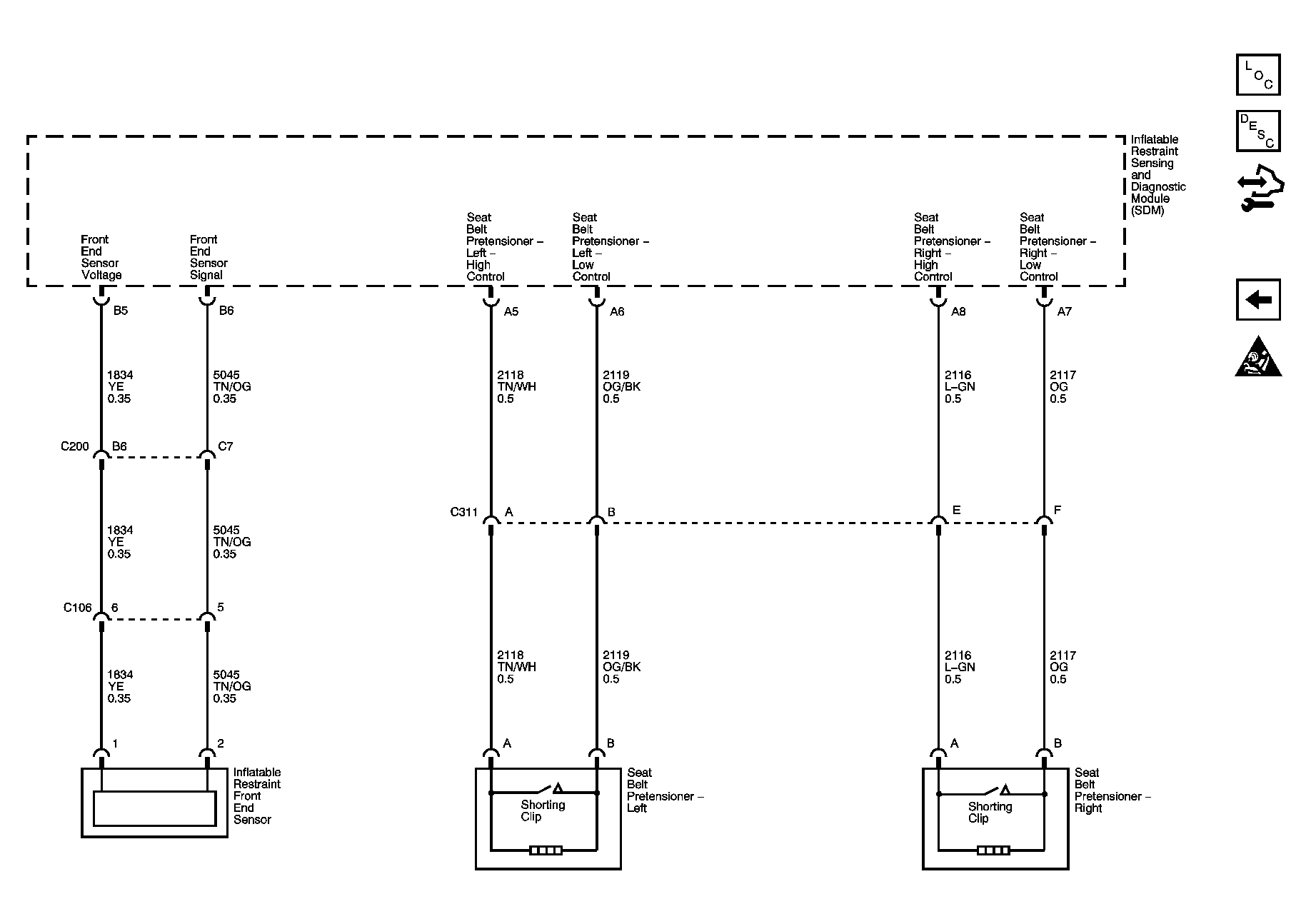

Fig 2: Pretensioners, Front End Sensor

GM1373016

Courtesy of GENERAL MOTORS CORP.
