HVAC Schematics

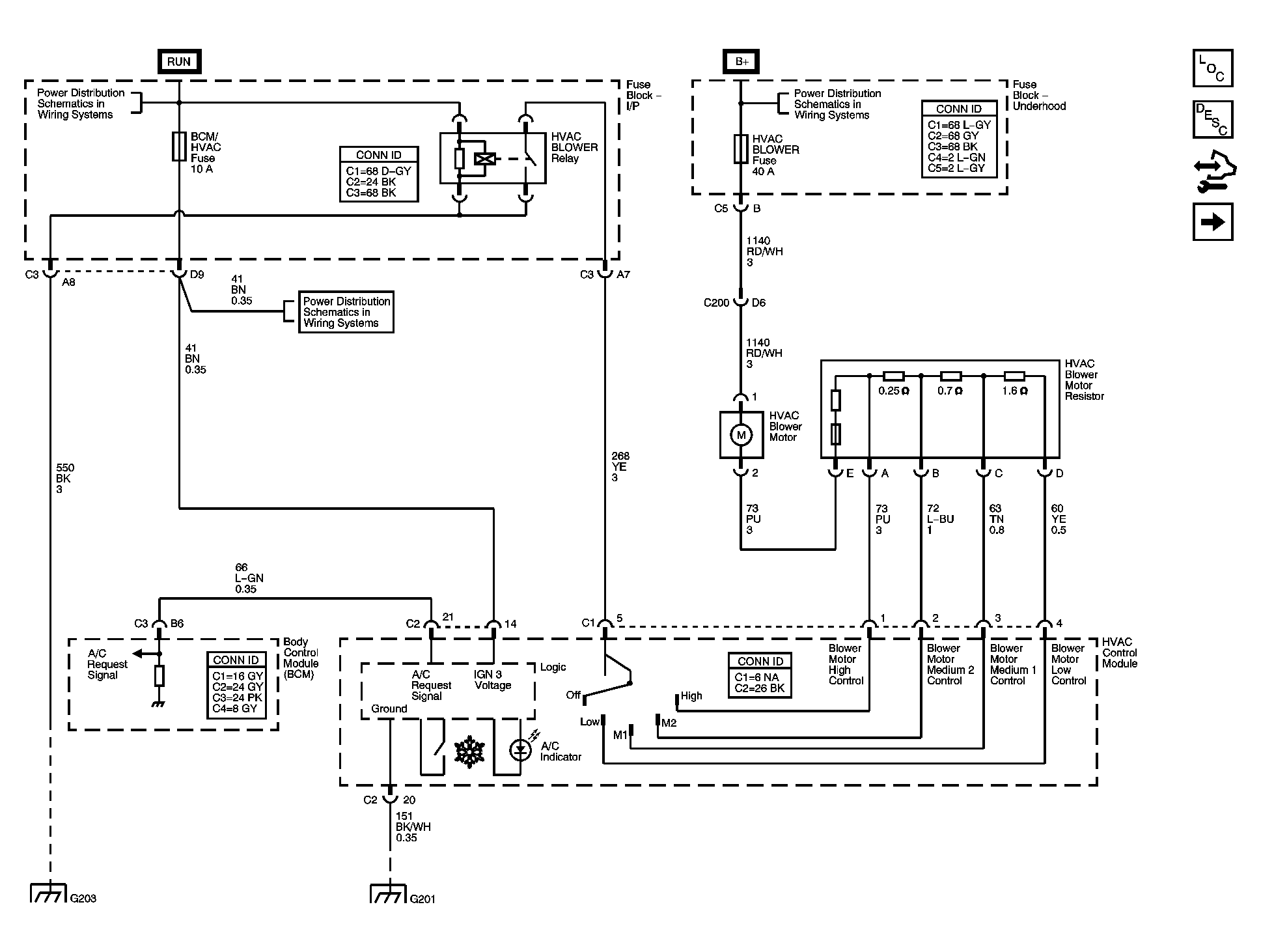

Fig 1: Blower Controls Schematics
GM1625375Courtesy of GENERAL MOTORS CORP.

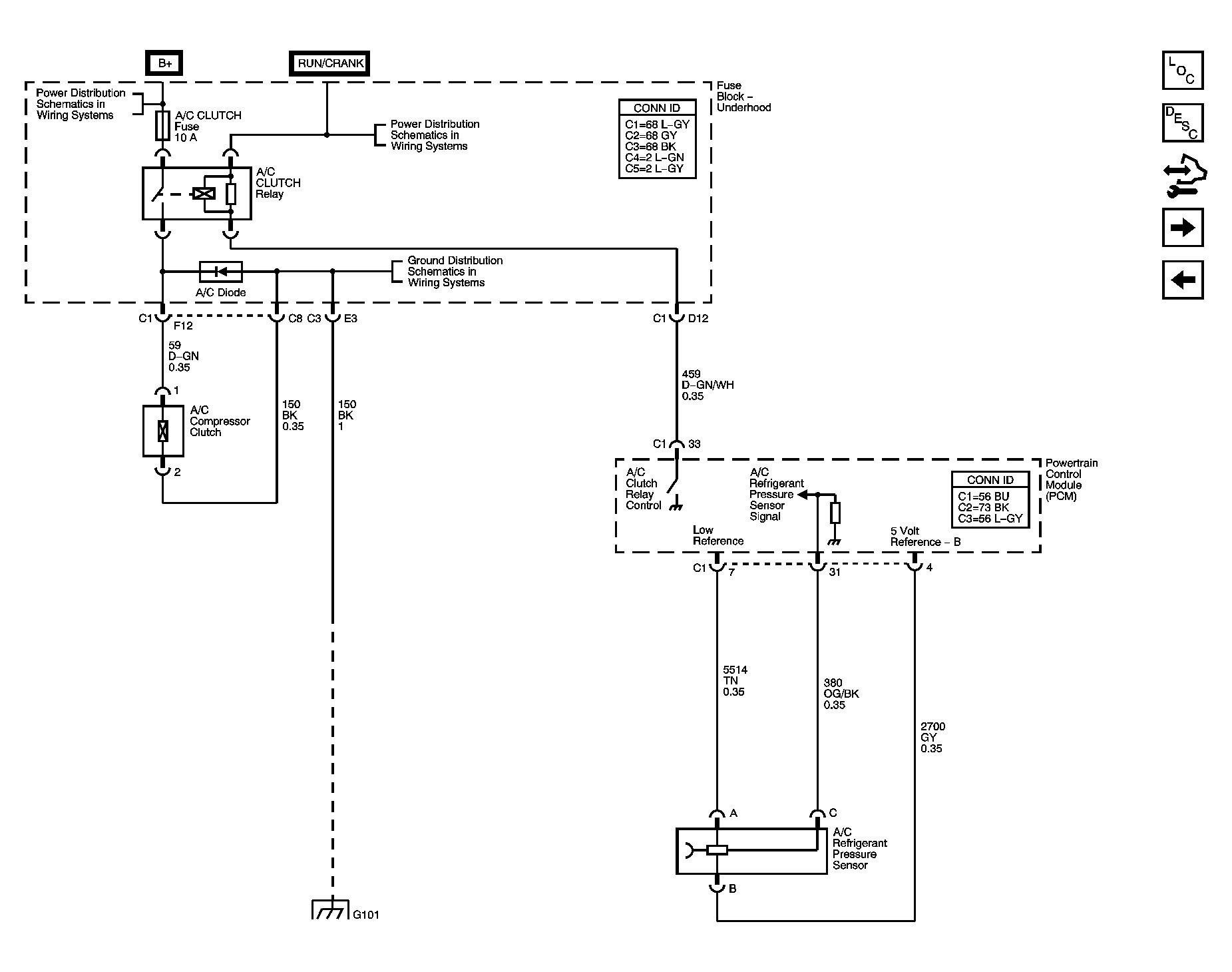

Fig 2: A/C Compressor and Pressure Sensor Signals Schematics
GM1625376Courtesy of GENERAL MOTORS CORP.

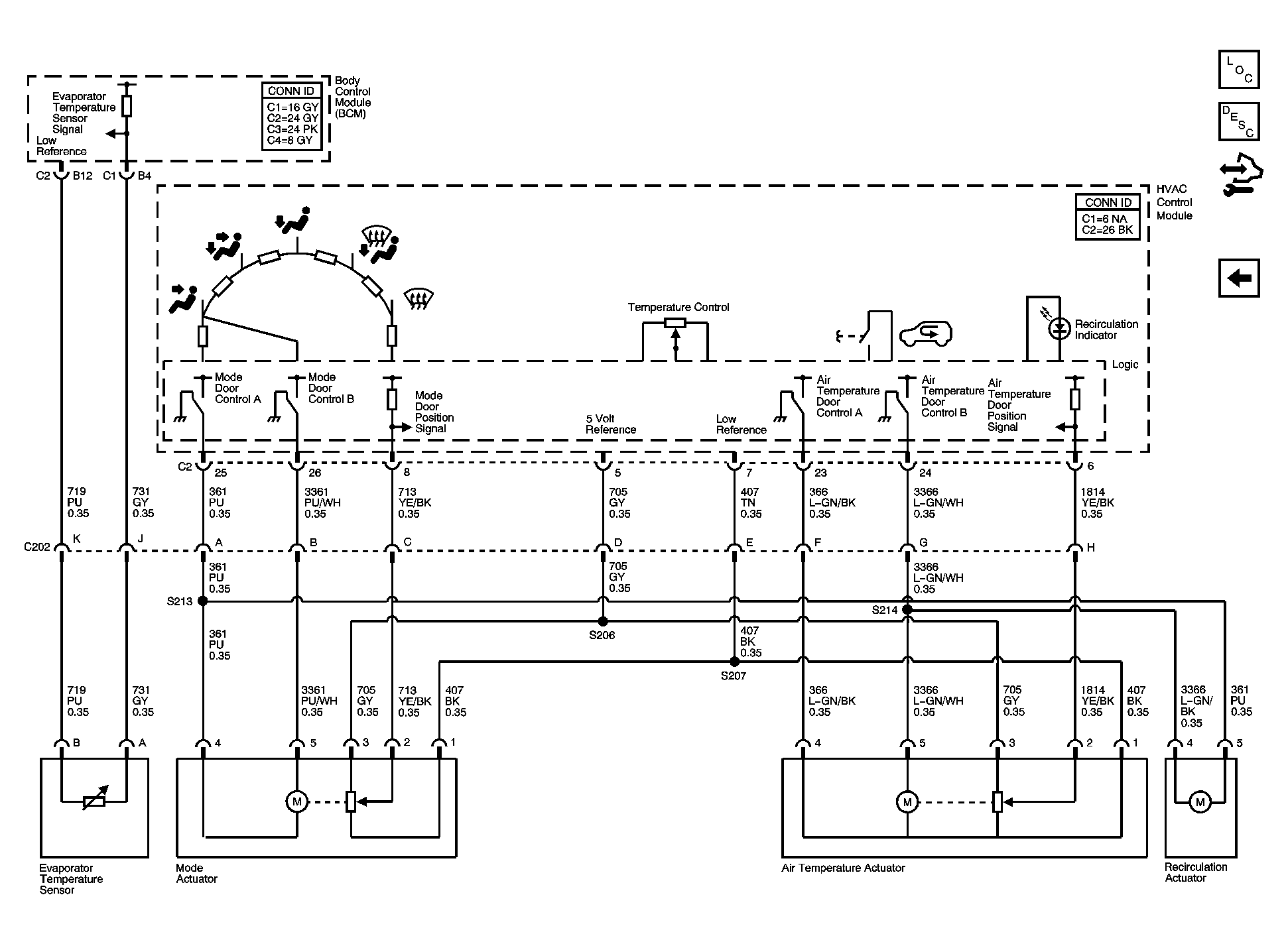

Fig 3: Actuators, Evaporator Temperature Sensor Schematics
GM1625377Courtesy of GENERAL MOTORS CORP.
