Power Sunroof Schematics
Power Sunroof Schematics

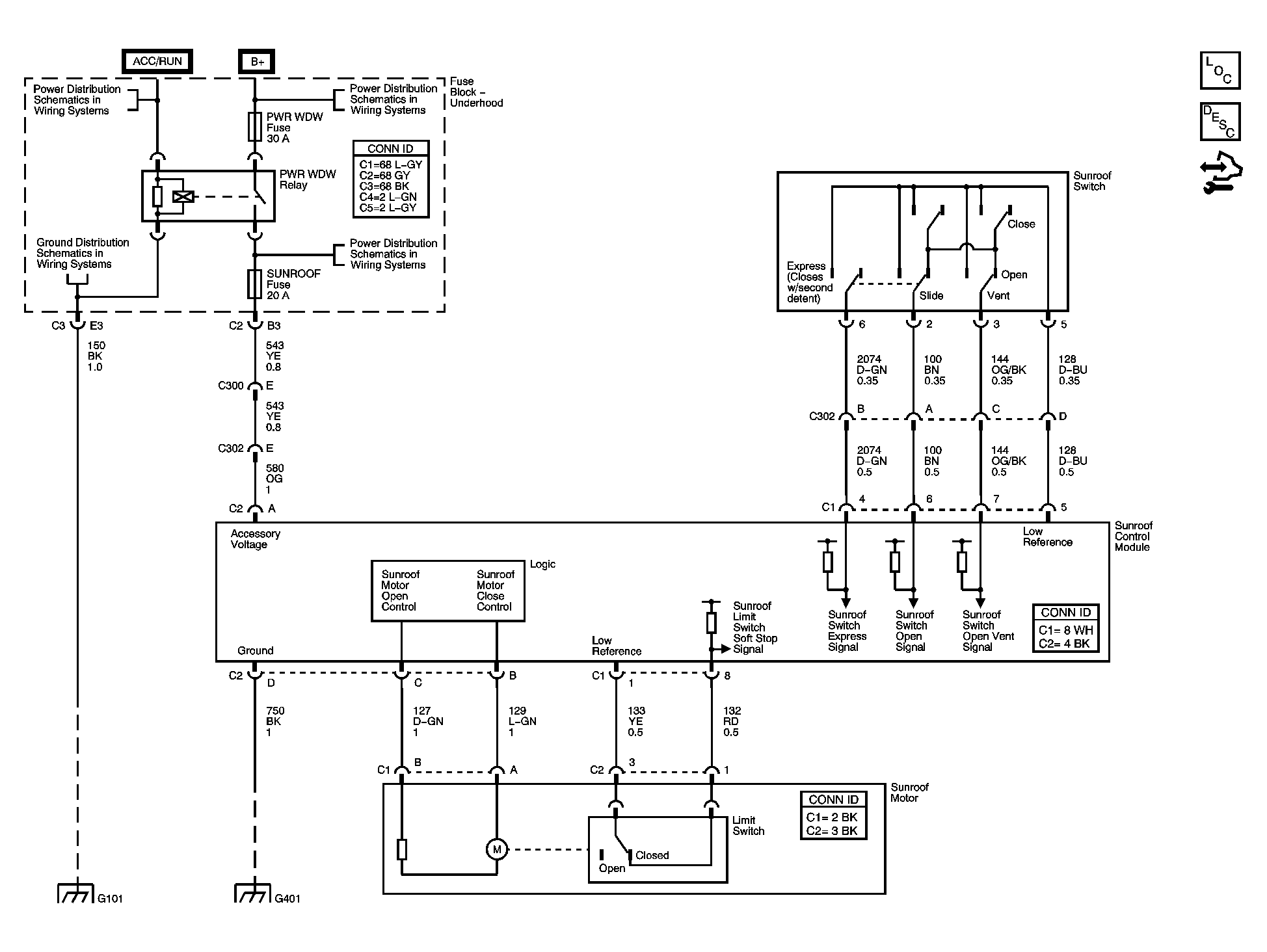

Fig 1: Power Sunroof Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
