Driver Seat Schematics

Fig 1: Driver Power Seat Schematics

GM1380917

Courtesy of GENERAL MOTORS CORP.

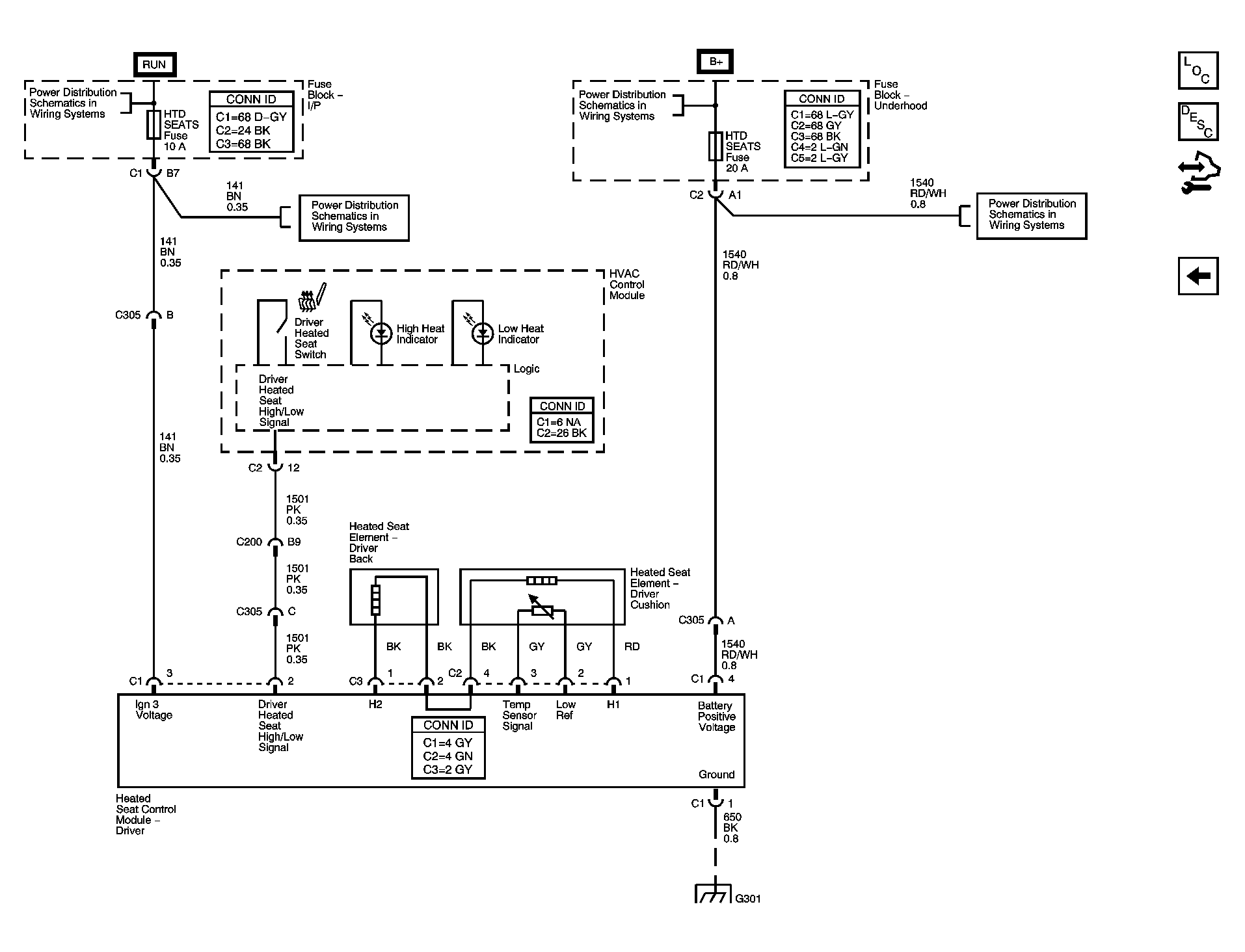

Fig 2: Heated Seat (KA1) Schematics

GM1625757

Courtesy of GENERAL MOTORS CORP.
