Radio/Audio System Schematics (U65)

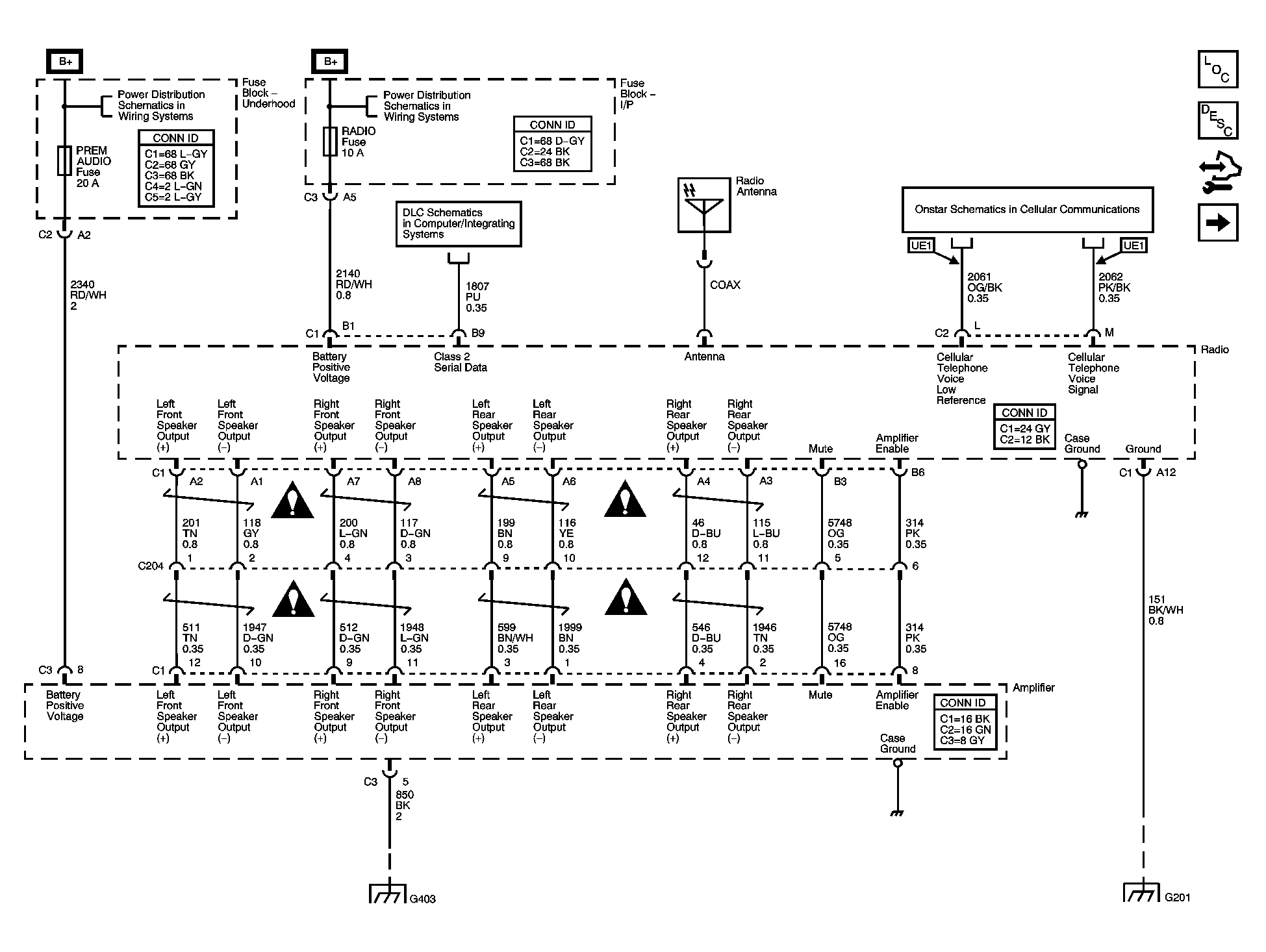

Fig 1: Power, Ground, Amplifier Inputs

Courtesy of GENERAL MOTORS CORP.

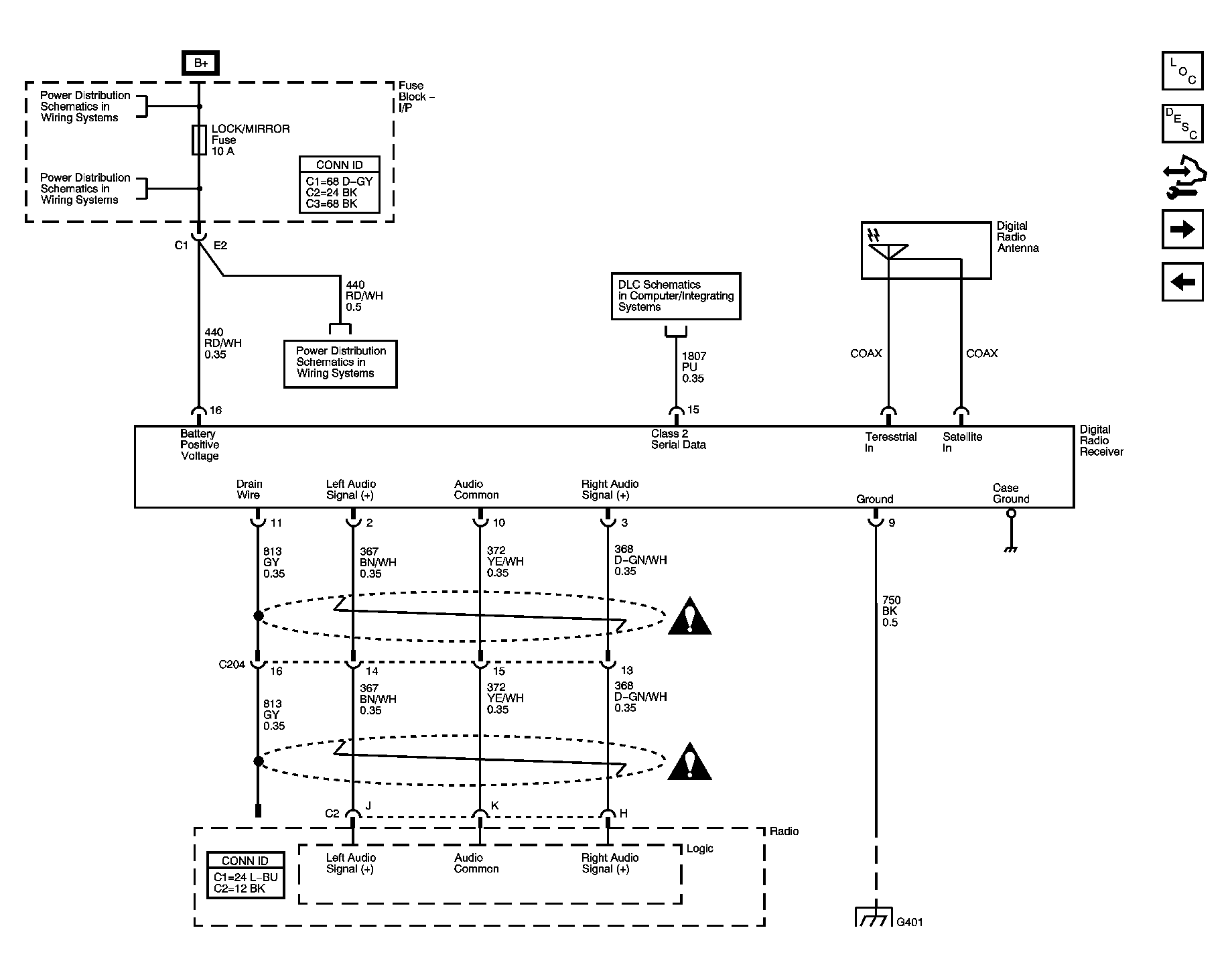

Fig 2: Digital Radio Receiver - U2K

Courtesy of GENERAL MOTORS CORP.

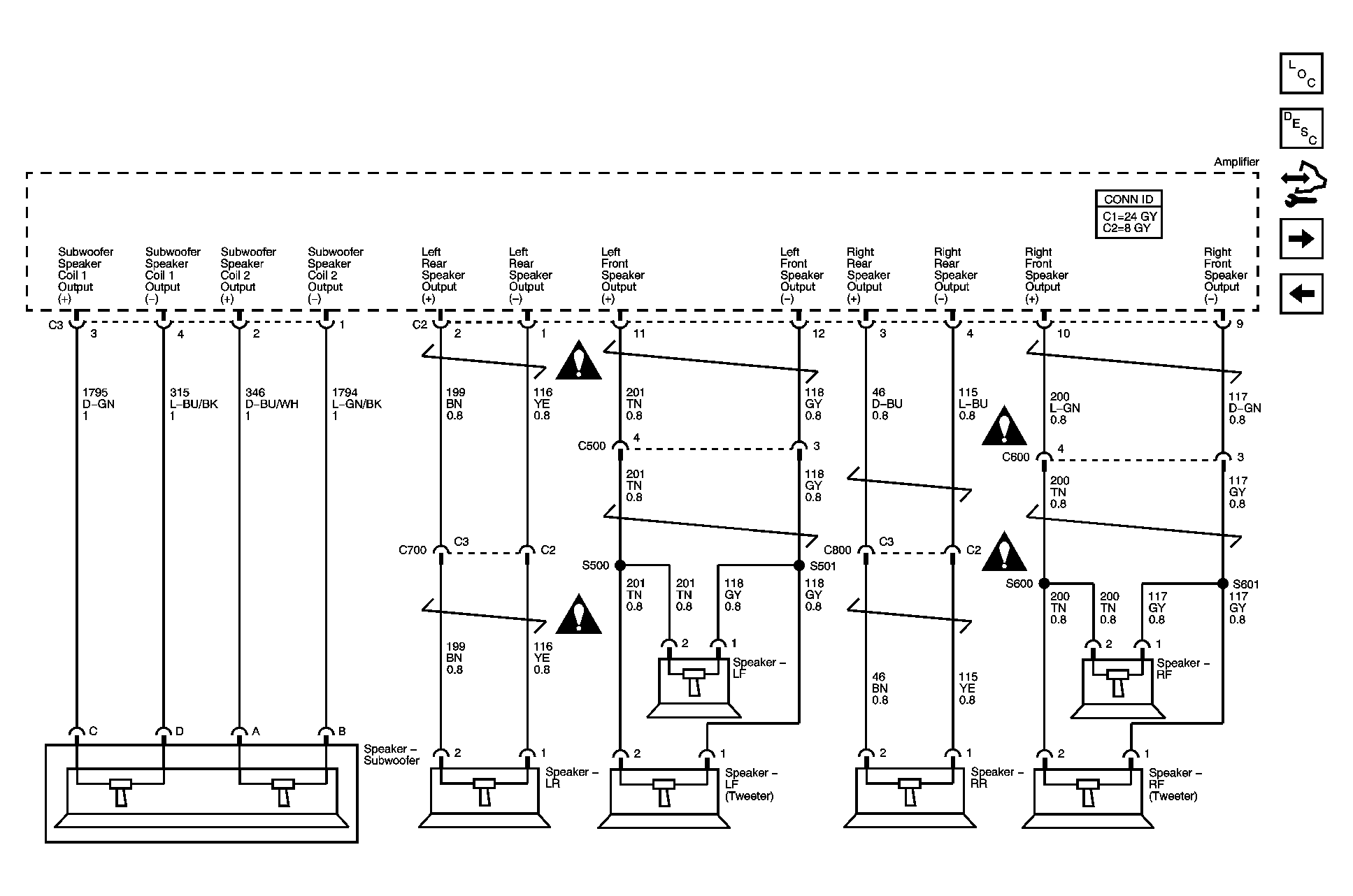

Fig 3: Speakers

Courtesy of GENERAL MOTORS CORP.

Fig 4: Redundant Steering Wheel Controls - Pontiac

Courtesy of GENERAL MOTORS CORP.

Fig 5: Redundant Steering Wheel Controls - Chevrolet

Courtesy of GENERAL MOTORS CORP.
