Radio/Audio System Schematics (U1C)

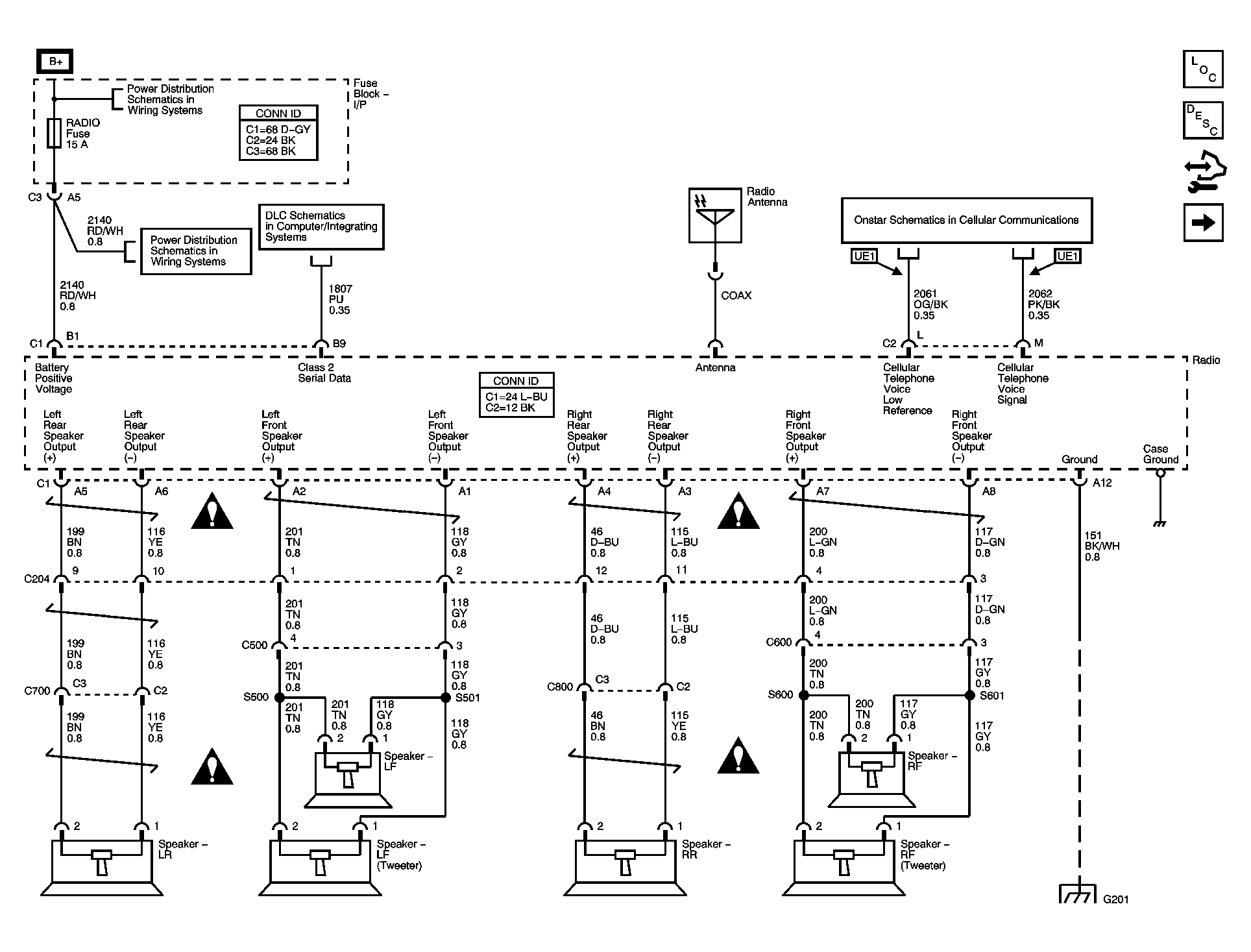

Fig 1: Power, Ground, Speakers
GM1625608Courtesy of GENERAL MOTORS CORP.
Fig 2: Redundant Steering Wheel Controls - Pontiac
GM1655349Courtesy of GENERAL MOTORS CORP.

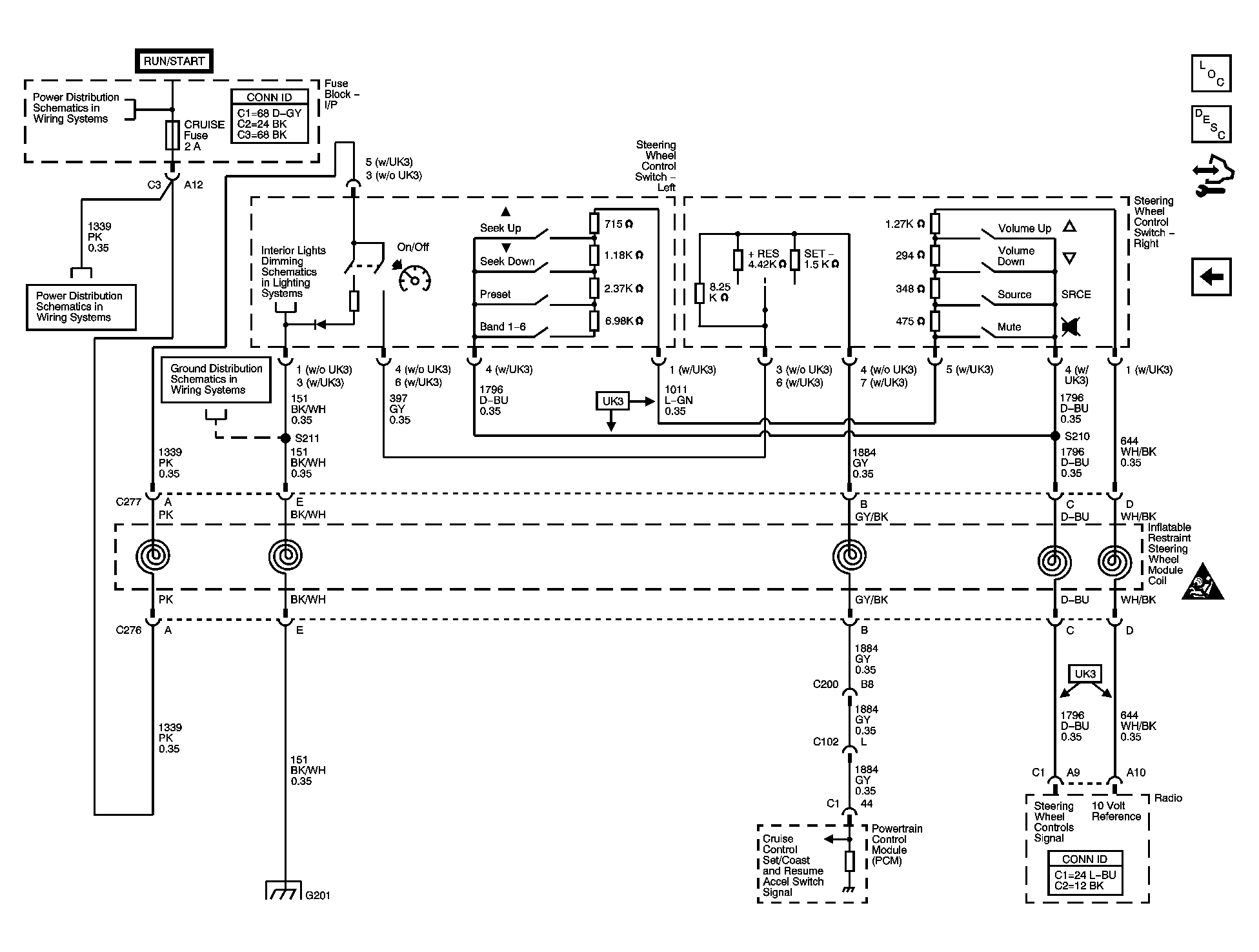

Fig 3: Redundant Steering Wheel Controls - Chevrolet
GM1625619Courtesy of GENERAL MOTORS CORP.
