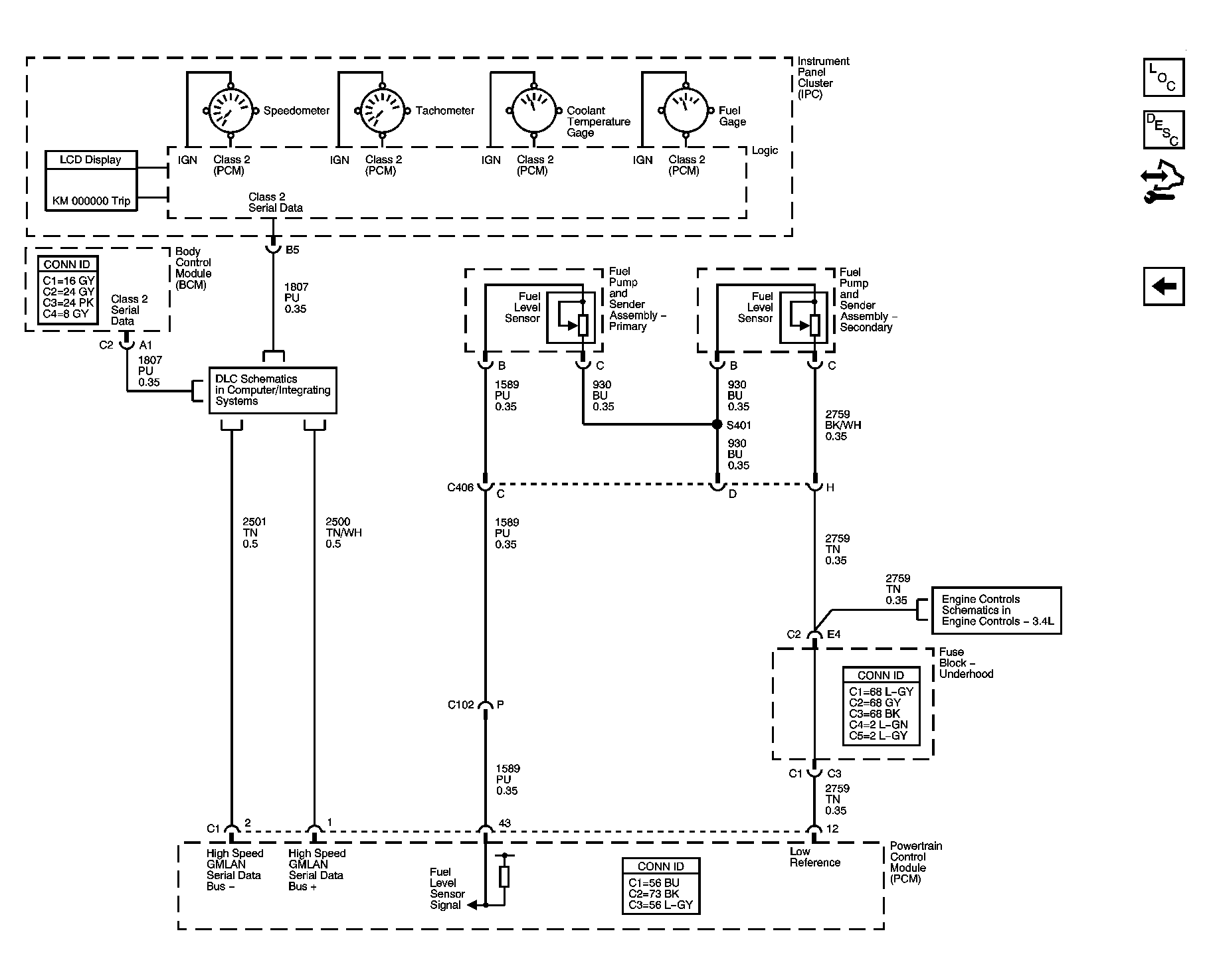

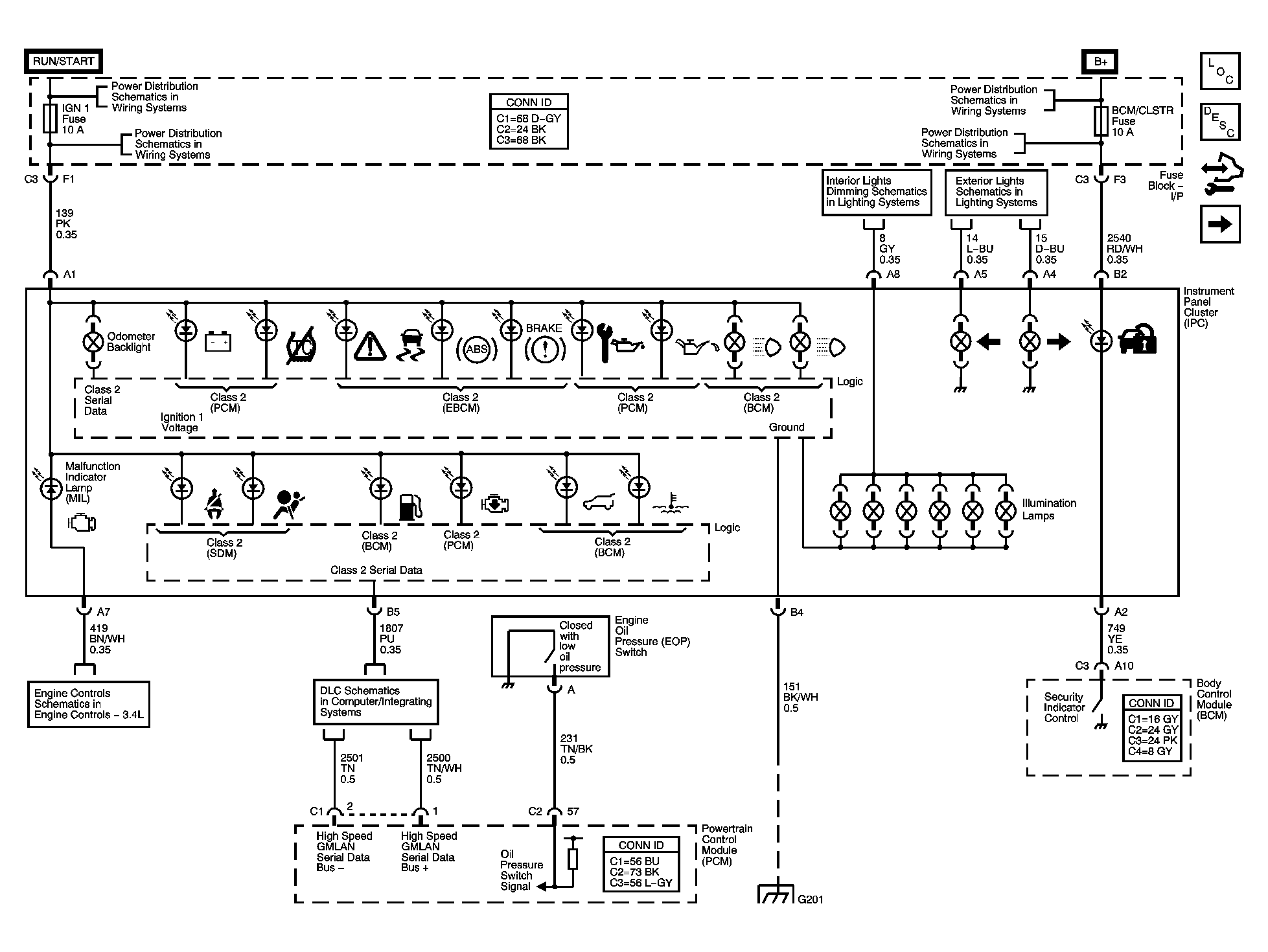

Home >> Pontiac >> 2006 >> Torrent FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays, Gauges And Console >> Schematic and Routing Diagrams >> Instrument Cluster Schematics
