Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fig 1: View Of Lower Right I/P Trim Panel

Courtesy of GENERAL MOTORS CORP.

Align the trim panel with the I/P. Fasten in place.
Tighten: Tighten the fasteners to 2.5 N.m (22 lb in).

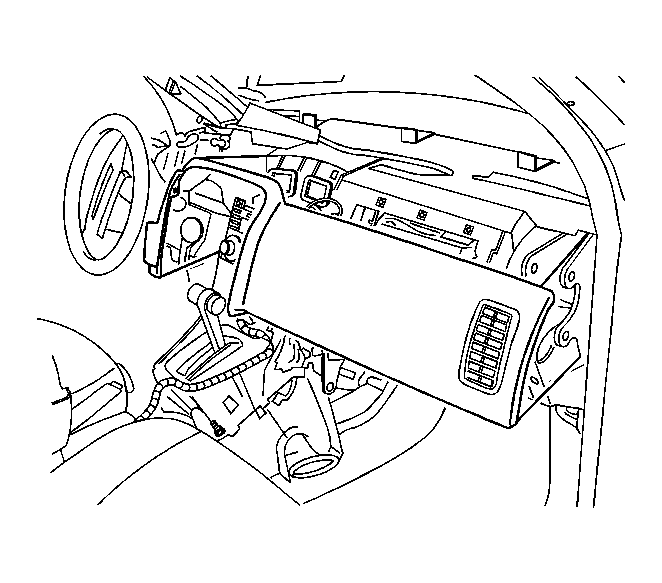

Fig 2: Removing/Installing Upper Trim Pad

Courtesy of GENERAL MOTORS CORP.

Install the upper trim pad. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper .

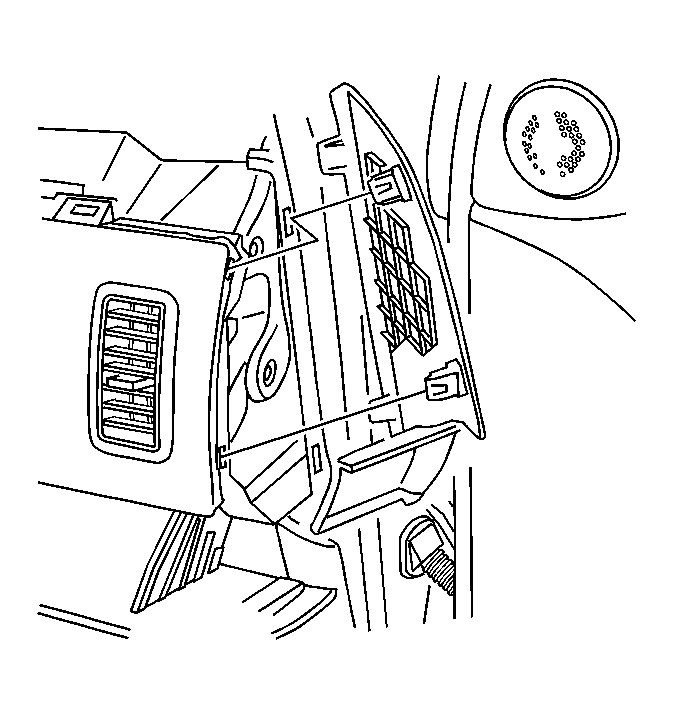

Fig 3: Removing/Installing Right I/P Outer Trim Cover

Courtesy of GENERAL MOTORS CORP.

Install the right side end cap. Fasten in place.
Tighten: Tighten the fasteners to 2.5 N.m (22 lb in).

Fig 4: View Of Center Console Trim Bezel

Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of I/P Cluster Trim Panel

Courtesy of GENERAL MOTORS CORP.

Align the I/P cluster trim bezel. Fasten the bezel into place.
Tighten: Tighten the fasteners to 2.5 N.m (22 lb in).
Close the compartment door.
Inspect the I/P for proper operation.
