Installation Procedure

    Fig 1: View Of Lower Left I/P Trim Panel
    GM1350097Courtesy of GENERAL MOTORS CORP.
  1. Align the trim plate to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the trim plate fasteners to the I/P.

    Tighten:  Tighten the fasteners to 2.5 N.m (22 lb in).

    3. Fig 2: View Of Power Mirror Switch & Dimmer Switch Panel
    GM1344274Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors to the dimmer switch and the power mirror.

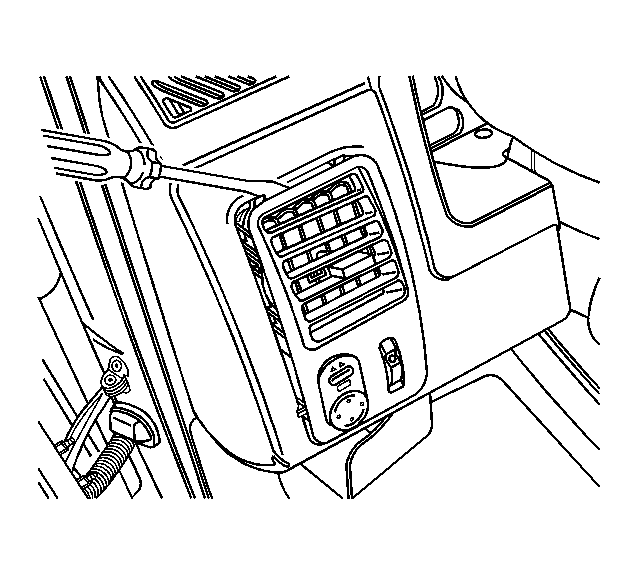

    4. Fig 3: Removing/Installing Left Front Air Deflector
    GM1344277Courtesy of GENERAL MOTORS CORP.
  4. Install the left front air deflector.
  5. Install the upper trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper .
    6. Fig 4: View Of Center Console Trim Bezel
    GM1344259Courtesy of GENERAL MOTORS CORP.
  6. Align the center console trim bezel. Snap the bezel into place.
    7. Fig 5: View Of Left Side End Cap
    GM1347805Courtesy of GENERAL MOTORS CORP.
  7. Install the left side end cap.

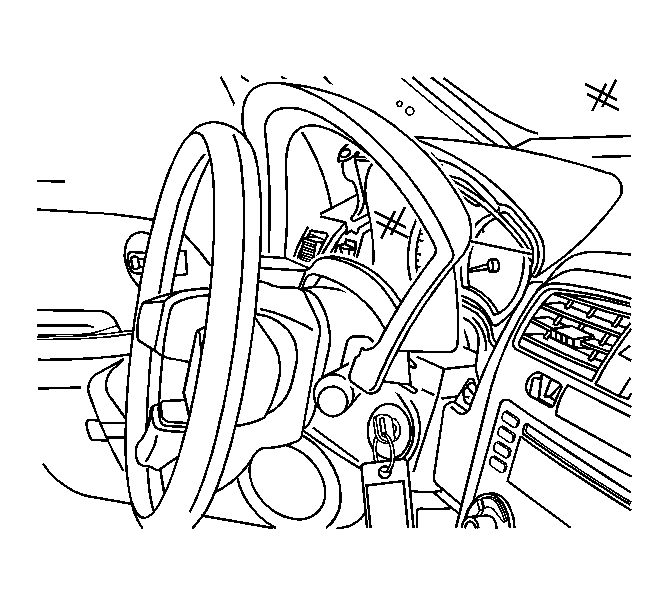

    8. Fig 6: View Of I/P Cluster Trim Panel
    GM1407407Courtesy of GENERAL MOTORS CORP.
  8. Install the cluster trim bezel. Fasten the bezel into place.
    9. Fig 7: View Of Knee Bolster (Filler Panel) & Screws
    GM939650Courtesy of GENERAL MOTORS CORP.
  9. Install the left side knee bolster.

    Tighten:  Tighten the fasteners to 2.5 N.m (22 lb in).

  10. Inspect the I/P for proper operation.
